Boeing 737 Overhead Panels 3D print model

Boeing 737 Overhead Panels (Mechanisms and knobs not included)

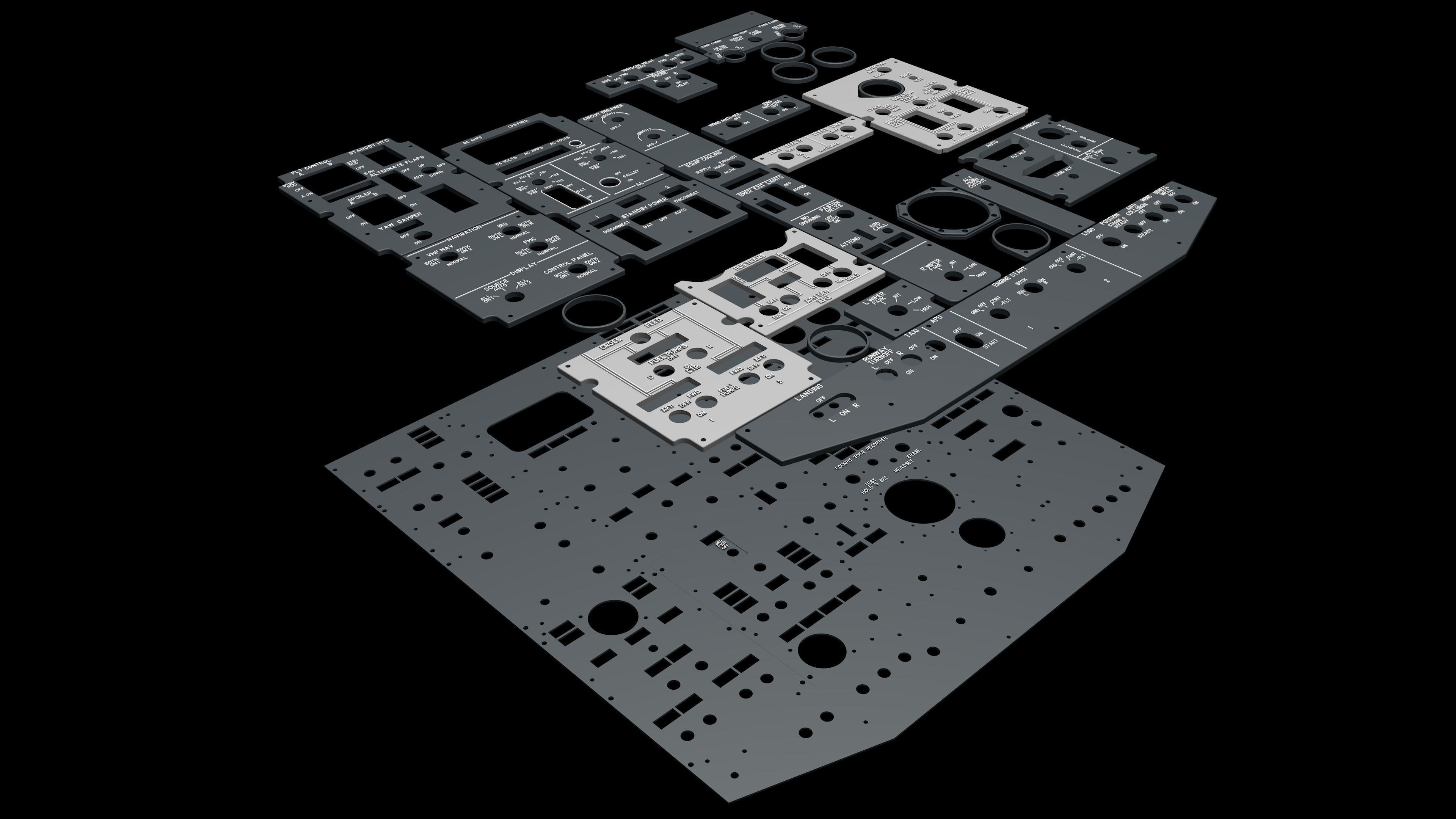

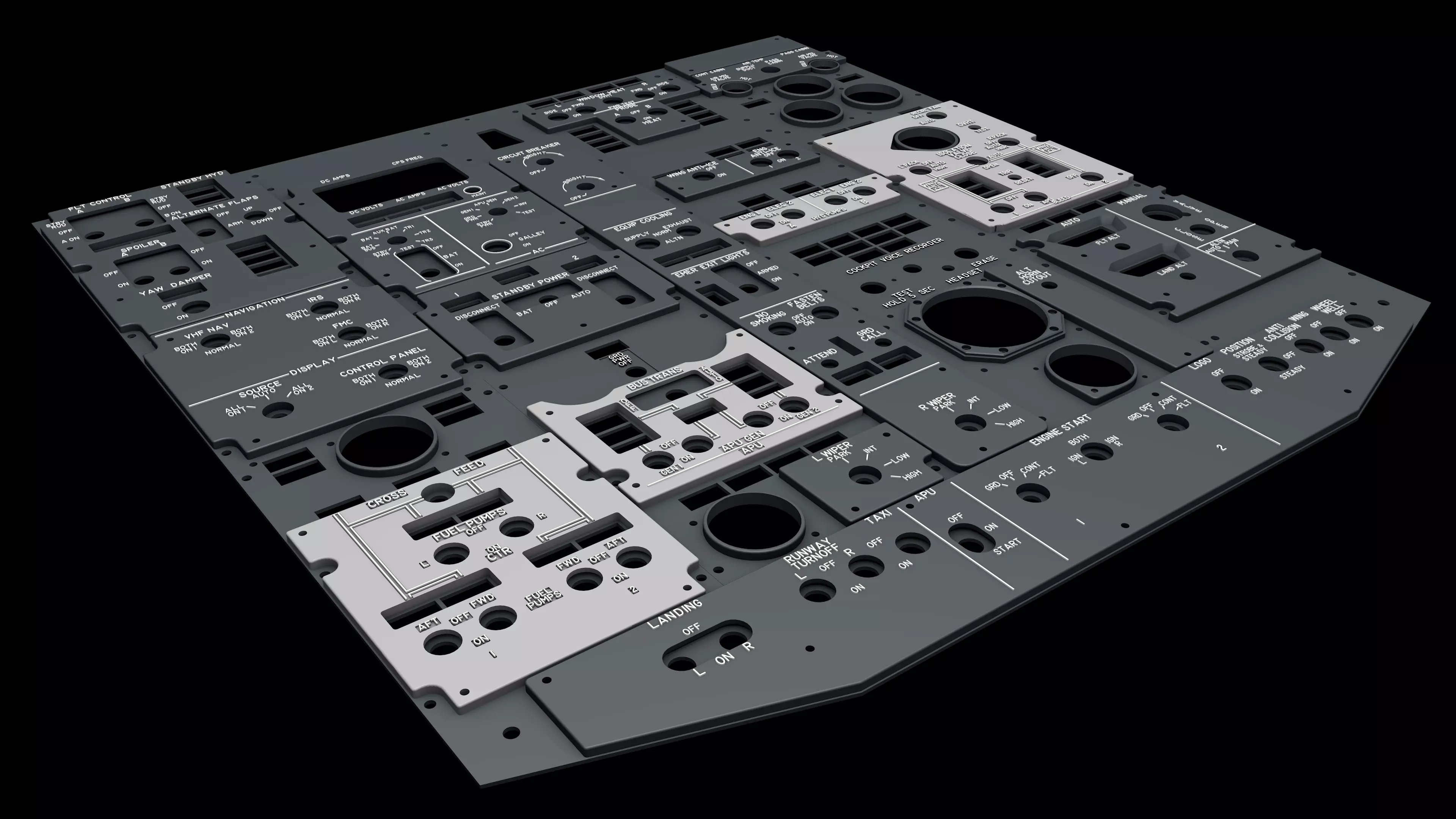

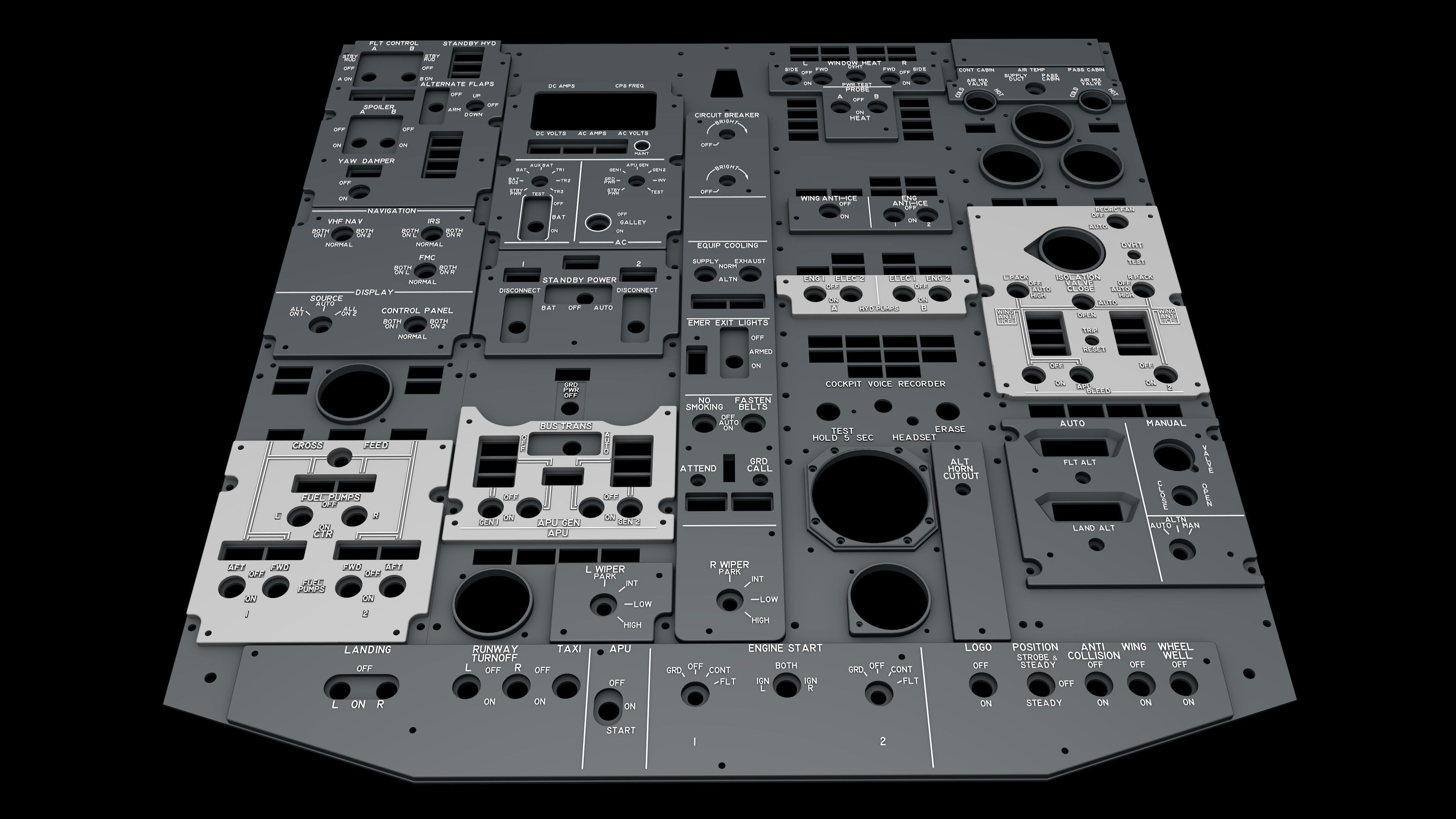

This model includes the following panels (With both back-plate and front-plate at real accurate aircraft scale and ready for 3D printing):

• Lights Panel
• Digital Pressurization Panel
• Voice Recorder Panel
• Pneumatics Panel
• Door Annunciator Panel
• Air Conditioning Panel
• Blank Right Panel
• Cabin Pressure Panel
• Hydraulic Panel
• Anti-Ice Panel
• Window Heat Panel
• Central Panel
• Bus XFR & Apu Panel
• Standby Power Panel
• Electrical Panel
• Fuel Panel
• Blank Left Panel
• Flight Control Panel
• Navigation Panel

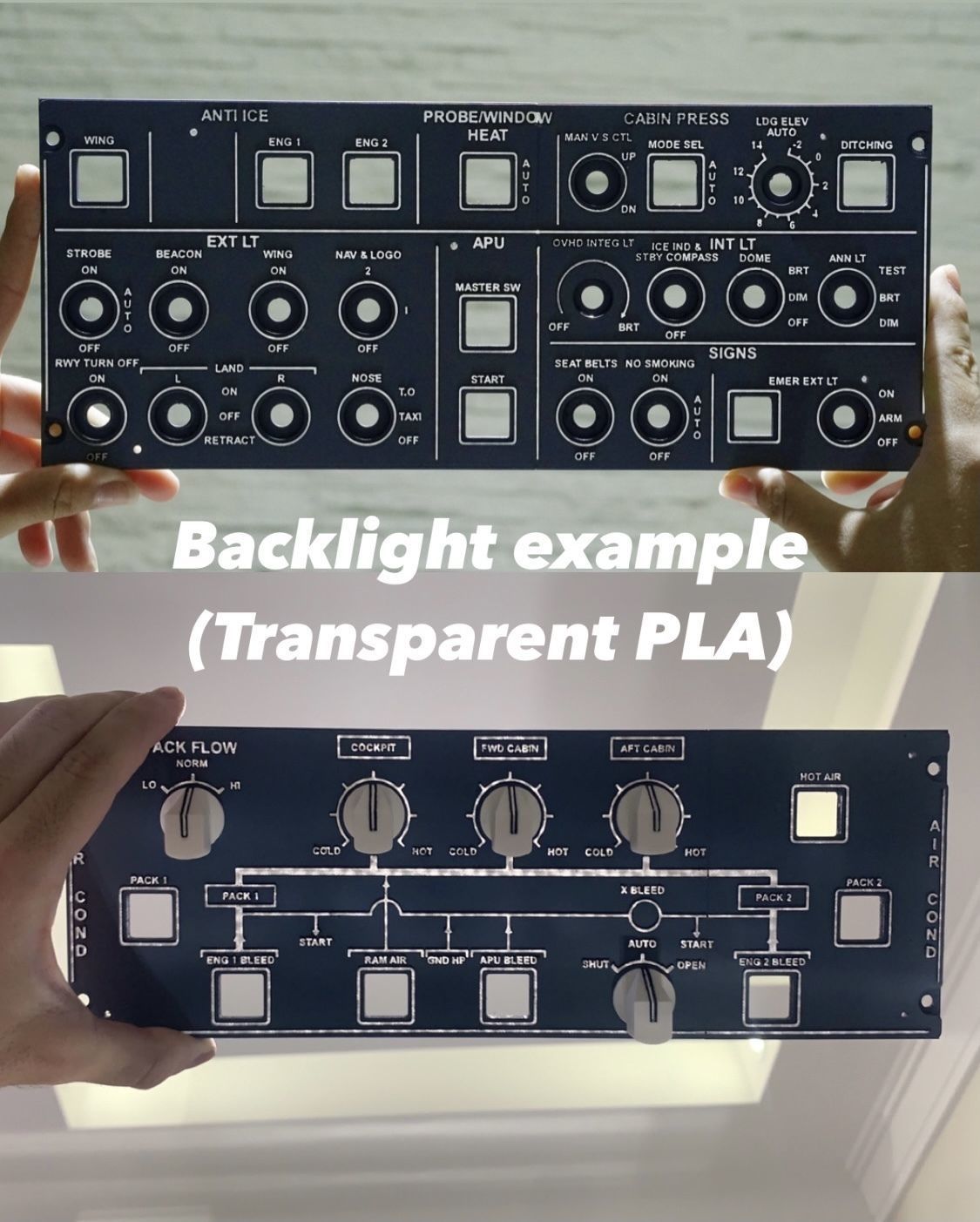

The files are designed in a way that allows creating the backlight effect without the need for a laser cutting machine. For that, just do the following steps:

(1) - Print the panels with transparent PLA (I recommend printing it with 20% infill, and 0.12mm quality), or with white resin. (2) - Apply primer and paint your panels the way you want (Do not sand them yet). (3) - Now with your primer and paint finished, place your sandpaper (I recommend higher grits) on top of a flat surface, and rub the panels on top of it, so that the paint that covered the decals comes out; be careful to not damage your painting.
