Arduino Adaptation Multi - Module Housing Mount DIN Rail 3D print model

Description

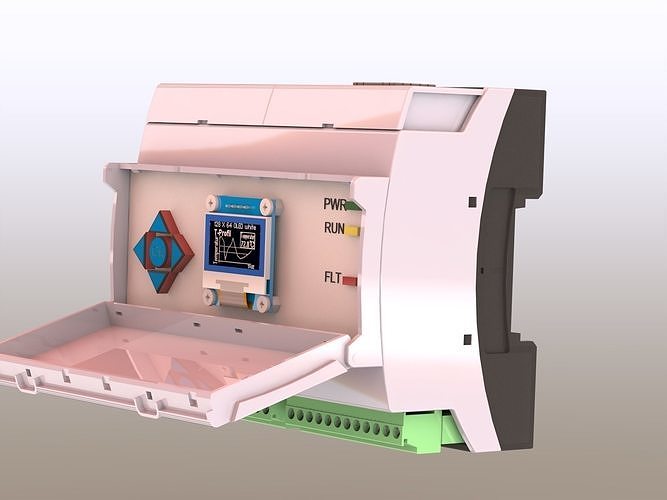

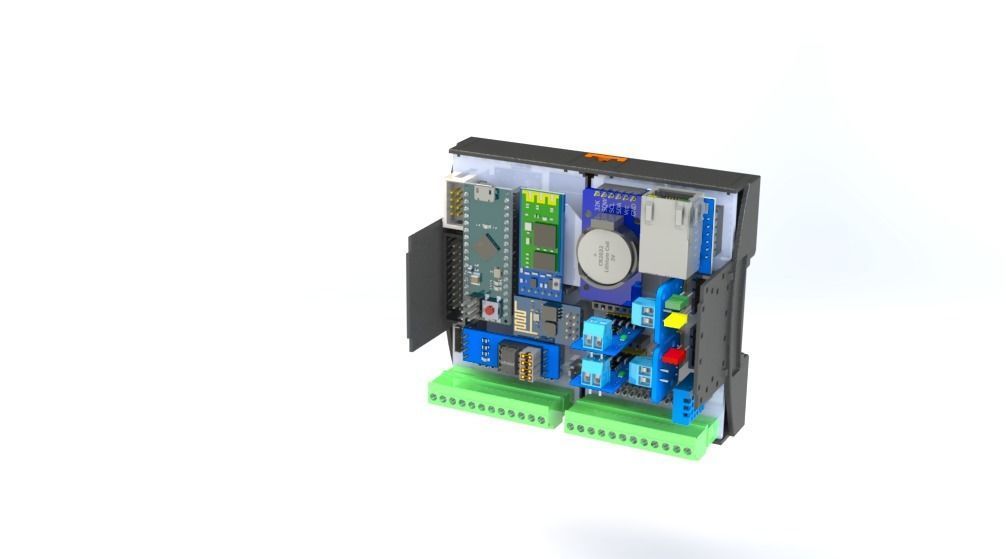

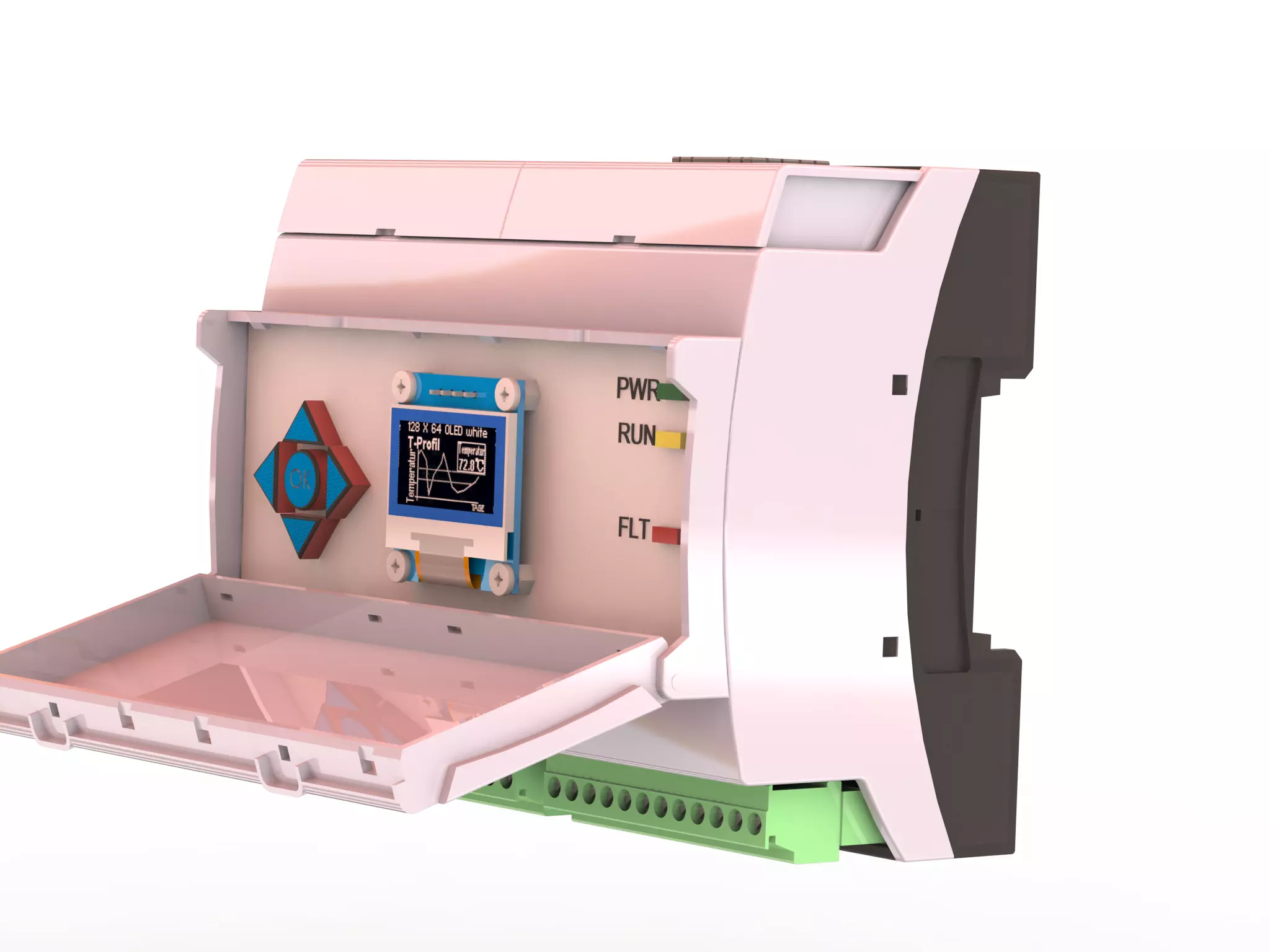

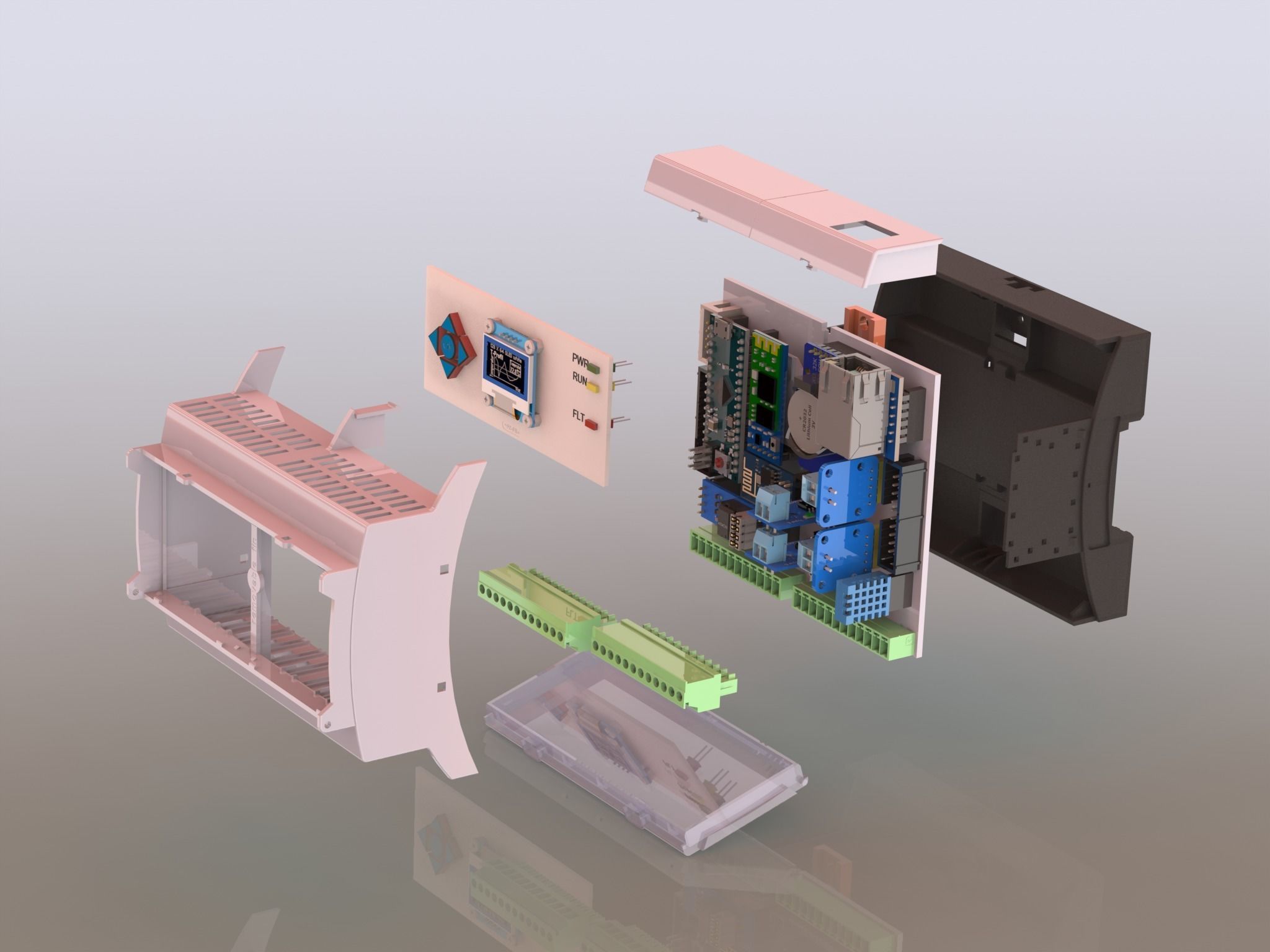

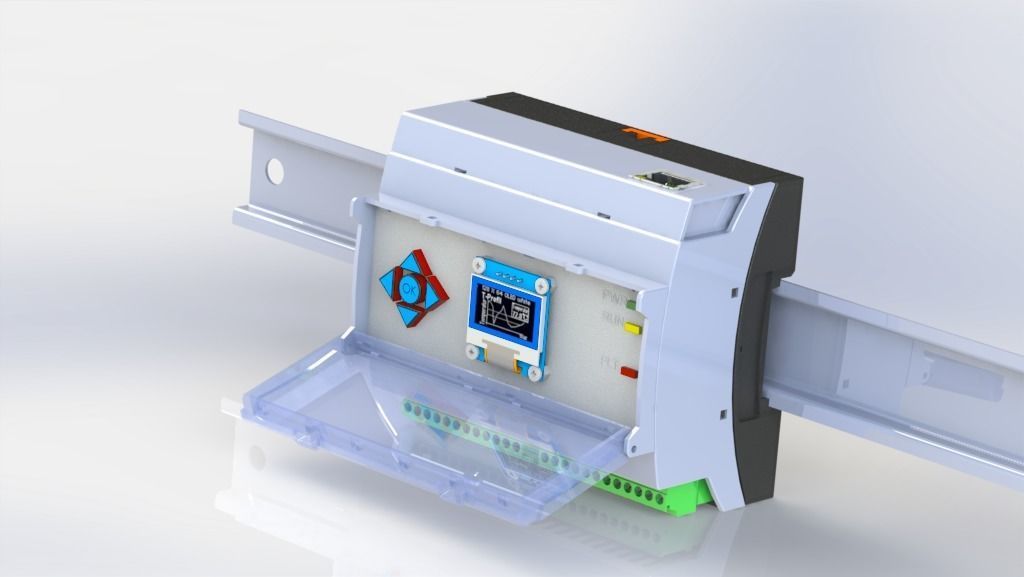

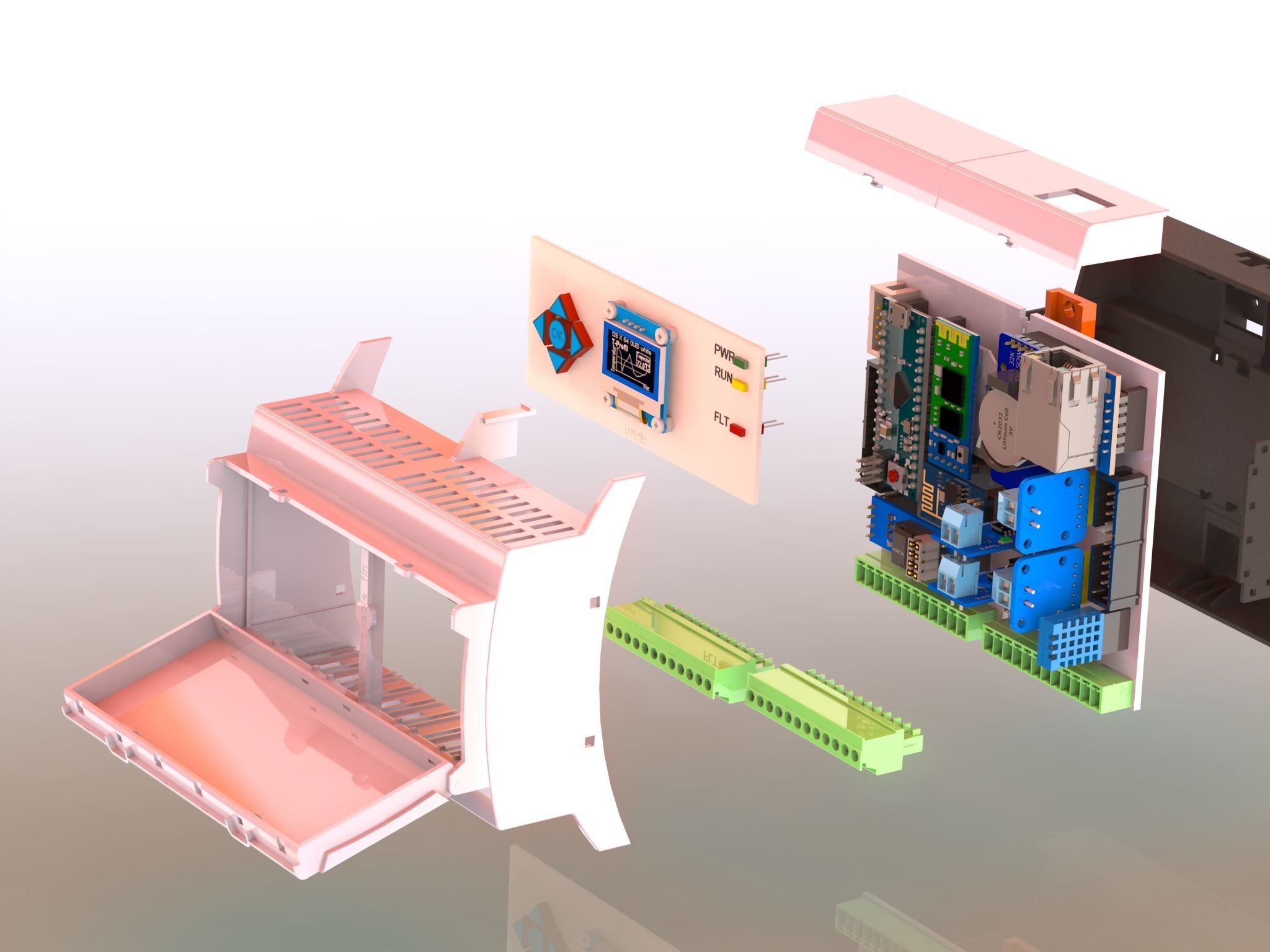

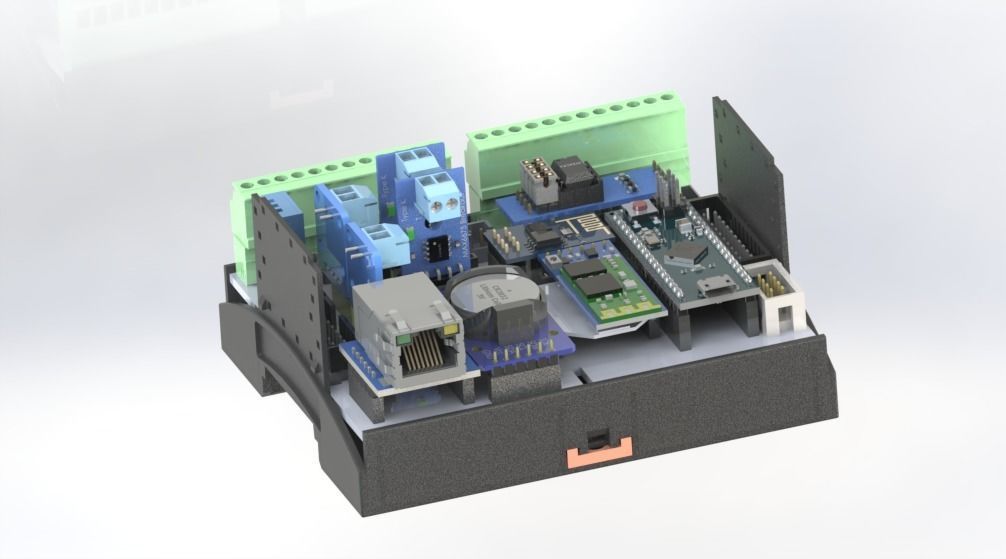

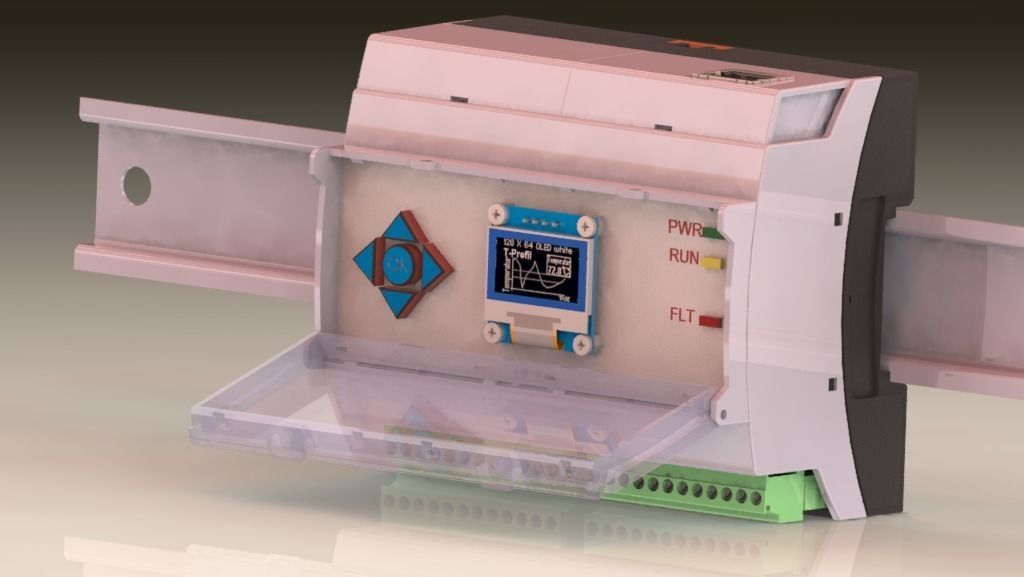

This model in 3d corresponds to the Housing Mount DIN Rail of Phoenix Contact (Serie BC modular housings) For Arduino Module adaptation , to be used with Arduino technology. In this 3d design the following modules that work with arduino technology are included, such as:

  • Arduino Micro.
  • Modulo XBee Pro.
  • HC-06 Bluetooth module .
  • AD8495 Thermal K-Type Thermocouple.

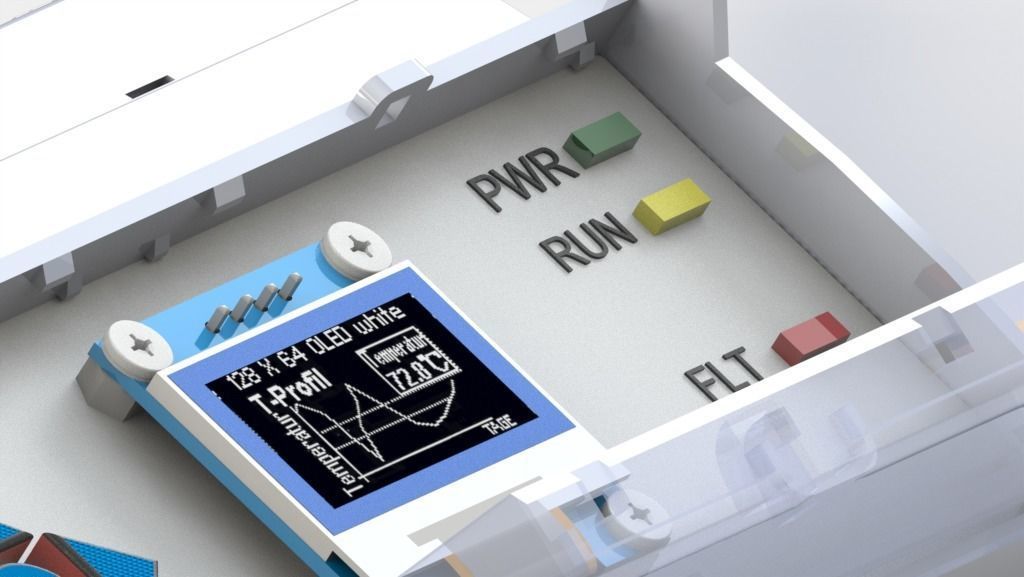

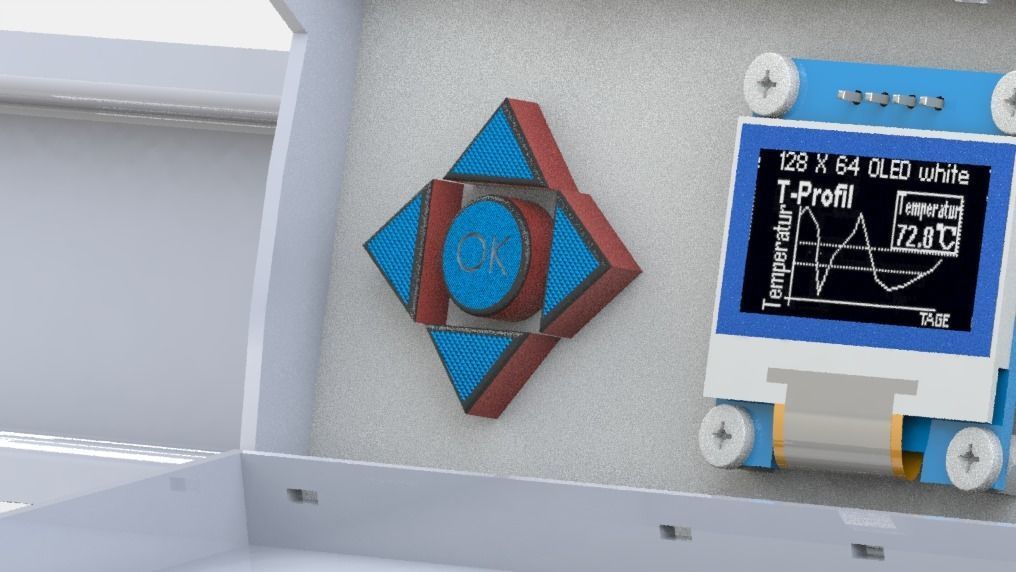

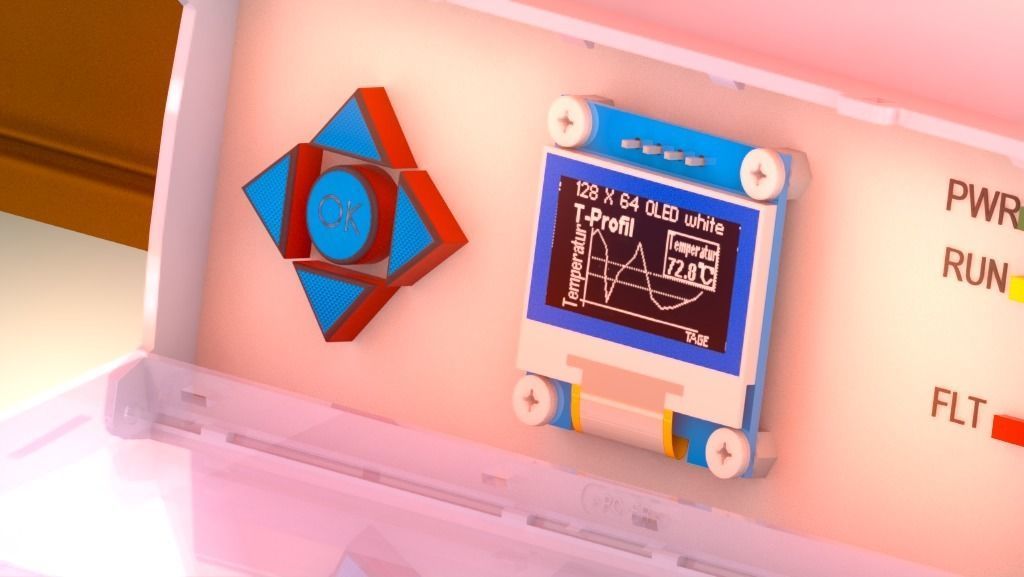

  • Display OLED 0.96" 128x64 I2C.
  • Module Memory ATC24XX PCB.
  • Module PCB MAX6675 Thermocuple K.
  • Module PCB Keyboard 4 Arrow 1 Central OK.
  • Module RTC DS3231 Real Timer.
  • Sensor Temp Hum DHT11.
  • Modulo SPI URS-ES1 (Ethernet RJ45)

Can be used with applications such as Solidwork PCB, Altium Design and other programs that support conversion of igs, step and native formats.

Formats:Native: Solidwork. sldprt. sldasm.Other: pdf igs. step. Video. AVI png.

*NOTE: * The BC modular housings and terminals (MCV_1_5-12-G-3_81 and mcvw_1.5-12-st-3.81), are exclusive design of Phoenix Contact, in this announcement and sale promotion, it is only negotiated by the included modules design for arduino. The use of the modules designed by Phoenix Contact, must follow the use policies set by Phonix Contact.
