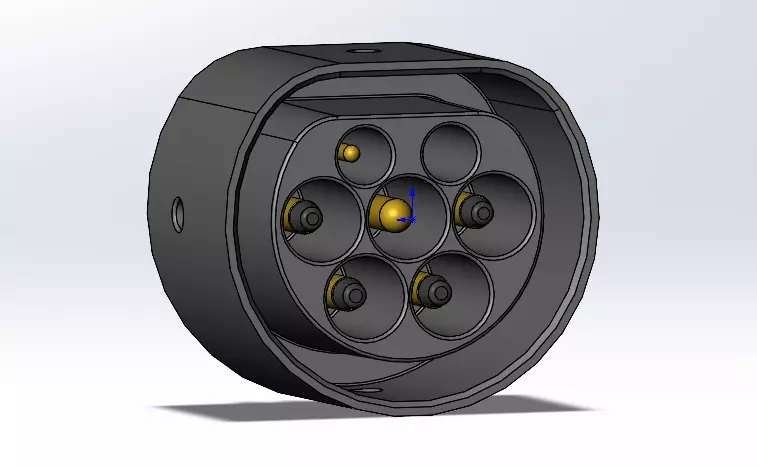

  • Type2 vehicle inlet up to 480V 3ph 63A or 1ph 70A no nose 3D print model_0

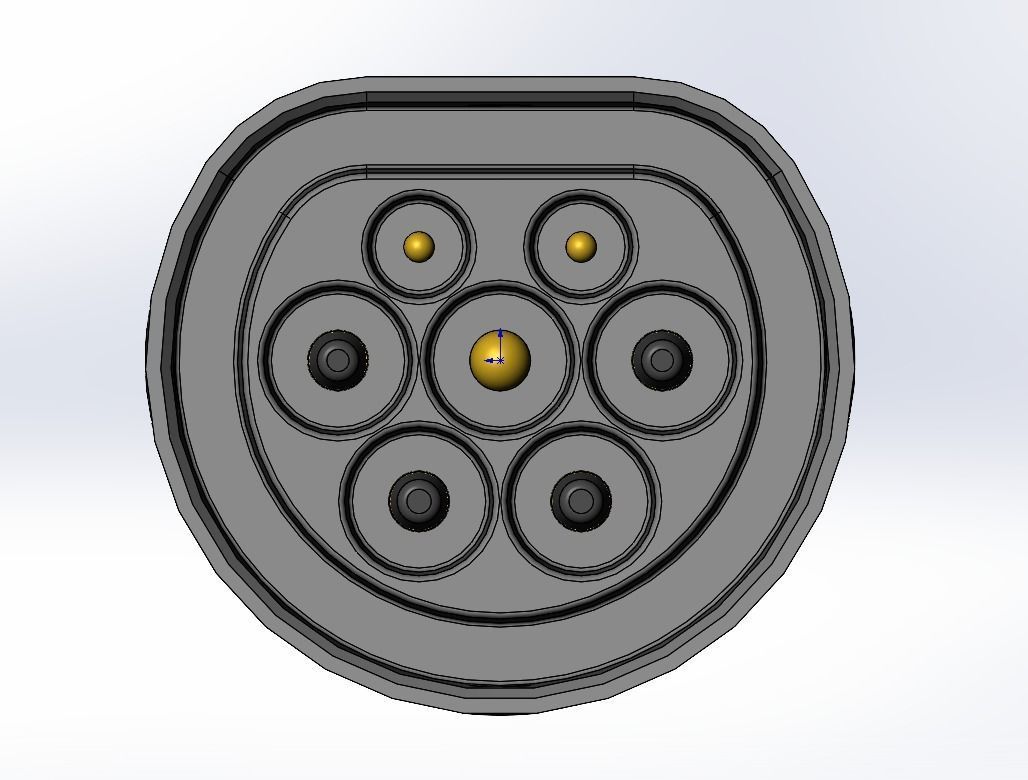

  • Type2 vehicle inlet up to 480V 3ph 63A or 1ph 70A no nose 3D print model_1
  • Type2 vehicle inlet up to 480V 3ph 63A or 1ph 70A no nose 3D print model_2
1 / 3
Useto navigate. Pressescto quit

Type2 vehicle inlet up to 480V 3ph 63A or 1ph 70A no nose 3D print model

Description

3d model full size matching to IEC 62196-2-2011, SHEET 2-IIf configuration. Each metal contact of this model is designed as a separate solid body that you can conveniently and easily cancel in your software if you do not need them. You can use it for manufacturing, projecting your custom thigs or just render. Project contains files PDF 3d\IGES(igs)\STEP(stp)\STL\3MF\AMF. Check my other EV connectors 3d models. Any questions. Open for work.

Write comment
Item rating
0 0
Type2 vehicle inlet up to 480V 3ph 63A or 1ph 70A no nose
$7.00

Royalty Free License
Type2 vehicle inlet up to 480V 3ph 63A or 1ph 70A no nose
$7.00

Royalty Free License
Available in these collections
F
FedirM
(11 reviews)
Response 97% in 0.2h
3D Modeling
3D Print Modeling
Rendering
Hire meView all Designers Models

3D Model formats

Format limitations
  • IGES (.ige, .igs, .iges)779 KB
  • PDF (.pdf)82.7 KB
  • Stereolithography (.stl)1.99 MB
  • 3D Manufacturing File (.3mf)478 KB
  • amf (.amf)4.09 MB

3D Model details

  • Publish date2023-01-04
  • Model ID#4206924
  • Ready for 3D Printing
