Type2 MENNEKES vehicle connector up to 480V and 16A 3 or 1 phase 3D print model

Description

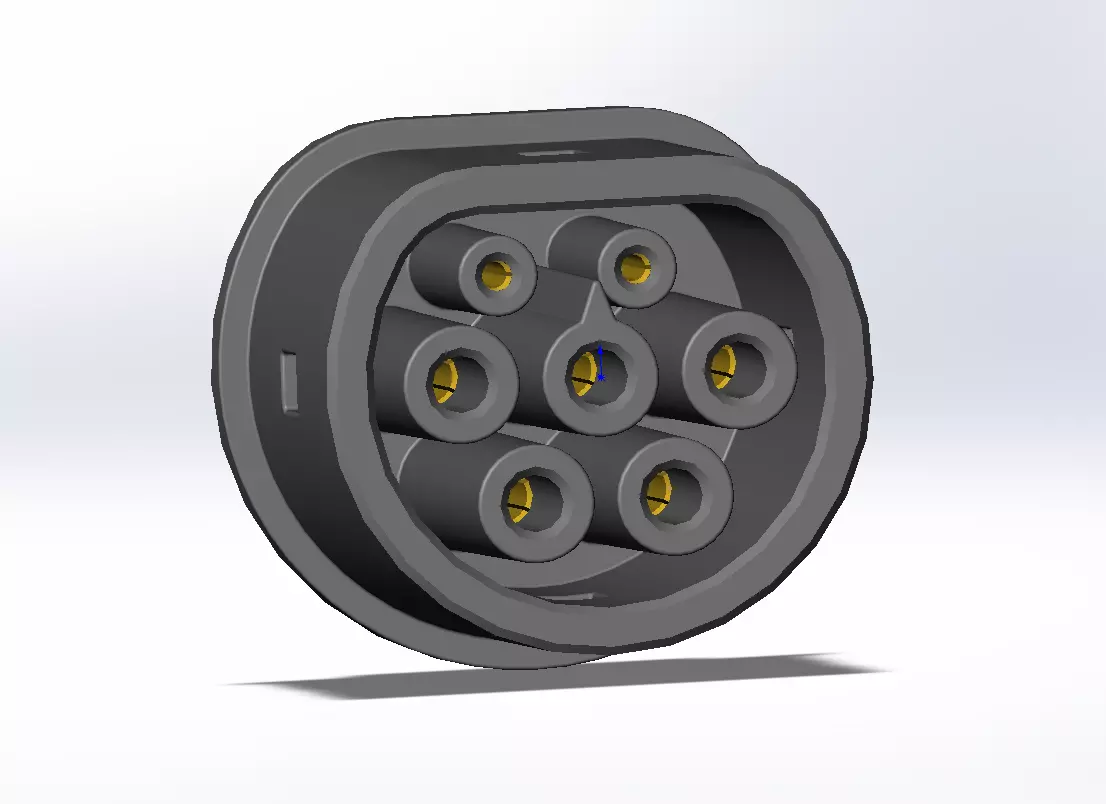

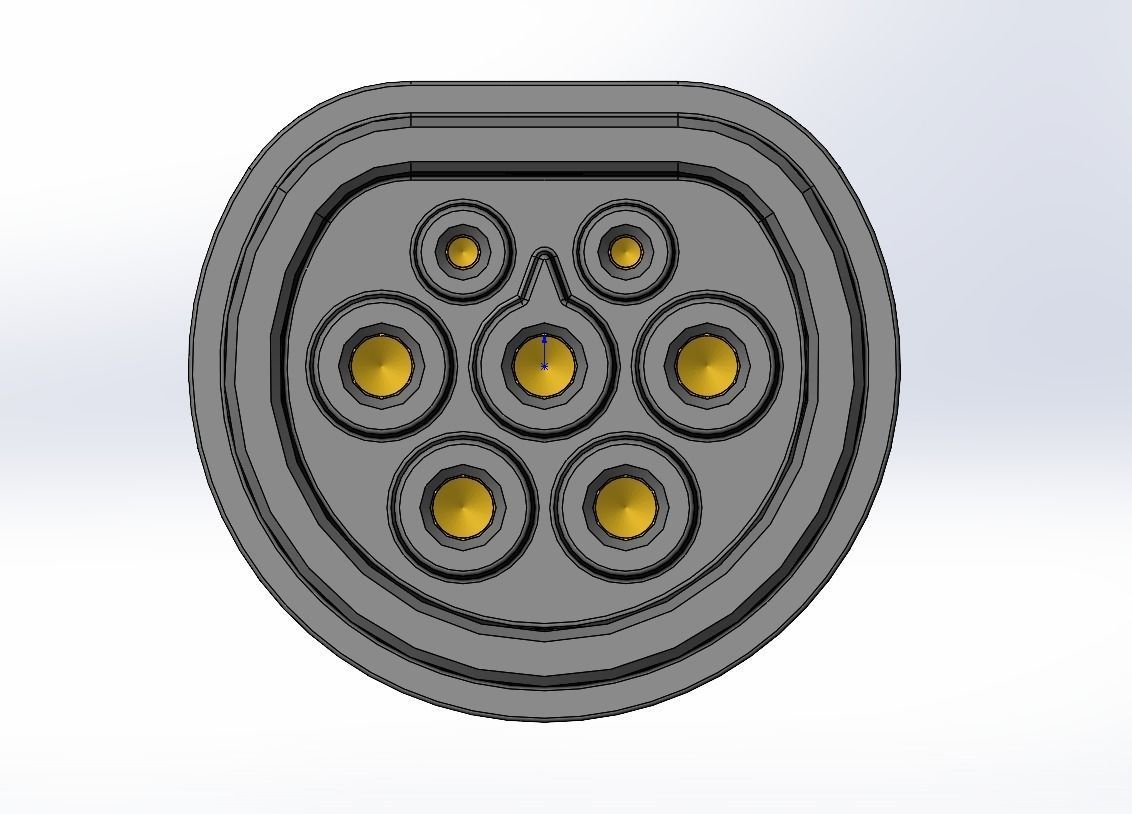

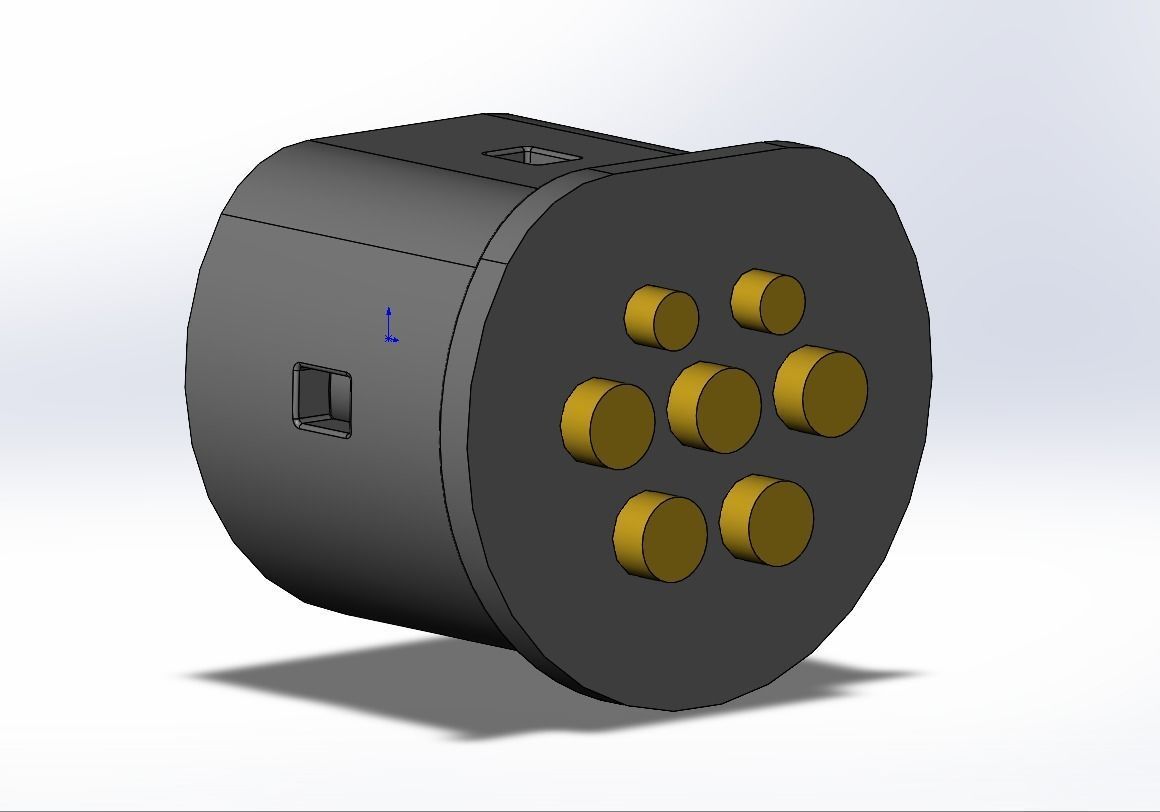

3d model full size matching to IEC 62196-2-2011, SHEET 2-IIc configuration. Each metal contact of this model is designed as a separate solid body that you can conveniently and easily cancel in your software if you do not need them. You can use it for manufacturing, projecting your custom thigs or just render. Project contains files PDF 3d\IGES(igs)\STEP(stp)\STL\3MF\AMF. Check my other EV connectors 3d models. Any questions. Open for work.
