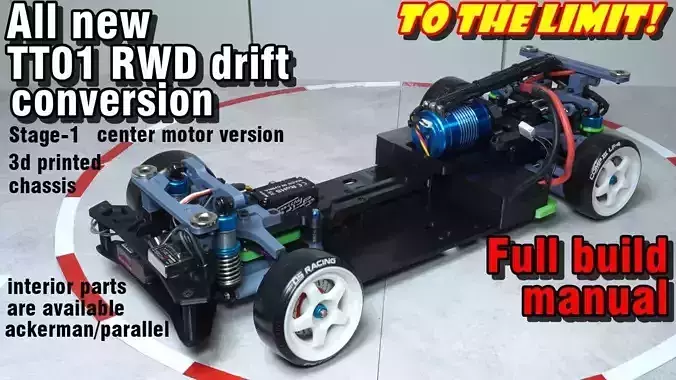

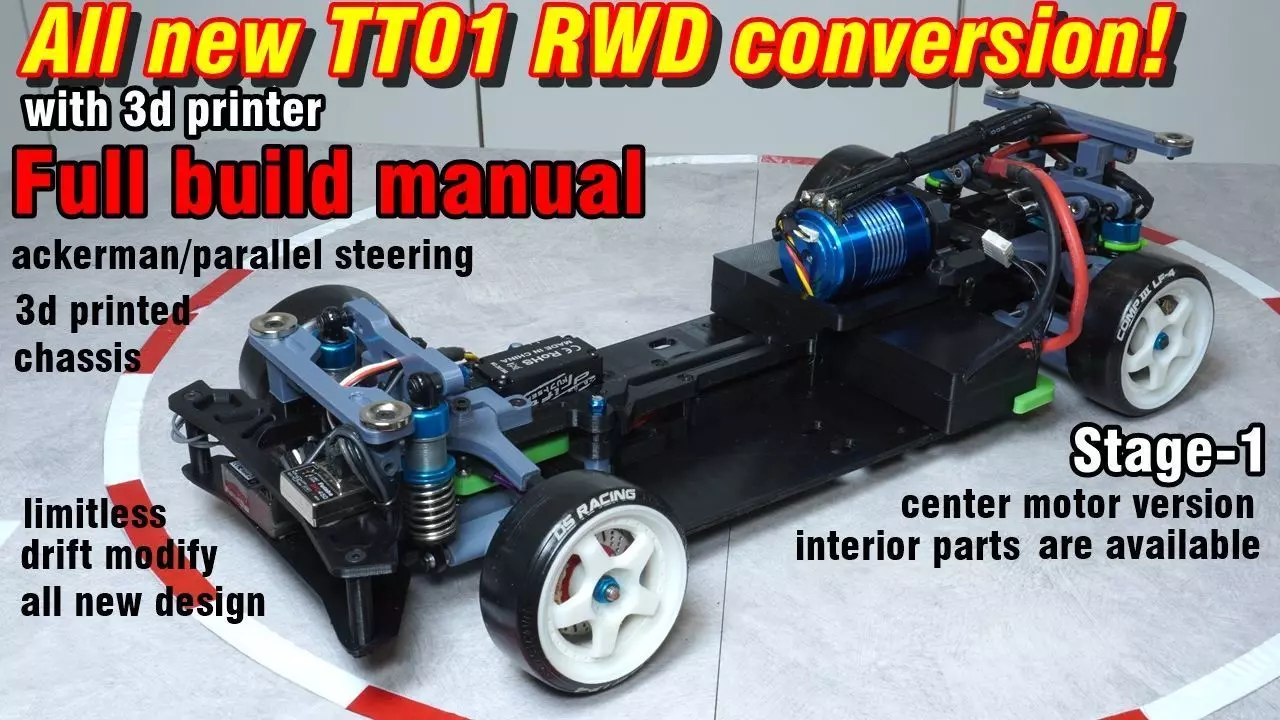

All new Tamiya TT01 RWD drift conversion kit stage 1 3D print model

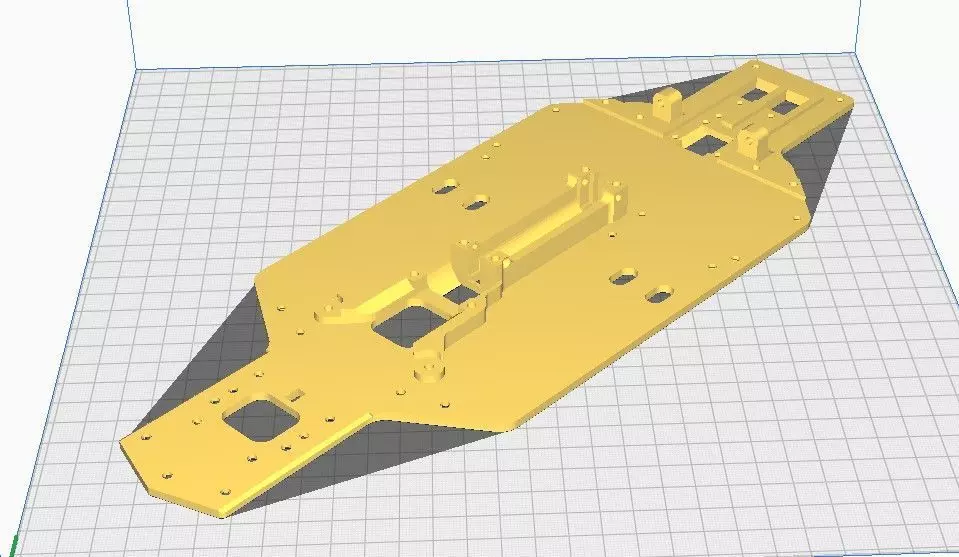

The TT01, which has been lying around at home for a long time or was purchased for its beautiful body but neglected due to its ambiguous performance, is being reborn.Everything(including main chassis) needed for high qulity RWD conversion has been modified.Stage-1 is center motor version.Can set up Ackerman and parallel steering using two types of servo horns.Because reality is important in RC Drift, the installation of interior parts was applied from the early design stage.The design of the interior parts has been completed. It will be uploaded separately later.

Necessary parts

M5 washer-1pc

M3 nut-67pcs

M3 nylon nut-1pc

M3 5mm set screw-4pcs

M3 countersunk bolt8mm-12pc, 10mm-26pcs, 12mm-2pcs, 15mm-4pcs, 16mm-4pcs, 20mm-4pcs, 25mm-2pcs, 32mm-2pcs, 35mm-2pcs,

M3 wrench bolt8mm-4pcs,12mm-2pcs,15mm-6pcs,16mm-6pcs,18mm-11pcs, 30mm-4pcs

M2countersunk bolt-for split chassis4mm-12pcs, 10mm-4pcs

M2 nut(너트)-12pcs-for split chassis

dia 15mm, thickness 3mm magnet-4pcshttps://www.aliexpress.com/item/1005004276902194.html?spm=a2g0o.order_list.order_list_main.28.171c1802Yf76KU

3mm shaft-cut to use40mm-8pchttps://www.aliexpress.com/item/1005005477259278.html?spm=a2g0o.productlist.main.3.519917ecLC8Vtn&algo_pvid=866457d2-ffe3-4bf0-949f-7befe50e21c6&aem_p4p_detail=202311191020141880971777455260001596605&algo_exp_id=866457d2-ffe3-4bf0-949f-7befe50e21c6-1&pdp_npi=4%40dis%21USD%211.95%211.31%21%21%2114.03%21%21%402103244417004180136834017e981d%2112000033239843707%21sea%21KR%21186590808%21&curPageLogUid=T4q7MN43deYg&search_p4p_id=202311191020141880971777455260001596605_2

4.8mm joint ballend & cap- 8set

Necessary tools

M2, M3 Hex wrenchDrill - 2.0, 2.7, 3.0, 3.1, 4.0mmM3 tapping toolPlus driverFile, knife, saw....etc.

Necessary RC partsTransmitter, receiverLi-po(2s 3000~5000mah)batteryGyro
