RC Jet Superyacht 3D print model

If you have any questions about the model, send me a message by clicking the email icon on the right side of my avatar, I'll get back to you as soon as possible!

Overview:

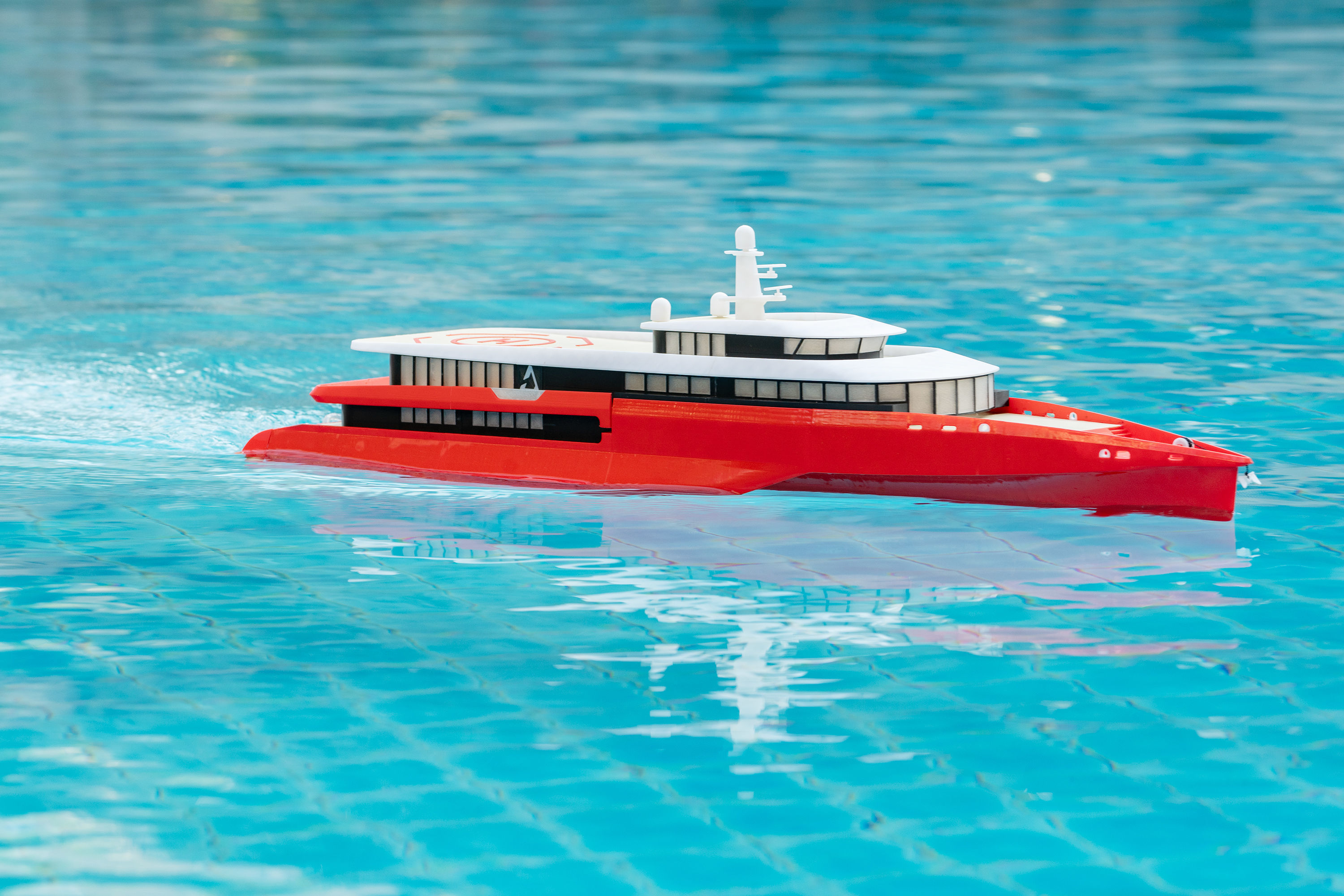

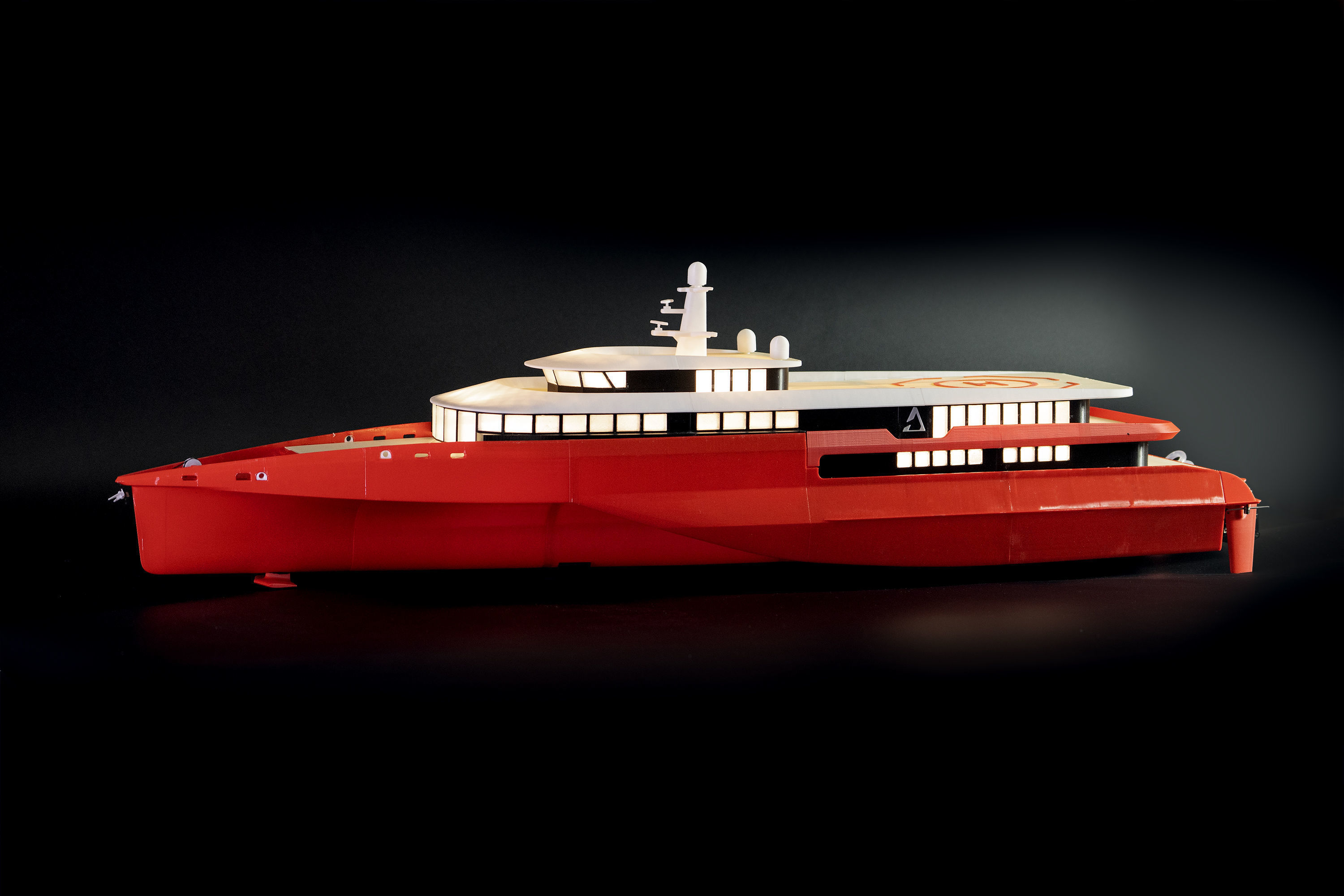

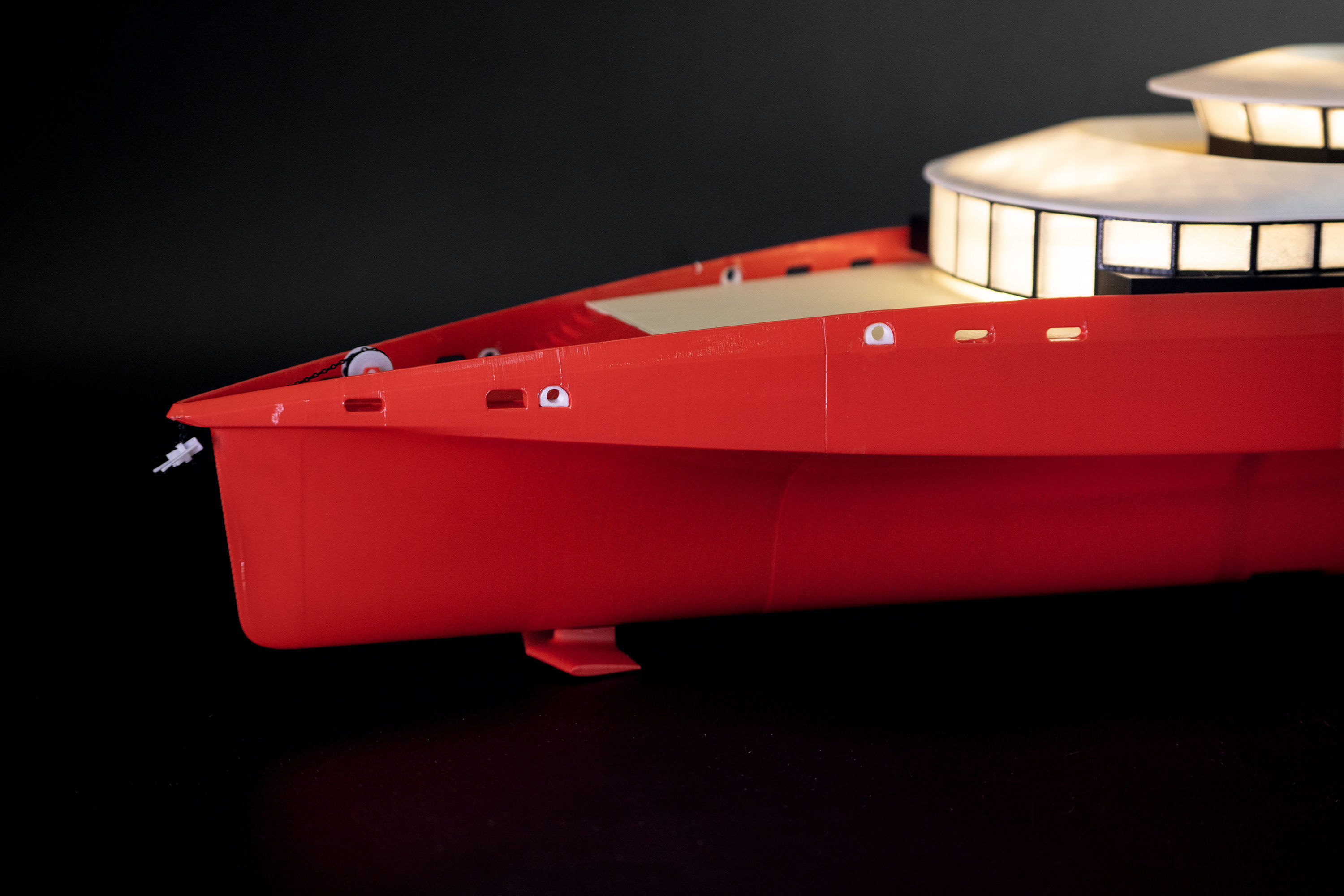

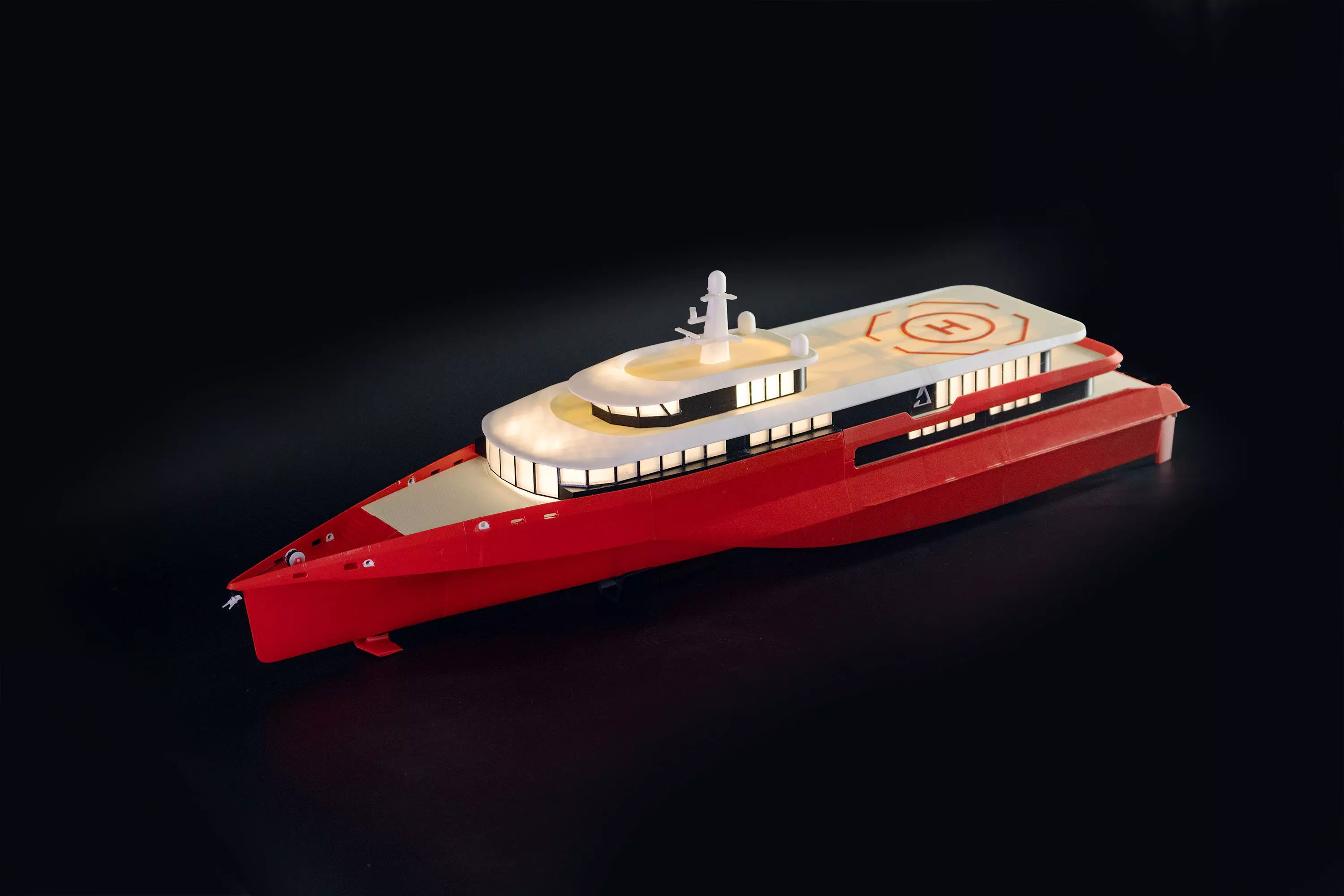

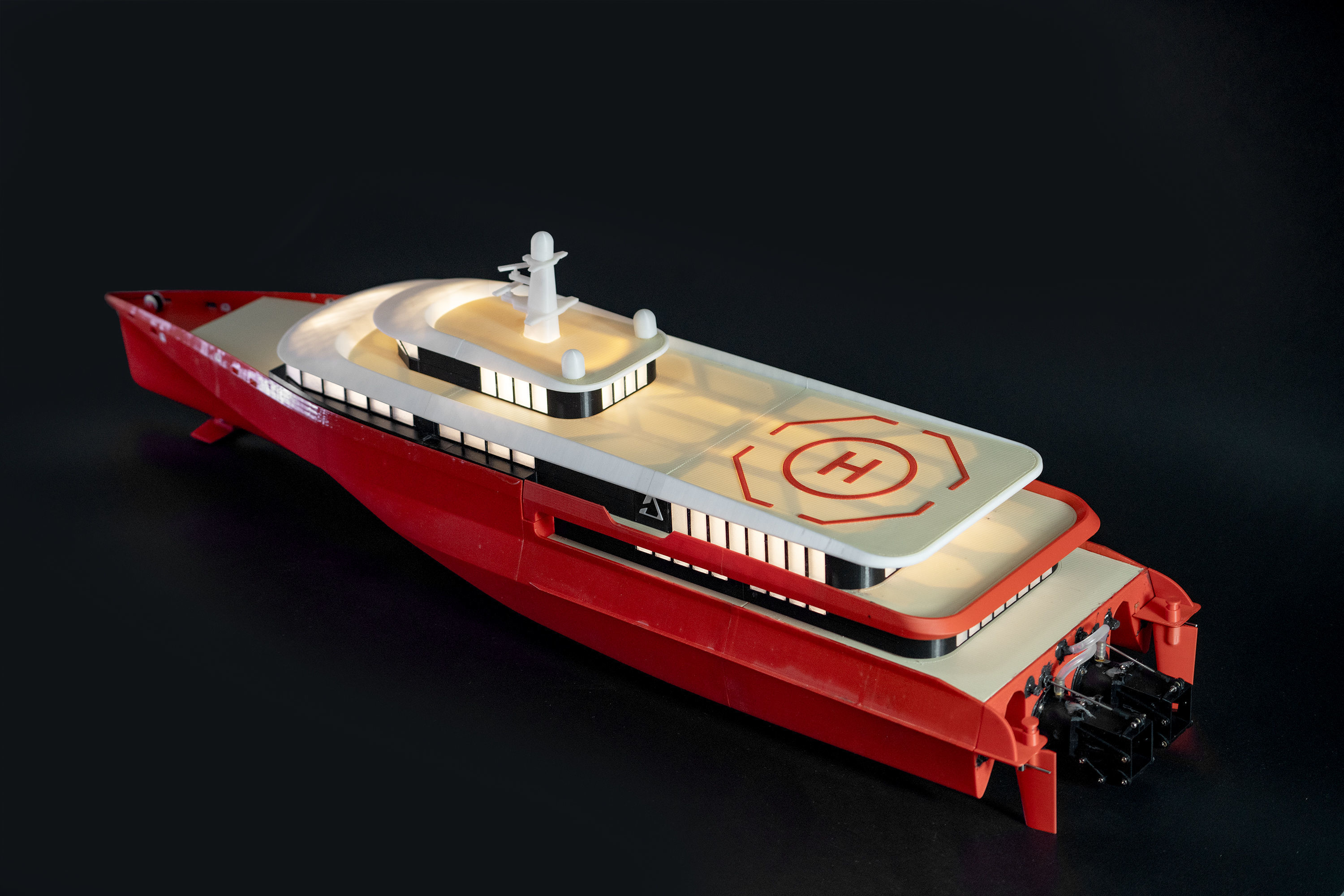

• A jet powered RC trimaran superyacht designed with 3d printing in mind.
• Easy to print and no support material needed.
• All parts fit together easily with keys.
• Dimensions: 915mm x 220mm x 258mm

What You Need:

• A 3d printer with build volume at least 220mm x 180mm x 200mm(Height).
• About 2.2kg of PLA or PETG filament.

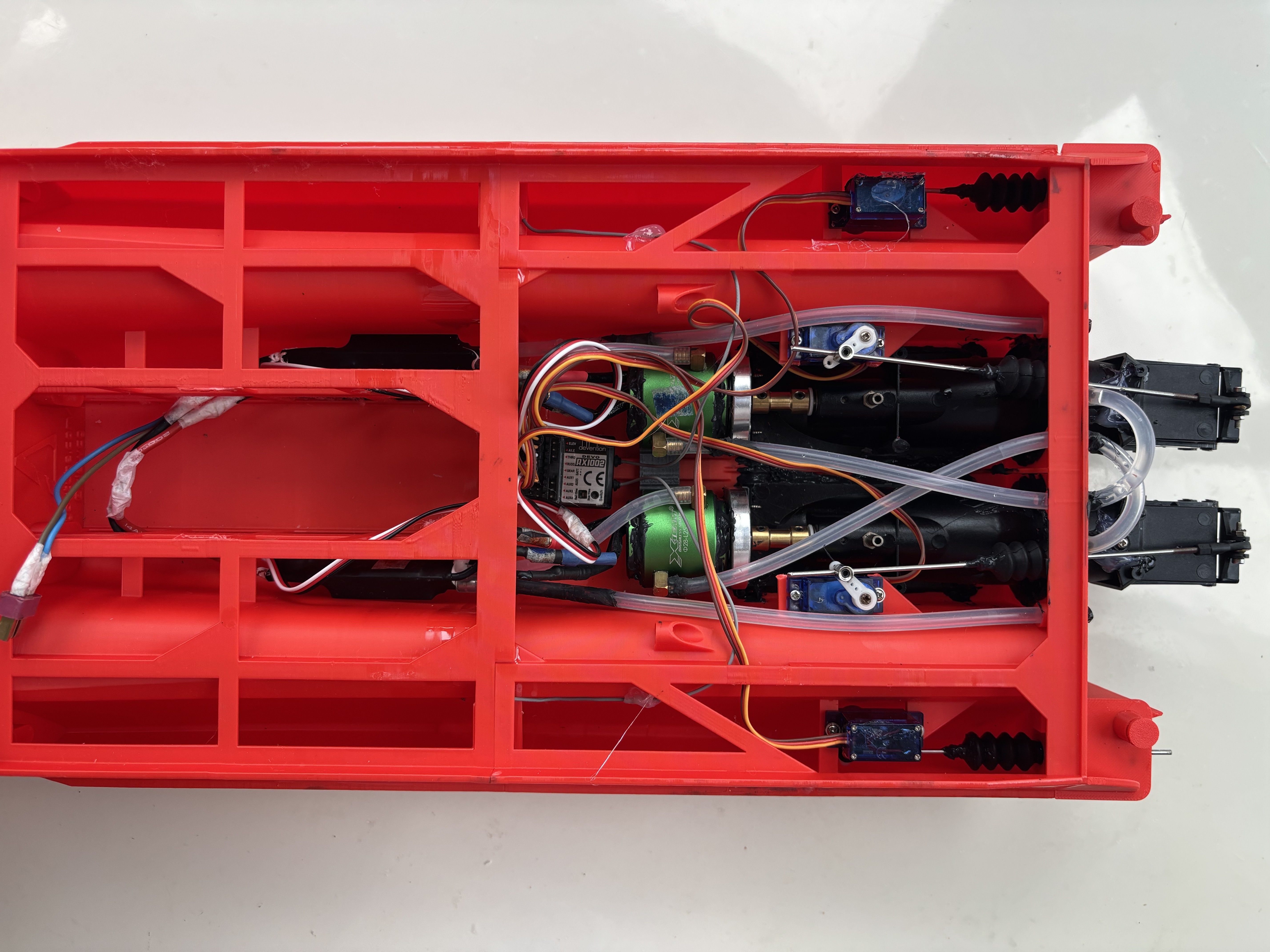

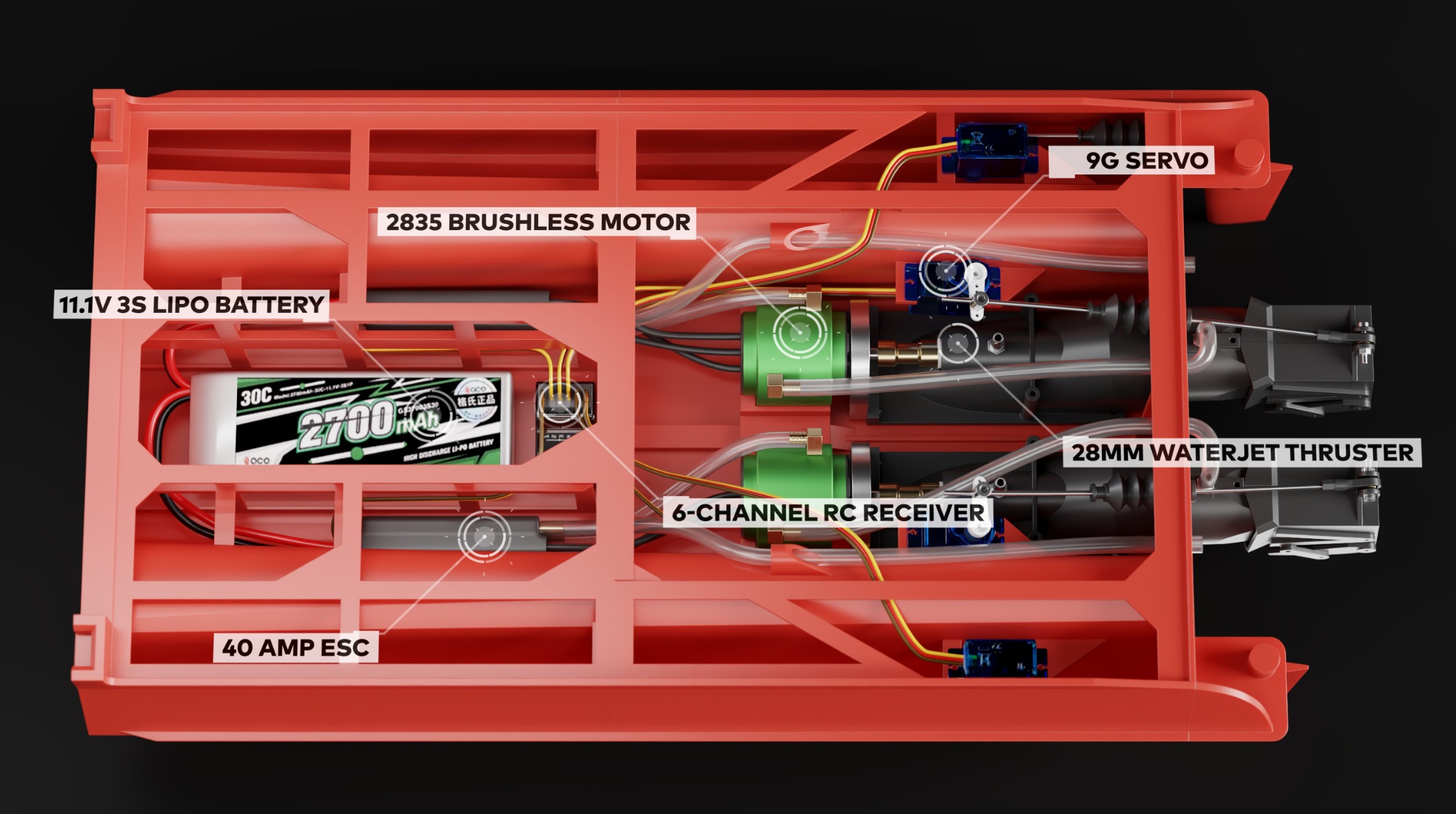

Propulsion System:

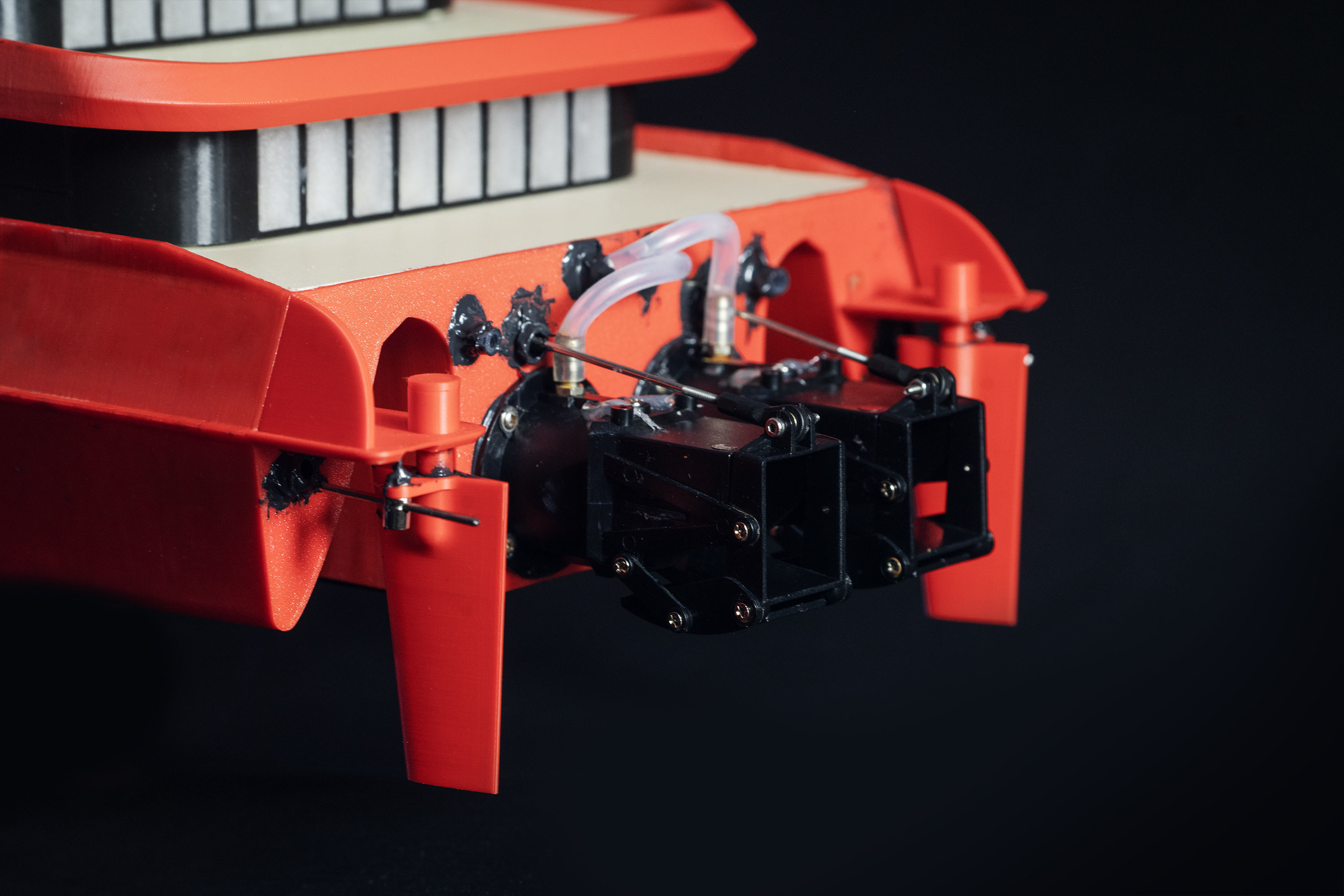

• 2 x 28mm water jet thruster with reverse bucket
• 2 x 4mm shaft coupling for motors
• 2 x 2835 brushless motor
• 2 x 40A ESCs
• 11.1v 3s LiPo battery

Control System:

• 4 x 9g servos
• 4 x 150mm pushrod with ball head linkage
• 4 x pushrod linkage stopper
• 4 x 32mm waterproof rubber sleeve
• 6-channel RC receiver and controller

Optional Ornament

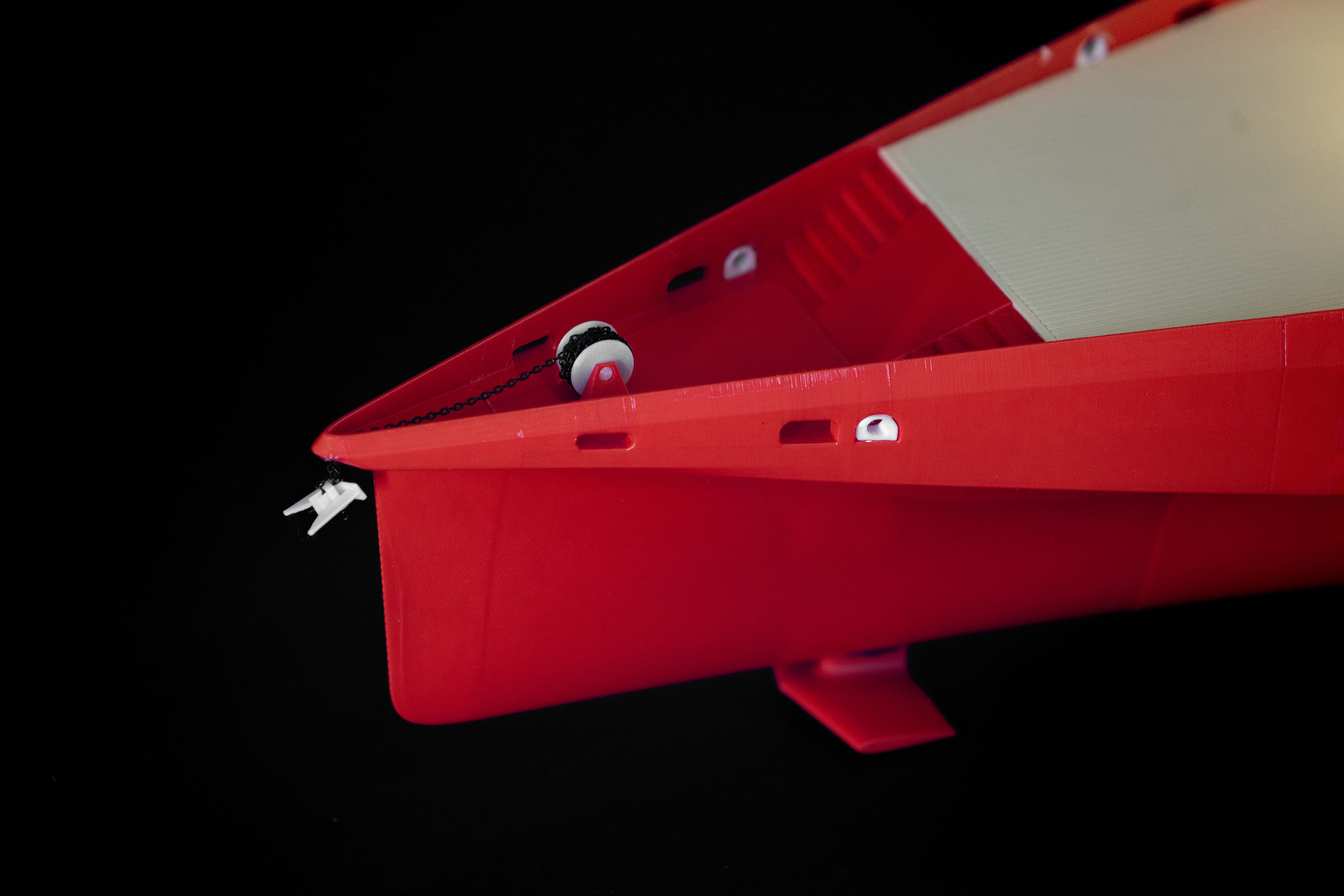

• Model ship anchor chain

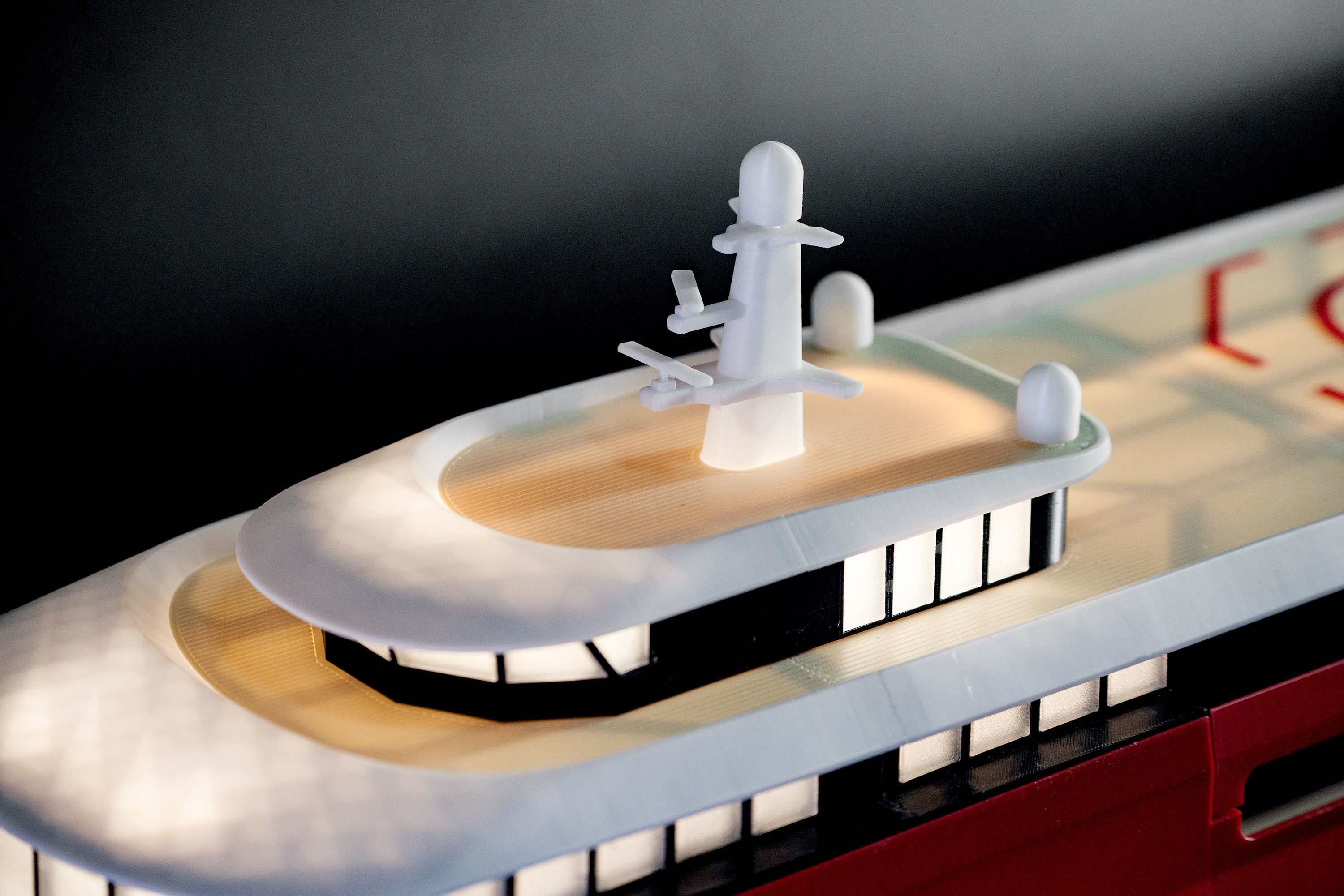

• LED light strip for interior illumination

What’s Included:

• STL files compatible with most of slicer or 3d softwares.

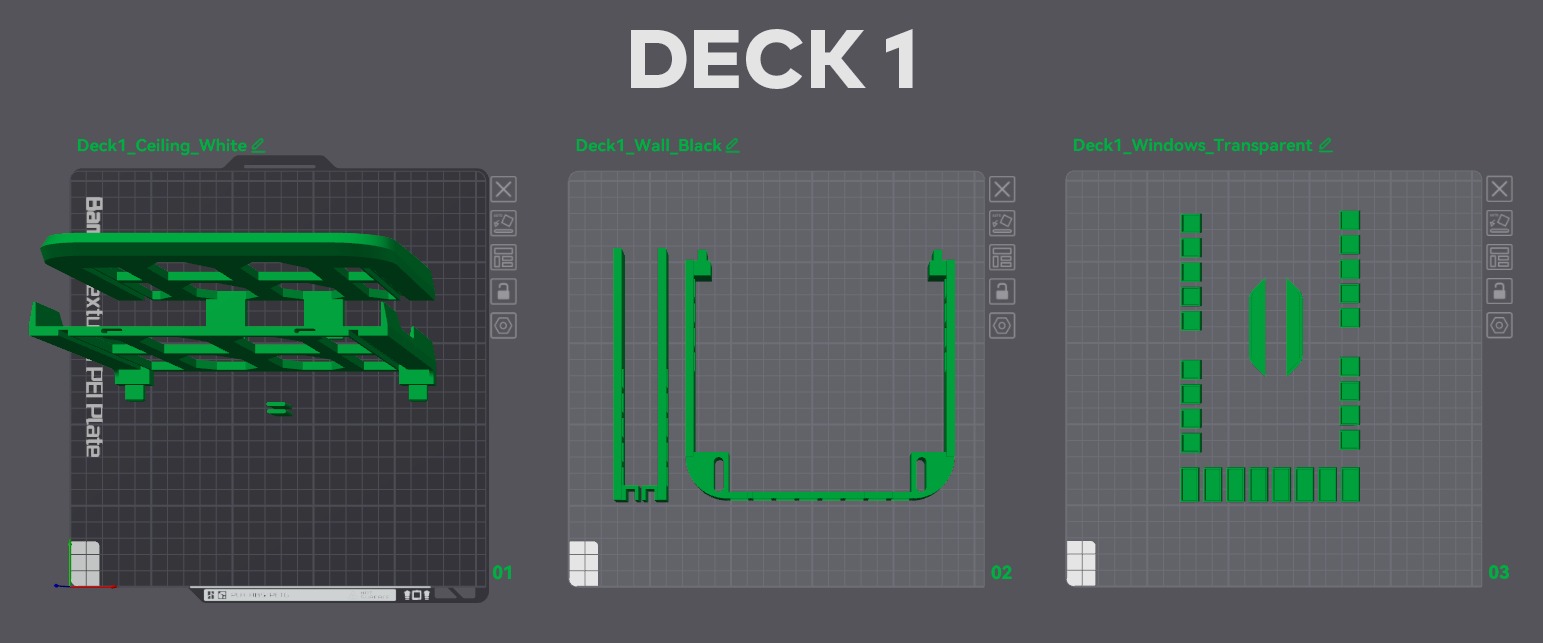

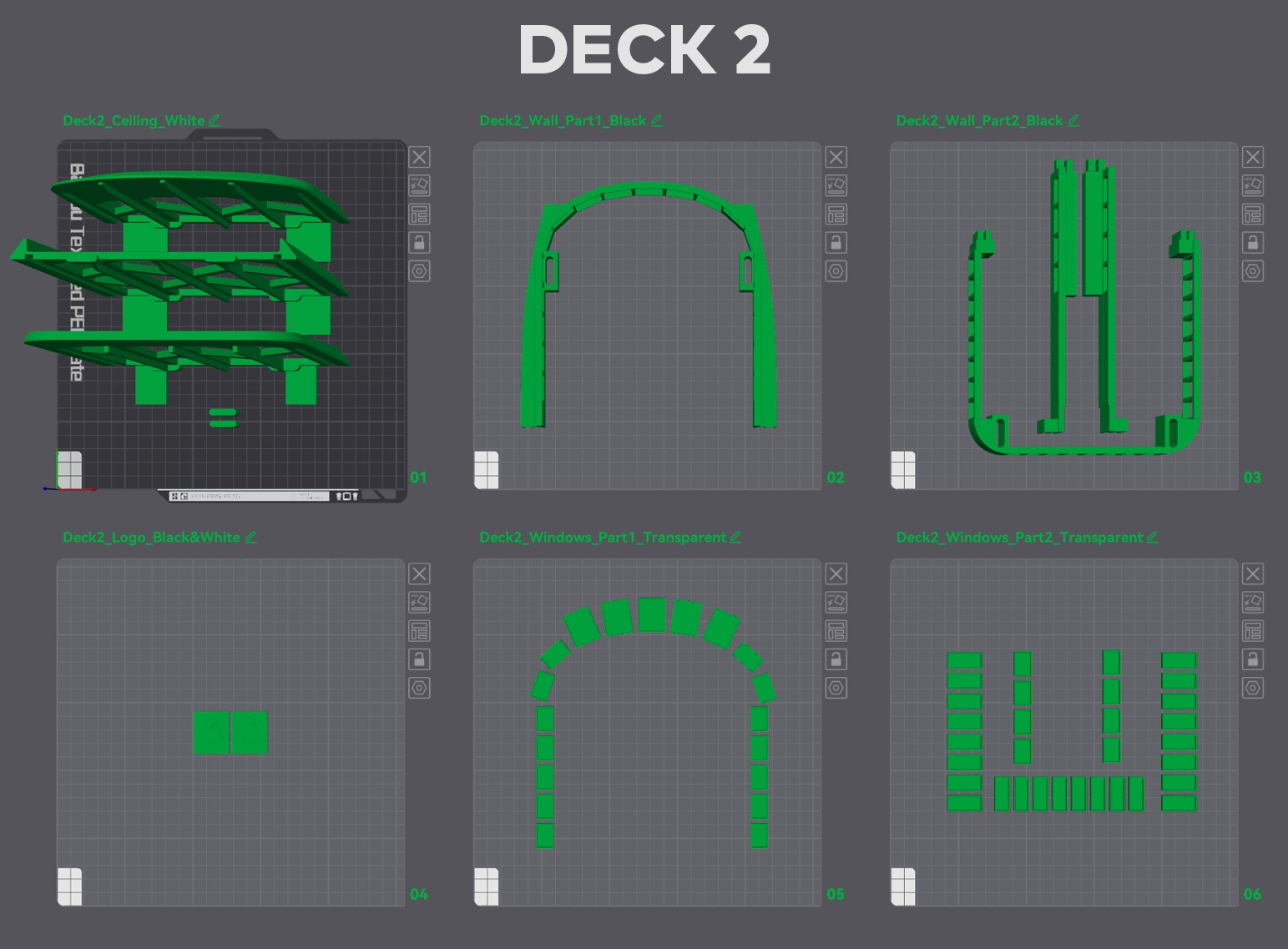

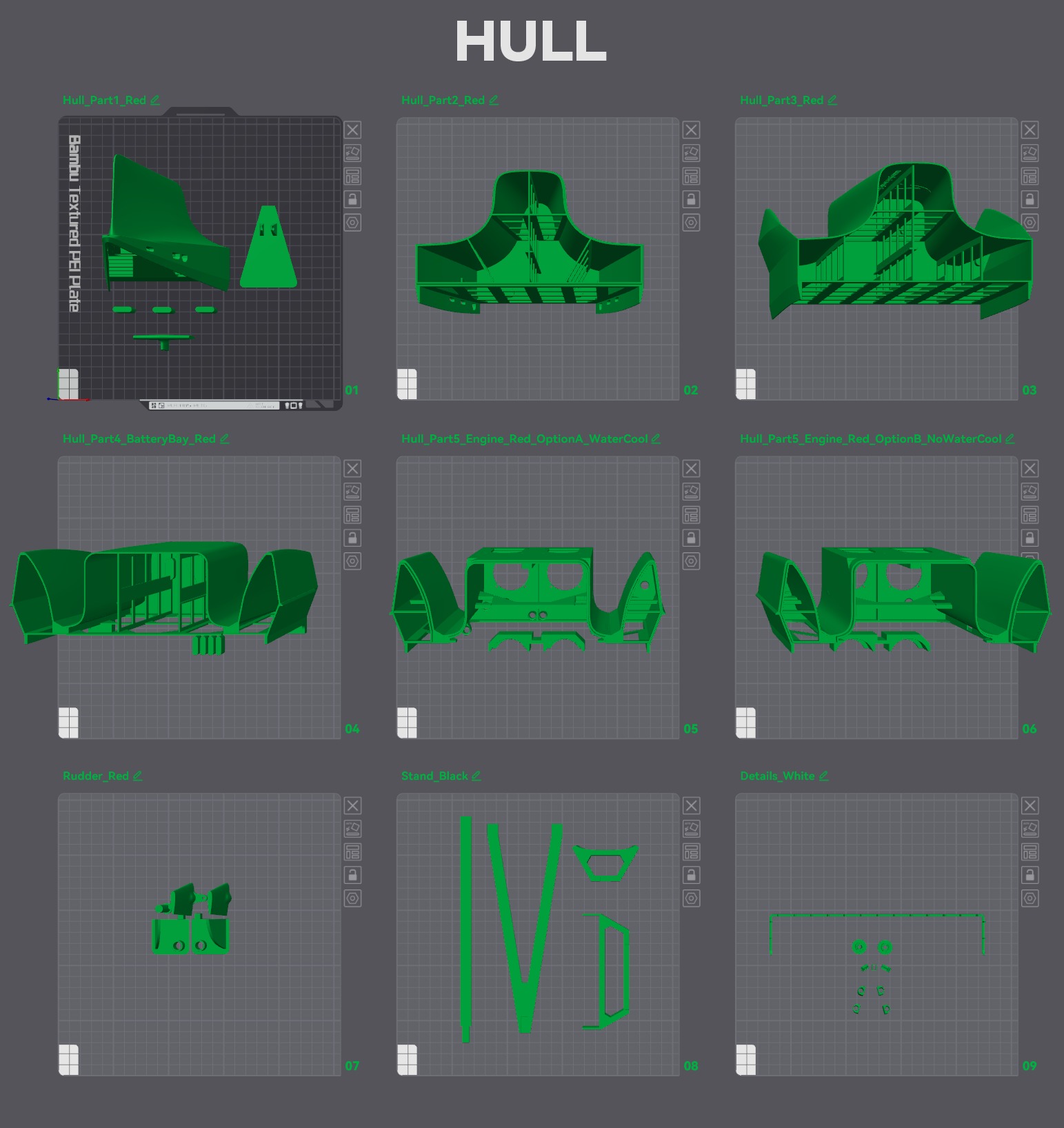

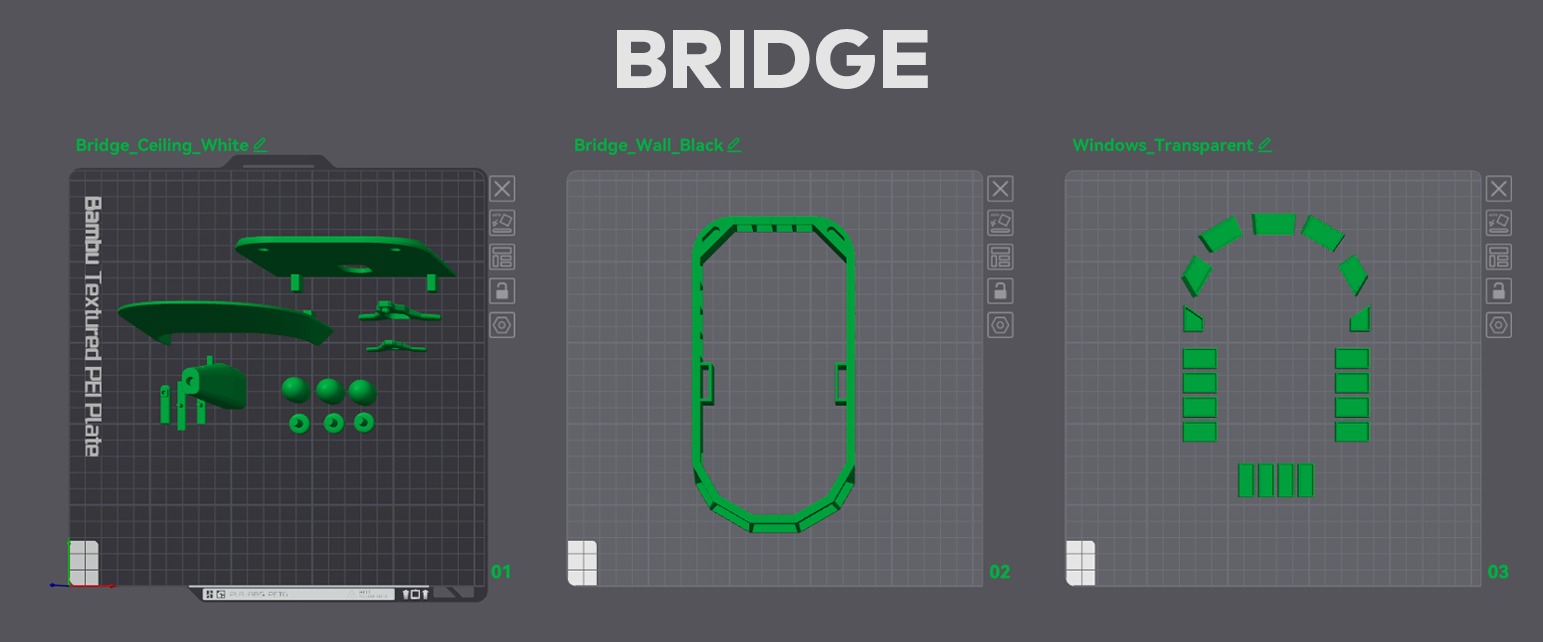

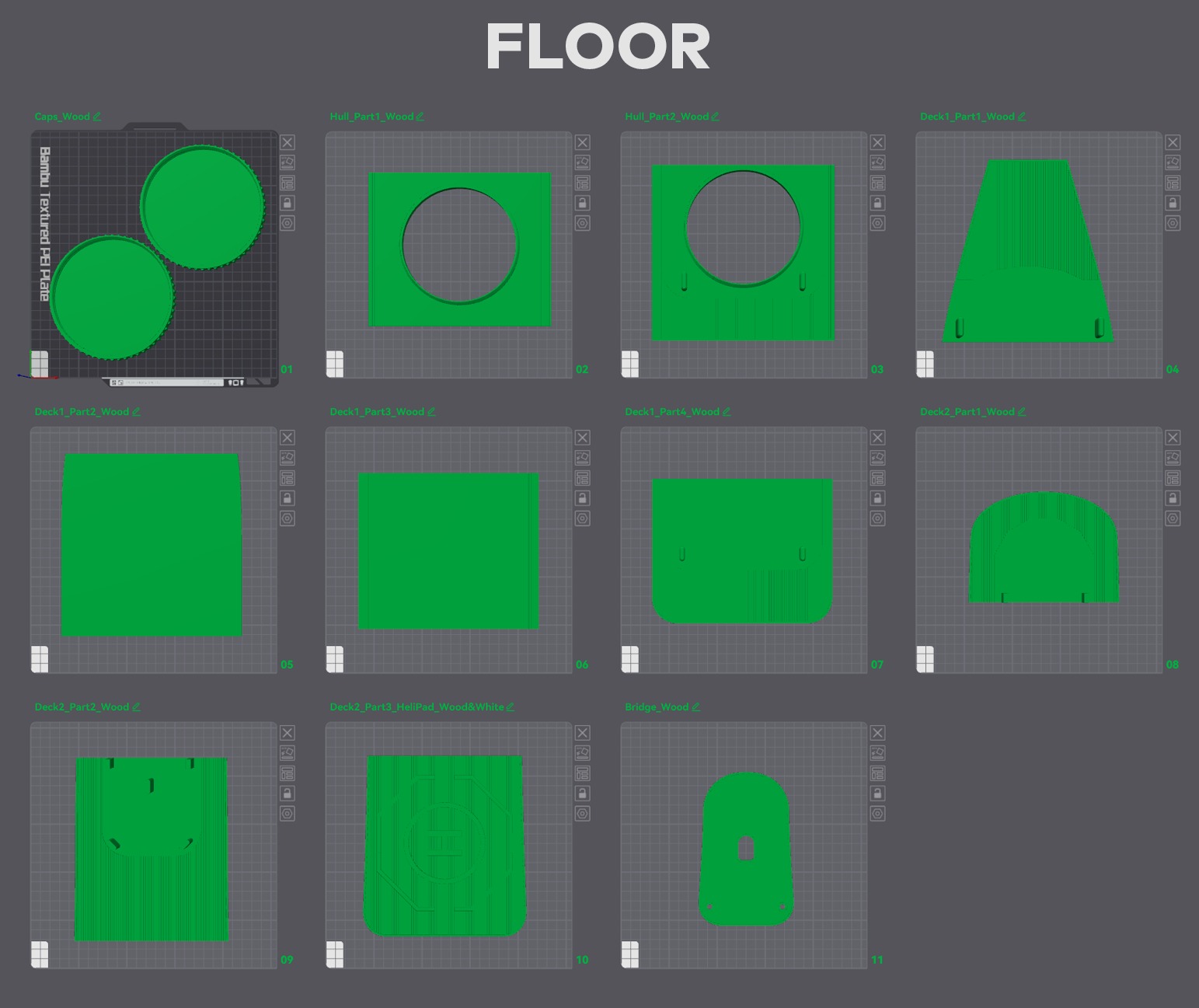

• 3MF files for Bambu Studio, all the printing parameter has been setup.

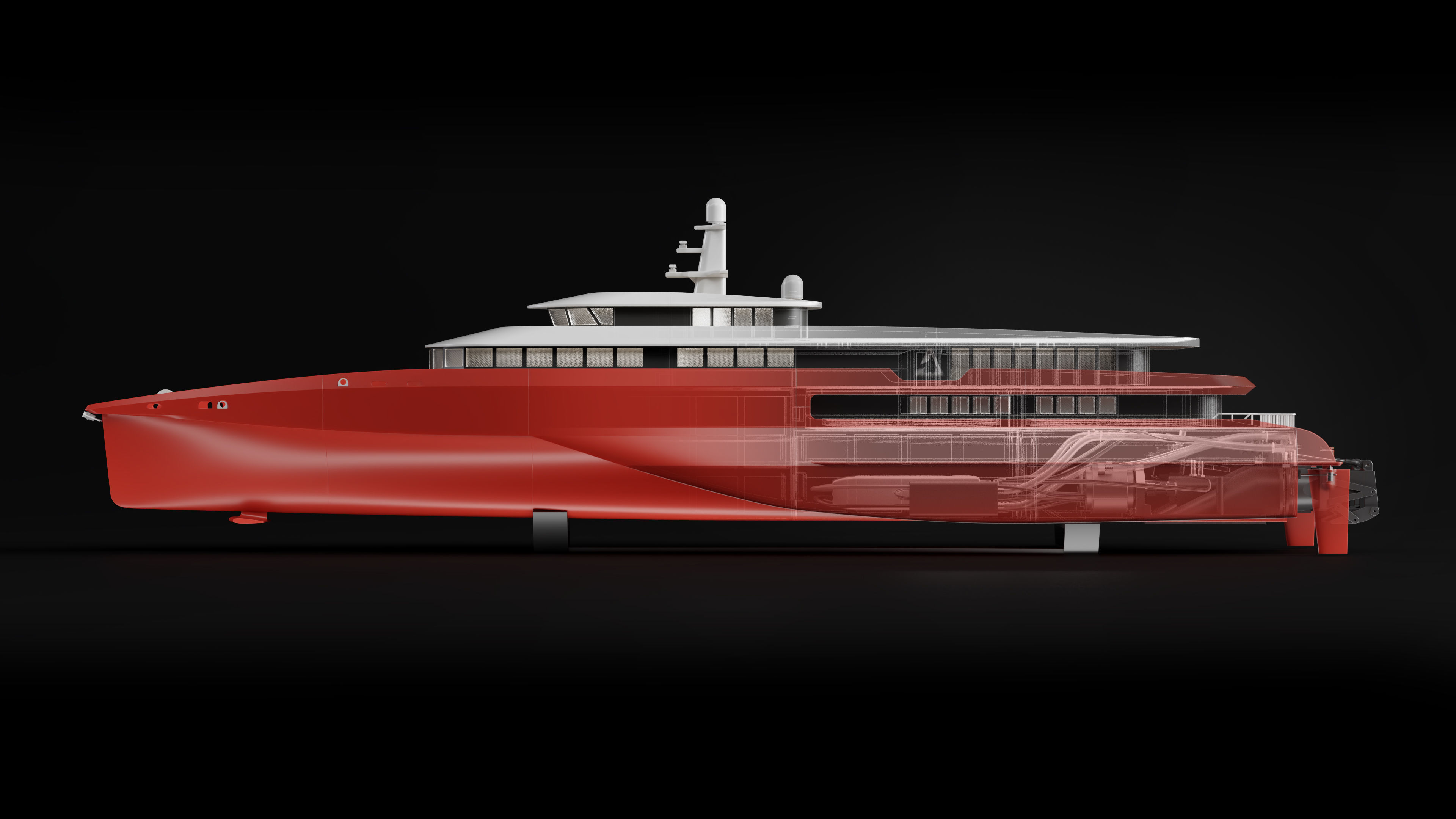

• Engine bay STEP file, you can customize the engine bay for different motors and jet thrusters if you know about surface modeling.

• Demo video:

https://youtu.be/Mv7dE4quqv8

• Assembly guide video:

https://youtu.be/6TZWRlhI8qI

• PDF file for user guide:

https://drive.google.com/file/d/1oPdkKi12iG_eqEwpJ2E2Yo67EuDUYrov/view?usp=sharing
