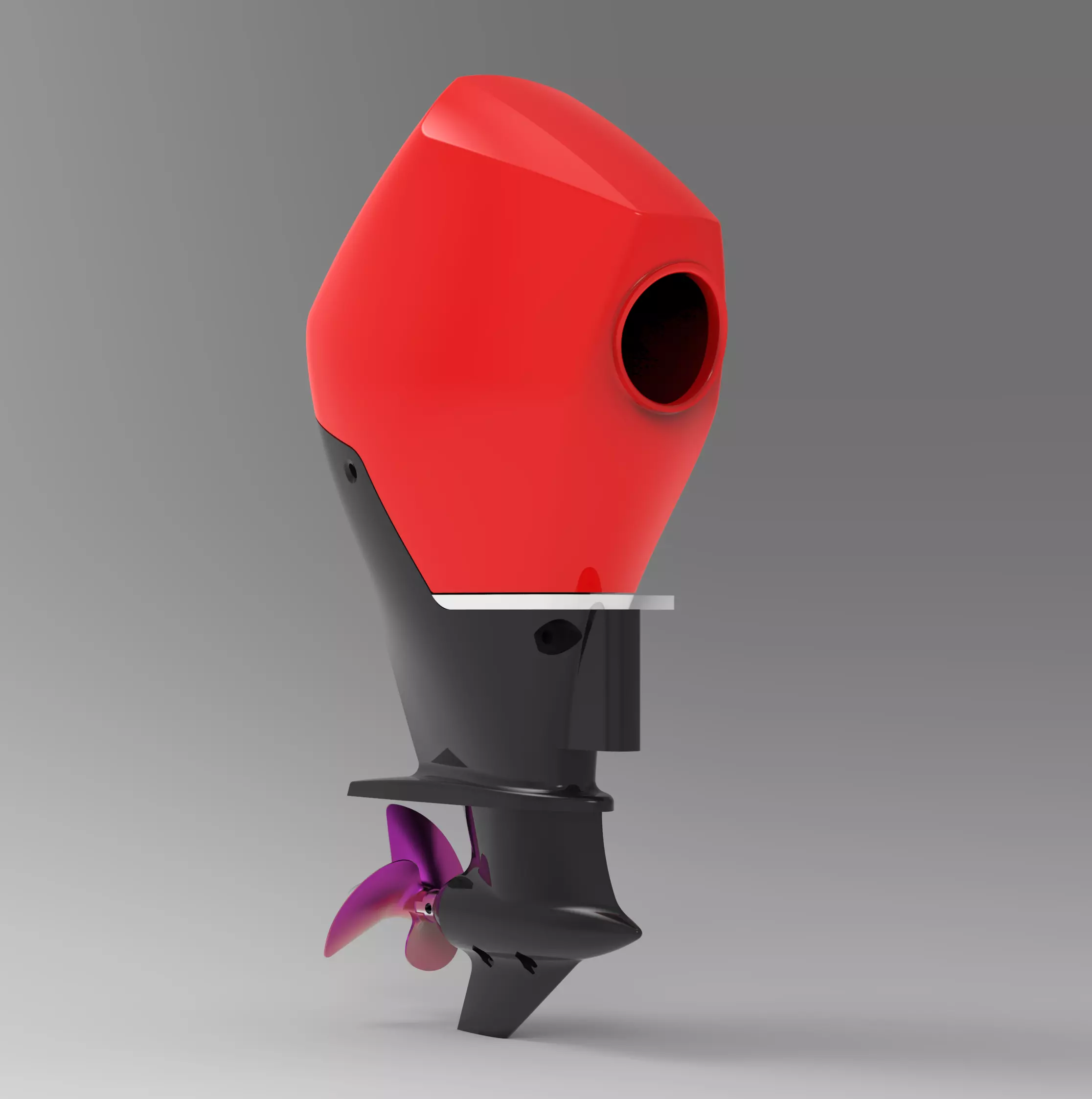

RC Boat Outboard Motor 3D print model

assembly guid https://www.youtube.com/watch?v=2DaOoQ1ST14

https://youtube.com/shorts/yOa6N4FIXxI

https://youtube.com/shorts/YeKG-NVG5gs

dimensions: 236x116x82

parts list:

• bearings - F604zz - 4 piece
• shaft - diameter 4мм, length 80mm - 1 pcs
• shaft - diameter 4мм, length 50mm - 1 pcs
• Bevel gear 0.8M 15T (4мм hole) - 2 pcshttps://www.aliexpress.com/item/1005003235943648.html?spm=a2g0o.order_list.order_list_main.10.5b661802jMDNuQ
• motor 4082 1900kv
• nut M2.5 - 2 pcs
• nut M3 - 7 pcs
• countersink screws M2.5x8 - 2 pcs
• countersink screws M3x16 - 1 pcs
• countersink screws M3x10 - 3 pcs
• countersink screws M3x25(30) - 1 pcs
• socket head screw M3x50 - 1 pcs
• socket head screw M3x12(16) - 4 pcs
• plastic washers 4mm (as gear shims) - 6 pcs
• rc boat coupling 4mm to 5mmhttps://www.aliexpress.com/item/1005005956076956.html?spm=a2g0o.cart.shoppingCartRecommend.5.1edd38davfQjkQ&gps-id=shoppingCartRecommend&scm=1007.13440.311564.0&scm_id=1007.13440.311564.0&scm-url=1007.13440.311564.0&pvid=b3e1c8a9-802f-4ac1-bb1a-e187c3d29892&_t=gps-id:shoppingCartRecommend,scm-url:1007.13440.311564.0,pvid:b3e1c8a9-802f-4ac1-bb1a-e187c3d29892,tpp_buckets:668%232846%238111%231996&pdp_npi=4%40dis%21USD%213.75%213.75%21%21%2126.44%2126.44%21%402103919917286766350912377e027e%2112000035017481467%21rec%21UA%21168665516%21XZ&utparam-url=scene%3AshoppingCartRecommend%7Cquery_from%3A#nav-specification

https://www.aliexpress.com/item/1005007008011409.html?spm=a2g0o.order_list.order_list_main.22.1bbd1802OFJP28

maximum prop diameter 50mm

3D printing settingsAll parts except the CAP were printed with PETG plastic.Organic supports were used for the СAP and LEG partslayer height - 0,15mm
