Plastic canister for engine oil A and AK 4L 3D print model

Before buying my model, familiarize yourself with its history and parameters in detail.

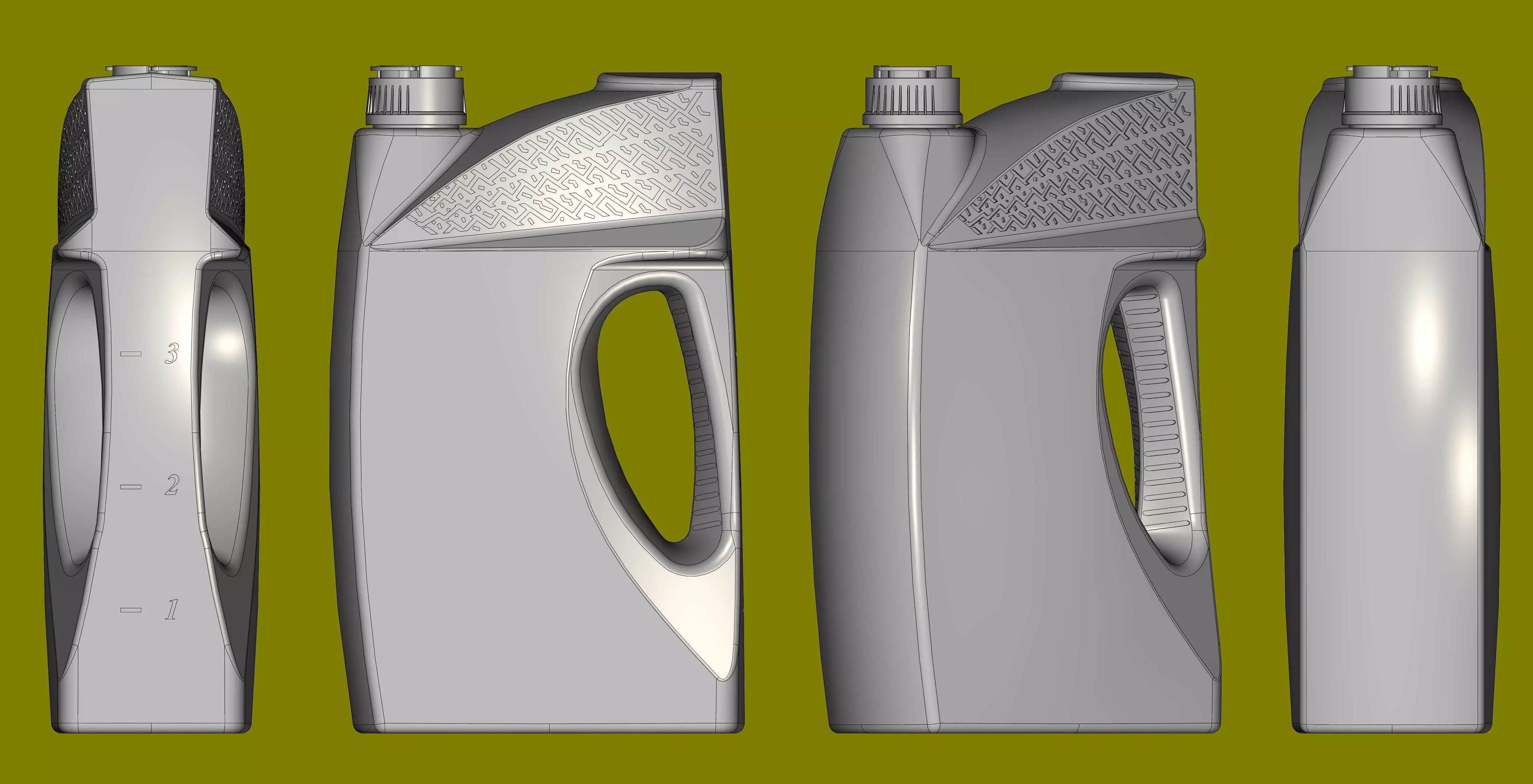

The canister is conditionally divided into two parts, top and bottom. In the upper part, the neck is f38 mm, and adjoins one of the sides. On the opposite side of the upper part, there is a flat area. They are connected to each other by a radius slope. On the front side of the slope, elements of a car tire are applied. In the lower part, on the opposite side from the neck, I made a handle. I equipped the handle with ribs from slipping. On the side of the handle, on the side surface, I placed a scale for approximately measuring the oil level in the canister. In the front and back, there are depressions for stickers. I equipped the bottom of the canister with stiffening ribs from sagging.

I made the model for the subsequent manufacture of an injection mold. Therefore, the project is filled with Parasolid files.To identify defects, before making an injection mold, I print the model on a 3D printer. I supplemented the project with the _stl file. (A - canister without lid - 514000, AK - canister with lid - 553000).Later, the designers asked to model the lid. I made a model with a lid and am posting the files:3d max - medium polygonality.obj - high polygonalityVolume 4l. Height 322mm.
