LCG SHOCK MOUNT FOR FMS FCX18 3D print model

3D MODEL DESCRIPTION

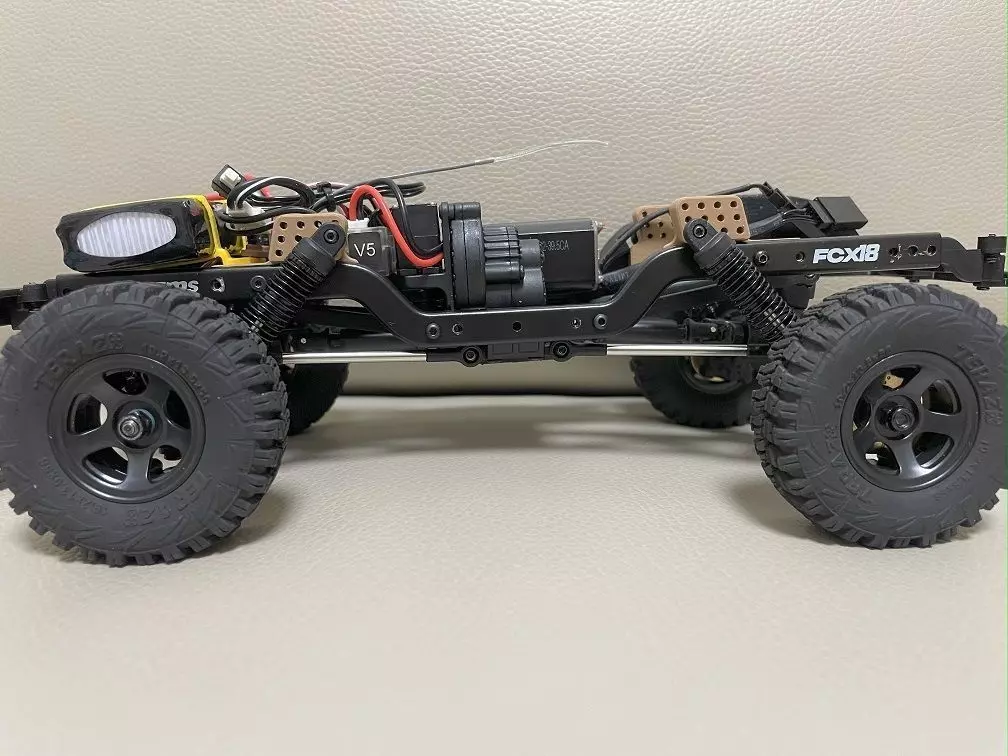

These kits allow for non-destructive improvements, targeting the FCX18 chassis to achieve a lower center of gravity and increased shock softness to improve overall climbing performance:

1.Shock absorber can be increased by increasing the tilt angle to improve the softness.

2.Provide multiple holes to connect the shock absorber to set different body heights to lower the center of gravity or improve clearness.

3.A simplified tray to lower the center of gravity of ESC.

4.Lightweight and flexible battery strap design reduces the center of gravity of the battery and avoids limiting the Servo's movement space.

Update History:2023.12.04:

• Add V2 BatteryTie(Battery Strip) for better first layer adhesion in printing.
• Add AntiWarp version Shock Washer for easy printing.

[ Test Run Video ]https://youtu.be/Ob81djxvCEc

Get a FCX18 LC80:https://www.fmshobby.com/en-kr/products/fms-1-18-fcx18-lc80-toyota-land-cruiser-80-rtr?ref=Gu8gzLpI58eKYw

3D PRINTING SETTINGSPrint with PLA/PETG:

• FCX18-LCGShockMountA.stl x 2
• FCX18-LCGShockMountB.stl x 2
• FCX18-LCGShockWasher.stl x 4or FCX18-LCGShockWasherAntiWrap.stl x 1 (easier to print)
• FCX18-LCGECSTray.stl x 1or FCX18-LCGECSTray.stl x 2 (one as a brace between the rear shock mounts)
• FCX18-BatteryConnector.stl x 1

Print with TPU:

• FCX18-BatteryTieLeft.stl x 1
• FCX18-BatteryTieRight.stl x 1*** V2 will have easier first layer adhesion than V1, however, V1 is strong enough if you want to have it softer.

Additional Parts:

• M2 10mm screw bolt x (2 for BatteryConnector, 2 for front Shock Mount)
• M2 8mm screw bolt x 2 (for ECS Tray)
