Exhaust manifold header 3D print model

Description

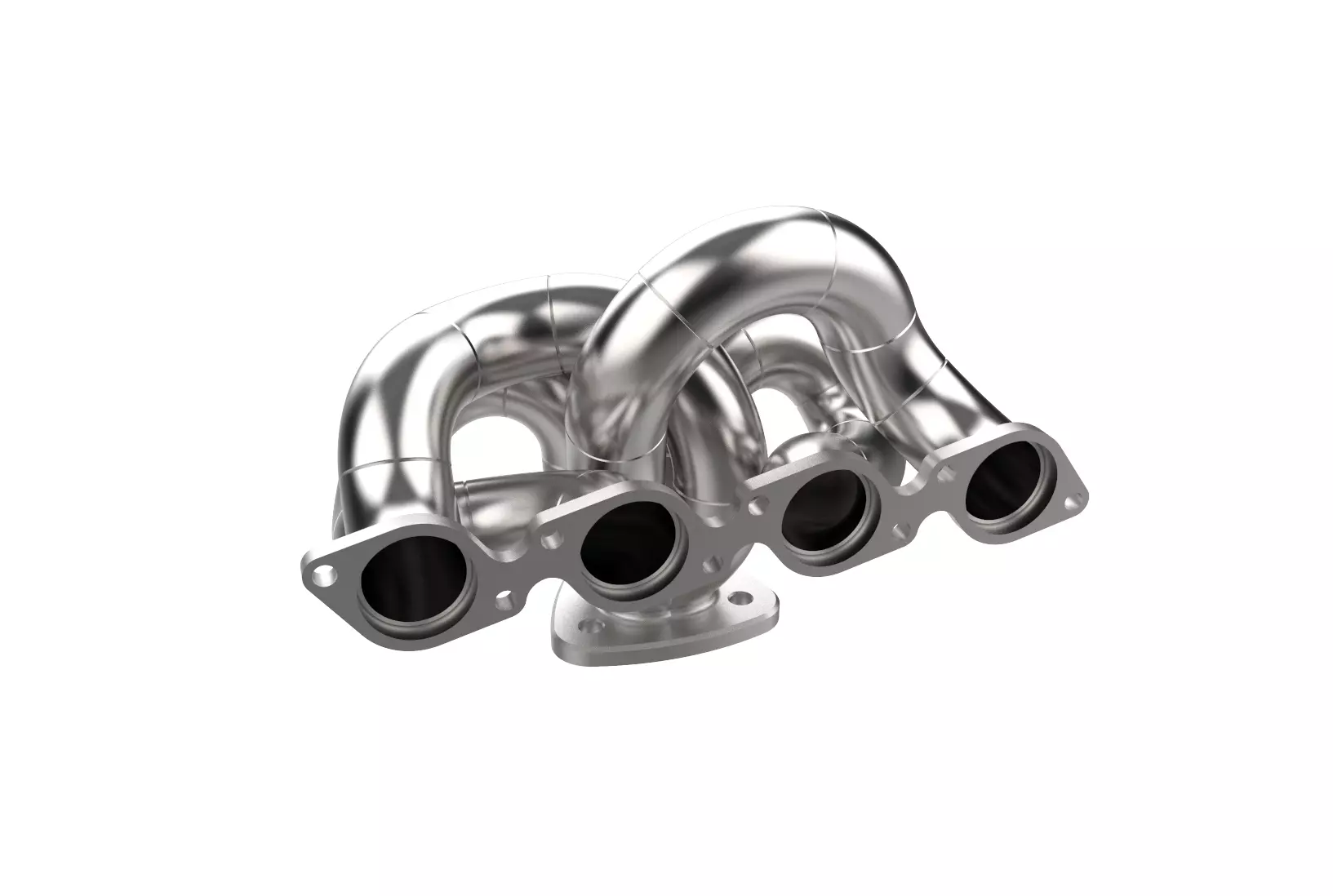

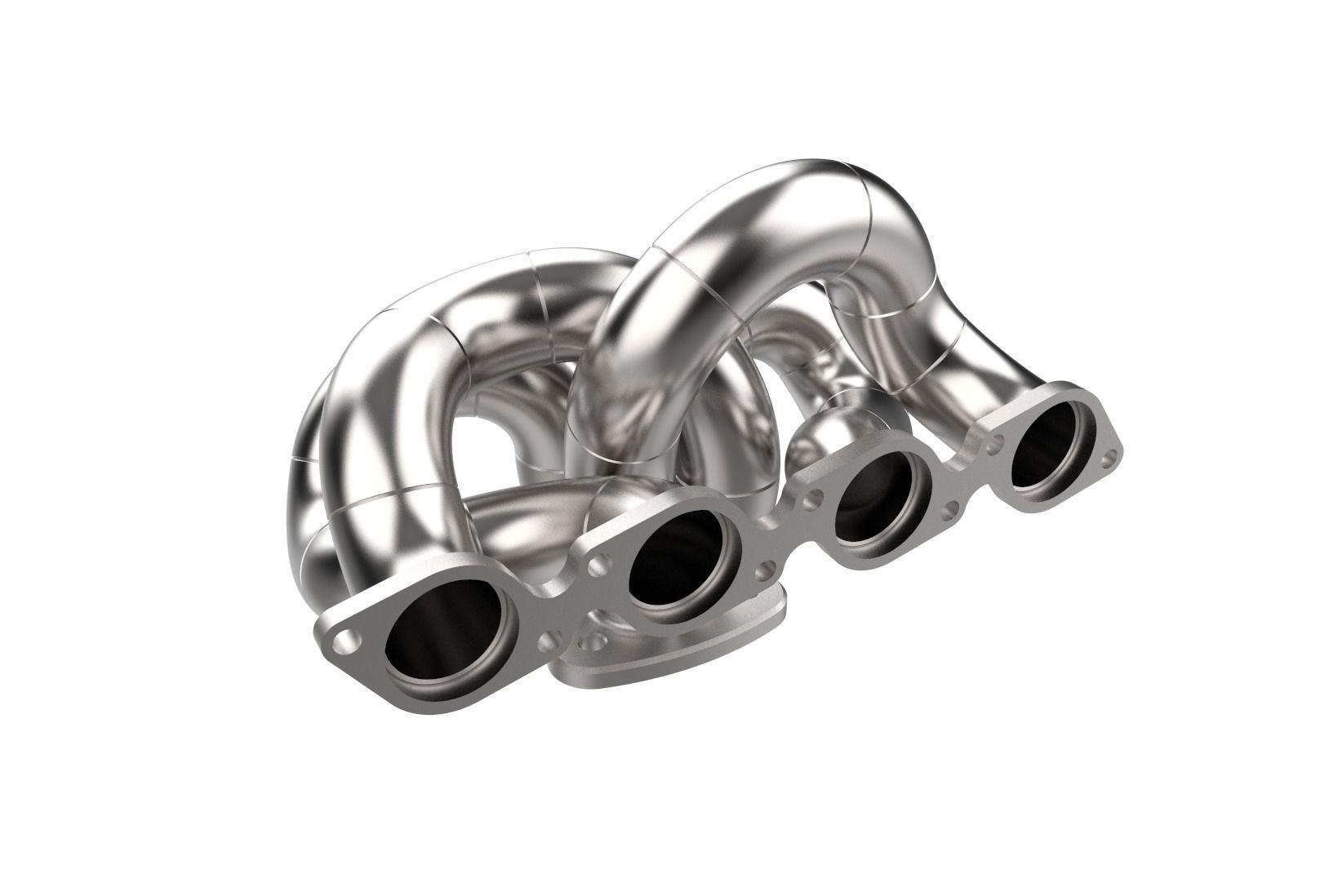

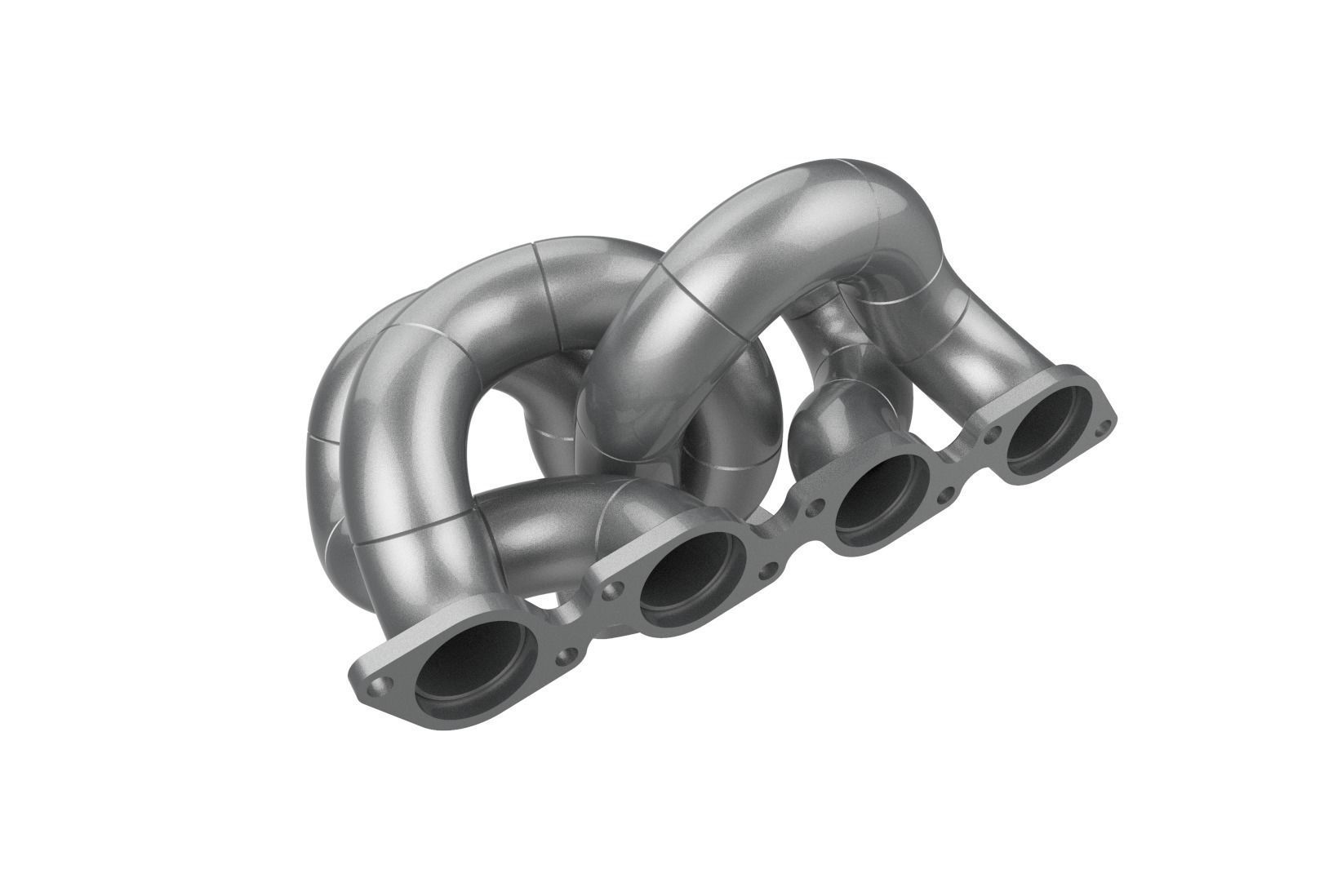

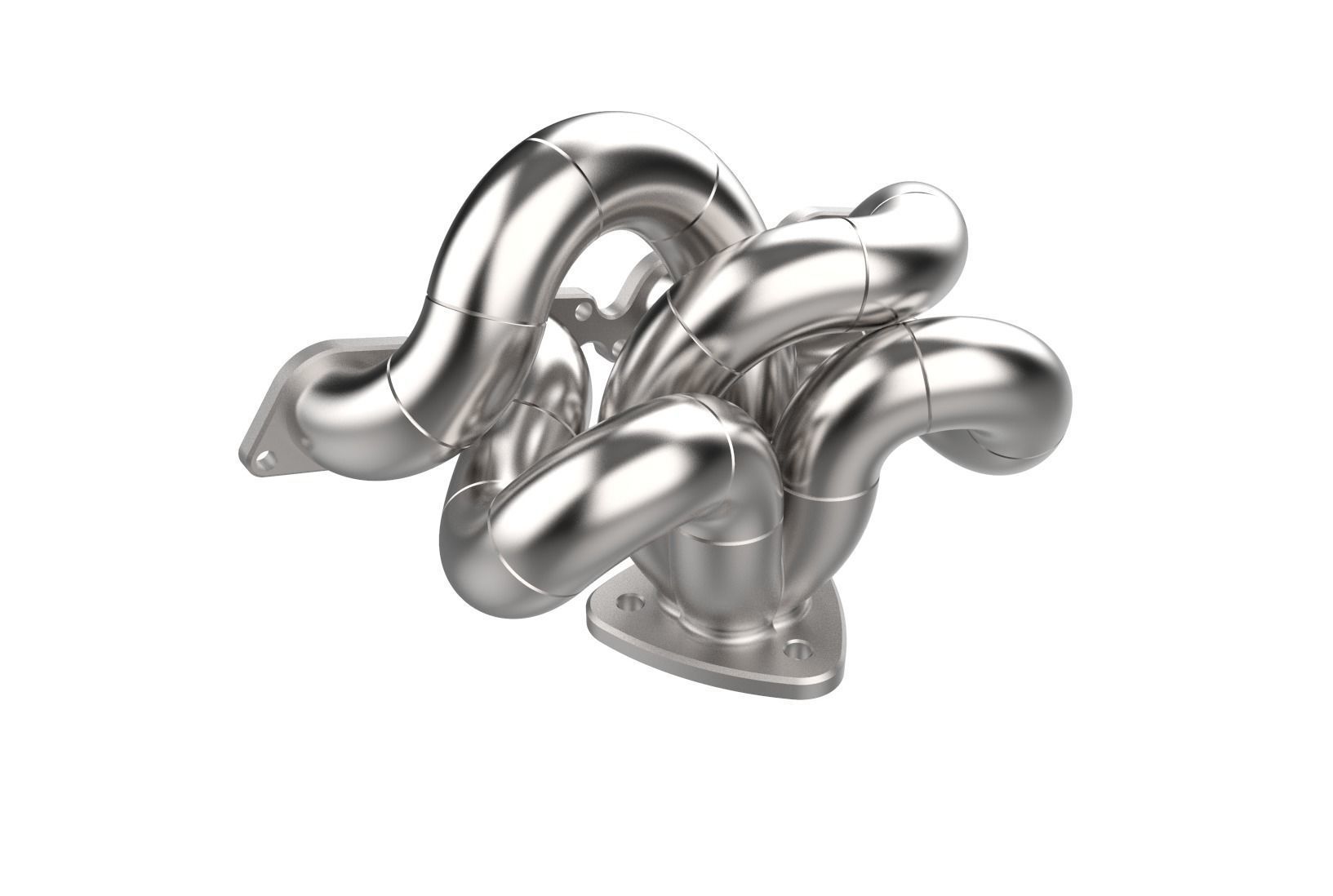

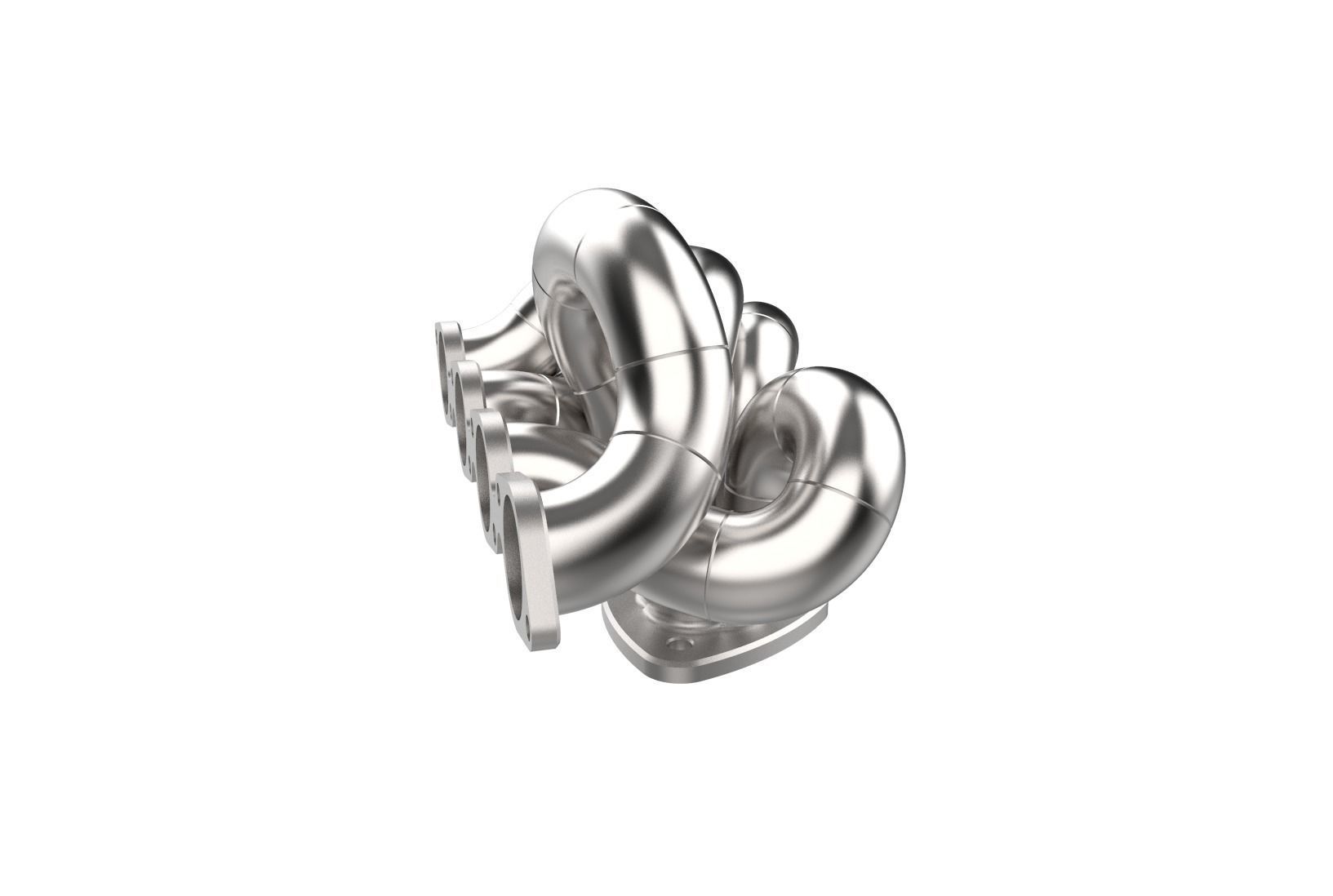

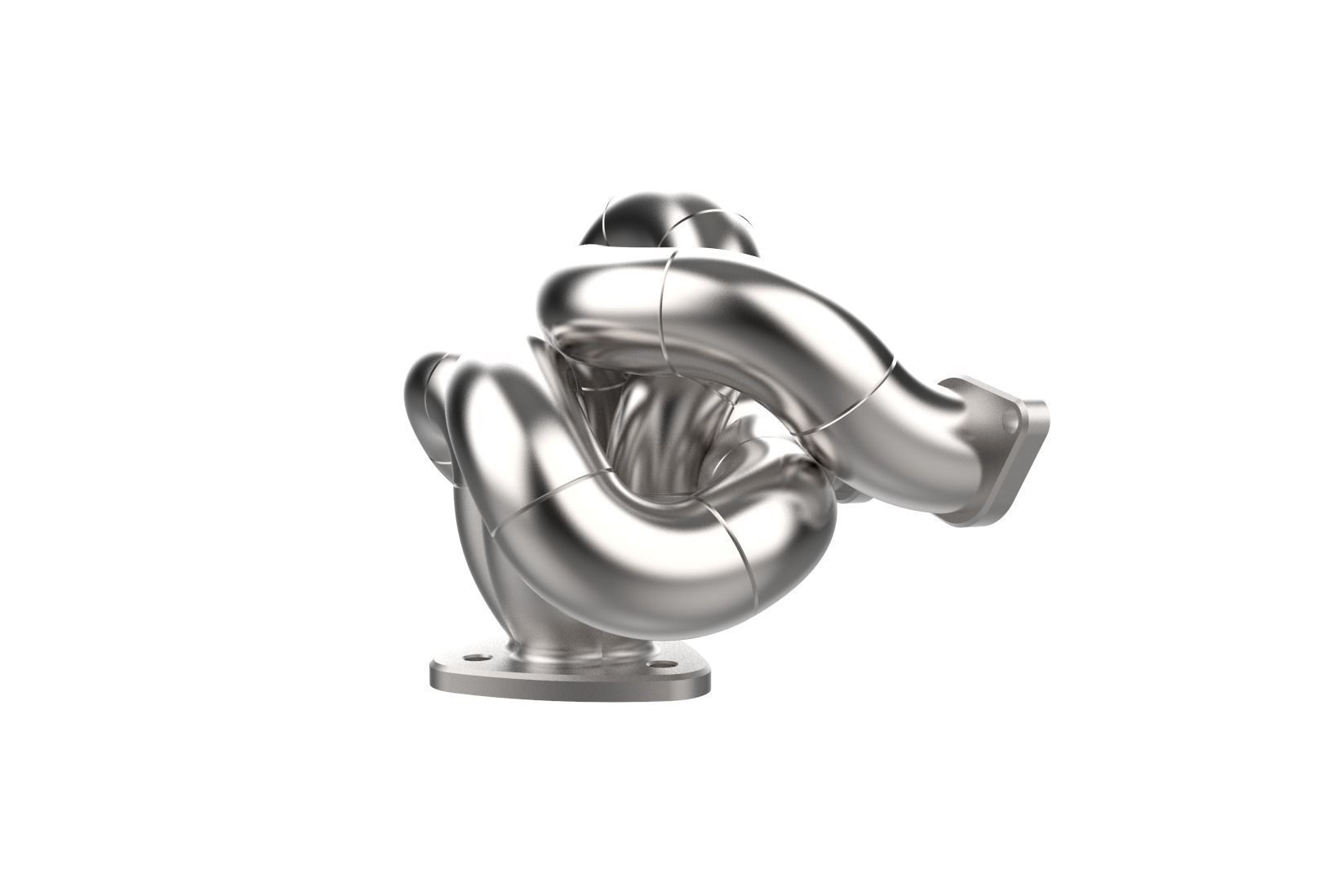

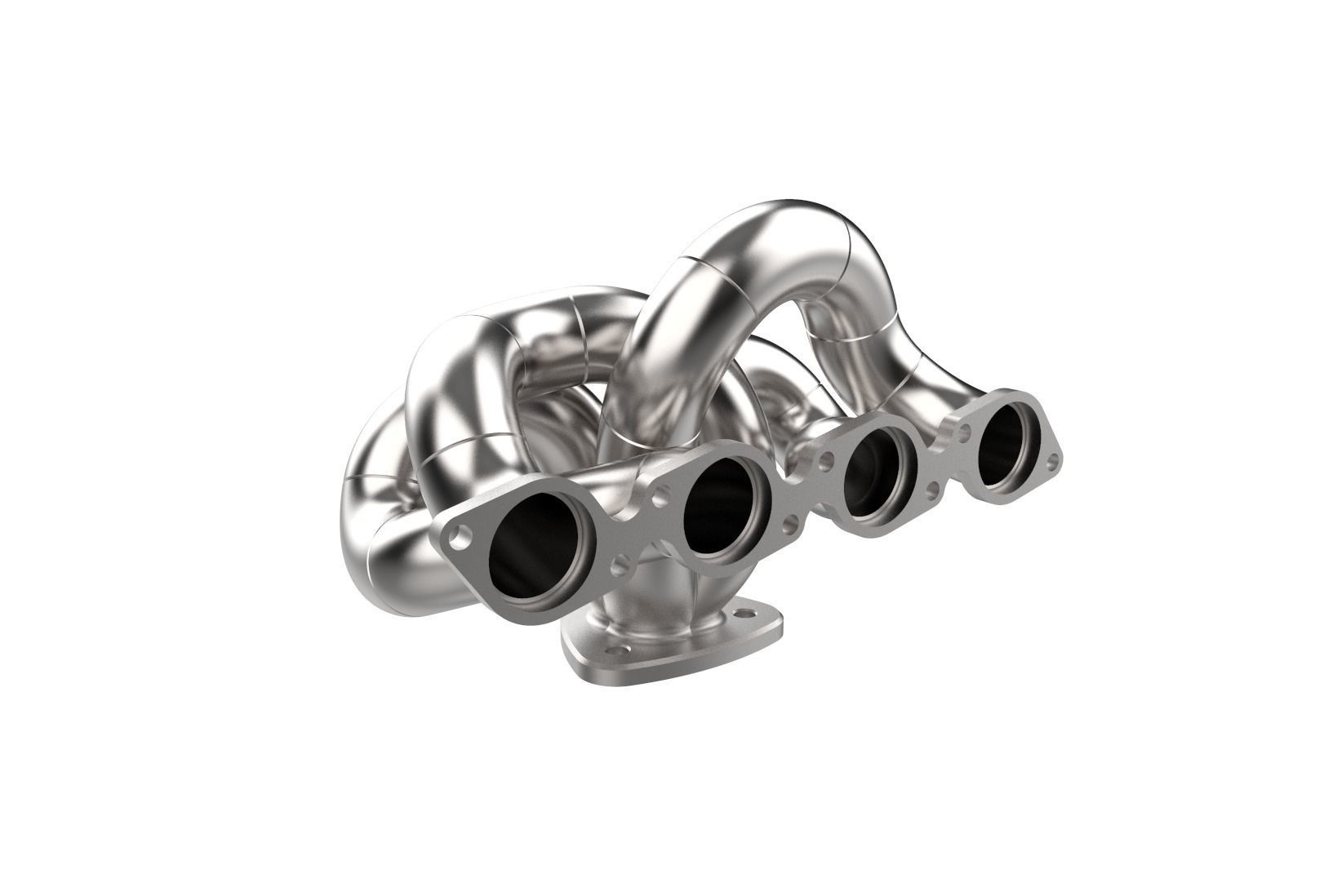

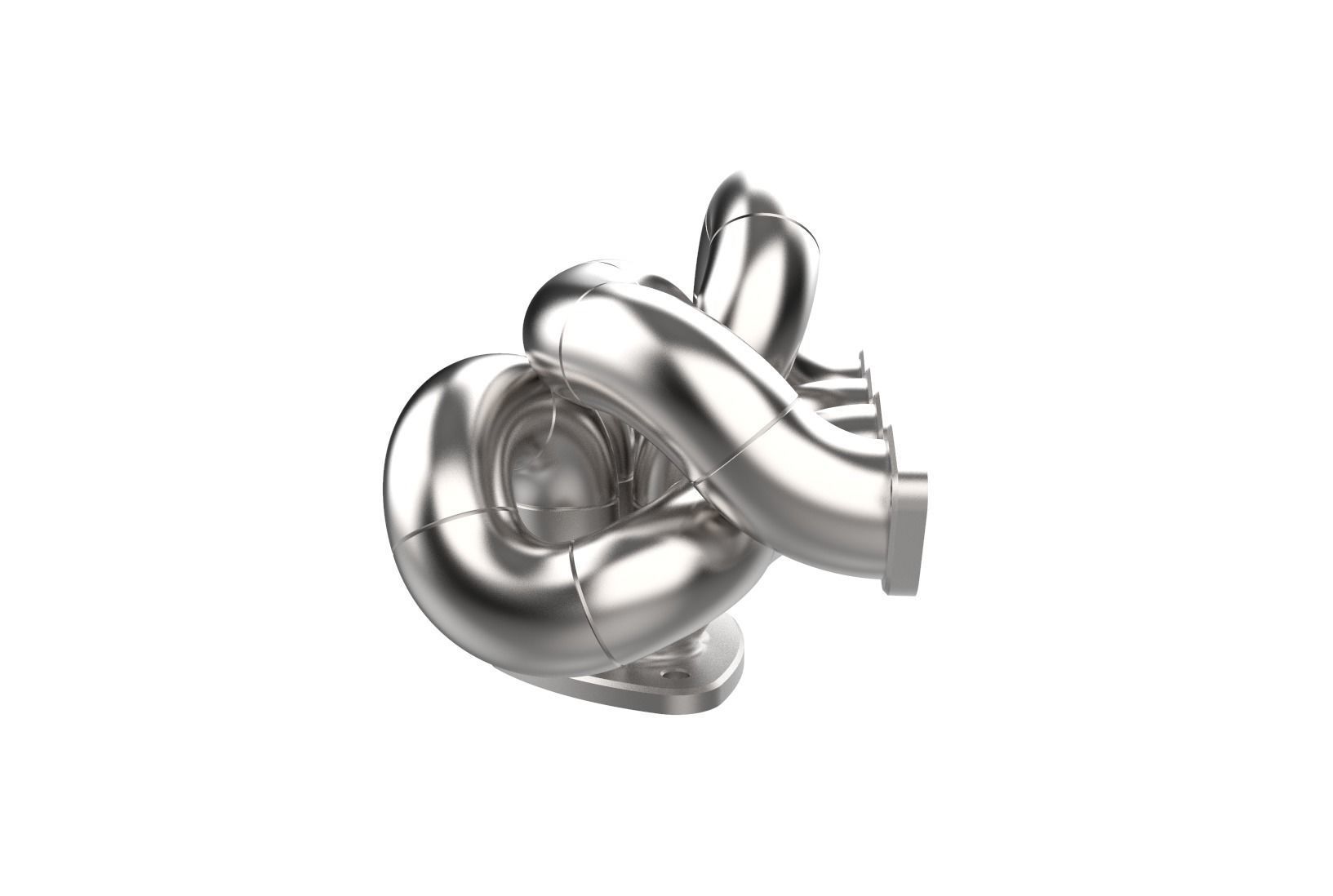

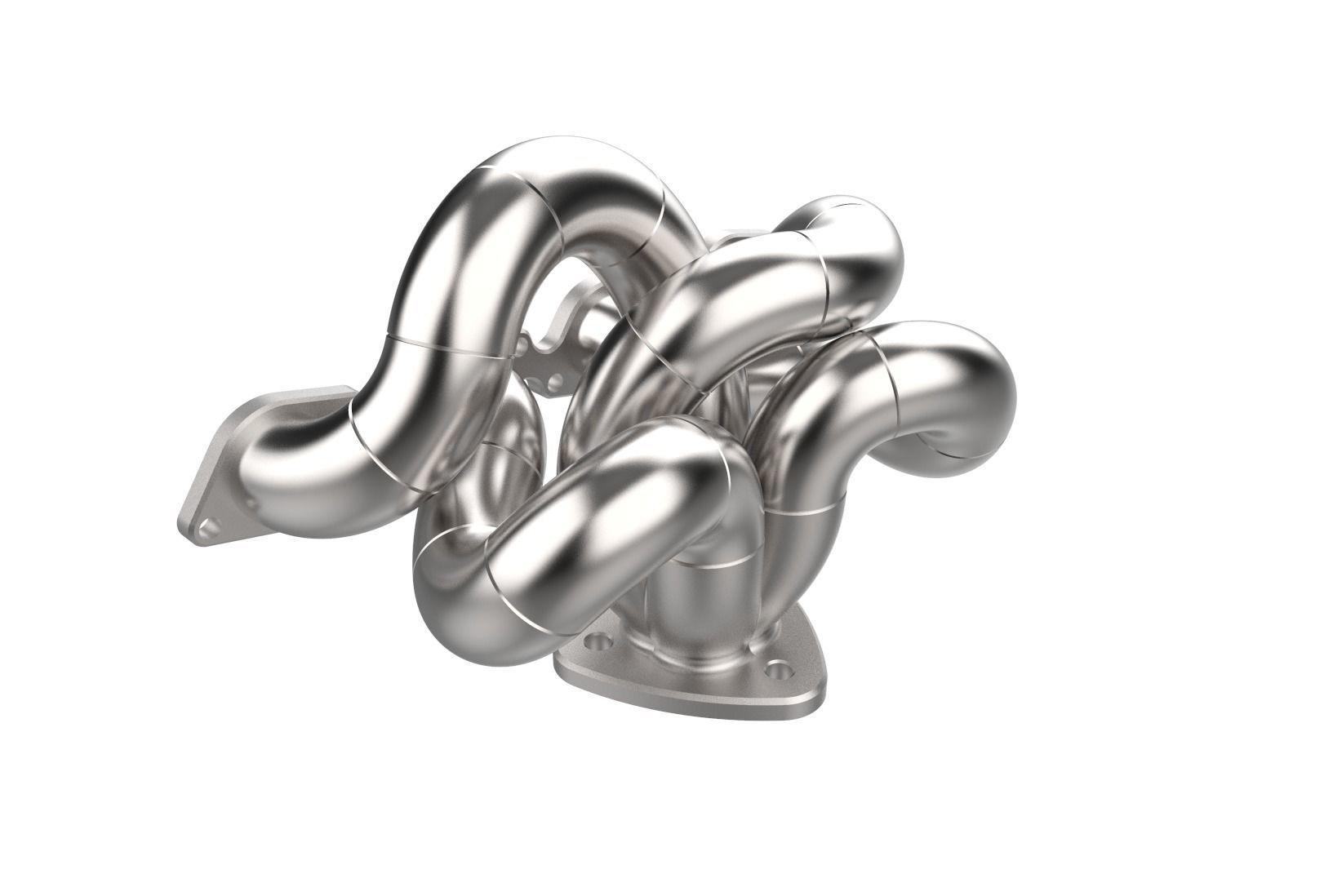

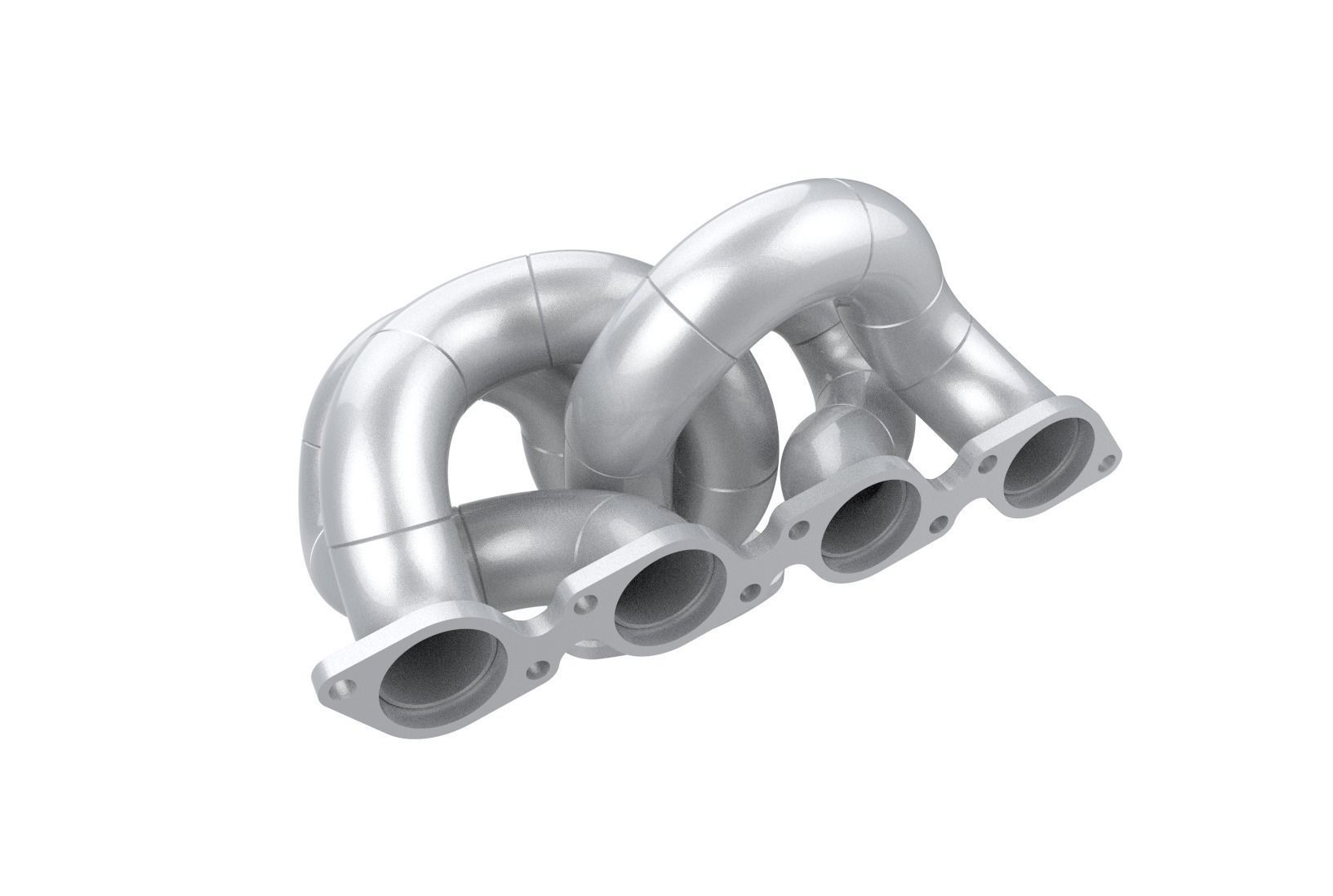

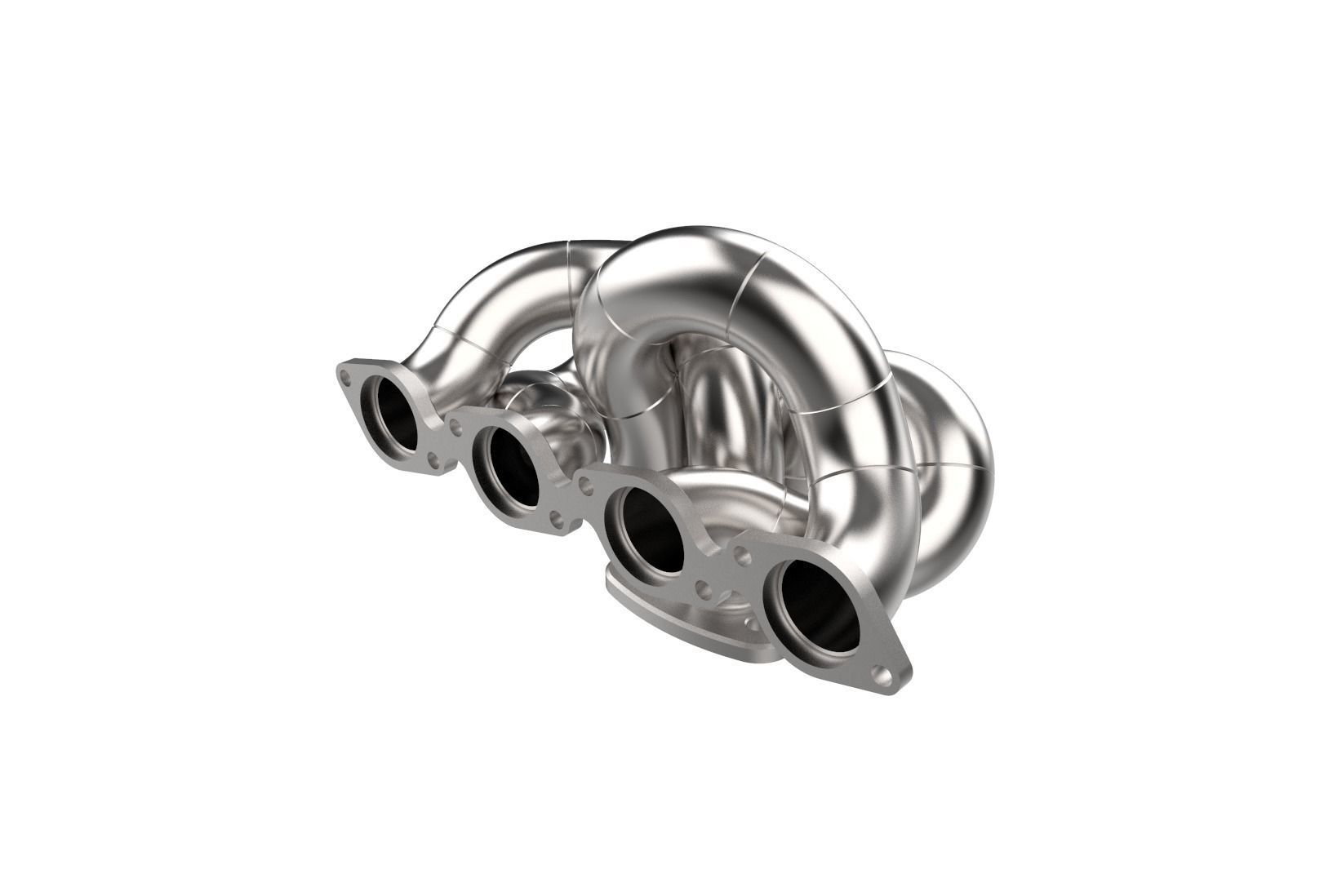

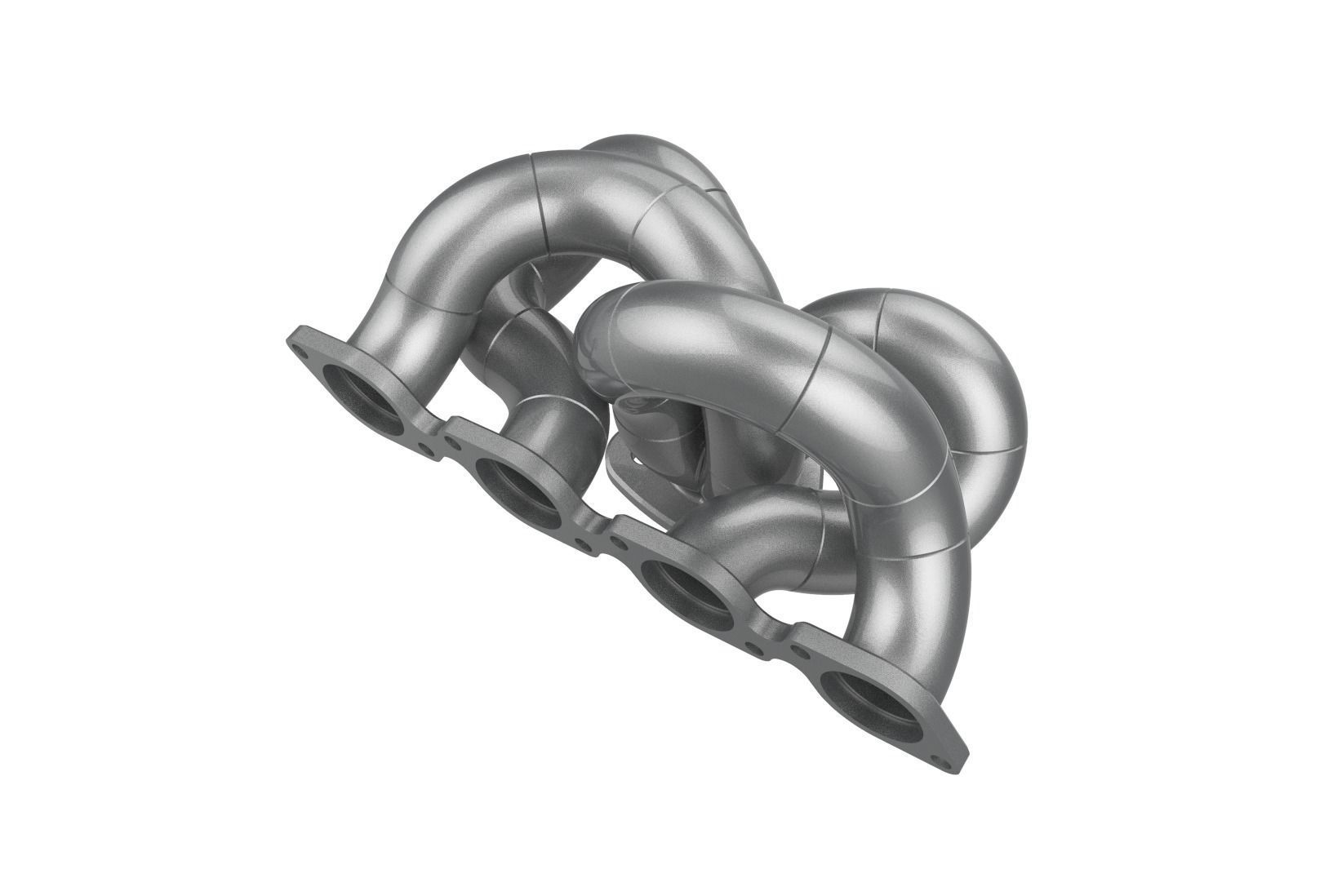

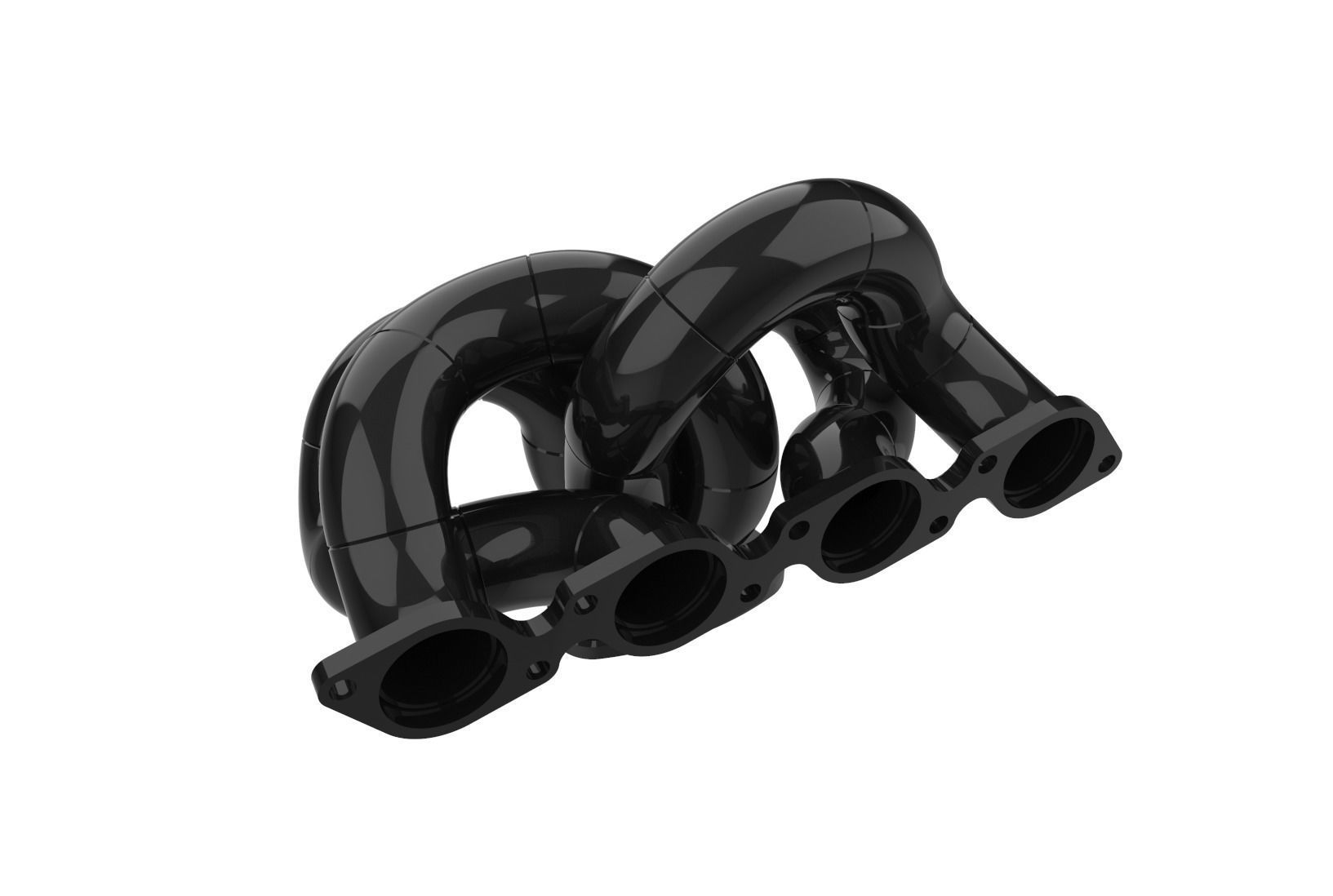

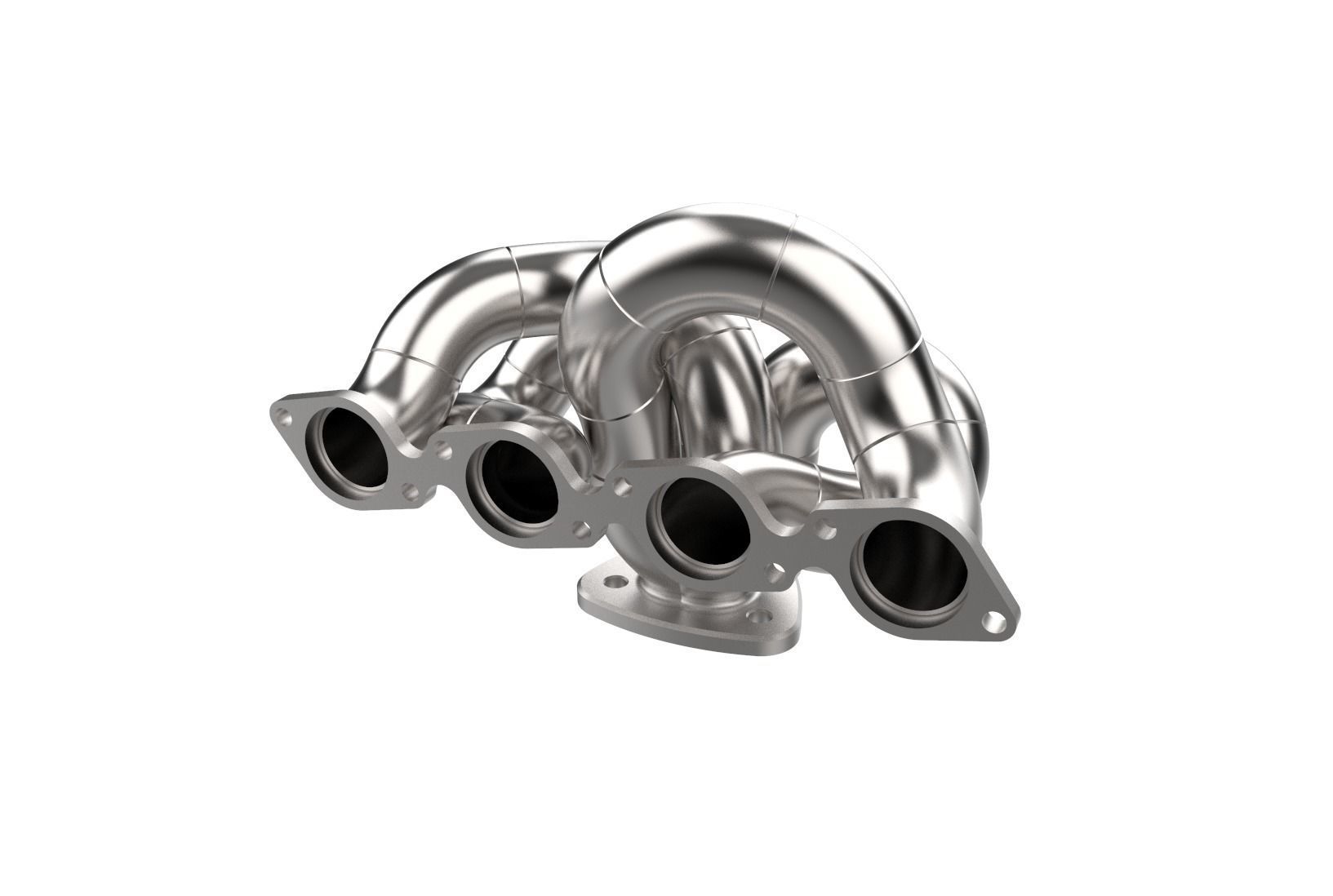

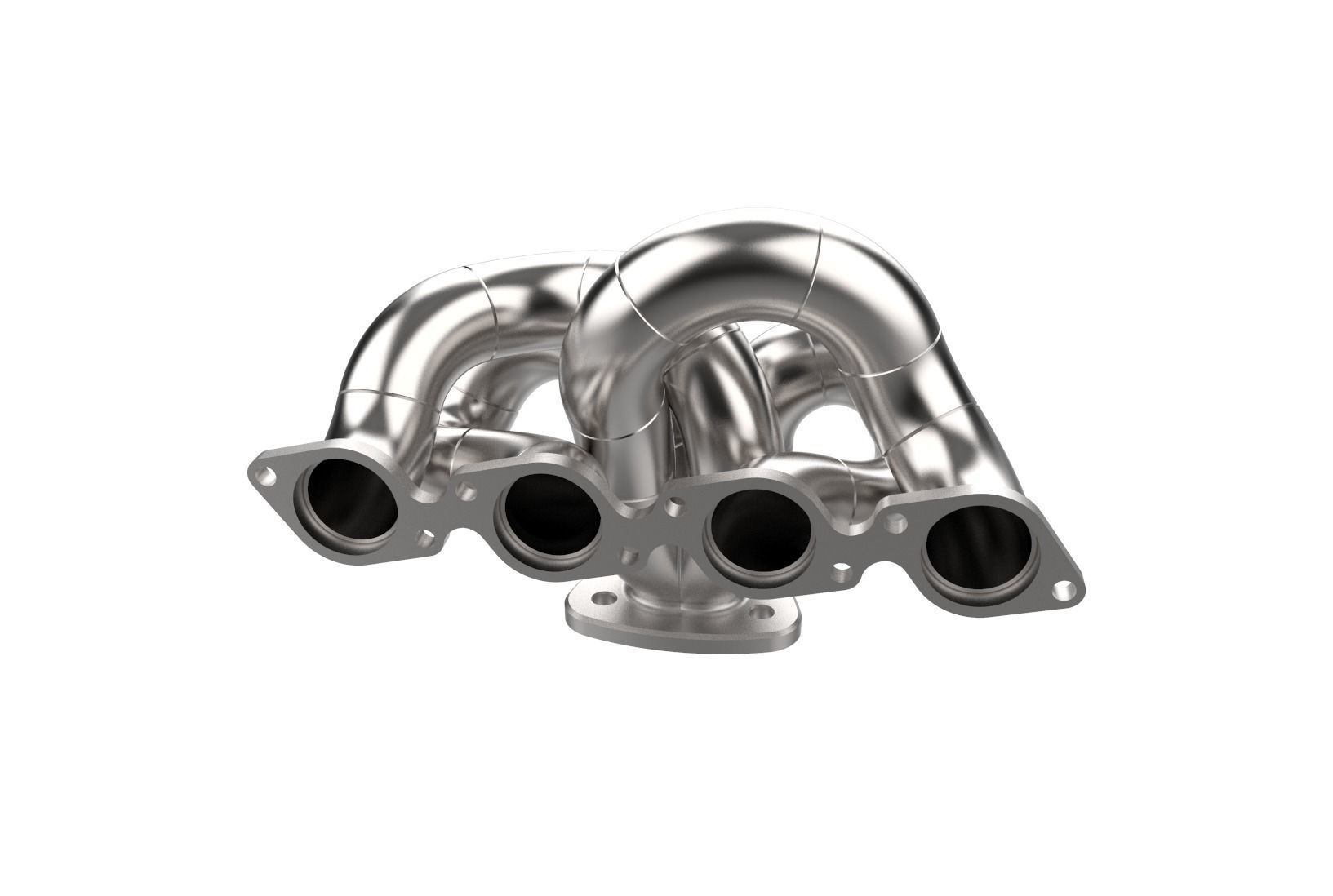

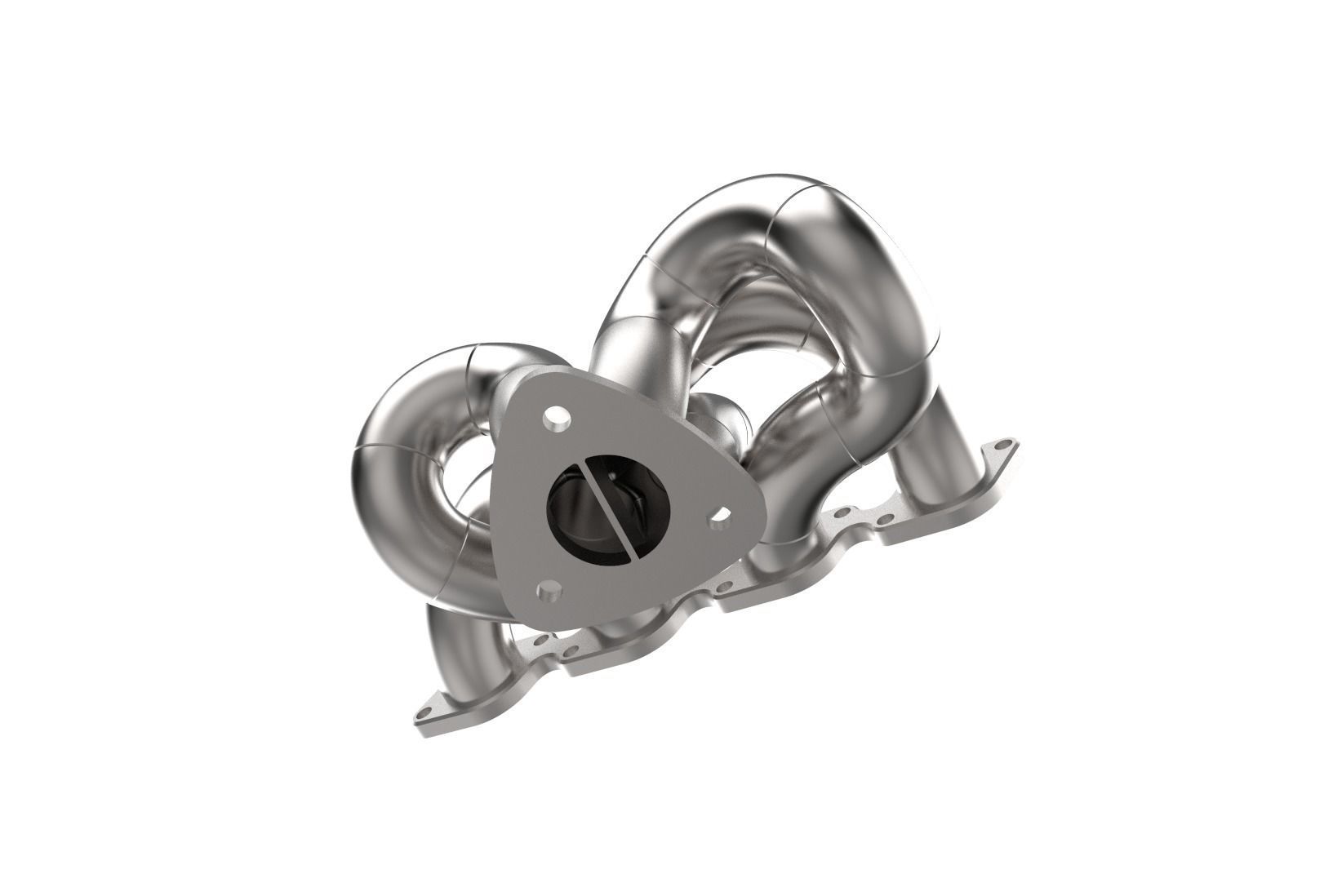

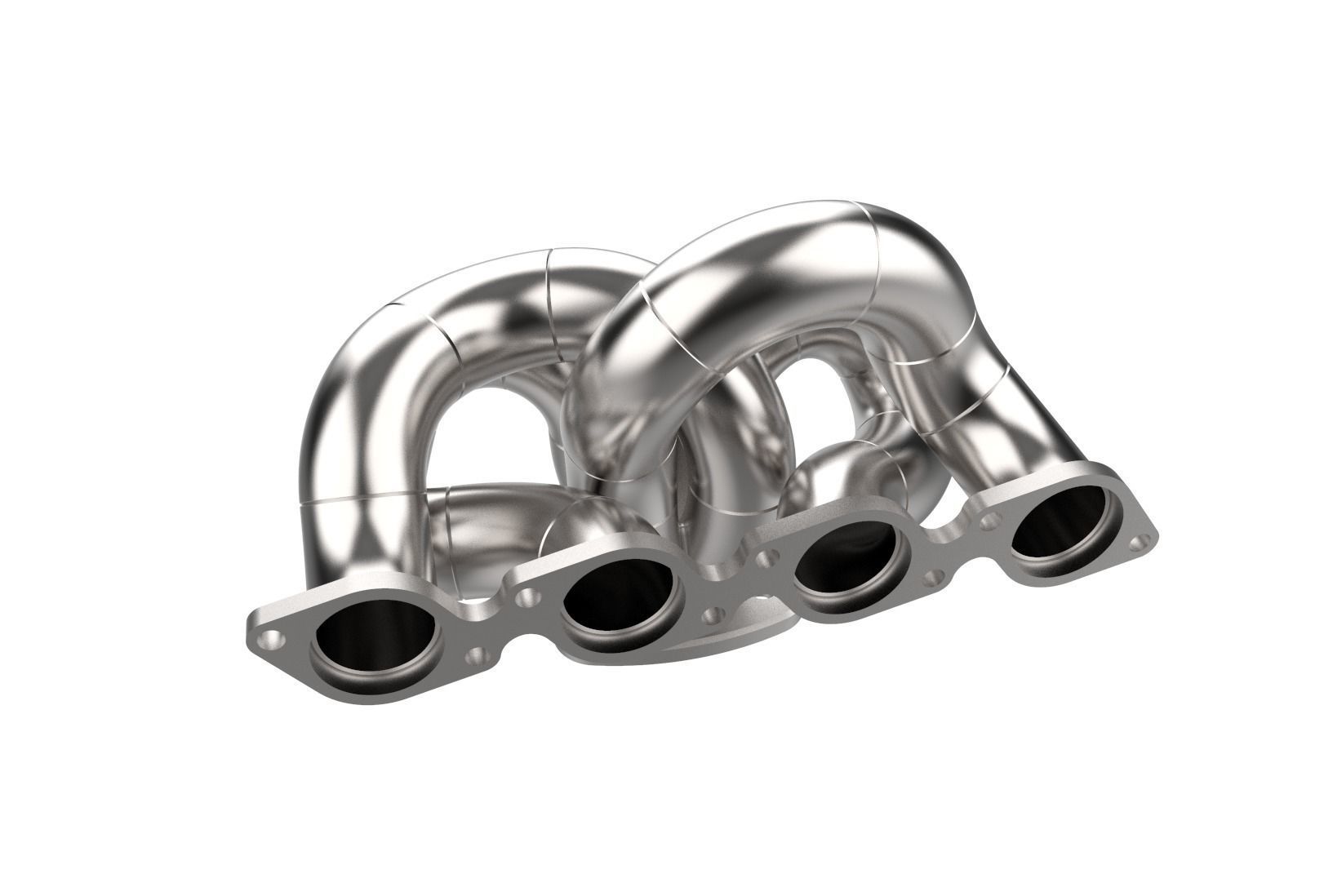

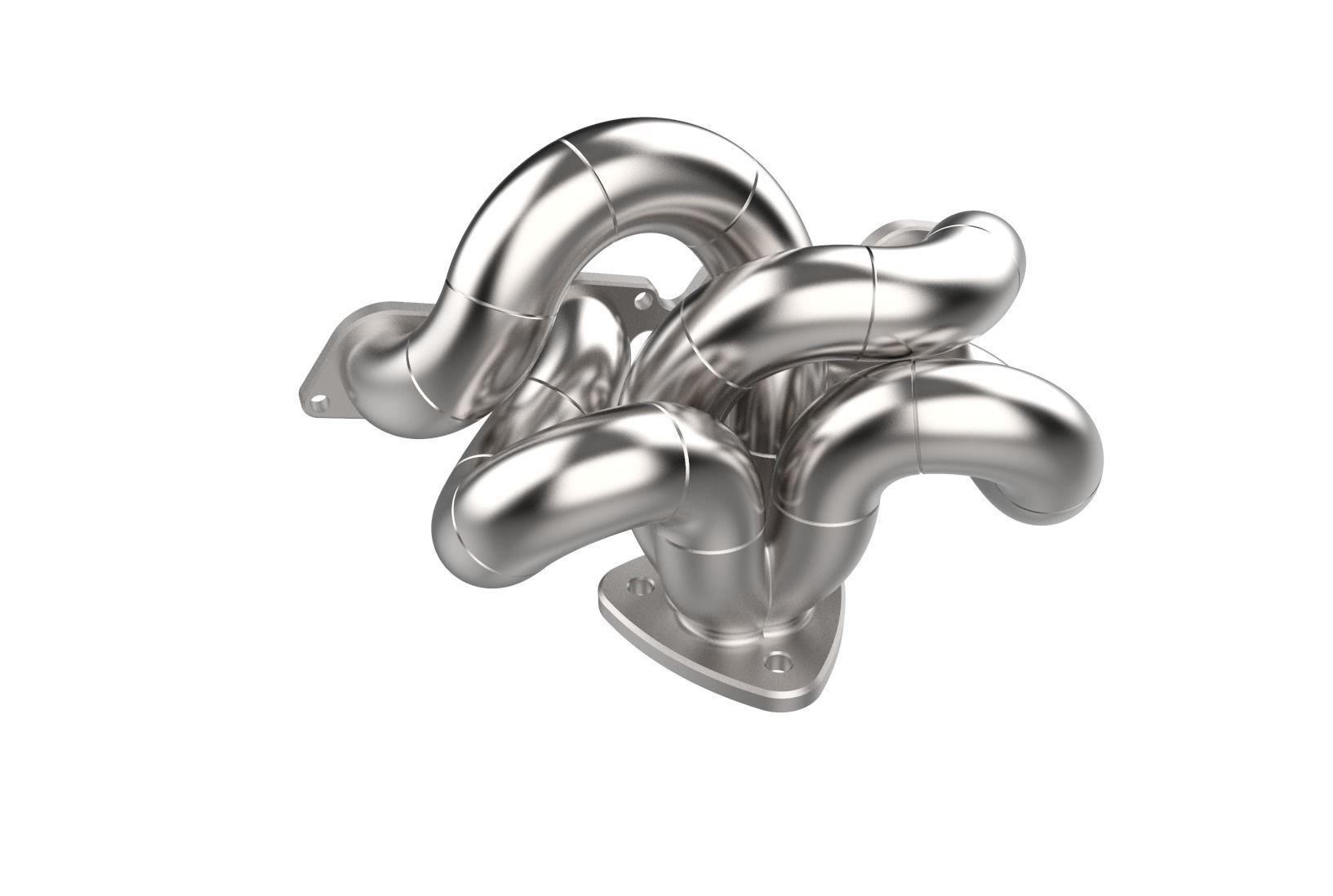

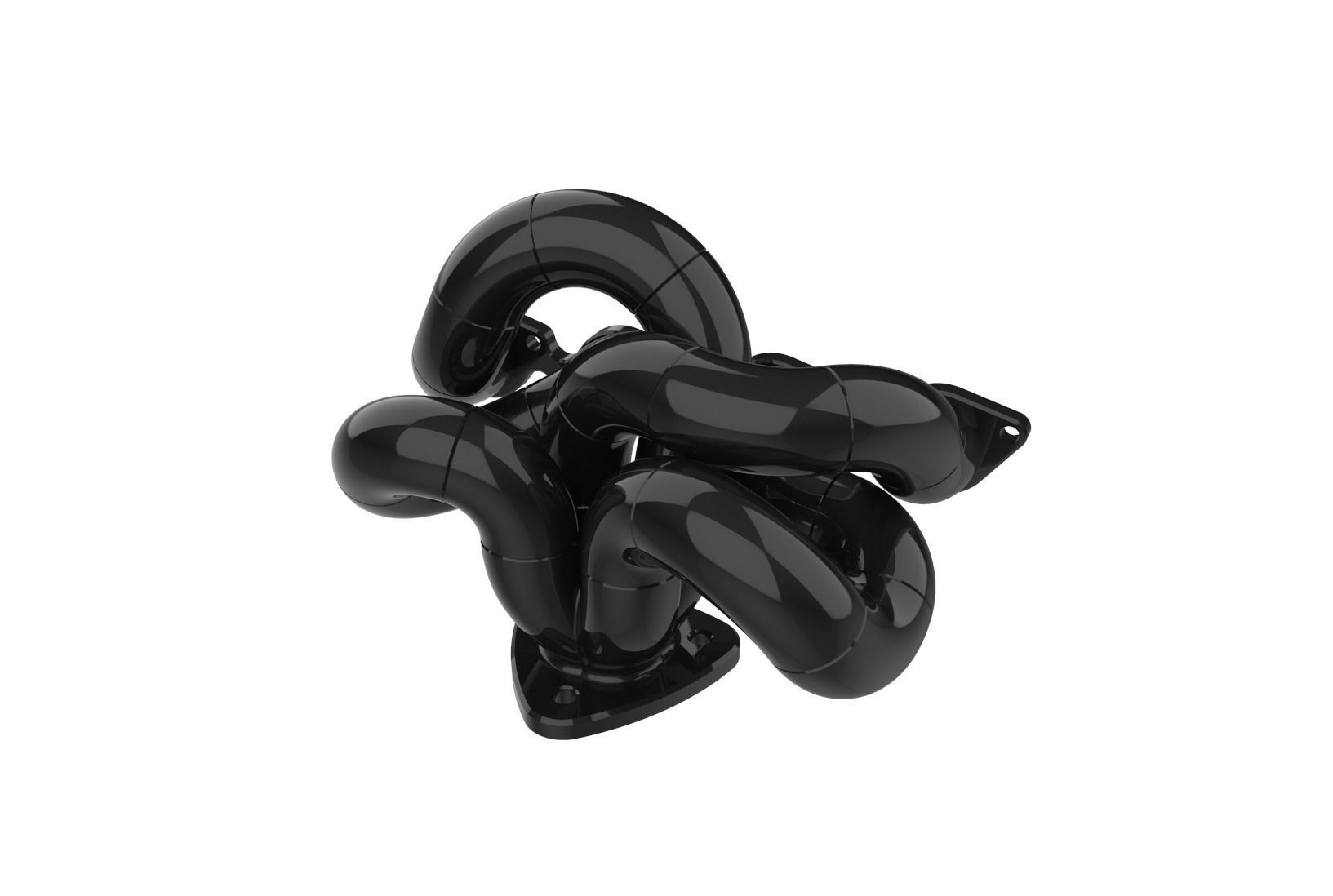

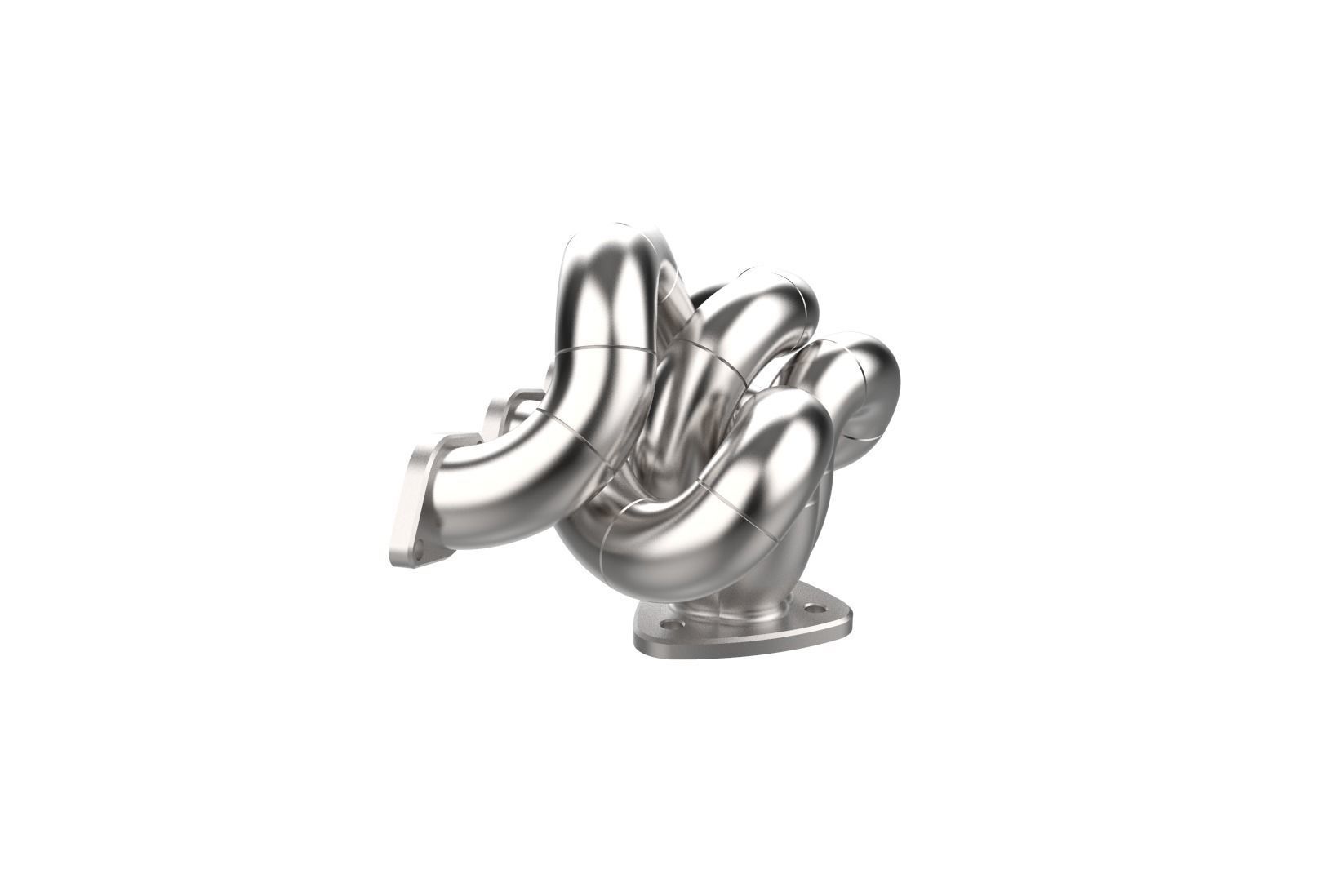

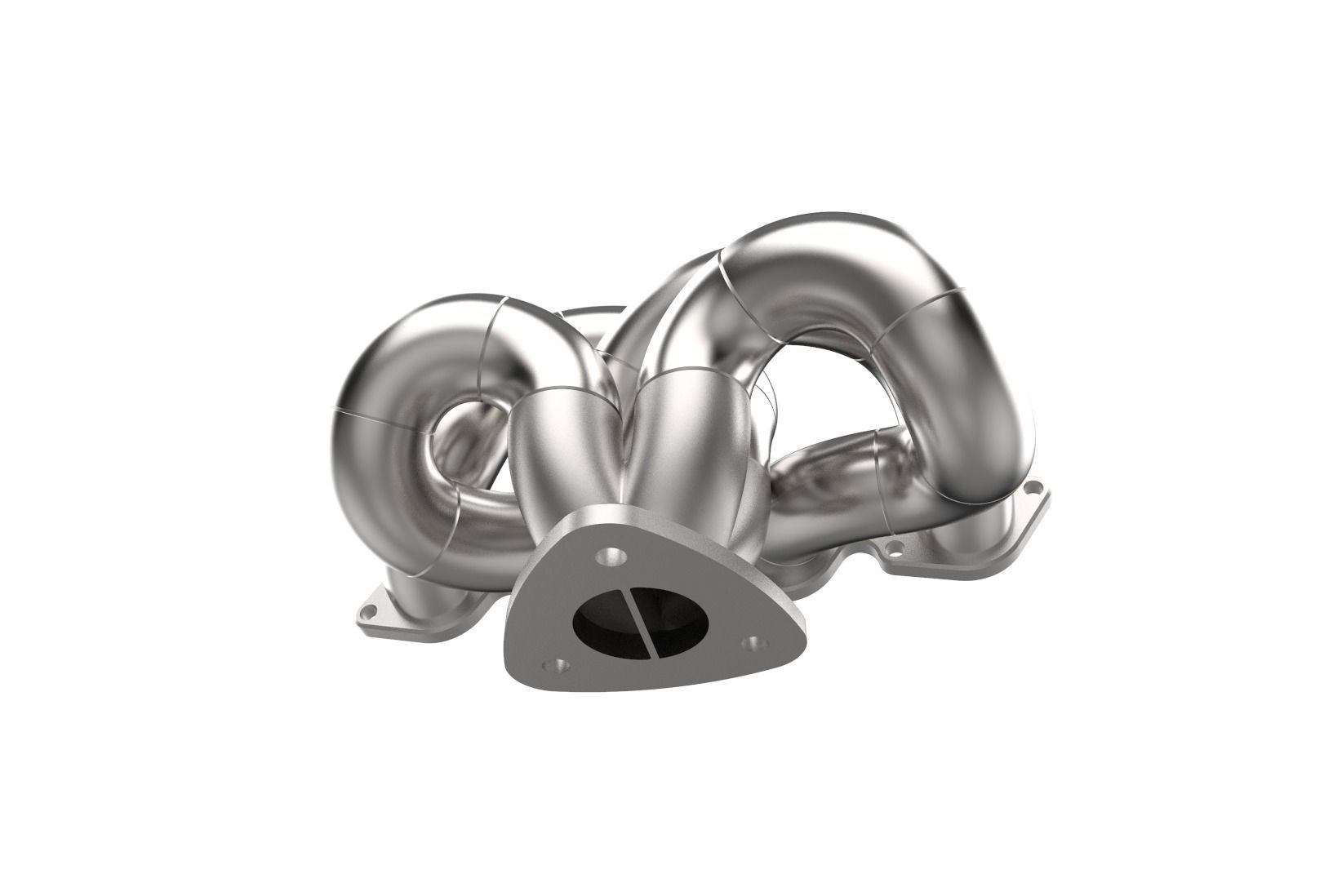

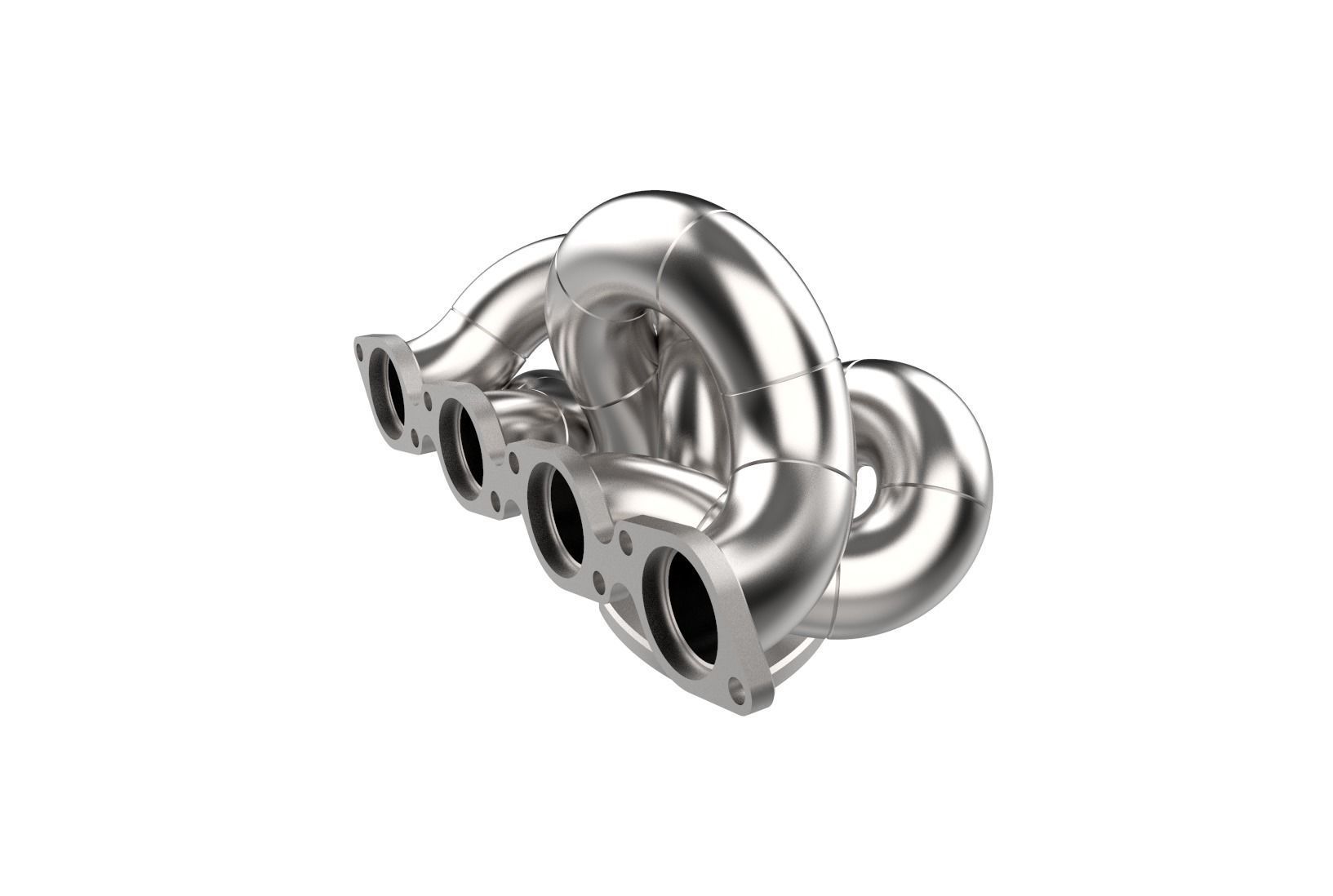

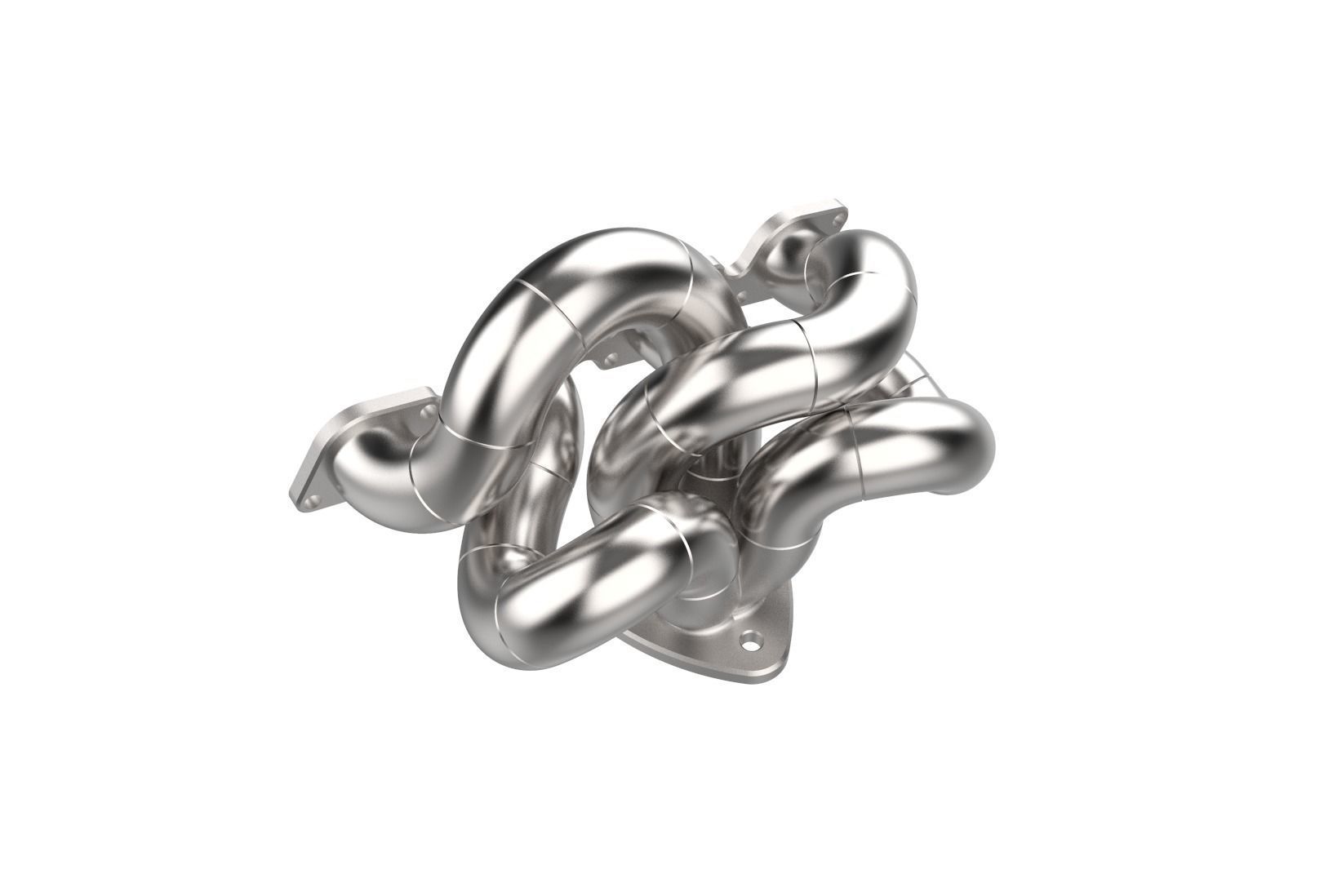

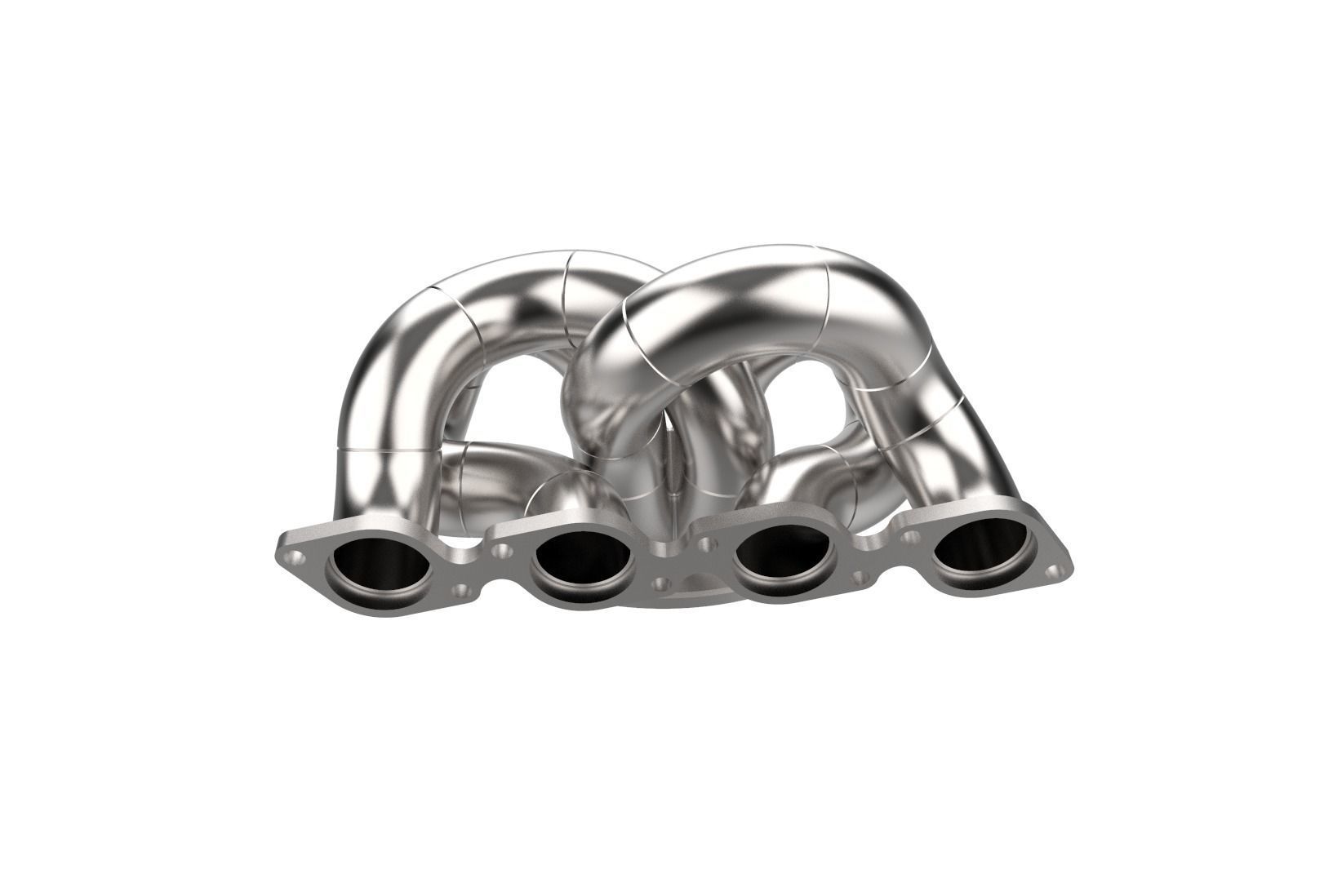

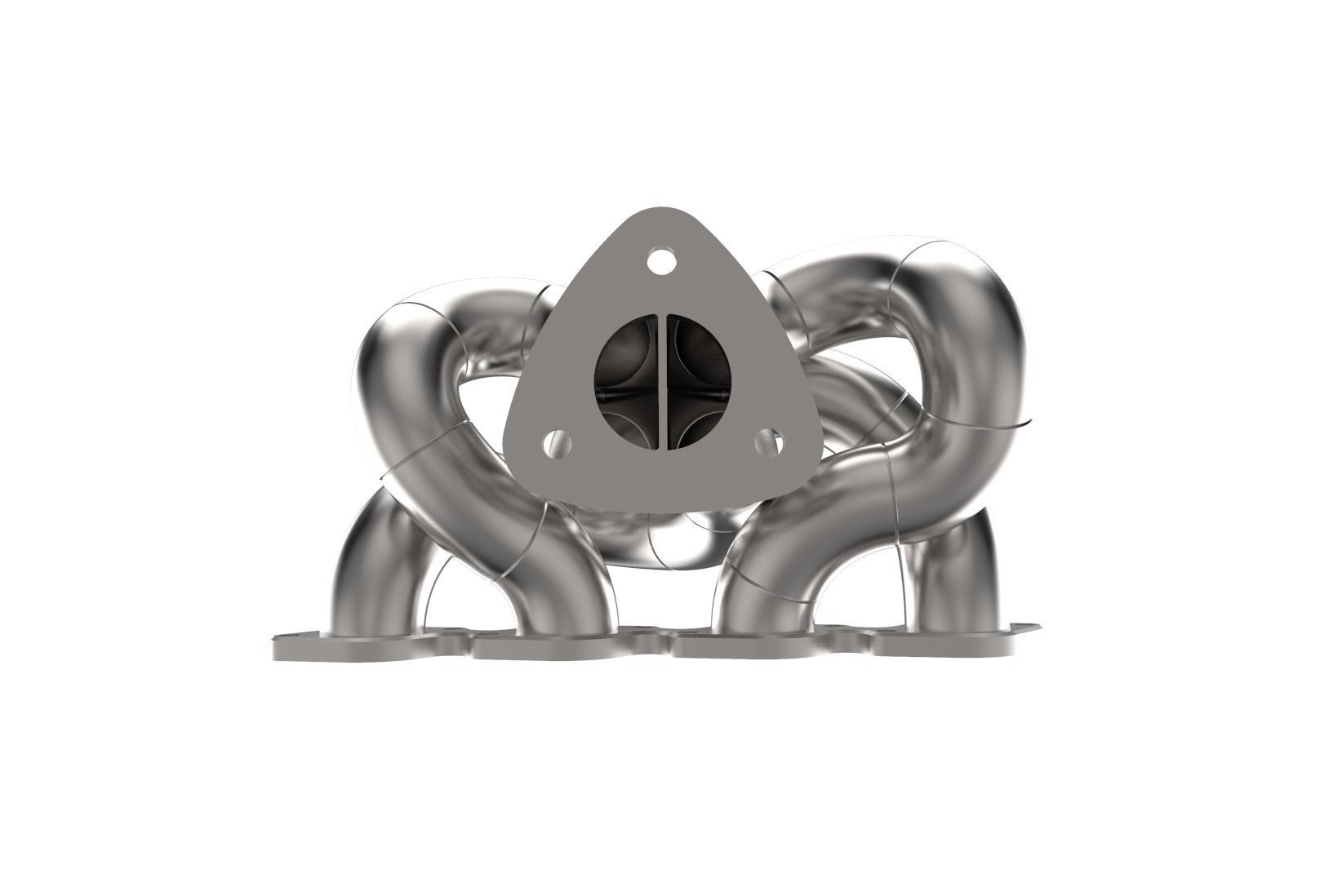

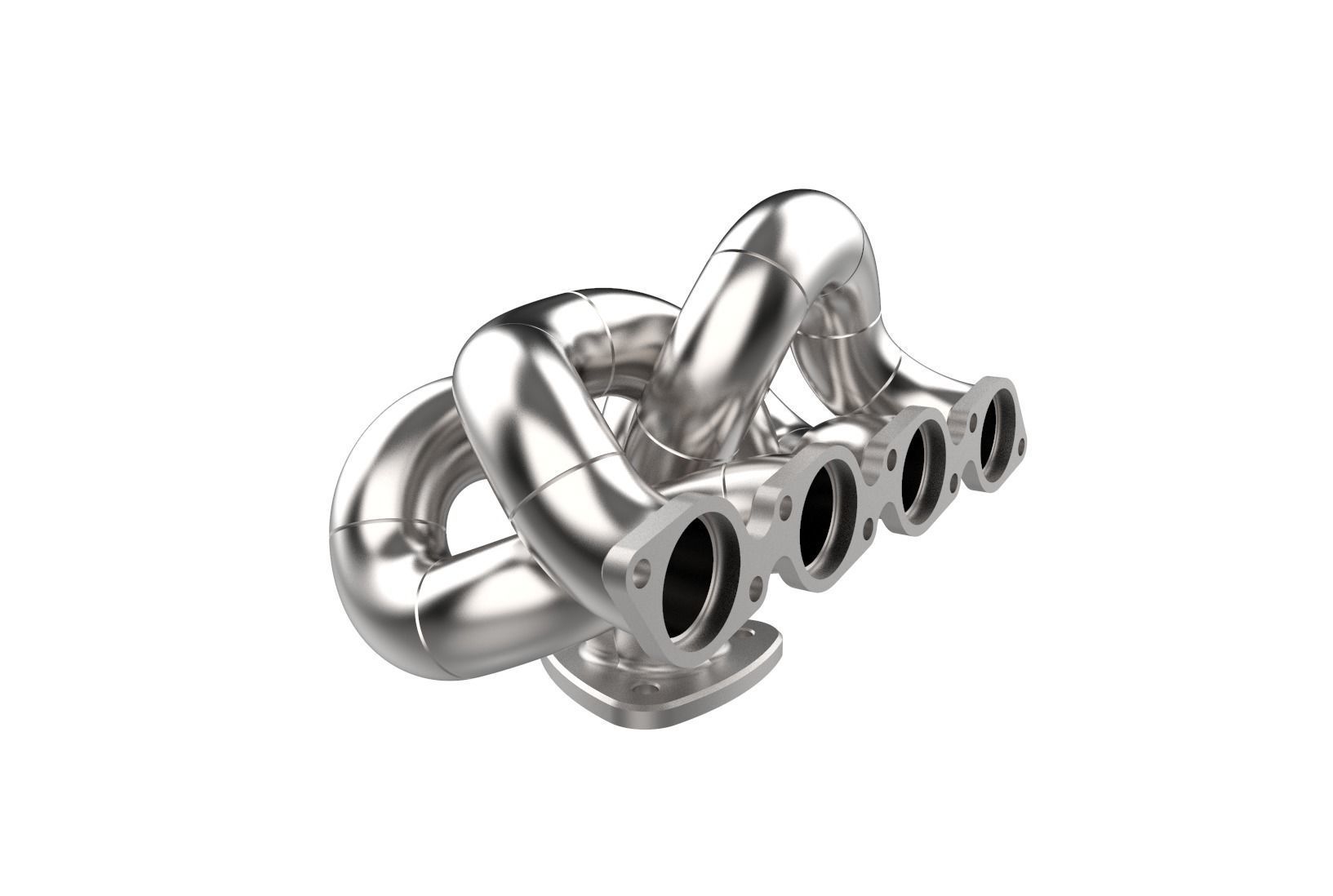

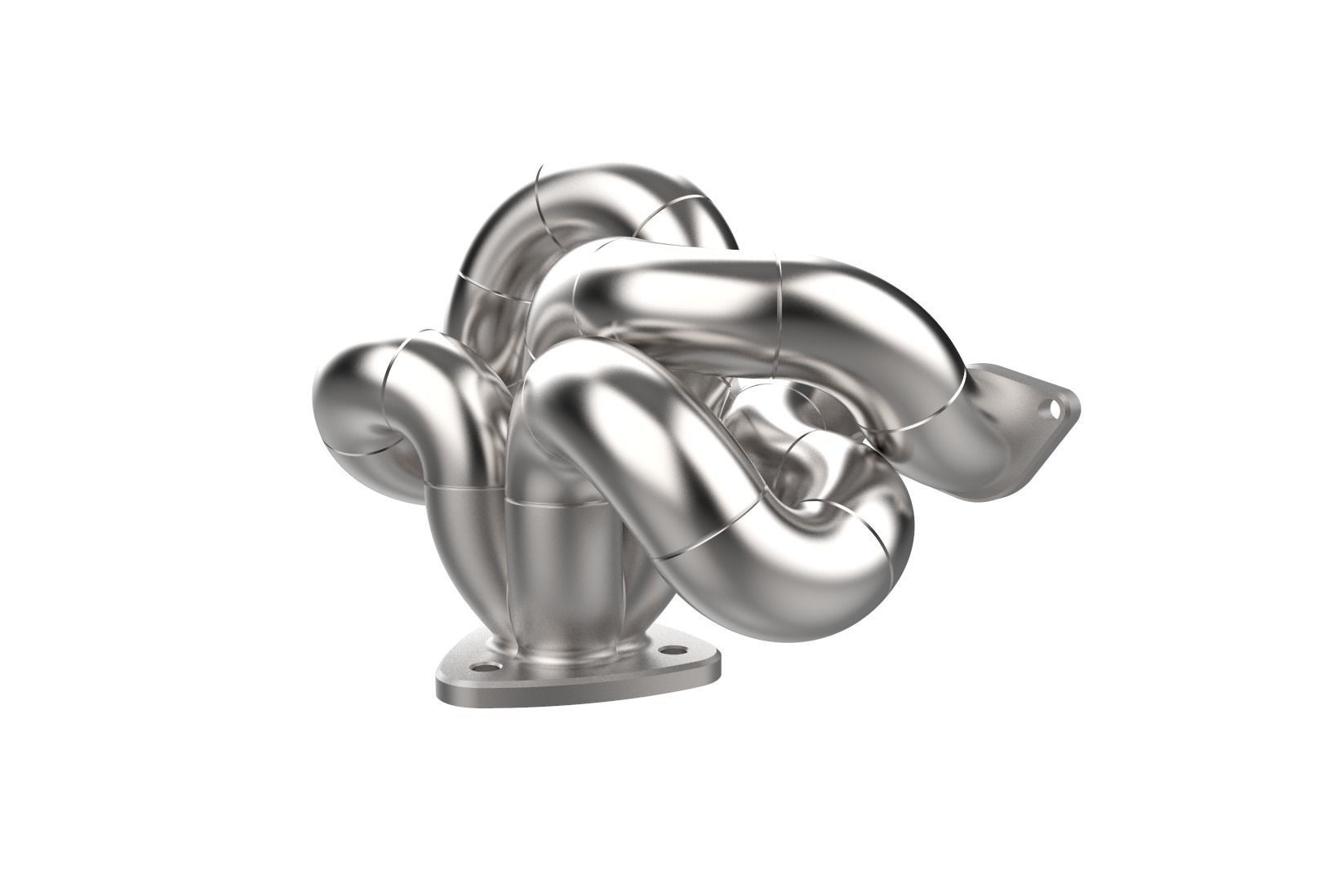

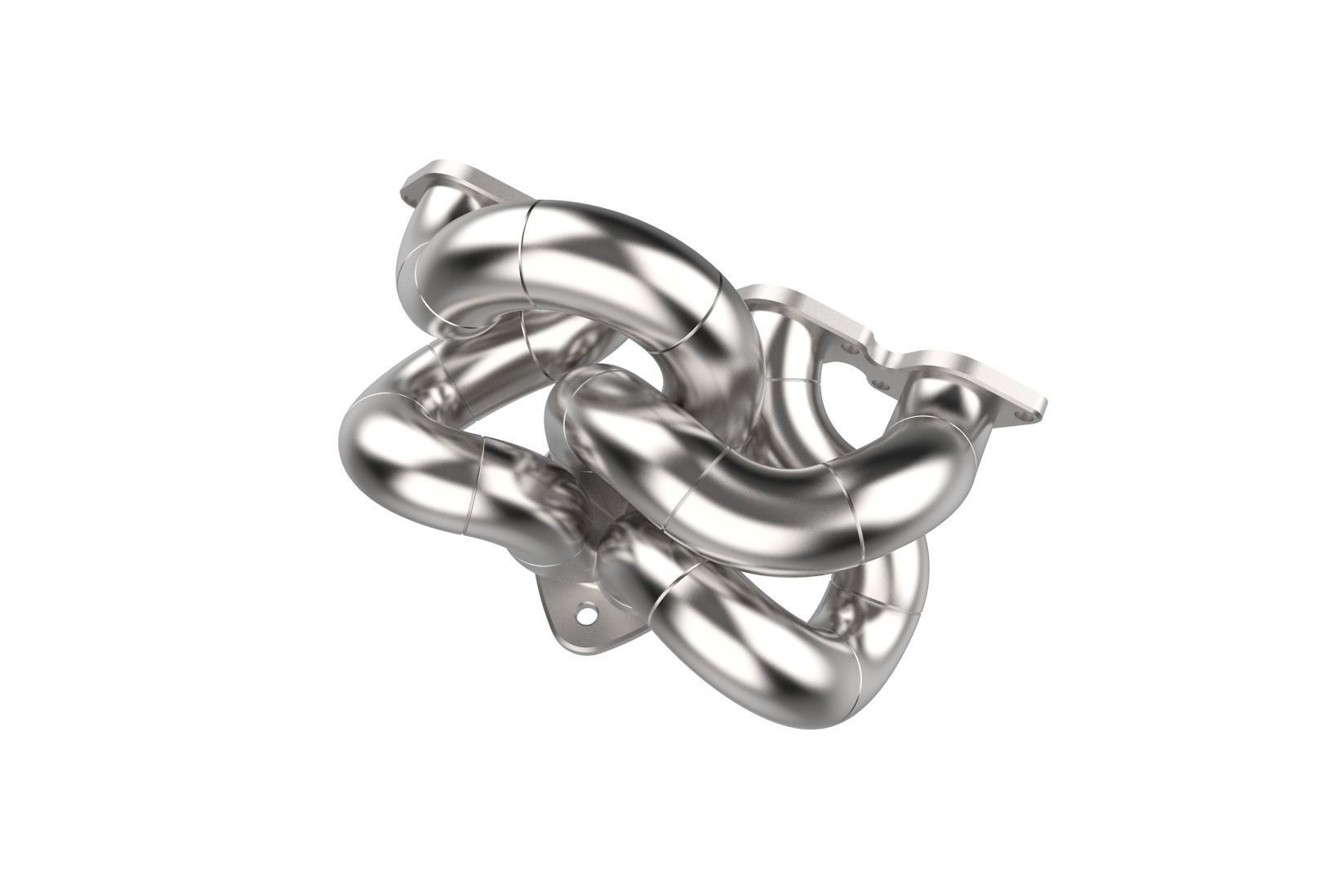

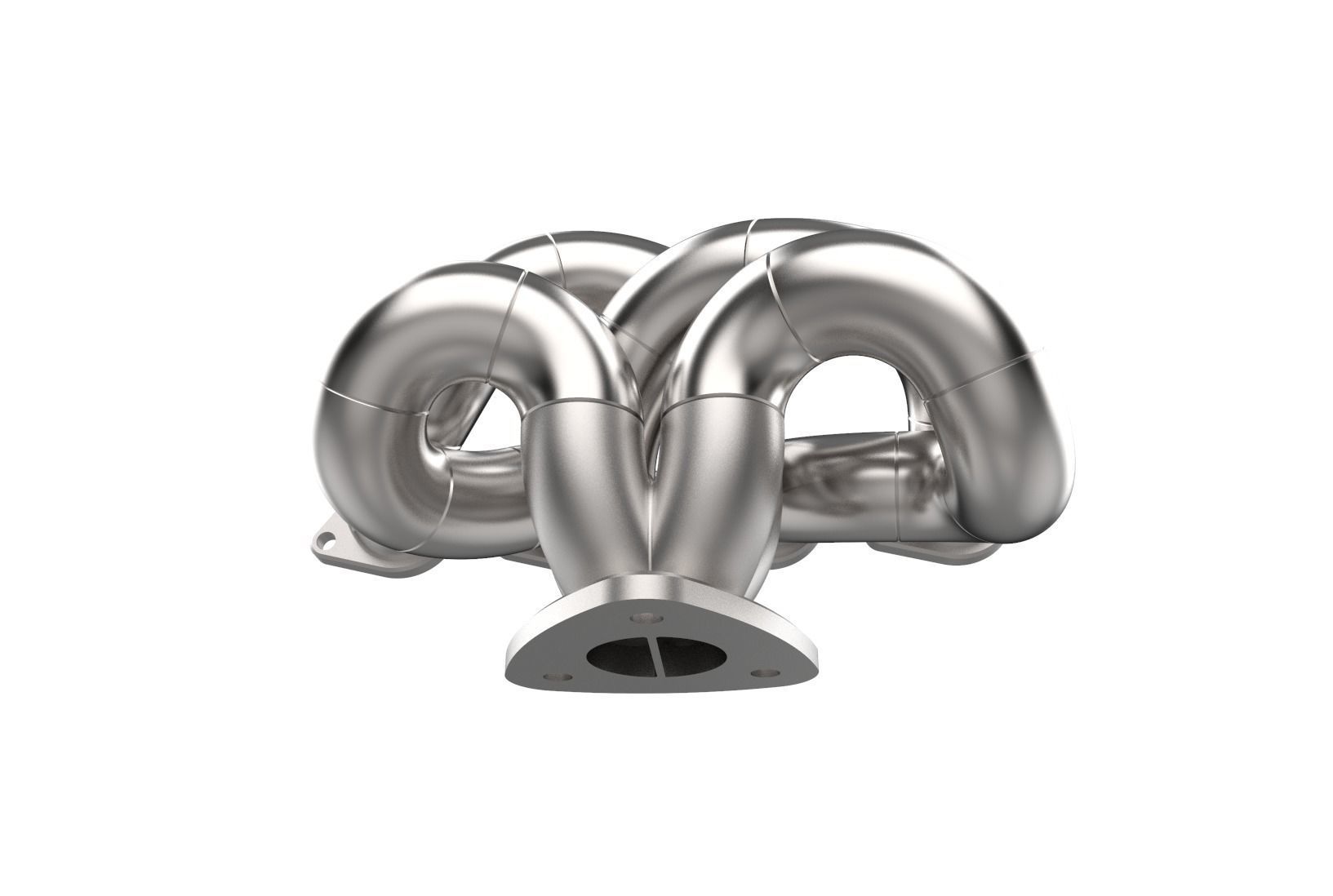

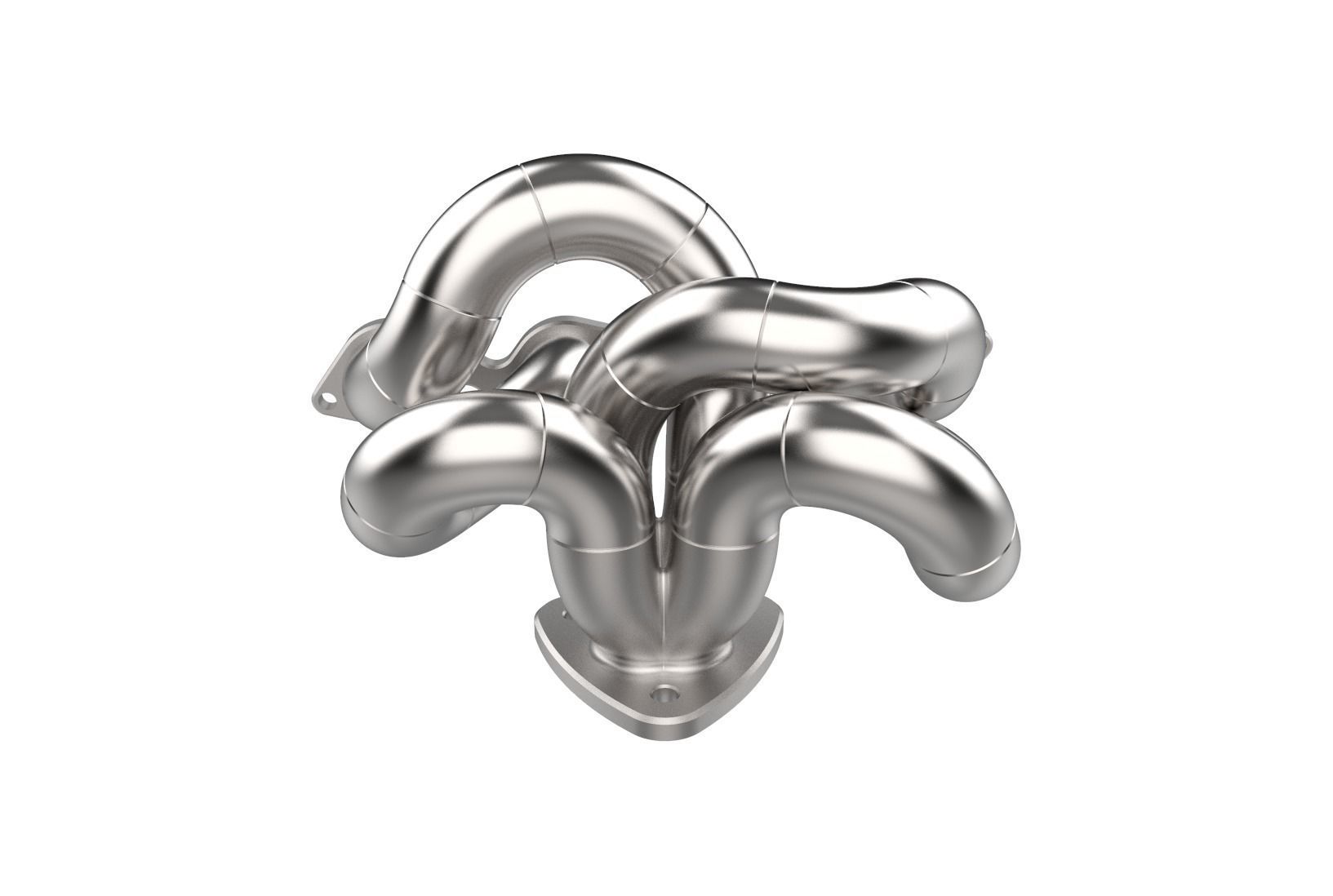

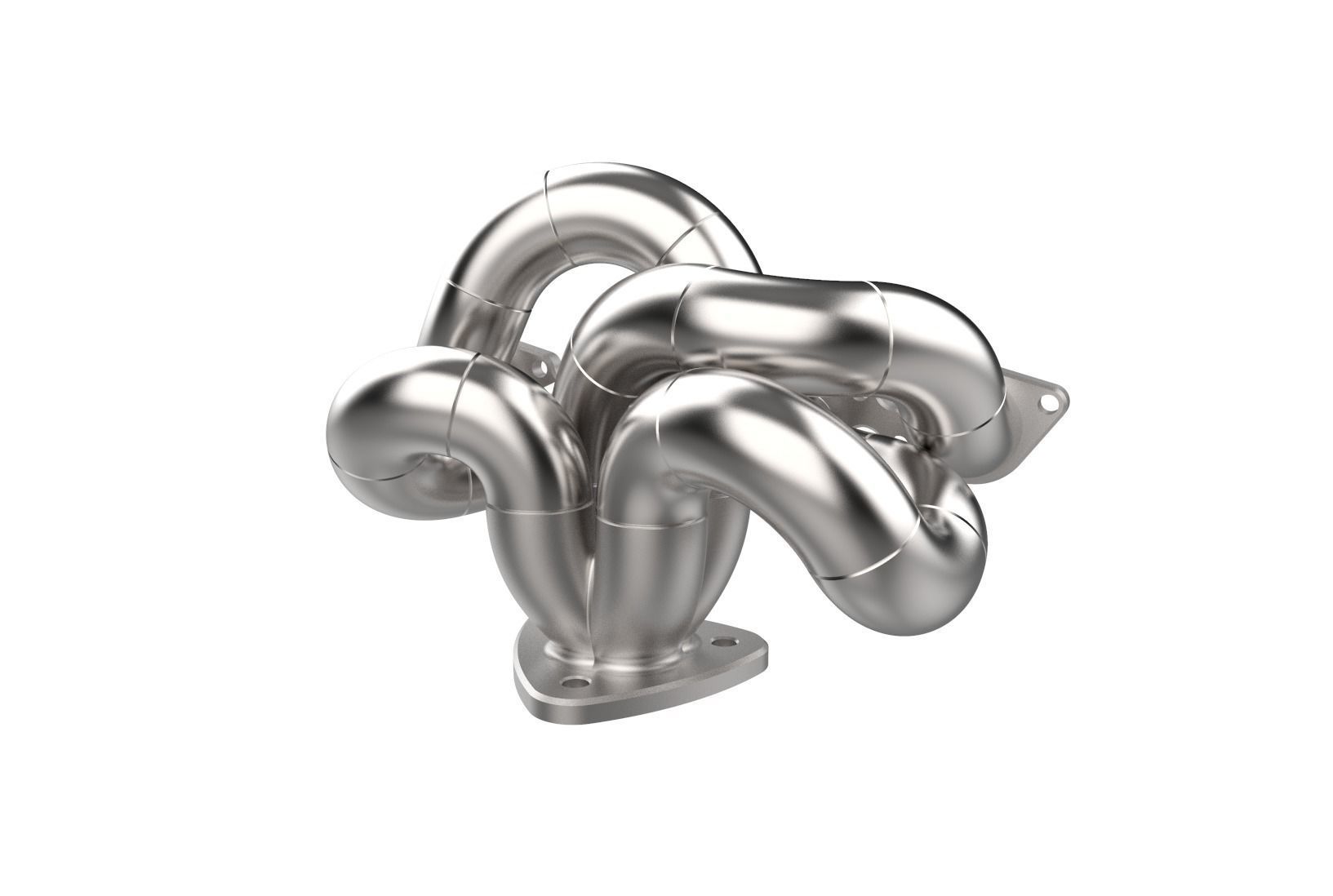

This is a custom designed exhaust manifold header. It is designed based on my exhaust header manifold flange that is also available in my models for sale. The paths for the exhaust tubes is selected in this way that the most uniform path is achieved so that the exhaust pressure drop is minimized. It can be used in combination with turbochargers in order to make a complete mounting kit for an miniature car or decor. Along with the native Solidworks file, you can also find parasolid, iges and step formats as well as stl, amf and 3mf. Polygon file is also attached. Can be used for 3D printing.

Write comment
K
karlu
karlu 2022-04-01 16:06:32 UTC
Great job!
Item rating
1 0
Exhaust manifold header
$12.95

Royalty Free License
Exhaust manifold header
$12.95

Royalty Free License
AAG-Design
AG-Design
(16 reviews)
Response 81% in 0.4h
3D Modeling
3D Print Modeling
Low-poly Modeling
Rendering
3D Scanning
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw)3.47 MB
Exchange
  • 3D Manufacturing File (.3mf)3.5 MB
  • Stereolithography (.stl)11.9 MB
  • Ply (.ply)1.88 MB
  • IGES (.ige, .igs, .iges)9.92 MB
  • STEP (.stp)15.2 MB
  • amf (.amf)25.4 MB

3D Model details

  • Publish date2022-03-25
  • Model ID#3662936
  • Ready for 3D Printing
