Description

PLEASE make sure your 3D printer is able to print a minimum size of 160x215x158mm before purchasing.

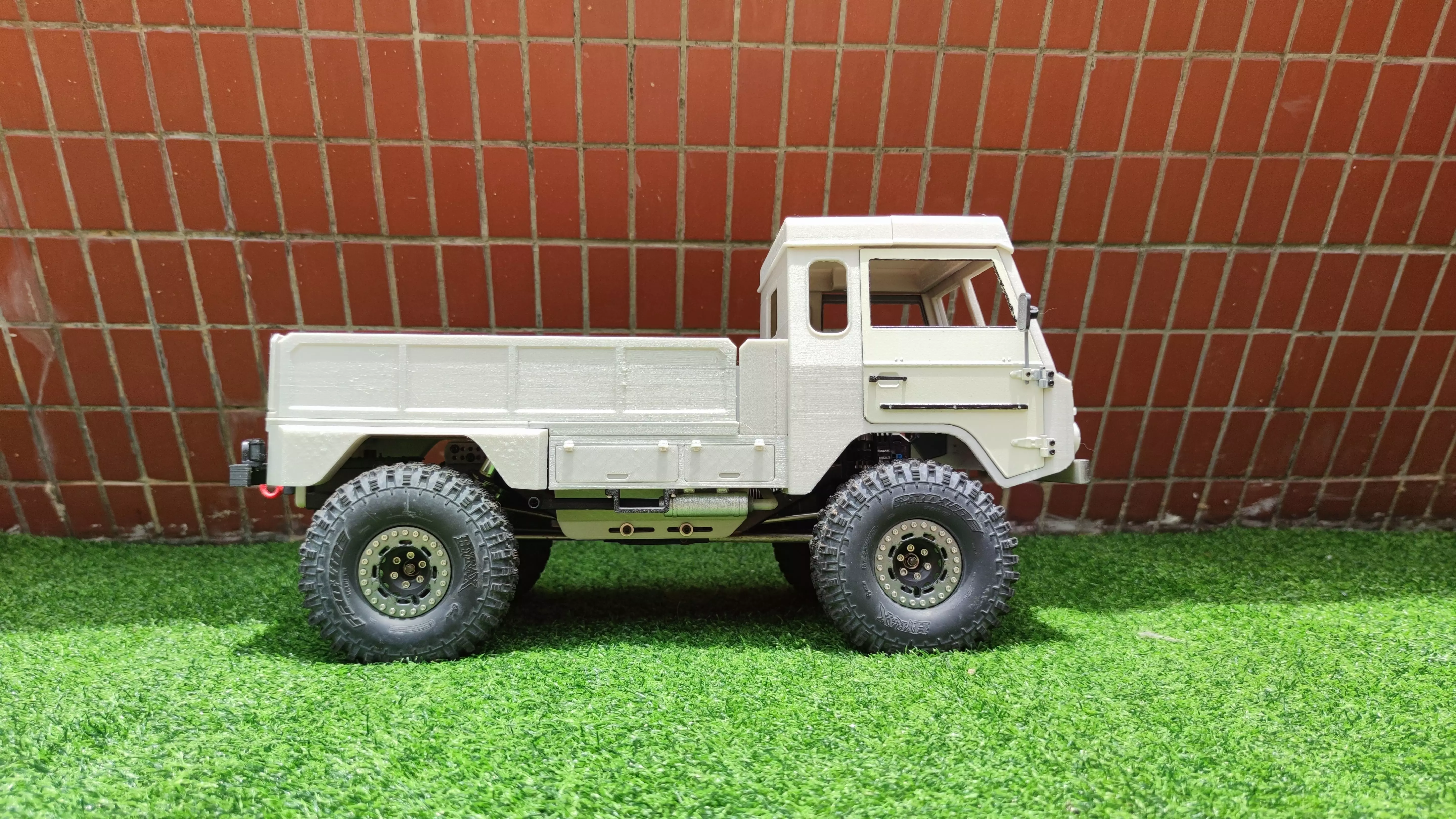

The V306 4x4 Flatbed is designed specifically for the V303 Front Cab (sold separately), made to fit on the VS4-10 Pro, SCX10 iii, and TRX4 chassis with the provided mounts.

Similar to the Bog 406 Flatbed, this flatbed is suitable for industry standard 290mm and 313mm wheelbases. Ideal width from outside tyre to tyre is 230mm for a good scale proportion. The shorter wheelbase will enable better maneuverability while the longer wheelbase will provide more stability.

The included sideboards can be installed or taken off for a more utilitarian or a sleeker look.

Keep in mind to use the provided mounts for the flatbed, please use the provided rear shock mounts to avoid clearance issues.

Be sure to check out the instruction manual and gather all required hardware for assembly.

As always features and details are the most important with our designs.

  • Sideboards included.
  • Rear bumper towing hook.
  • High clearance bumper also included.
  • Functional rear bumper with 5mm LED light buckets.
  • Sidesteps.
  • Detailed exhaust system.
  • Detailed interior dashboard.
  • Mounts have storage compartments.

Please ensure your printer can print a volume of 160x215x158mm.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

Assembly instructions:View the link below to download the assembly instructionshttps://www.aheadrc.com/manual

.DXF files for all windows are can be found here:https://www.aheadrc.com/dxf-files

Should you need any help, please do not hesitate to contact us!

FDM printing:

Requires a printer that can print a minimum volume of: 160x215x158mm.

PETG filament0.2mm-0.3mm (0.4mm nozzle) layer heights20-30% infill densitySupports are necessary

Finished and assembled size:342*124*177mm (All parts assembled)
