Crawler Cat 1 front cab 1-10 RC body

Crawler Cat 1 front cab 1-10 RC body 3D print model

Description

Flatbed and expedition cab shown in images are sold seperately.

UPDATE: New quarter and half split cab, optimised for slicing and printing using Bambu Lab slicer on 256x256x256 bed. Addition of 4x M3*15 screws needed to secure the mounting tabs together.

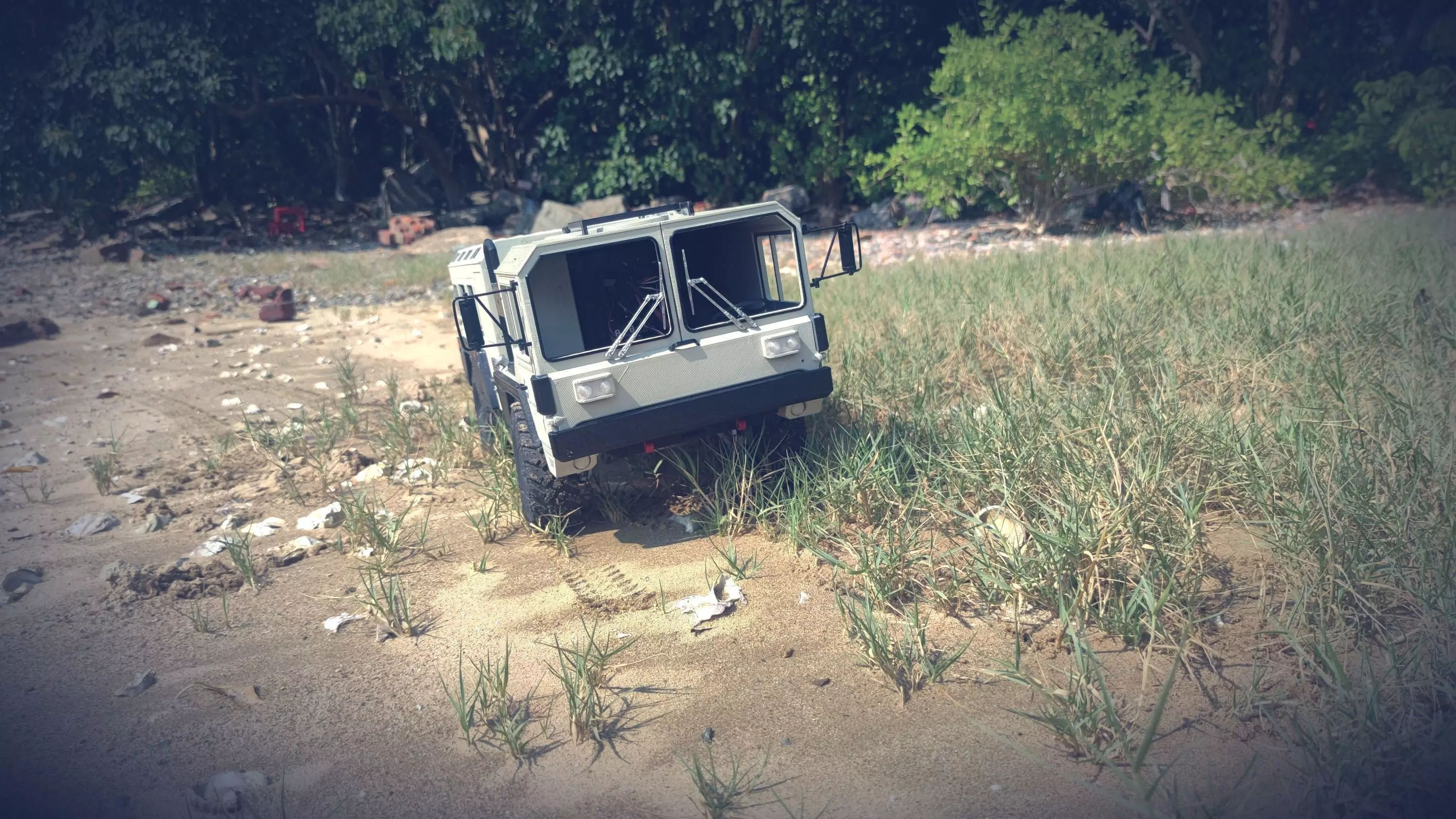

We have built it as a camper called the “Nomad”. Check out the expedition cab for the Cat 1 “Mammoth” here: https://www.aheadrc.com/custom-builds

The Mammoth is intended to be used with 120-125mm tyres (for 1/10 scale), which can be configured in 4x4 and 6x6. In 4x4 configuration it is recommended to use a wheelbase of 420mm as this would provide the most scale looking proportions. In 6x6 configuration, the TRX6’s wheelbase would also look spot on. The outermost tyre to tyre width recommended is 240mm, although wide track fenders are also included if you’re looking for an extra aggressive stance or for more overall stability, which a width of 265mm will be ideal.

Scale diagrams are shown for mock-up wheelbase setups.

A detailed dashboard and 2 different styles of steering wheels are included for the interior.

A front body mount is included with the standard 43mm width posts designed to 34mm in length. If the posts are too long, then it is possible to cut them shorter to better fit your specific build.

There are a lot true scale features and functions on this truck cab:

The functional side tyre carrier can hold a tyre with a maximum diameter of 127mm and width of 45mm.

Foldable door mirrors are included so you can still have the scale realistic look without the worry of breaking them.

The roof latch can be opened and closed, as well as being locked. This gives more options for battery mounting and easier access to the battery for changing.

The doors can be opened and shut with the use of hinges (not included).

There are 2 versions of the front cover, to give your truck a different look to your liking.

The lower bumper has 2 towing eyes for shackles and towing. An integrated fairlead is also designed into the bumper for winching.

Wide track and standard width fenders are included which provides the option to run a wider stance.

All 6x headlights and front cover side light buckets and lenses are included. All you need are 6x 5mm LED warm white lights and 2x 3mm orange LED lights.

Assembly instructions:View the link below to download the assembly instructionshttps://www.aheadrc.com/manual

Designed to be printer friendly, the parts come in a variety of included options.

Cab: (Ideal to print in upside down orientation)Cab full (cab is a 1 piece print. Requires a printer that can print a minimum of 235x255x175mm)Cab split(splits the cab into 2 halves, a 2 piece print. Requires a printer that can print a minimum of 120x255x175mm)

Fender:Standard (standard width meant for 240mm width outermost tyre to tyre)Wide track (meant for 265mm width outermost tyre to tyre)

Wiper:Split (3 piece print for less printed supports, and for cleaner prints. Assembly required)Full (1 piece print ideal for resin printing. No assembling required)

Front cover:Standard (No headlights, military type)Alt version (with headlights for more expedition and civilian look)

Steering wheel:Standard (stock steering wheel look)Alt version (custom 3 spoke steering wheel)

Some files will need to be printed multiple times, this includes the following:Headlight lens for alt ver front cover x2Headlight lens for side step x2Side light lens x2Towing eye x2Roof hinge x2Roof long vent x2Mirror x2Mirror upper mount x2Mirror lower mount x2Small hinge x10A .zip file containing all the print files is also included for convenience. DXF files for the windows are also included.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

Should you need any help, please do not hesitate to contact us!

FDM printing:

Requires a printer that can print a minimum volume of: 180x235x205mm.

PLA+ filament0.3mm-0.4mm (0.6mm nozzle) layer heights20-30% infill densitySupports are necessaryPrint cab body vertically for less supports

Finished and assembled size:440*266*175mm (All parts assembled)
