Crawler 4320 DC Expedition Cab - 1-10 RC body attachment 3D print model

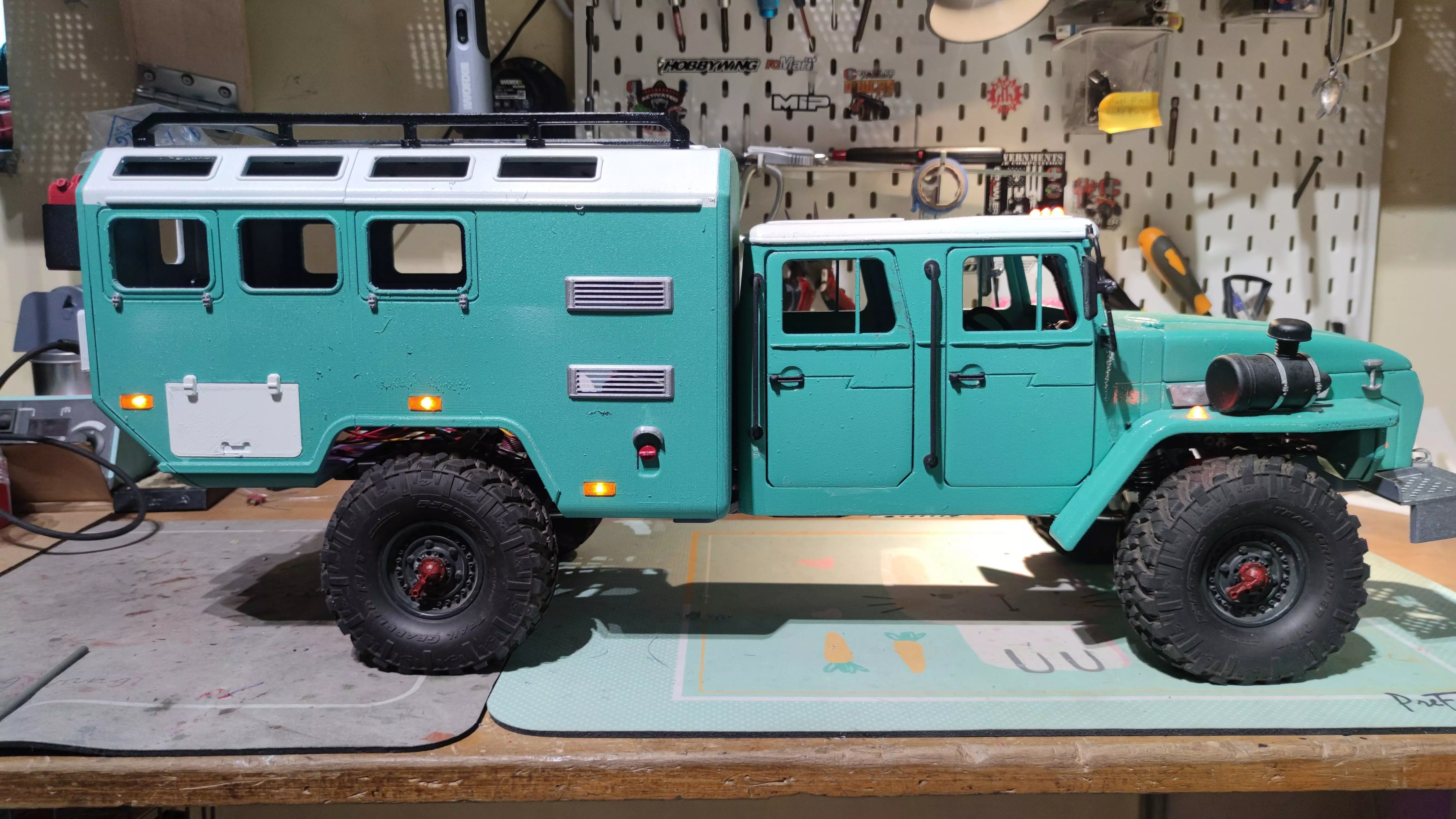

The Expedition Cab is finally here! It’s time to go exploring.

4320 Dual Cab shown in images, is sold separately.

*UPDATE: If you plan to use a bigger battery pack with the original battery tray, please use the included extra high clearance wall.

*UPDATE: There is now a High Clearance Version of the Expedition Cab included made specifically for the TRX4 and TRX6, which allows for more space for the shifting servo and rear diff lock servo. If you find the expedition cab hitting the chassis, this will also allow for more space to clear the chassis and its components.

Likewise if you are planning to use the 4320 DC Expedition Cab with the 4320 Single Cab on a TRX4 chassis, we've also included mounts to make that work. Please note that the mounts will only work for the TRX4's 324mm wheelbase. (i.e. TRX4 Sport or other 313mm wheelbases will not fit using these mounts)*

It was purposely designed as an add-on attachment for the “Crawler 4320 Dual Cab” in 4x4 configuration and with a 420mm wheelbase. (The truck body is sold separately)

In order to use the 4320 single cab body with this DC Expedition Cab, a minimal wheelbase of 324mm is recommended. 313mm will make the front wheel very close to the fender when turning. However it will physically fit. Scale diagrams for those are also shown in the pictures. Please note that you will still need to design and use your own mounts when building this configuration.

The cab comes in lots of detail including 5 slots for cab LED sidelights with lenses, which fits with 3mm LED lights. Also included are custom designed tail light buckets which house a total of six 5mm LEDs so you can configure the LEDs in any order you want..

Another feature included is the true functioning door latches for the side and rear double doors. The door latches simply lock and unlock the doors so you won’t have to devise your own door latching system. Hinges are not included though as they will need to be metal to take the beating on the trail.

External compartment lids are included, which means you can actually store things in them providing hinges and an internal storage area is fabricated or sourced.

Small details such as the 2 side vents, external power socket and mock hinges are also designed to make the cab look as realistic as possible.

Accessories for mounting onto the rear wall are also provided, and are modular. This means you will be able to switch the accessories around and mount them how you like.

Incorporated in the design are also 18 openings for windows. This will allow you to mount a total of 8 clear polycarbonate sheets on the inside to simulate the windows. A sunroof is also implemented in the design!

Last but not least, the roof rails are also fixed in place with M3 screws, meaning they will be strong, allowing you to tie things down onto it, such as our truly extensive range of overlanding accessories!

Assembly instructions:View the link below to download the assembly instructionshttps://www.aheadrc.com/manual

A couple of versions are also included for printing optimisation:

CabFull dimensions with no floor, and with floor (Requires printer with build volume of at least 190x240x320mm)Split front and rear with no floor, and with floor (Require printer with build volume of at least (240x205x190mm)

Roof railsSplitFull length

Some files will need to be printed multiple times, this includes the following:Tail lights x2Tail light lenses x6Window hinges x8Side compartment hinges x4Side vents x2Cab light lenses x5Split cab joiner x2

A .zip file containing all the print files is also included for convenience. DXF files for the windows are also included.

(The truck body and wheel hub caps are not included)

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

Should you need any help, please do not hesitate to contact us!

FDM printing:

Requires a printer that can print a minimum volume of: 240x205x190mm.

PLA+ filament0.3mm layer heights10% infill densitySupports are necessary
