Ray Blaster - Commercial - Printable - STL 3D print model

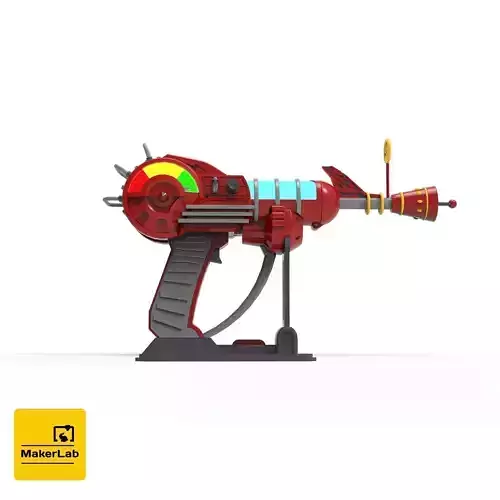

Hi! We glad introduce you 3d model - STL files - to print your own Ray Gun from Call of Duty - Zombie Mode.

Model include:

• 66 stl files to 3d printing (biggest part demensions: 142*90*27 mm).
• 3 stl files - stand for Ray Gun (biggest part demensions: 200*90*38 mm).
• Digital Instruction for assembling.
• List of components you will needs for assembling with discription.

The model assumes a demo stand and the presence of LED backlight.

Ray Gun dimensions: 402 mm x 248 mm x 88.4 mm

Model features:

• model include a demo stand
• model include the possibility of installing led backlight
• model is divided into parts by color, taking into account the comfort of printing and assembly
• model include removable parts
• model powered from 2xAAA batteries
• instructions include an exploded view, a part sheets, a sectional view, an electrical diagram and list of components
• model include an exploded view showing the assembly sequence and a list of all components required for assembly
• model include a part sheets that will help control the printing and assembly process
• model include a sectional view that will help you understand how to fit parts and components together
• the instructions include an electrical diagram to help you understand how to connect and assemble electrical components

List of components needs for assembling with LEDs lighting:

• 3-4mm LEDs
• 24 ohm resistors
• 1xAA batteries slot
• 8*8mm button switch
• M3 screws
• wires
• 2 pcs round magnets 10*5mm

______________________________________________________

This version is for production and sale as phisycal item in your Workshops. Royalty free. The digital model is for your use in your shop/workshop only. The digital model may not be sent to third parties.
