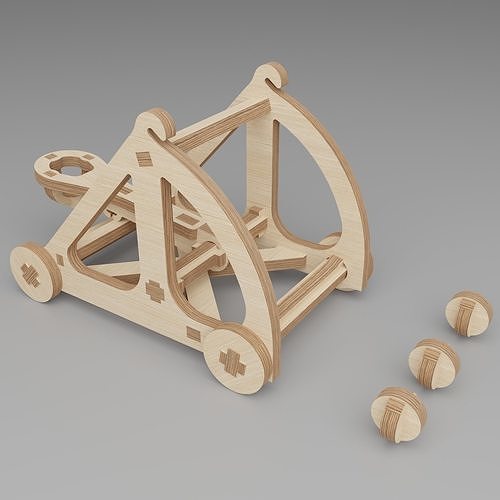

Plywood constructor - catapult 3D print model

Description

The size of the finished product: L=10 cm W=7 cm H=7cm

Model created in Solidworks 2017 and then part's contours converted to .CDR in CorelDRAW 2017.

Template cutting file for making a figure of the dirigible for CNC laser machine.

Plywood thickness 4mm. 24 details.

You will need glue

The .CDW file is in the Other archive

Write comment
Item rating
0 0
Plywood constructor - catapult
$3.00

Royalty Free License
10% for Ukraine
Plywood constructor - catapult
$3.00

Royalty Free License
10% for Ukraine
A
andrey-lygoviy121
(1 reviews)
Response 100% in 20.7h
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw)1.72 MB
Exchange
  • Stereolithography (.stl)185 KB

3D Model details

  • Publish date2021-01-12
  • Model ID#2806148
  • Ready for 3D Printing
