Mold for diecast tire 11 Scale 1 to 10 and 1 to 14 and 1 to 25 3D print model

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions 1:10:

• diameter – 115 mm
• height – 30.5 mm

Tire dimensions 1:10:

• outer diameter – 75 mm
• overall width – 20.5 mm
• inner diameter – 47.5 mm

Mold dimensions 1:14:

• diameter – 94 mm
• height – 25 mm

Tire dimensions 1:14:

• outer diameter – 54 mm
• overall width – 15 mm
• inner diameter – 34 mm

Mold dimensions 1:25:

• diameter – 70 mm
• height – 18.5 mm

Tire dimensions 1:25:

• outer diameter – 30 mm
• overall width – 8.5 mm
• inner diameter – 19 mm

If you want a different wheel size, simply scale the mold.

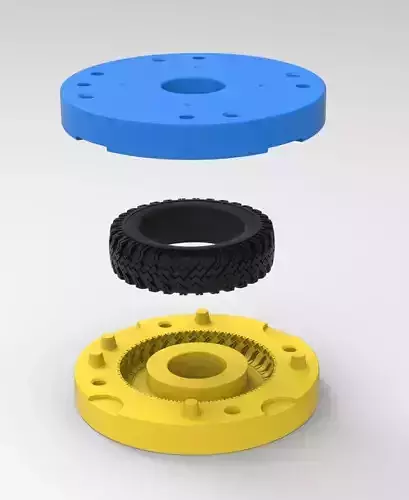

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.In the Top mold part are 4 small holes for material injection.Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.Note! Only the mold! This is not a tire!
