Mold diecast Tractor tire 30 S 1 to 10 and 1 to 14 and 1 to 25

Mold diecast Tractor tire 30 S 1 to 10 and 1 to 14 and 1 to 25 3D print model

Description

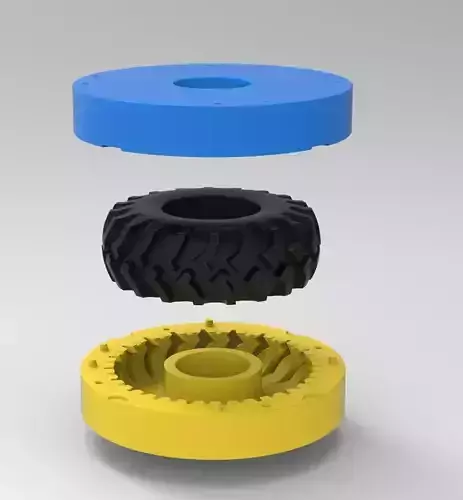

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions 1:10:

  • diameter – 222 mm
  • height – 75,5 mm

Tire dimensions 1:10:

  • outer diameter – 182 mm
  • overall width – 65,5 mm
  • inner diameter – 82,5 mm

Mold dimensions 1:14:

  • diameter – 170 mm
  • height – 56,5 mm

Tire dimensions 1:14:

  • outer diameter – 170 mm
  • overall width – 46,5 mm
  • inner diameter – 59 mm

Mold dimensions 1:25:

  • diameter – 113 mm
  • height – 36 mm

Tire dimensions 1:25:

  • outer diameter – 73 mm
  • overall width – 26 mm
  • inner diameter – 33 mm

If you want a different wheel size, simply scale the mold.

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.In the Top mold part are 4 small holes for material injection.Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.Note! Only the mold! This is not a tire!

Item rating
0 0
Mold diecast Tractor tire 30 S 1 to 10 and 1 to 14 and 1 to 25
$10.00

Royalty Free License
Mold diecast Tractor tire 30 S 1 to 10 and 1 to 14 and 1 to 25
$10.00

Royalty Free License
Response 81% in 4.8h

3D Model formats

Format limitations
  • 3D ACIS (.sat) (3 files)14.3 MB
  • IGES (.ige, .igs, .iges) (3 files)11 MB
  • STEP (.stp) (3 files)8.81 MB
  • Other 8.81 MB
  • Stereolithography (.stl) (3 files)112 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2025-02-18
  • Model ID#5872911
