Juno Mediblaster - Overwatch - STL OBJ CAD set - Commercial Use 3D print model

This version is for production and sale as phisycal item in your Workshops.

You can find a model for private use in our store.

Hi! We glad introduce you 3d model - STL + OBJ + CAD bundle (STEP as CAD file) - to modify and print your own Mediblaster from Overwatch.

Model include:

• 73 stl files to 3d printing (biggest part 136x108x86mm).
• 1 CAD file with Juno Mediblaster model - STEP format.
• 1 OBJ file with Juno Mediblaster model.
• Digital Instruction for assembling.
• List of components you will needs for assembling.

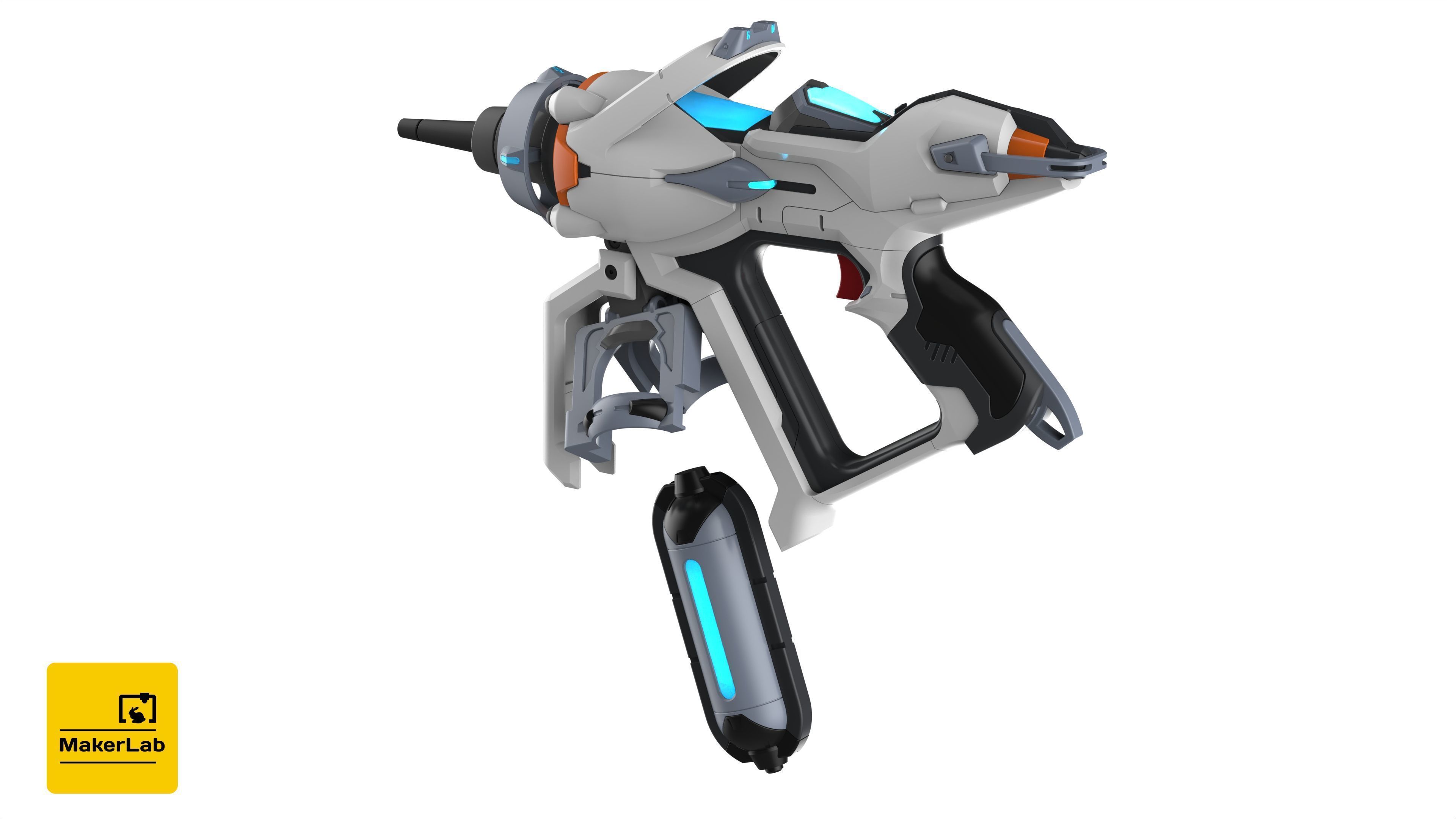

The model has a removable magazine with magnetic fixation, demo stand and backlight color change function.

Dimensions: 402x290x88mm (18.8x11.4x3,5”)

Model feautures:

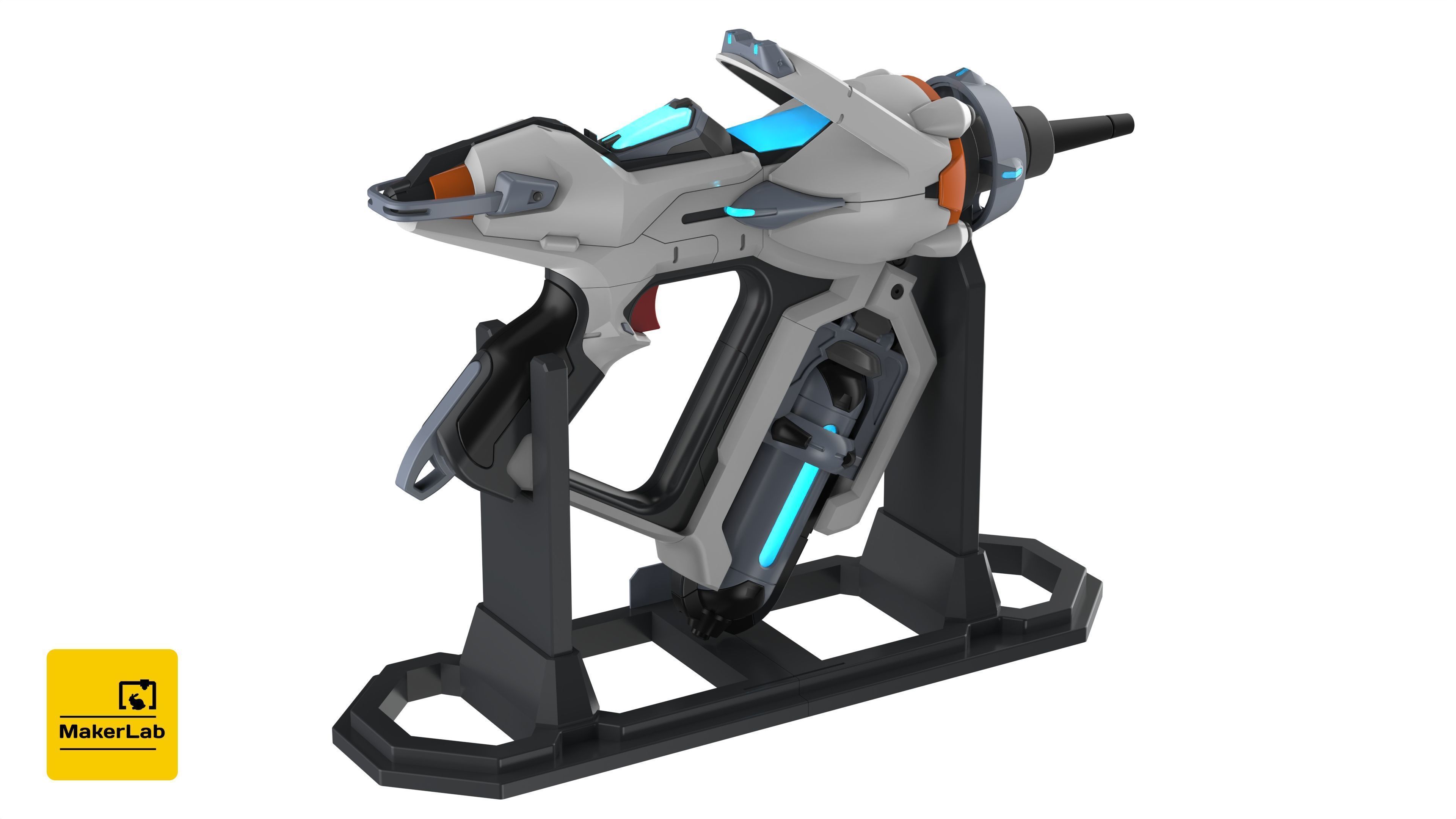

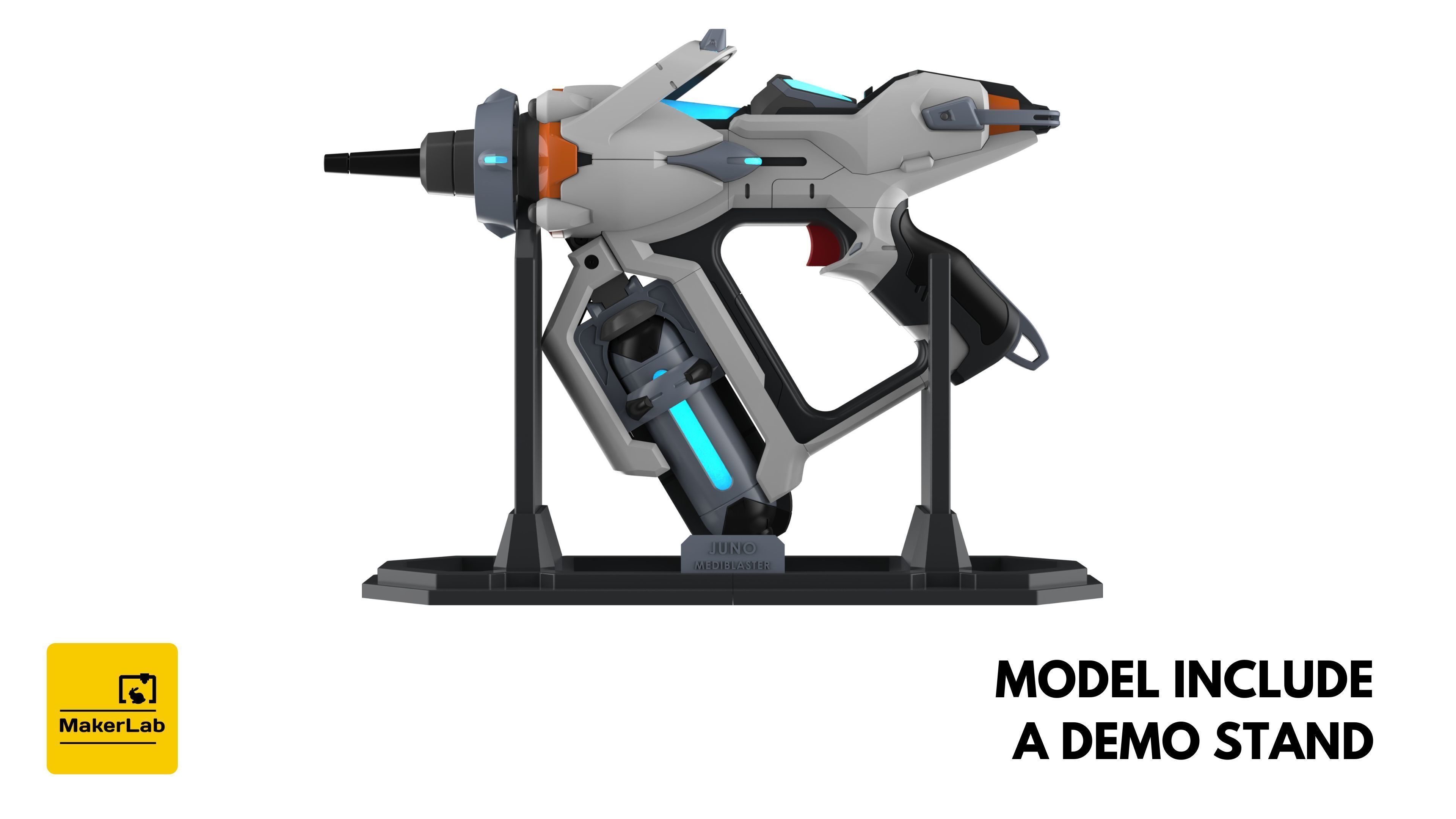

• model include a demo stand

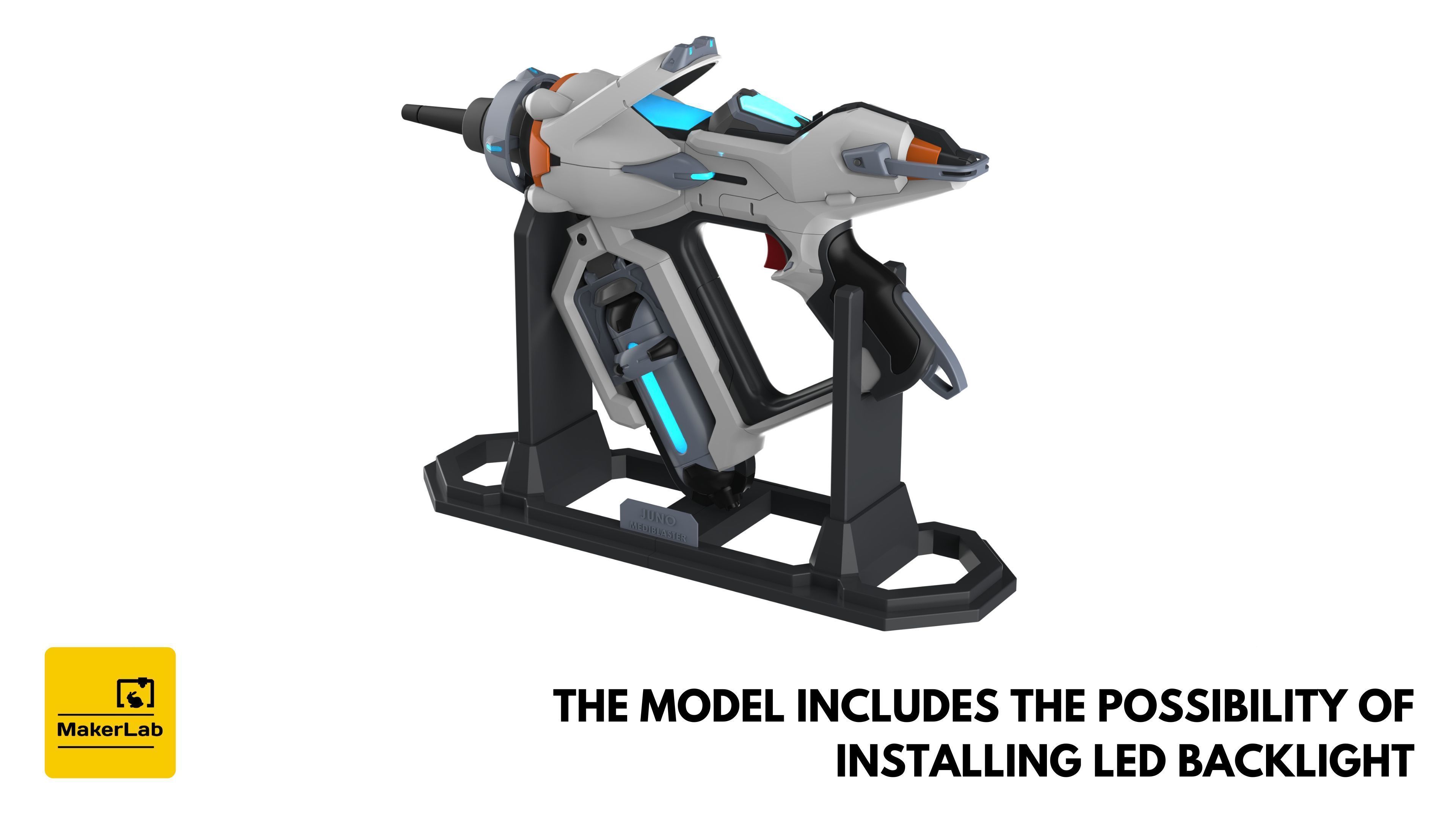

• model include the possibility of installing led backlight

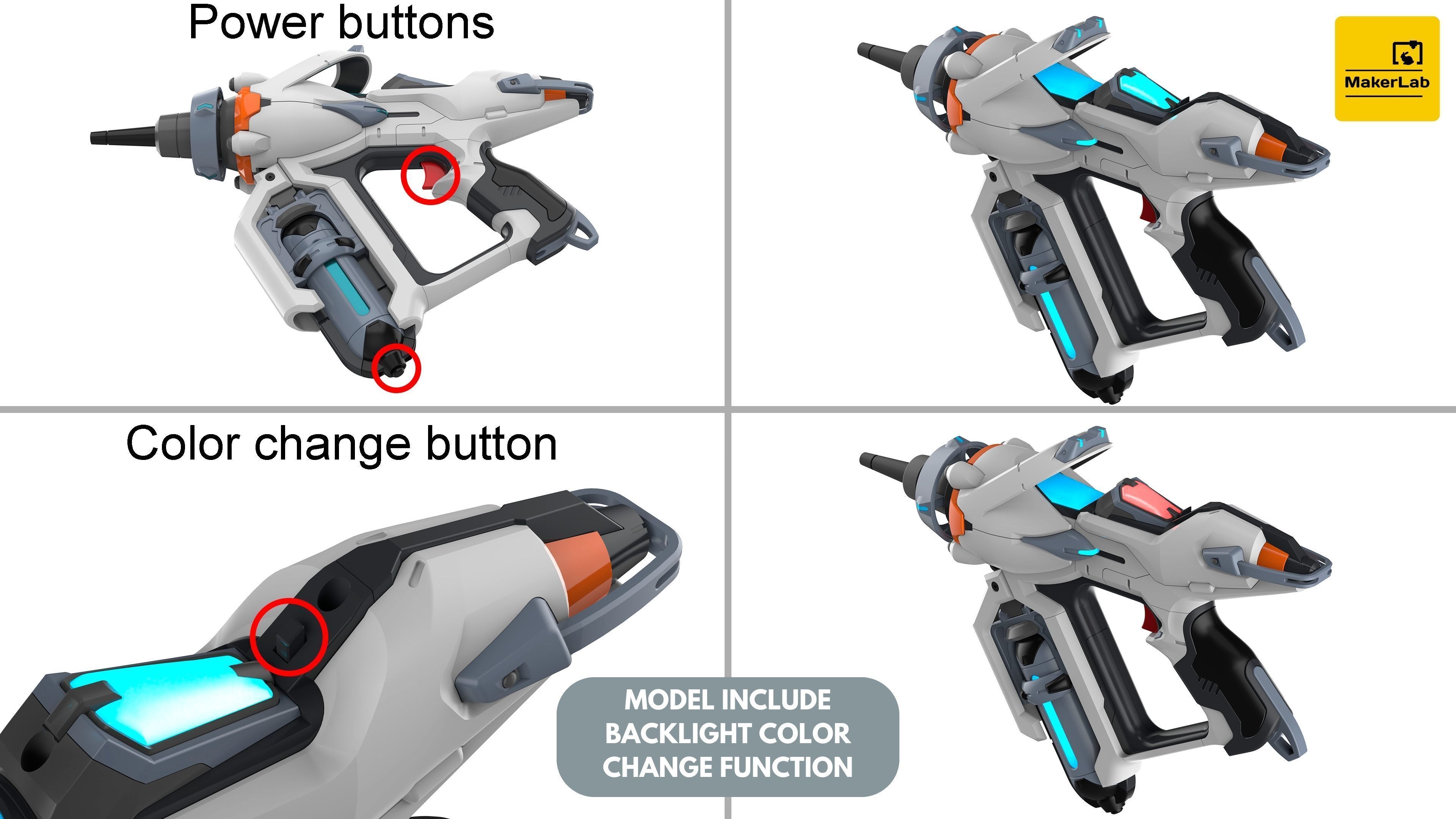

• model include backlight color change functionelp you understand how to connect and assemble electrical components

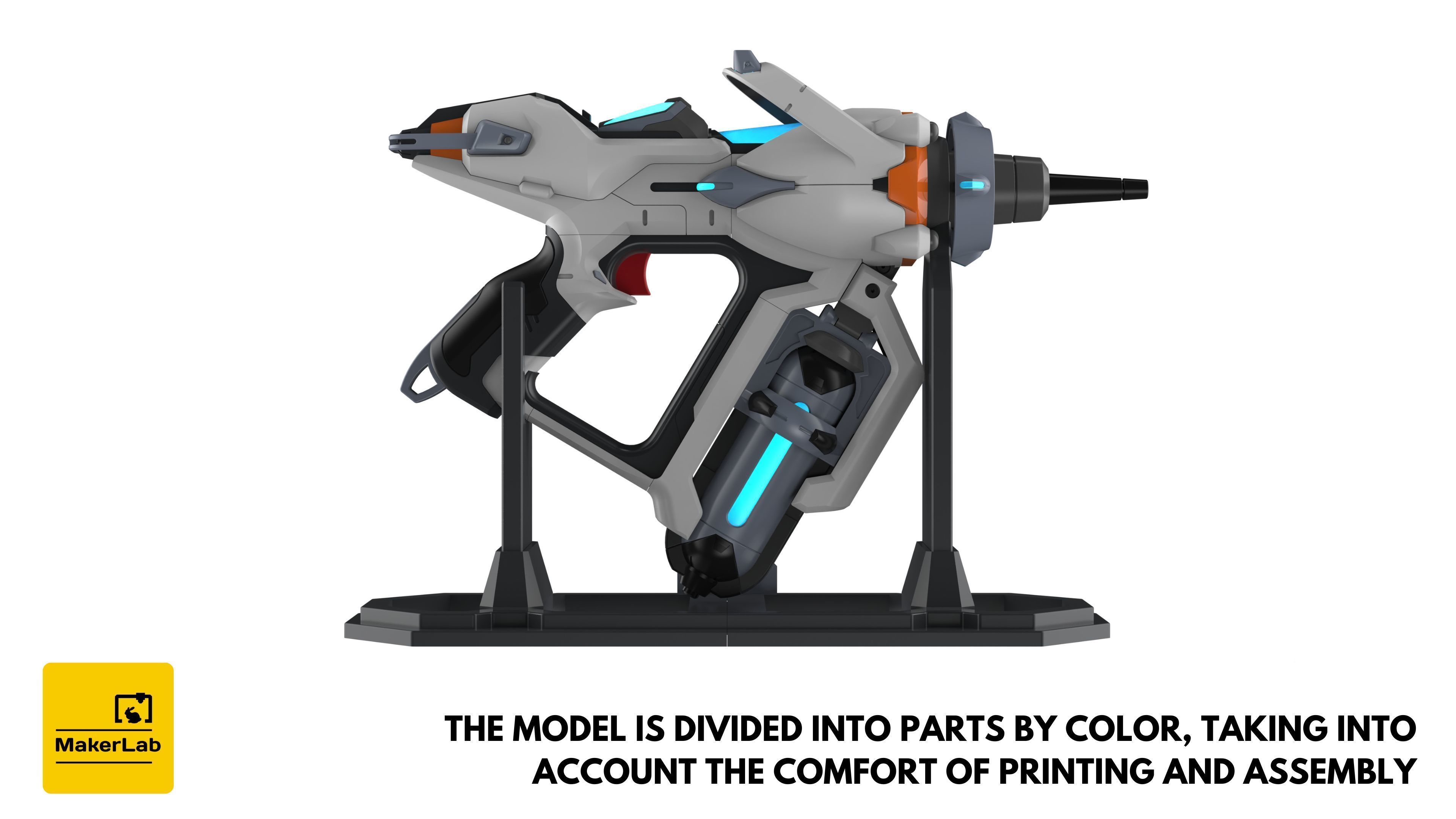

• model is divided into parts by color, taking into account the comfort of printing and assembly

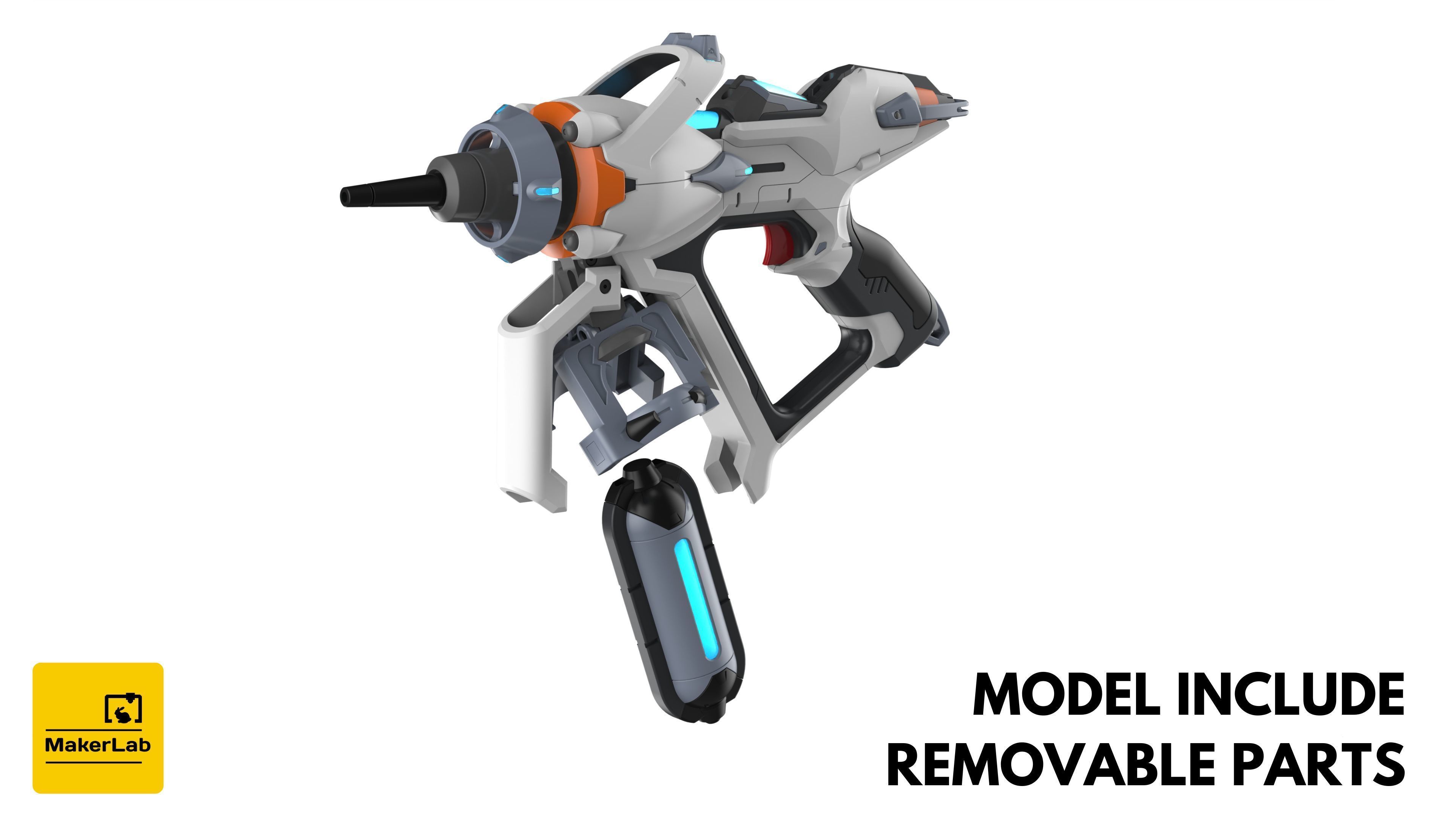

• model include removable parts

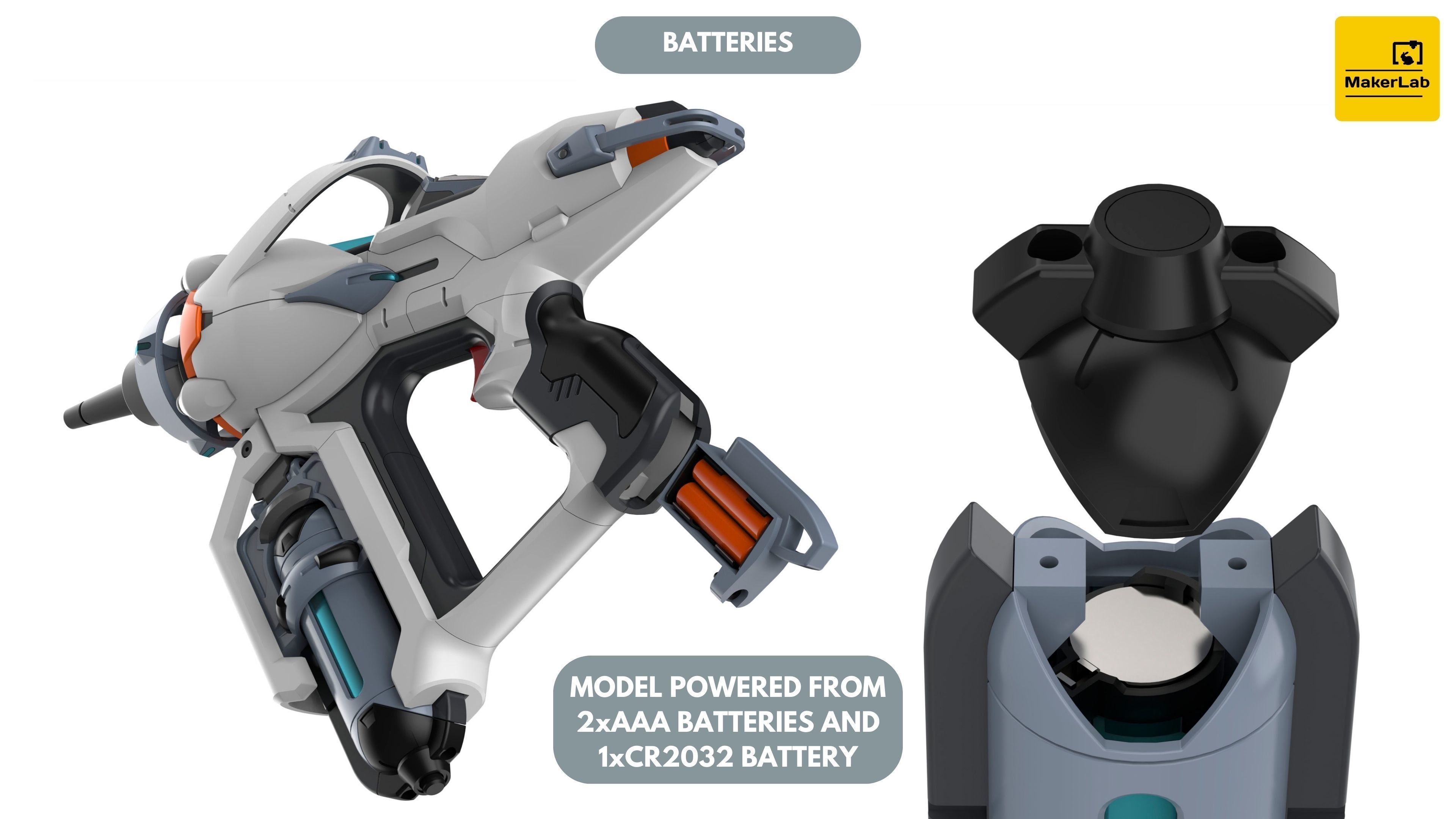

• model powered from 2xAAA batteries and 1xCR2032 battery
• instructions include an exploded view, a part sheets, a sectional view, an electrical diagram and list of components

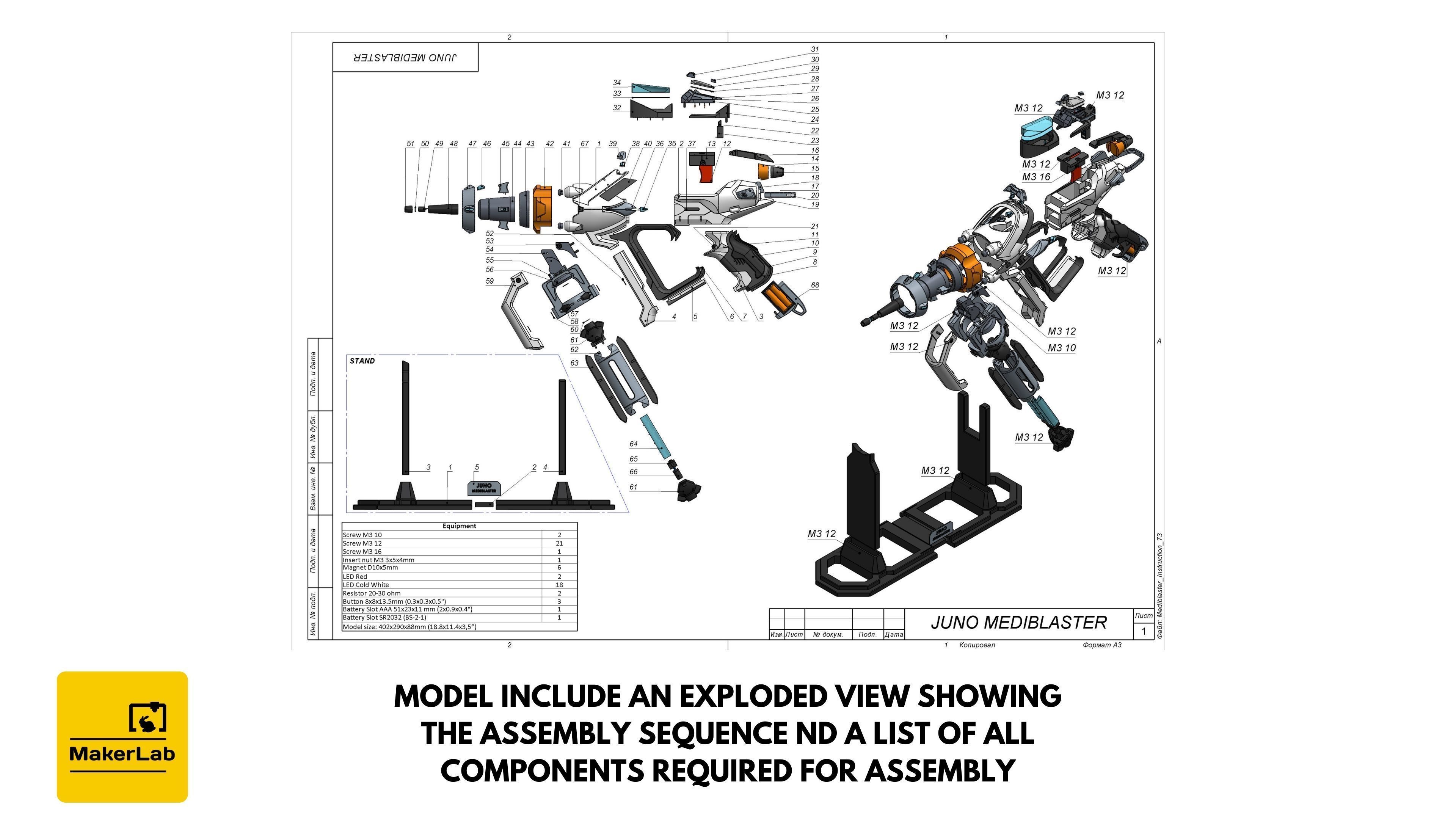

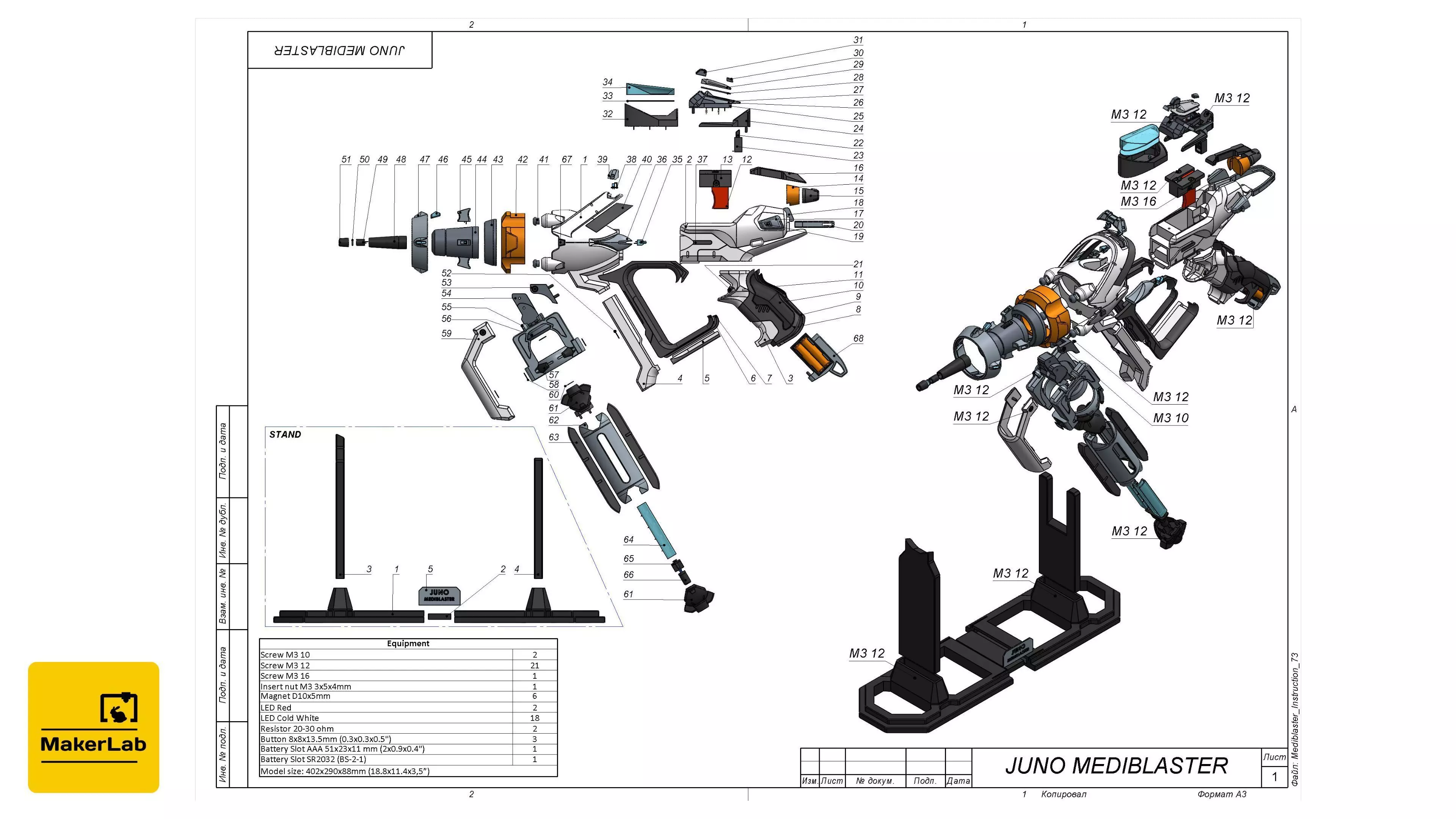

• model include an exploded view showing the assembly sequence nd a list of all components required for assembly

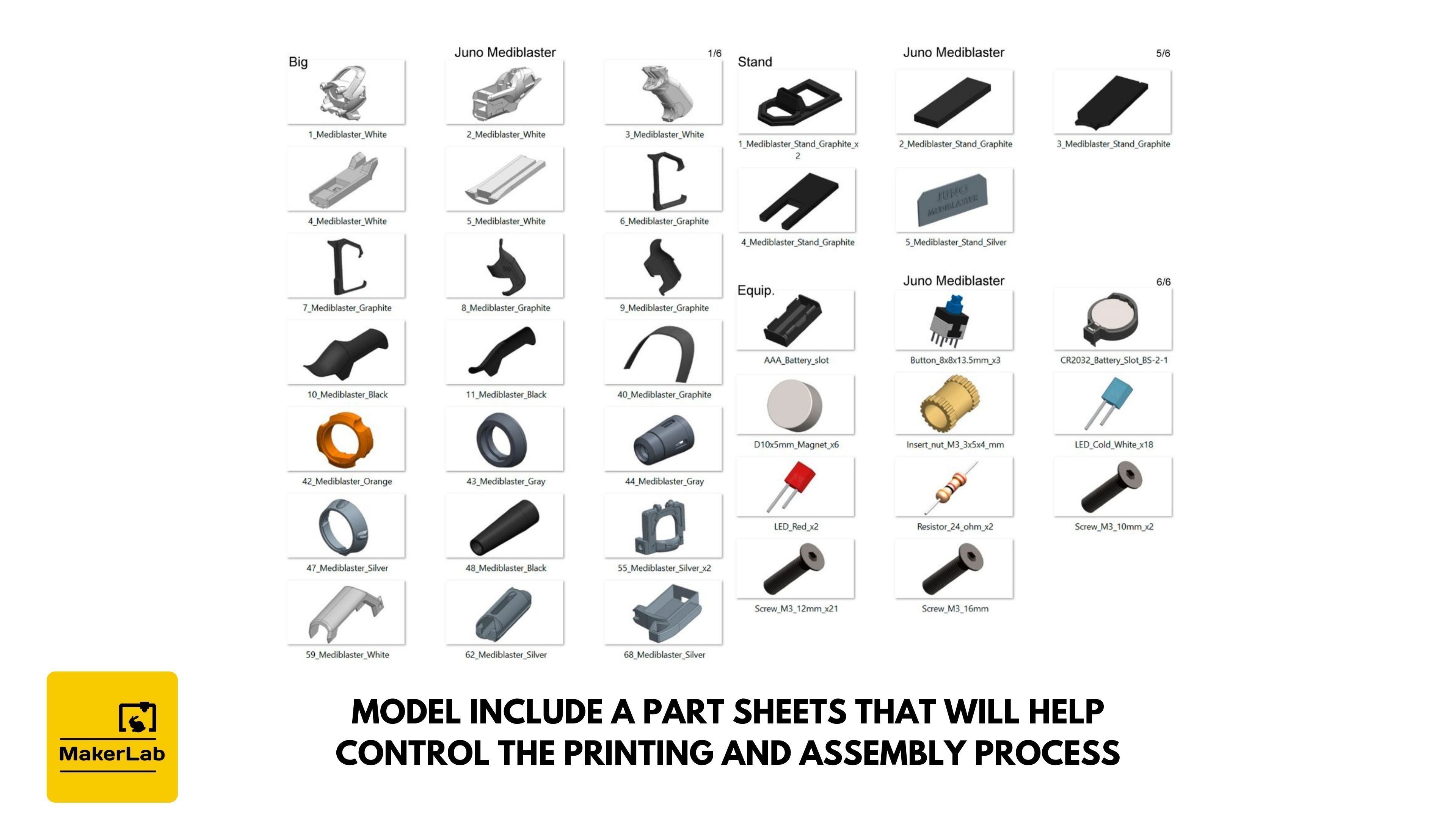

• model include a part sheets that will help control the printing and assembly process

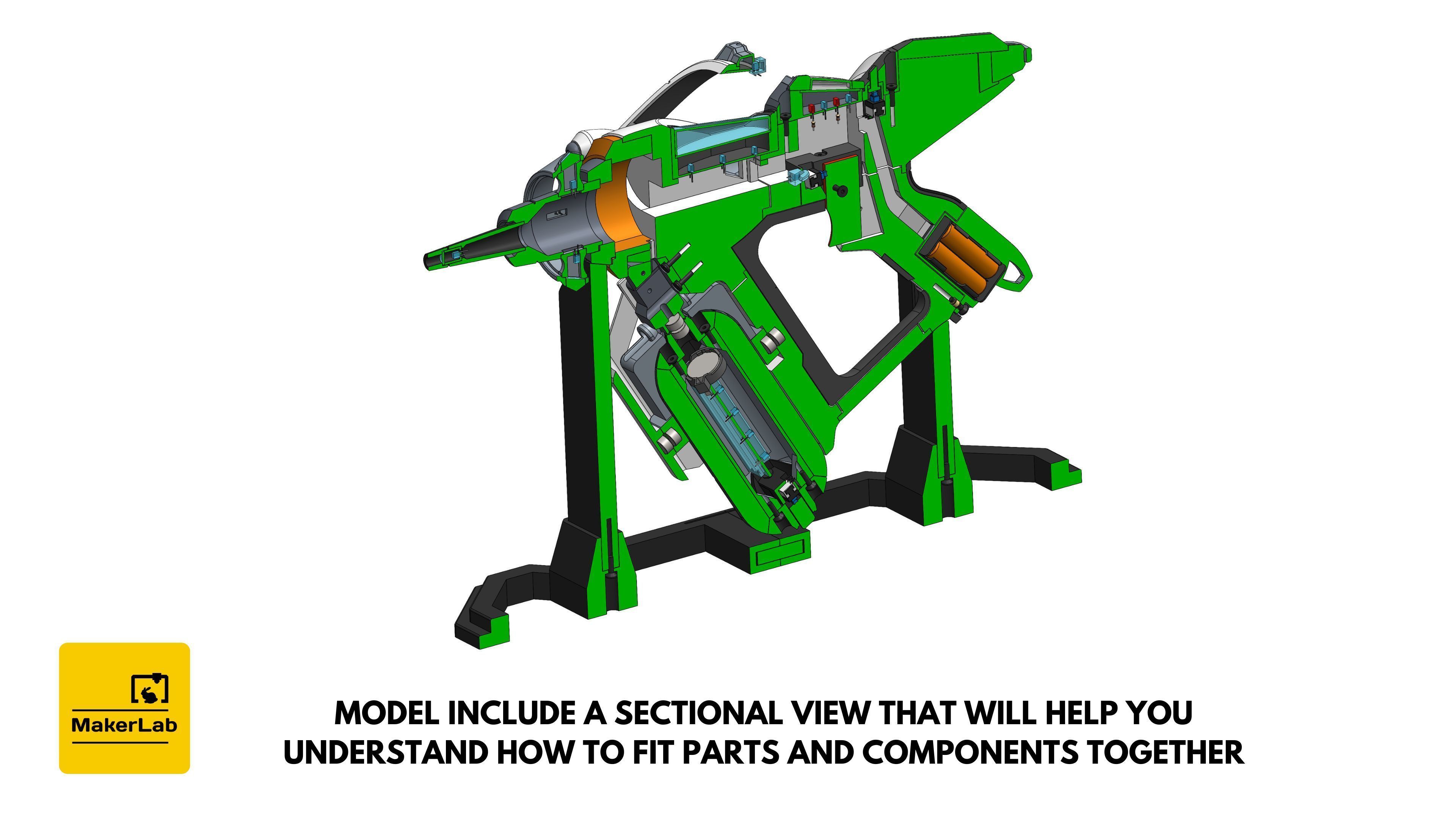

• model include a sectional view that will help you understand how to fit parts and components together

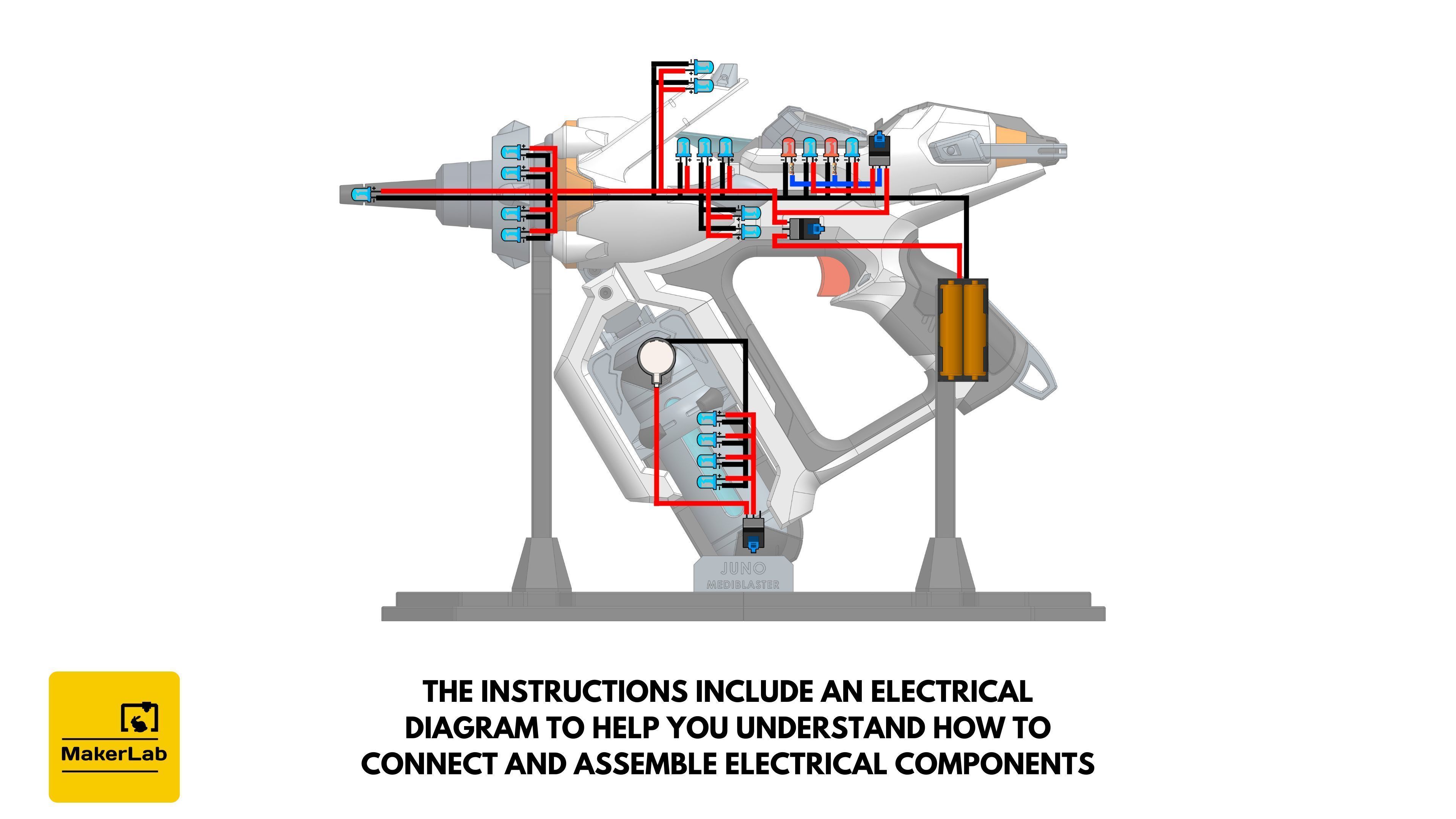

• the instructions include an electrical diagram to help you understand how to connect and assemble electrical components

List of components needs for assembling with LEDs lighting:

• 8*8mm button switch
• screws M3 (10mm, 12mm, 16mm)
• insert nut M3x5x4mm
• magnets D10x5mm
• LEDs 3x4x2mm
• resistor 20-30 Ohm
• AAA and CR2032 batteries slots

_______________________________________________________________________________________________

This version is for production and sale as phisycal item in your Workshops. Royalty free. The digital model is for your use in your shop/workshop only. The digital model may not be sent to third parties.
