V3 RC CAR JLB CHEETAH DIY EDITION DIRECT DRIVE STEERING SYMBOLIC 3D print model

[¯`·..·[ V3 RC CAR 1:8 JLB CHEETAH DIY EDITION DIRECT DRIVE STEERING ]·..·´¯]

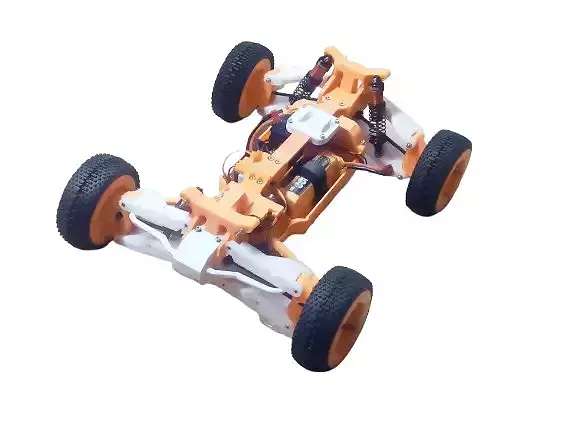

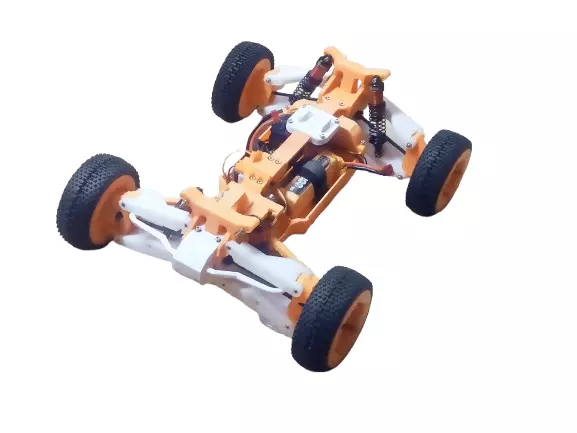

JLB CHEETAH V3 is the Updated version of the V2.0 and V2.5All parts are compatibles between V2.0 and V2.5 and V3 (rétro compatibility)No need to reprint everything.This is the complete FREE JLB CHEETAH V3 printed version, ready to run.(i will also make a separate kit to update V2 / V2.5 to V3 with direct drive, steering.. )Lucky hasard It's now compatible with traxxas slash Aliexpress metal steering linkages4New DIRECT DRIVE STEERING SYSTEMNew Steering Cup Hubs and linkageNew additional Battery Side MountNew Slim / Medium / Wide / Extra Wide Chassis

BUILD GUIDE :

https://docs.google.com/presentation/d/1jabhHdwHruR_a4ibou3fMm3Z3C0JivmusydT-Vo3oH4/edit?usp=sharing

BUILDING VIDEO LINK :

https://youtu.be/ltlX8YH-RXE

PREMIUM VERSION GOT :

New DIRECT DRIVE STEERING SYSTEMNew Steering Cup Hubs and linkageNew additional Battery Side MountNew Slim / Medium / Wide / Extra Wide ChassisAll Type Motors Mounts D36 D42 D49++All RIMS Sizes and offsets STL kitDUAL Motors Capability PLA or Metal DUAL Motors Transmission Cover PLA or Metal Big ESC Hobby wing Max8(6S) or Max6(8S) Dual Place CapabilityFPV ProtectionMore adjustment holesFresh Update and UpgradeThanks from the creator

PREMIUM LINKS :

Official websitehttps://www.myshopkit.fr

FREE VERSION GOT :

Slim Version of the ChassisPLA Motor Mount D36 D42Metal Motor Mount Capability Mono Motor Transmission Cover For PLA and Metal (but dual motors D36 D42 capability :)RIMS 1.9p 2.2p 3.2p Hexa 17mm Standard ESC Place CapabilityNo additional Battery Side MountALL PARTS TO RUN A GOOD DEMO VERSION ;)New DIRECT DRIVE STEERING SYSTEM

Upgrade by more Need :

New DIRECT DRIVE STEERING SYSTEM (10 parts to switch easy named)New Front Hub carrier and steering cup hub (HEAVY redesign)Absorber shock(holes for direct Drive protection not obligatiry)Same V2.5Lower and Upper arms(place for washers)All the Steering Ackerman system(more efficient/stronger)Servo Mount and Cover(5mm side offset)Link piece(if servo mount change)New protection plateAnti Roll bar (better design) and Rear mounts(only)Transmission cover(maximized)Motor mount (more stronger)

No changes or Minor changes :

New Chassis center section (wider)Chassis brace(4 holes)Arms mount rear and frontChassis differential housing and coverBumpers(led reinforced ans place for screws lower arms mount)Rims 3.2p 2.2p 1.9p(more stronger)Receiver mount(slimer)Anti Roll front mounts (no changes)

**NEEDS :**

• TPU ( 500g )ArmsBumpers

• PLA Plus ( 1Kg )All the Rest

TOOLS :

Hallen H2.5mm(for M3 Screws) / H1.5(for Pinion) Long Nose Pliers ThreadLocker Grease Clamp Gaskets

**HARDWARE STORE :**

Rolling 6800ZZ ABEC 7 ( X 8) Washers M3 ( X 100) Lock Nuts M3 ( X 100) Screws M3 x 5mm Hexa ( X 8) (MotorMount) M3 x 8mm Hexa (X 10 (Direct drive Steering) M3 x 10mm Hexa ( X 8) (MotorMount) M3 x 12mm Hexa ( X 4) (Steering Hub) M3 x 14mm Hexa ( X 3) (Ackermann Steering) M3 x 16mm Hexa ( X 1) (Ackermann Steering) M3 x 20mm Hexa ( X 60) (ALL THE REST) M3 x 35mm Hexa ( X 2) (Ackermann Steering) M3 x 40mm Hexa ( X 24) (ARMS)

TAGS :

• JLB CHEETAH
• Ender 3 compatible
• PreOriented STL PARTS
• 3D Printed RC Car
• Ackermann Steering Compact System or direct drive steering
• Full Metal transmission
• Brushless Motor 2850 up to 4268 (3650 recommended) (soon 4985 and 5687 $$$)
• 3S -4S - 6S
• DUAL3S = 6S / DUAL4S = 8S / DUAL6S = 12S (soon DUAL8S = 16S $$$)
• ESP Front Gyroscope
• Pinion and Gearing 0.8 Module (32 Diametral Pitch) - No cogging issues
• Metal Differential mechanism Central axis Central drive shaft Motor-Gear
• Printed Beadlock Rims 2.2p or 3.2p -No Balooning issues for 3.2p
• Dogbones Haxa 17mmm
• Strong modulable design easy replace
• Standards Parts
• 4 Arms = 1 Arm (Lowers and Uppers)
• 4WD -2WD -4x4 -2x4
• With or Without Anti roll Bar
• 1:8 Hardware
• No Glue Only M3 Screws Washers and LockNuts
• LED Light System Front and Rear
• Drift
• GoPro Mount

TAGS:

RC car, jlb, 1:8, 4WD, Ender3, CHEETAH
