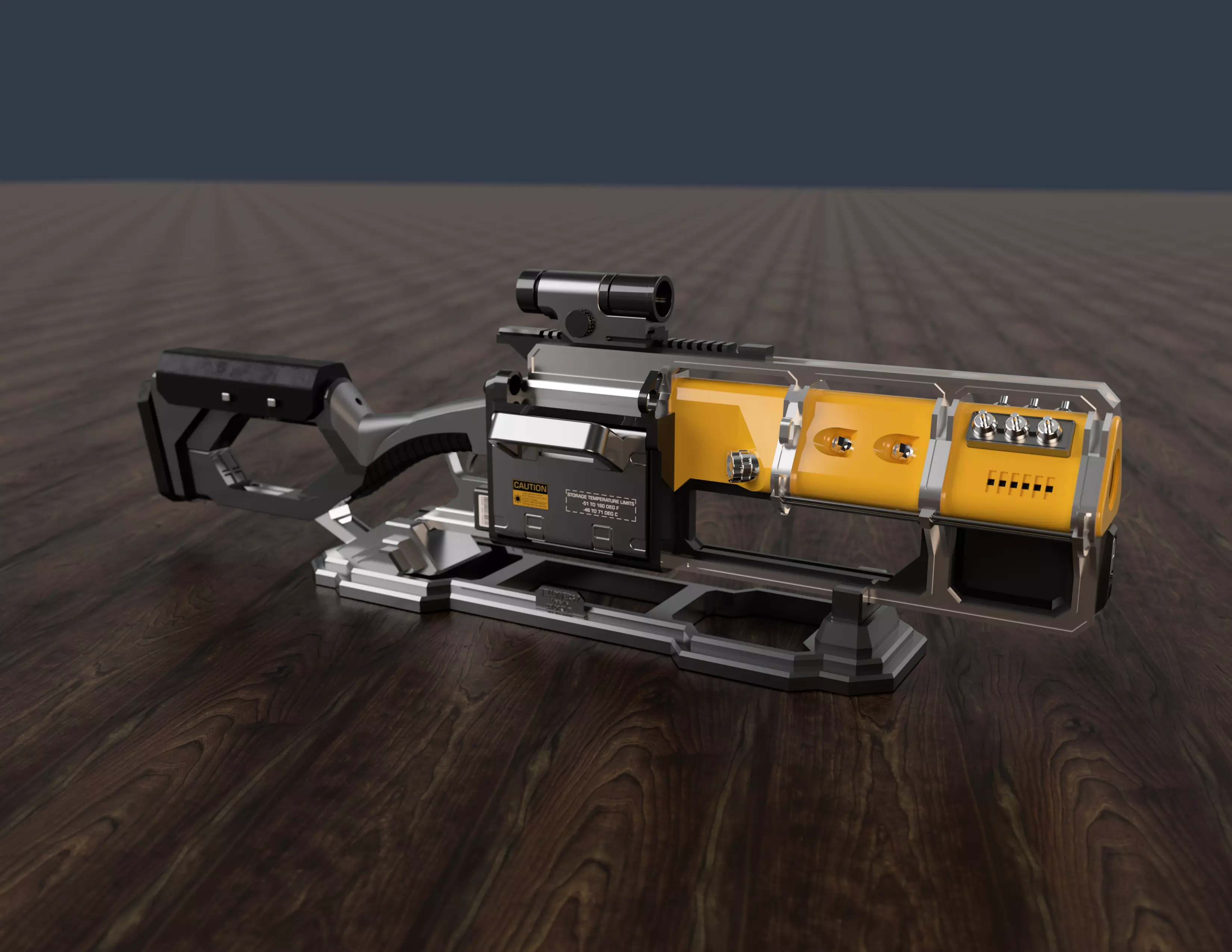

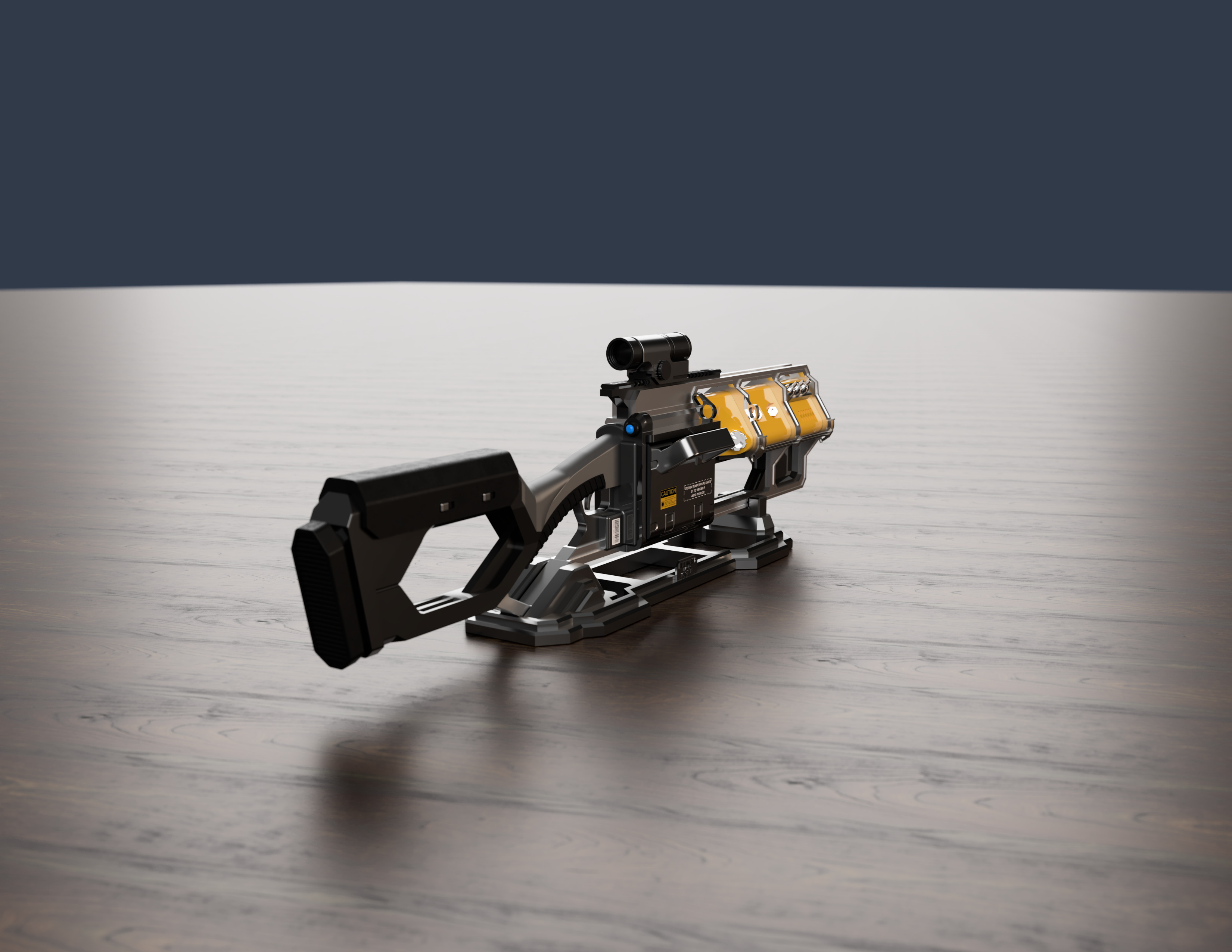

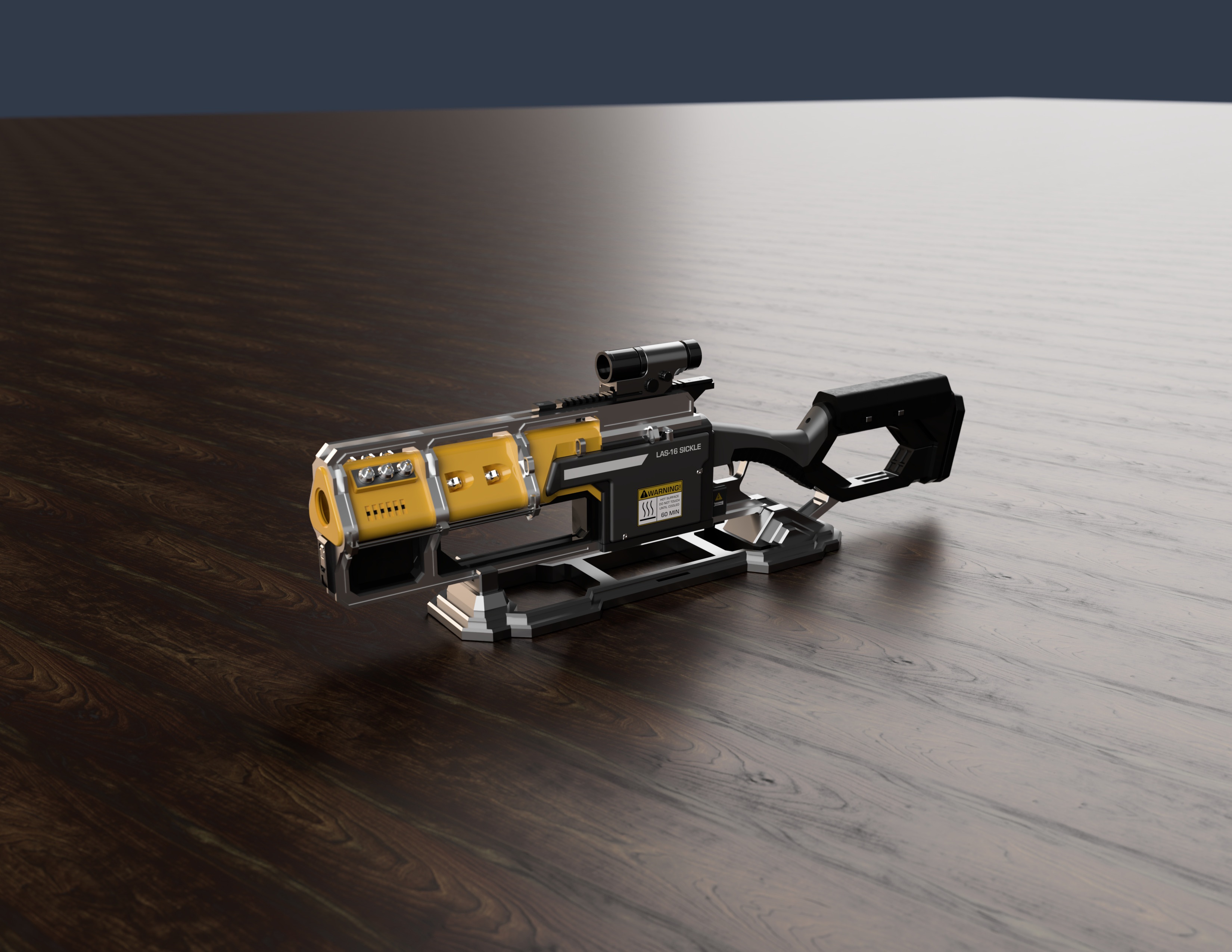

Helldivers 2 LAS-16 Sickle - 3D print files and code 3D print model

Do you have what it takes to spread managed democracy across the galaxy? Well Helldiver, take a sip of liber-tea and prepare to build your own LAS-16 Sickle. This highly game accurate model is packed with features, including:

1. Magnetic removable sight
2. Magnetic side plate
3. LED lighting effects
4. Dynamic sound effects
5. Overheat function with automatic heatsink ejection

These files are to 3D print your own model. The completed model is a PROP ONLY.

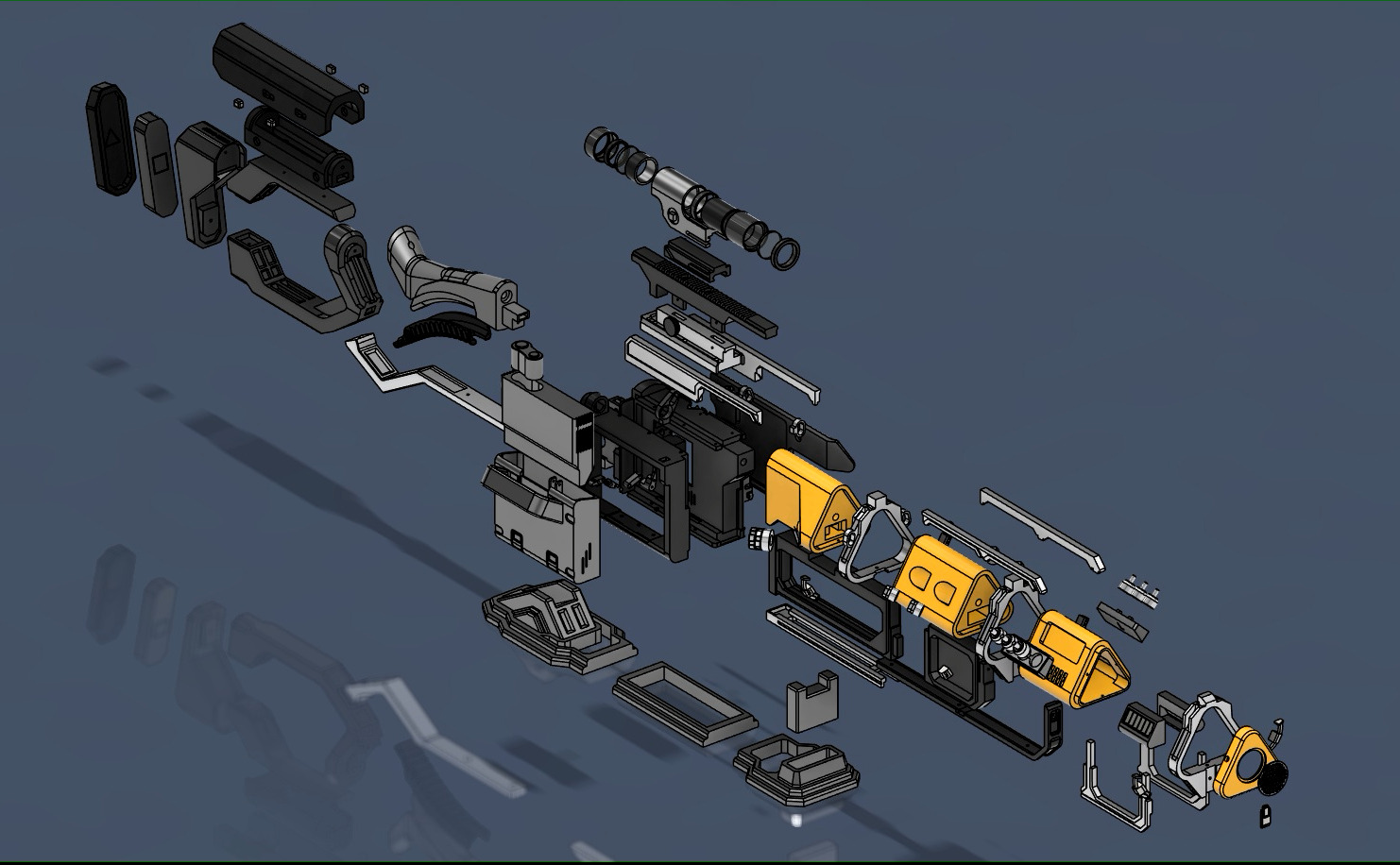

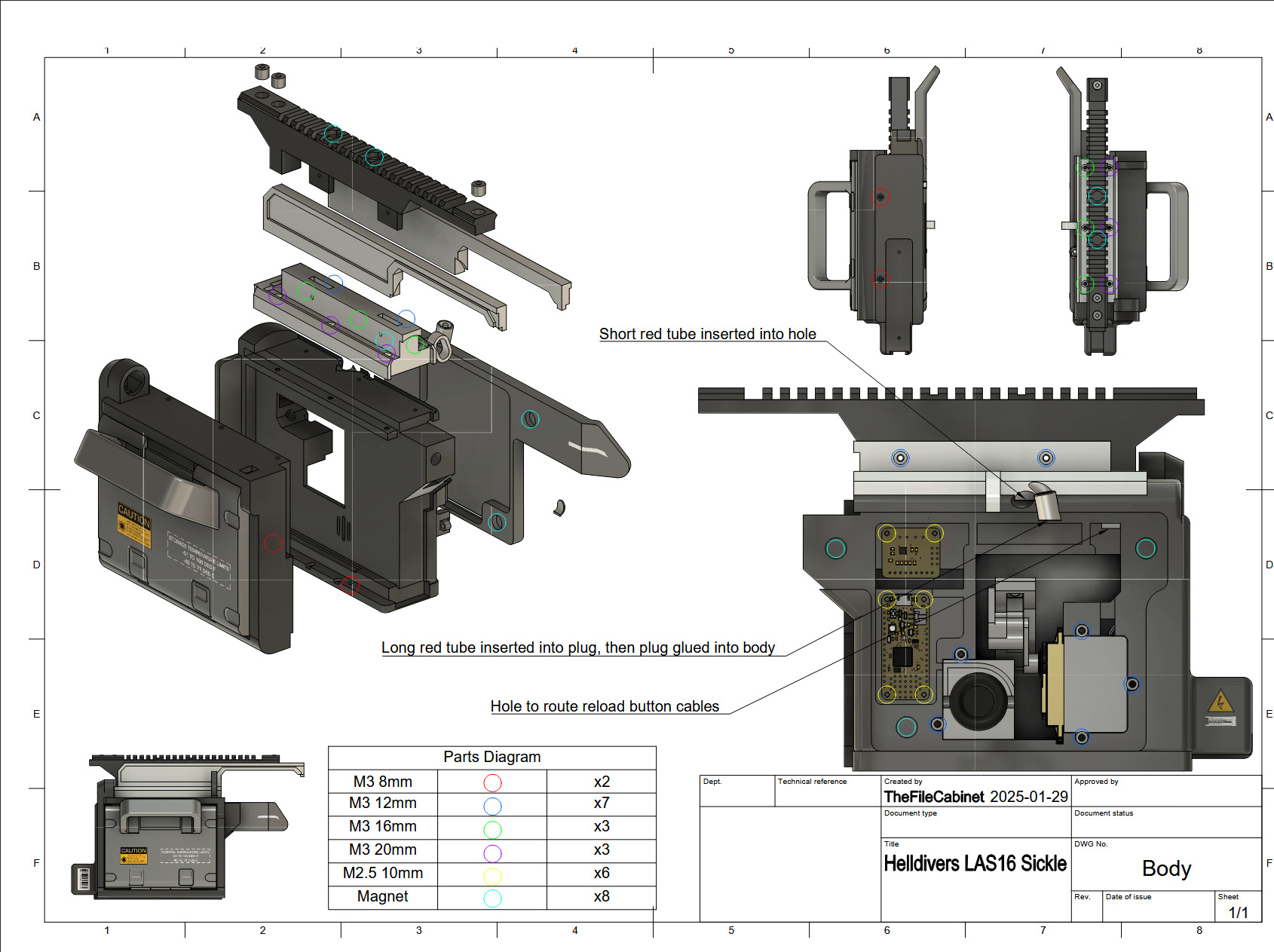

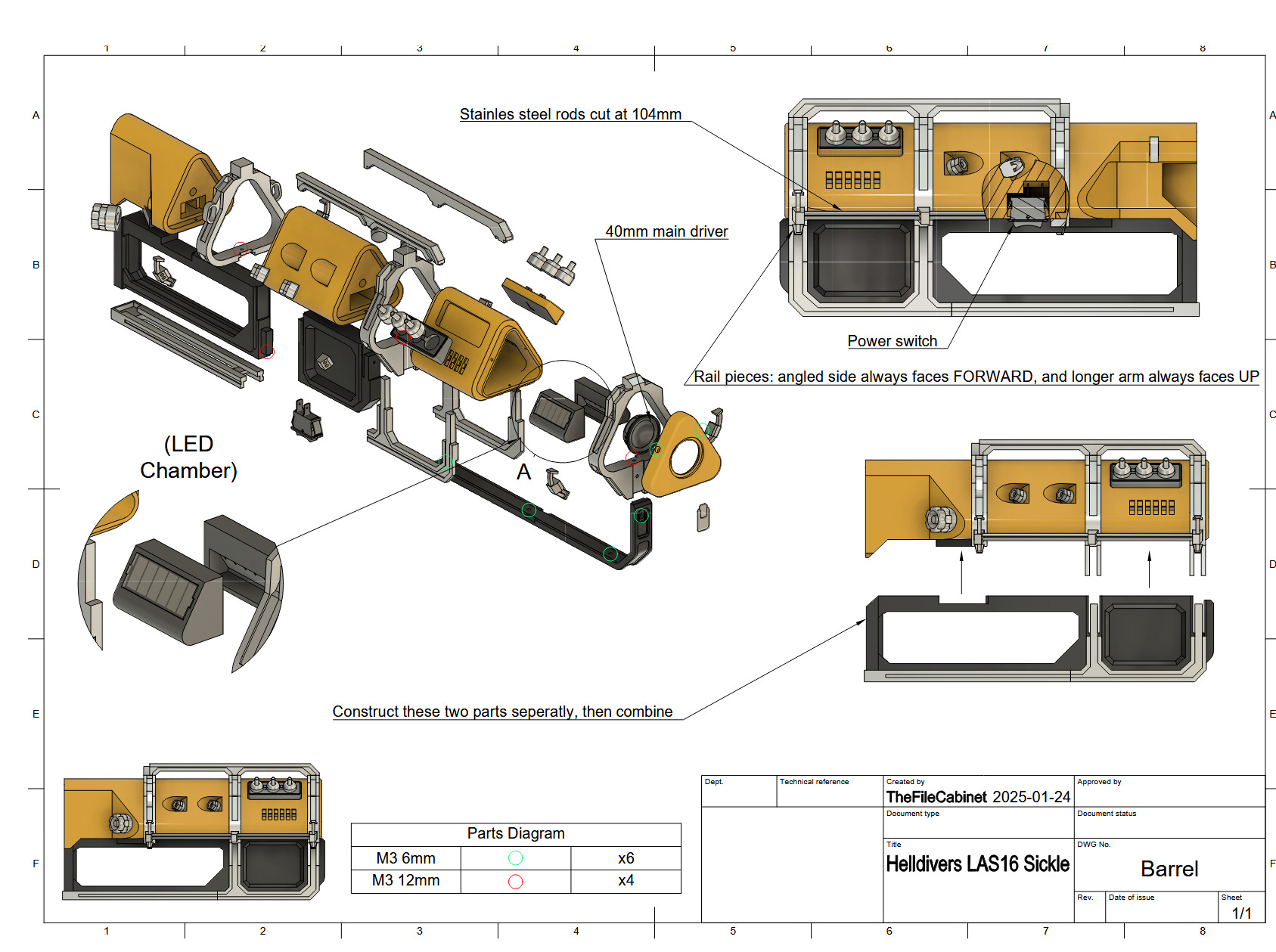

Included in this file are 3D printing STLs, code, decals, required parts list with links, blueprints, assembly tips, and photo and video references. The model is heavily broken down into many small parts, this is to ensure maximum printing quality, and to allow easier colour printing if you wish to print it in accurate colours.

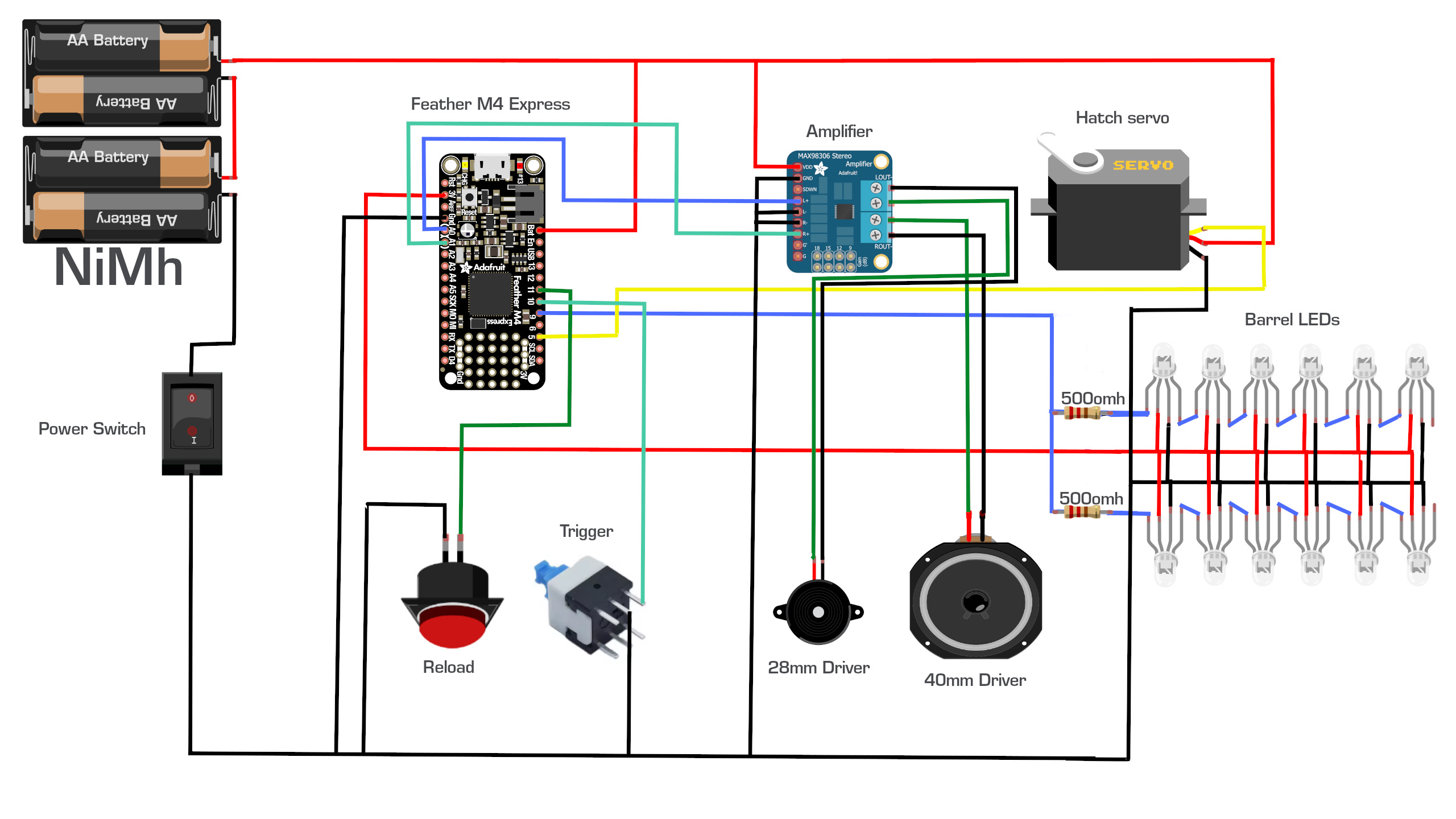

Parts needed:

• Adafruit Feather M4 express
• Adafruit MAX98306 Amplifier
• Adafruit Standard size high torque servo
• Adafruit 5mm through hole neopixels x12
• AA battery holder x2
• AA NiMh Batteries x4
• 500mm M8 support rod
• M8 locknuts x2
• Various M3 and M2.5 screws
• M3 nuts and washers
• 10x3mm Magnets x18
• Large and small red tubing
• Gold coloured mylar sheeting
• Door hinge 75mm x 50mm
• 28mm speaker
• 40mm speaker
• 3mm x 200mm metal rods x4
• Metal servo horn
• Rocker switch
• 8*8 mm momentary switch (can use latching switch and remove locking pin to make it momentary)
• 12mm push button switch
• 500omh resistors x2
• x2 tension springs (approx. 20mm long, 5.5mm diameter, closed loop)
• x1 compression spring (approx. 10mm long, 7.5mm diameter)

Links to all components used included in file.

Note This is not an official model/replica, and is considered fan art.
