Gusion Rebake Full City Arms 3D print model

The pieces are divided into 2 groups L: Left and R: Right, do not confuse them, there are 19 pieces for each arm

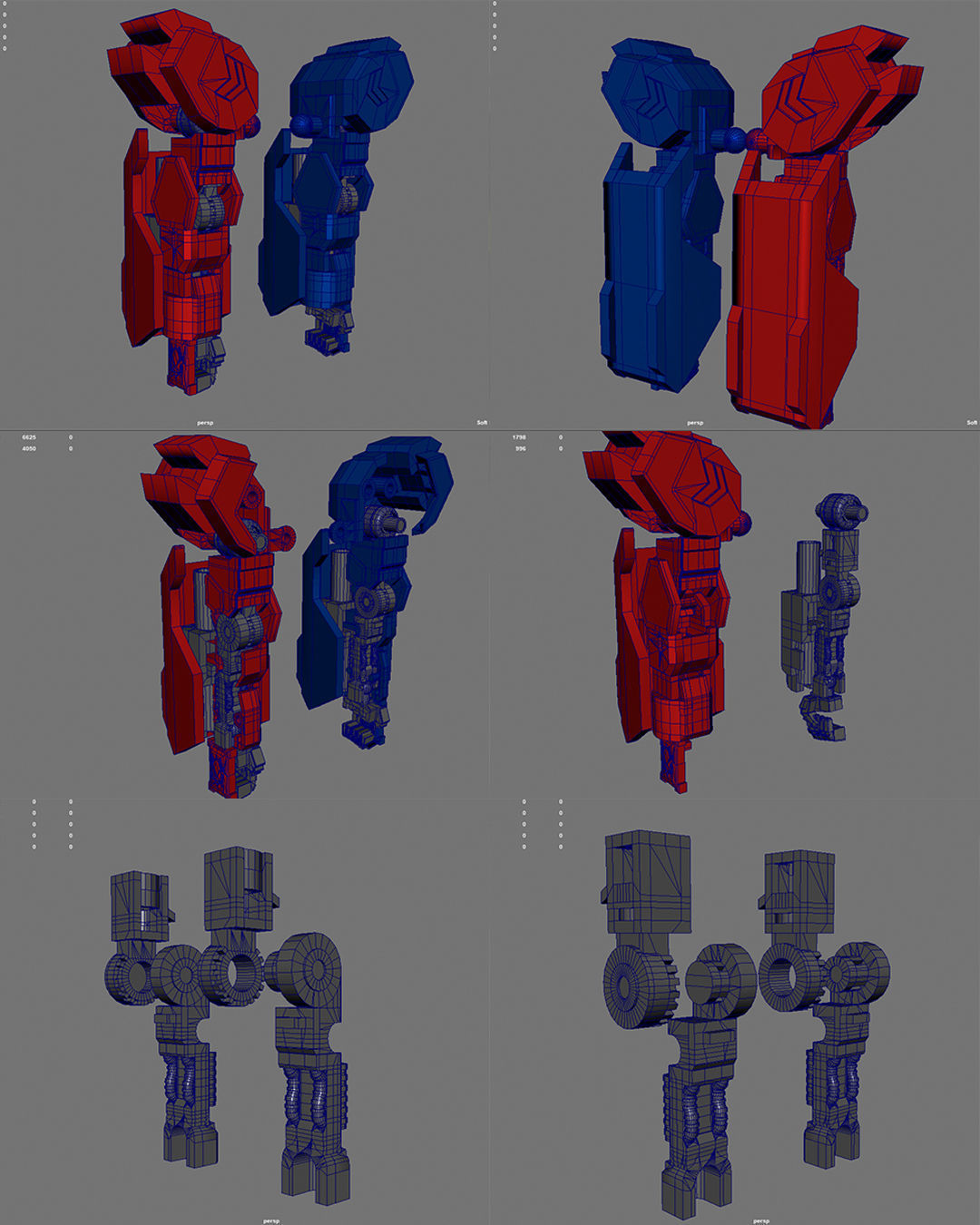

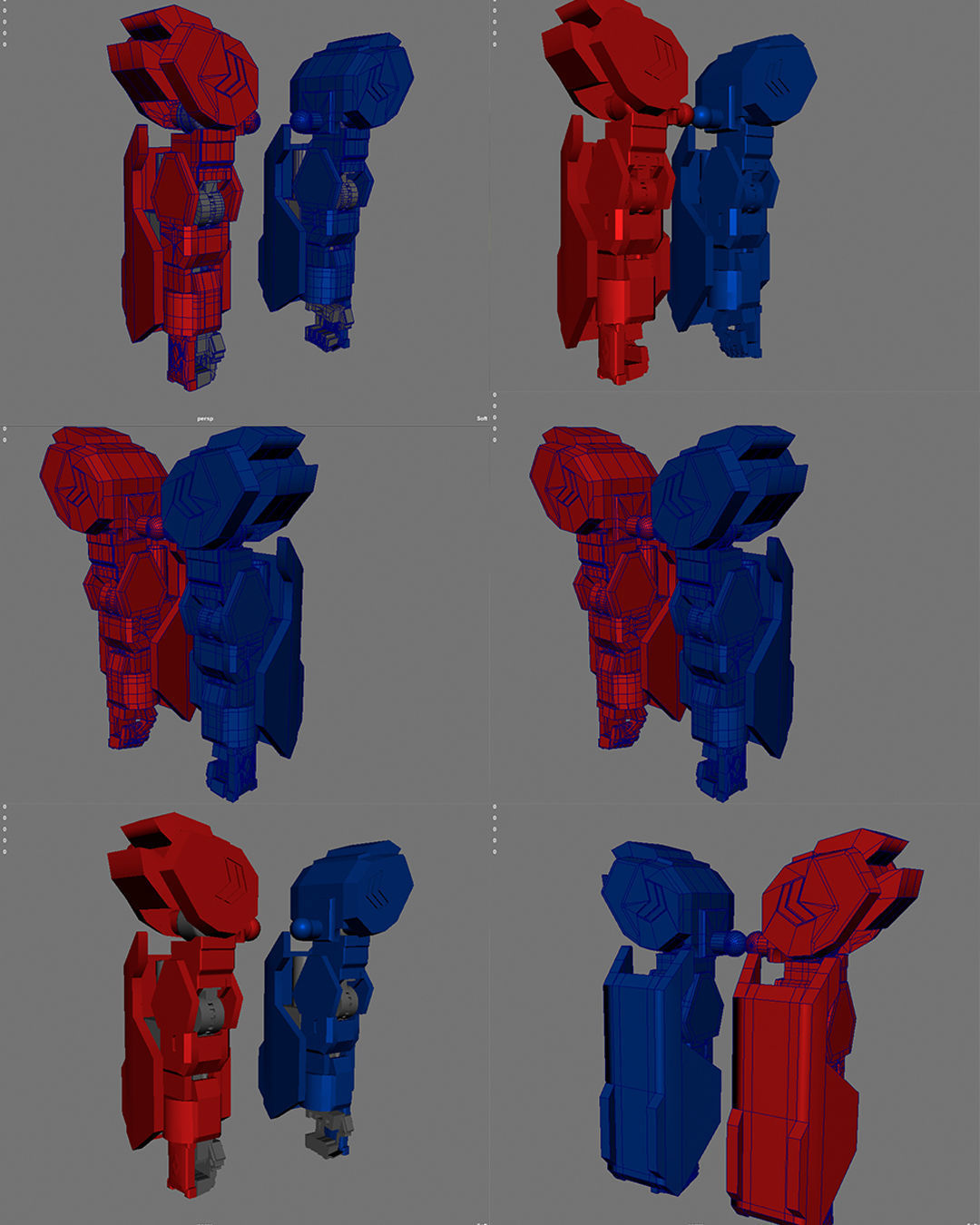

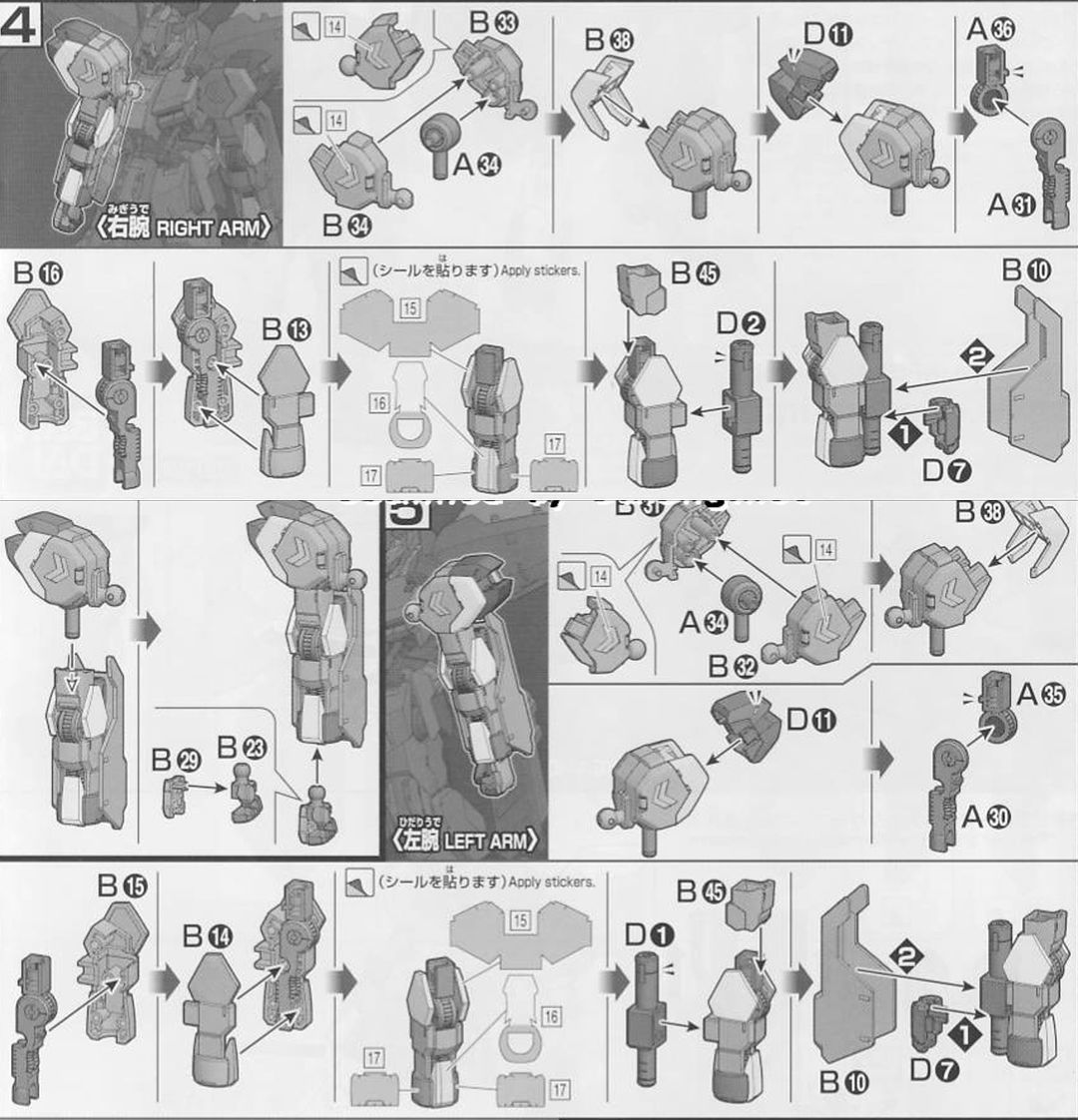

Design for 1/144 scale, increase the thickness to some pieces from one to two millimeters to improve the grip with the polycaps and to prevent them from breaking because of the thinness, I include part of the hg gundam manual with the arm assembly, 3d images without rendering to have a better idea of ​​how it will look, for the arm and forearm union I designed a modification to improve the grip, both work, it is the one that best suits whoever prints.

Soon more pieces of the Gusion Rebake will come, the goal is to recreate the entire articulated gundam

I recommend an infill percentage of 30 for all parts except the hands, I recommend 80 or 100 percent, as always I recommend a resin printer for a higher level of finish and apply a layer of gray primer before painting

Printer: Ender 3 Pro

Layer height 0.16

Default print speed 50mm/s Low speed for contouring: 40% Low solids refill rate: 15 - 20% Support structure low speed: 80% Movement speed in the X/Y axes 100 mm/s Z-axis movement speed: 5mm/s

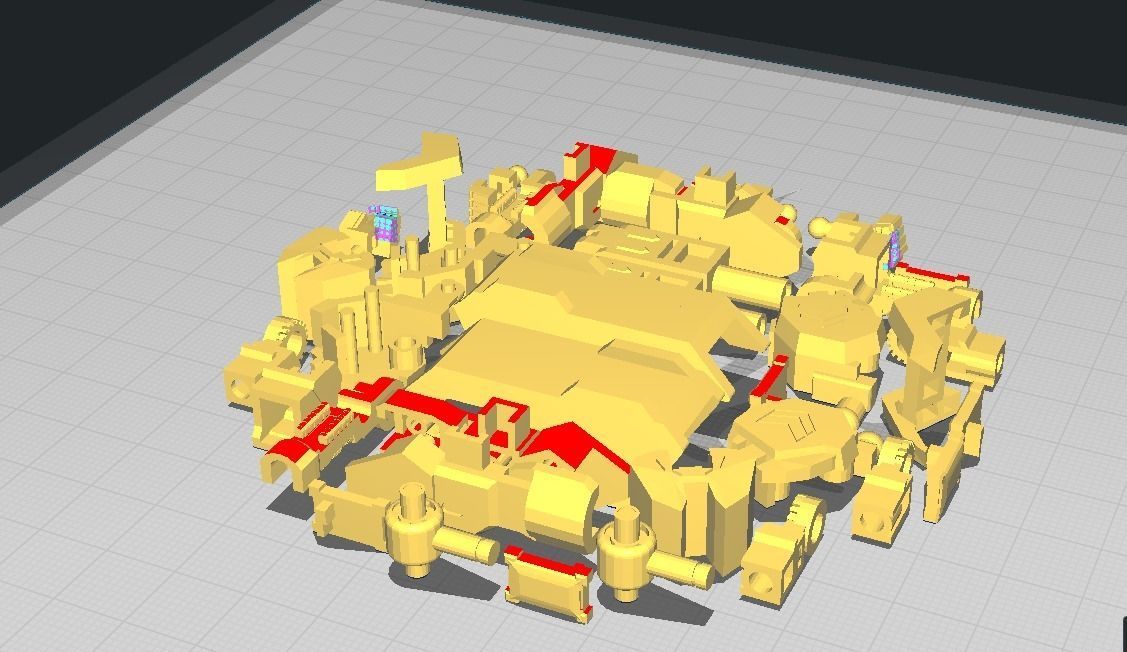

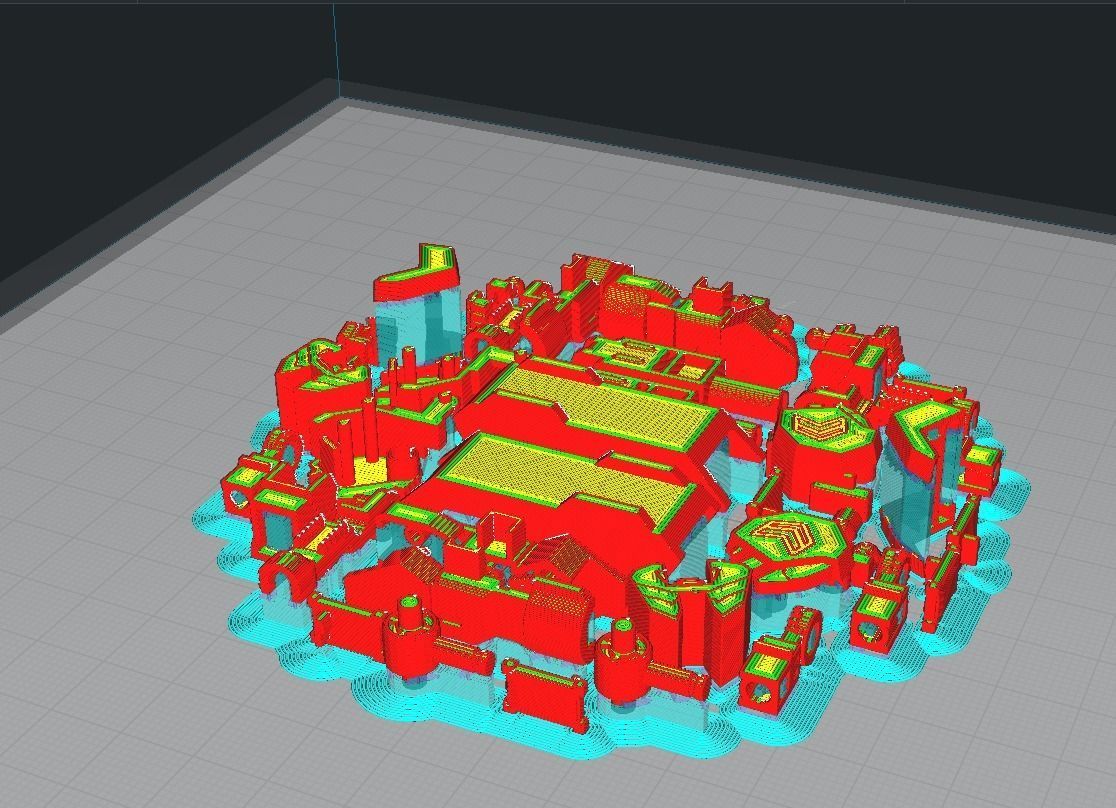

Supports: they are necessary, rotate the pieces in a way that gives the best use for your printers

If possible, they can use a resin printer to improve the quality level of the piece.
