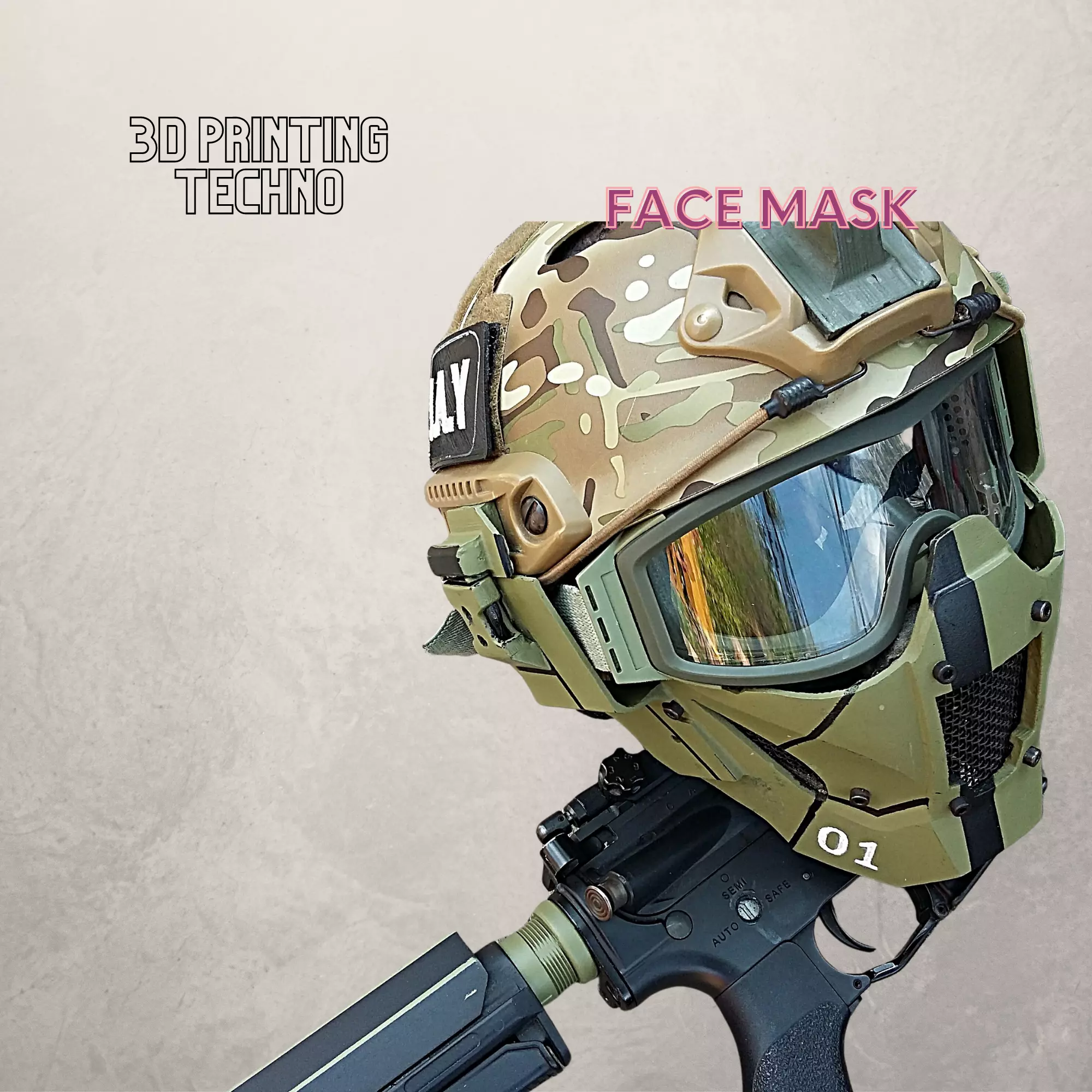

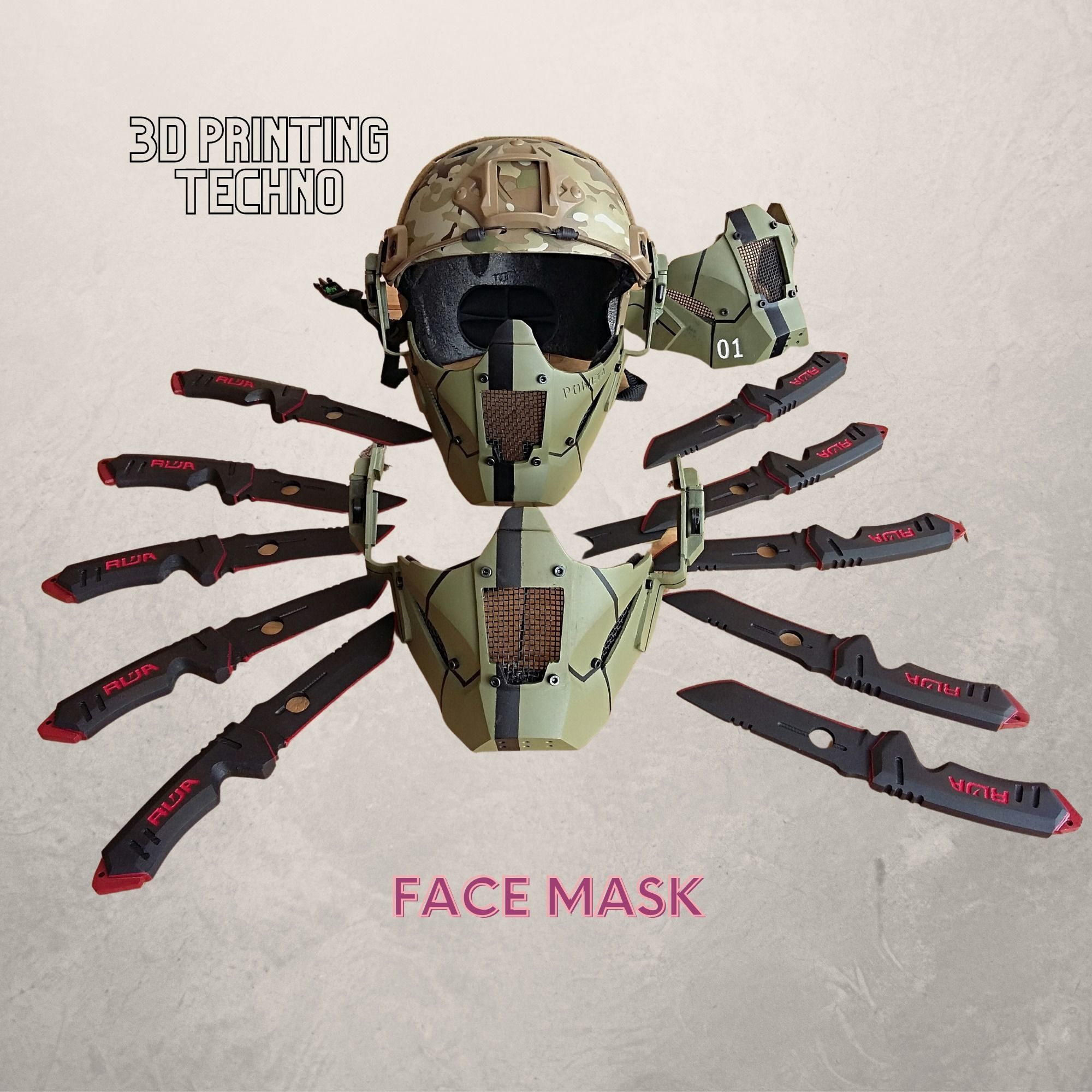

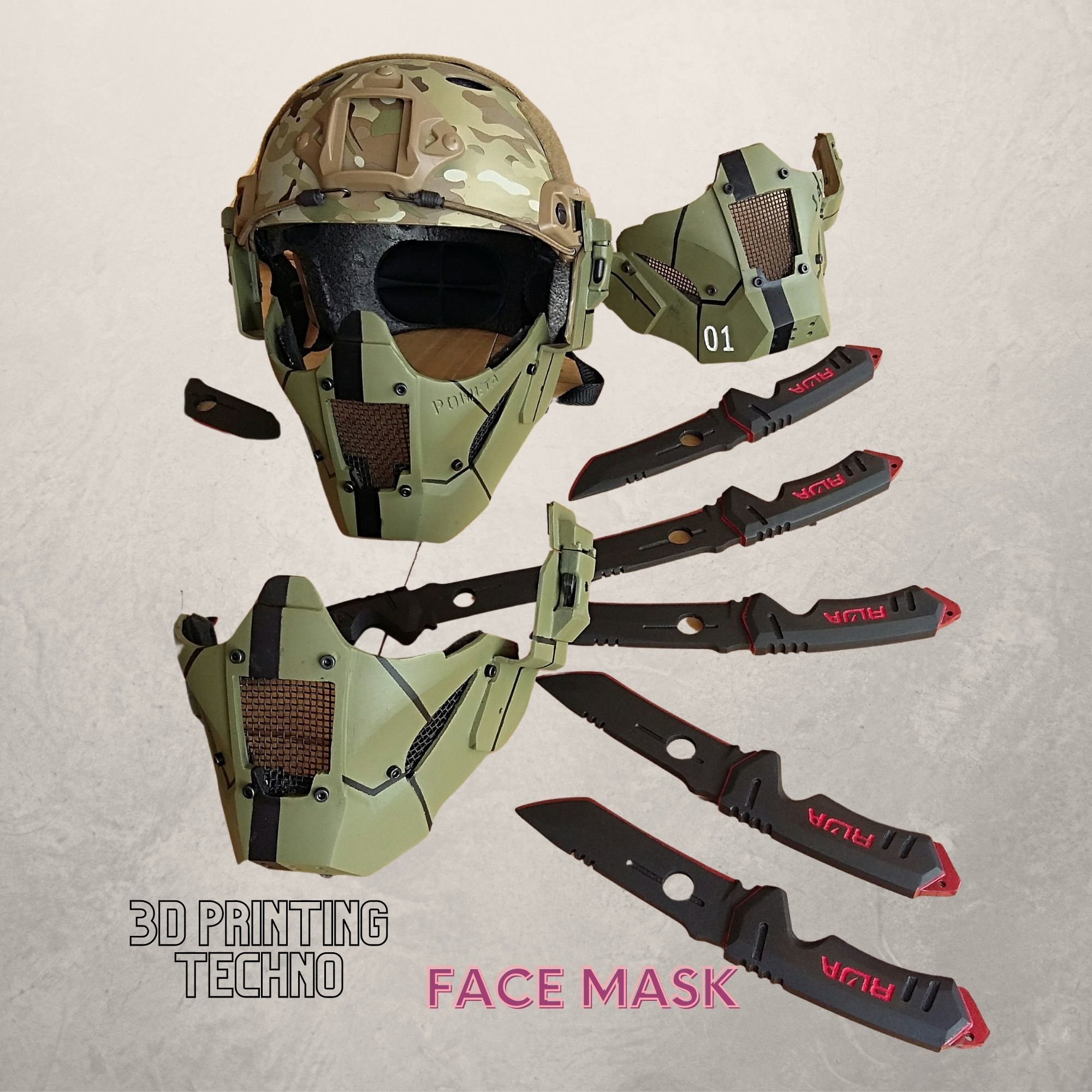

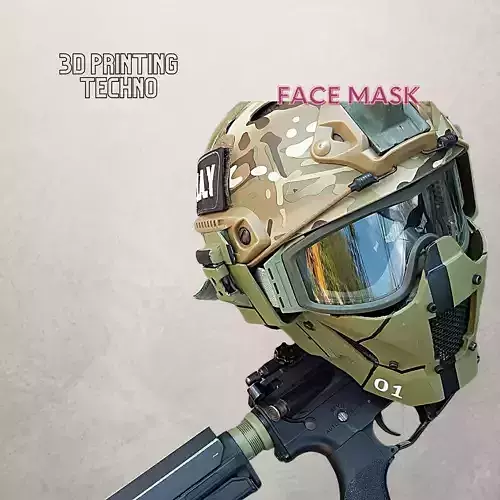

Face Mask STL Files High quality 3D print model Digital STL 3D print model

Face Mask STL Files - High quality 3D print model - Digital STL file Welcome to our store!

We do not sell ready-made files, although we can produce if desired, but basically this is the sale of ready-made layouts for a 3D printer. Buying a mocket from us, you get a ready-made STL file for further printing. If you have questions about layers or speed, you can contact us, we will answer all questions

When buying large layouts, the file will be sent to YOU ​​BY MAIL! Because the file size is too large.

When buying three files, you can choose the fourth for free, completely free!

This model was tested in Cura 3.5.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura, Simplify3D and Slic3r softwares.

Cura printing recommendations: Recommendations: For all parts of Locks you need to change Brim type to Skirt in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality Layer Height: 0.1 mm Initial Layer Height: 0.3 mm Line Width: 0.4 mm Wall Line Width: 0.4 mm Outer Wall Line Width: 0.4 mm Inner Wall(s) Line Width: 0.4 mm Top/Bottom Line Width: 0.4 mm Infill Line Width: 0.4 mm Skirt/Brim Line Width: 0.4 mm Support Line Width: 0.4 mm Initial Layer Line Width: 100%

Shell Wall Thickness: 0.8 mm Wall Line Count: 2 Outer Wall Wipe Distance: 0.2 mm Top Surface Skin Layers: 0 Top/Bottom Thickness: 0.8 mm Top Thickness: 0.8 mm Top Layers: 8 Bottom Thickness: 0.8 mm Bottom Layers: 8 Top/Bottom Pattern: Lines Bottom Pattern Initial Layer: Lines Top/Bottom Line Directions: [ ] Outer Wall Inset: 0 mm Compensate Wall Overlaps: Check Compensate Outer Wall Overlaps: Check Compensate Inner Wall Overlaps: Check Fill Gaps Between Walls: Everywhere Filter Out Tiny Gaps: Check Horizontal Expansion: 0 mm Initial Layer Horizontal Expansion: 0 mm Z Seam Alignment: Sharpest Corner Seam Corner Preference: Hide Seam Ignore Small Z Gaps: Check Extra Skin Wall Count: 1

Infill Infill Density: 20% Infill Line Distance: 4.0 mm Infill Pattern: Grid Infill Line Directions: [ ] Infill X Offset: 0 mm Infill Y Offset: 0 mm Infill Overlap Percentage: 10% Infill Overlap: 0.04 mm Skin Overlap Percentage: 5% Skin Overlap: 0.02 mm Infill Wipe Distance: 0.1 mm Infill Layer Thickness: 0.1 mm Gradual Infill Steps: 1 Gradual Infill Steps Height: 1.5 mm Infill Before Walls: Check Minimum Infill Area: 0 mm2 Skin Removal Width: 0.8 mm Top Skin Removal Width: 0.8 mm Bottom Skin Removal Width: 0.8 mm Skin Expand Distance: 0.8 Top Skin Expand Distance: 0.8 Bottom Skin Expand Distance: 0.8 Maximum Skin Angle for Expansion: 90˚ Minimum Skin Width for Expansion: 0.0

Material Initial Layer Flow: 100% Enable Retraction: Check Retraction Extra Prime Amount: 0 mm3 Retraction Minimum Travel: 0.8 mm Maximum Retraction Count: 90 Minimum Extrusion Distance Window: 6.5 mm Nozzle Switch Retraction Distance: 16 mm Nozzle Switch Retraction Speed: 20 mm/s Nozzle Switch Retract Speed: 20 mm/s Nozzle Switch Prime Speed: 20 mm/s

Speed Print Speed: 45 mm/s Infill Speed: 45 mm/s Wall Speed: 22.5 mm/s Outer Wall Speed: 22.5 mm/s Inner Wall Speed: 45 mm/s Top/Bottom Speed: 15 mm/s Support Speed: 45 mm/s Support Infill Speed: 45 mm/s Travel Speed: 45 mm/s Initial Layer Speed: 22.5 mm/s Initial Layer Print Speed: 22.5 mm/s Initial Layer Travel Speed: 30 mm/s Skirt/Brim Speed: 45 mm/s Maximum Z Speed: 0 mm/s Number of Slower Layers: 2

Travel Combing Mode: All Avoid Printed Parts when Traveling: Check Travel Avoid Distance: 0.6562 mm Layer Start X: 0.0 mm Layer Start Y: 0.0 mm

Cooling Enable Print Cooling: Check Fan Speed: 100% Regular Fan Speed: 100% Maximum Fan Speed: 100% Regular/Maximum Fan Speed Threshold: 10 s Initial Fan Speed: 0% Regular Fan Speed at Height: 0.3 mm Regular Fan Speed at Layer: 2 Minimum Layer Time: 5 s Minimum Speed: 10 mm/s

Support Generate Support: Check Support Placement: Everywhere Support Overhang Angle: 60° Support Pattern: Zig Zag Connect Support ZigZags: Check Support Density: 15 % Support Line Distance: 2.2 mm Support Z Distance: 0.13 mm Support Top Distance: 0.13 mm Support Bottom Distance: 0.13 mm Support X/Y Distance: 1 mm Support Distance Priority: Z overrides X/Y Minimum Support X/Y Distance: 0.25 mm Support Stair Step Height: 0.3 mm Support Stair Step Maximum Width: 5.0 mm Support Join Distance: 2.0 mm Support Horizontal Expansion: 0.2 mm Support Infill Layer Thickness: 0.1 mm Gradual Support Infill Steps: 0 Use Towers: Check Tower Diameter: 3.0 mm Minimum Diameter: 3.0 mm Tower Roof Angle: 65°

Build Plate Adhesion Build Plate Adhesion Type: Brim (for all parts of locks use Skirt) Skirt/Brim Minimum Length: 250 mm Brim Width: 8.0 mm Brim Line Count: 15 Brim Only on Outside: Check

Mesh Fixes Union Overlapping Volumes: Check Merged Meshes Overlap: 0.15 mm

Special Modes Print Sequence: All at Once Surface Mode: Normal

Experimental Slicing Tolerance: Middle Maximum Resolution: 0.01 mm Flow rate compensation max extrusion offset: 0 mm Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations: This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder Nozzle Diameter: 0.4 mm Extrusion Multiplier: 0.97 Extrusion Width: Auto

Retraction Distance: 5.00 mm Extra Restart Distance: 0.00 mm Retraction Vertical Lift: 0.08 mm Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer Primary Layer Height: 0.2 mm Top Solid Layers: 8 Bottom Solid Layers: 5 Outline/Perimeter Shells: 2 Outline Direction: Inside-Out

First Layer Height: 90% First Layer Width: 100% First Layer Speed: 20%

Additions Use Skirt/Brim: Check Skirt Layers: 1 Skirt Offset from Part: 6.00 mm Skirt Outlines: 5

Infill Internal Fill Pattern: Fast Honeycomb External Fill Patern: Rectilinear Interior Fill Percentage: 10% Outline Overlap: 22% Infill Extrusion Width: 100% Minimum Infill Length: 5.00 mm Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support Generate Support Material: Check Support Infill Percentage: 15% Extra Inflation Distance: 1.00 mm Support Base Layers: 0 Combine Support Every: 1 layers

Dense Support Layers: 0 Dense Infill Percentage: 70%

Support Type: Normal Support Pillar Resolution: 5.00 mm Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm Upper Vertical Separation Layers: 1 Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature Extruder 1 Temperature: 210 Heated Bed: 60

Cooling Increase fan speed for layers below: 45.0 sec Maximum Cooling fan speed: 50% Bridging fan speed override: 100%

Speeds Default Printing Speed: 4800.0 mm/min Outline Underspeed: 50% Solid Infill Underspeed: 80% Support Structure Underspeed: 80% X/Y Axis Movement Speed: 10800.0 mm/min Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec Allow speed reduction down to: 20%

Other Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations: Layer height Layer height: 0.1 mm First layer height: 90% Vertical shells Perimeters: 2 Horizontal shells Soid layers: Top: 8 Bottom: 5 Quality Detect thin walls: Check Detect bridging perimeters: Check Advanced Seam position: Random Infill Fill desity: 20% Fill pattern: Honeycomb Top/bottom fill pattern: Rectilinear Reducing printing time Combine infill every: 1 layers Advanced Solid infill every: 0 layers Fill angle: 25 deg Solid infill threshold area: 0mm Skirt Loops: 2 Distance from object: 6 mm Skirt height: 1 layers Minimum extrusion length: 4 mm Brim Brim width: 10 mm Support material Generate support material: Check Overhang threshold: 45 deg Enforce support for the first: 3 layers Raft Raft layers: 0 layers Options for support material and raft Contact Z distance: 0.1 mm Pattern: Rectilinear Patter spacing: 2 mm Pattern angle: 0 deg Interface layers: 2 layers Interface pattern spacing: 0.2 mm Speed for print moves Perimeters: 60 mm/s Small perimeters: 20 mm/s External perimeters: 20 mm/s Infill: 60 mm/s Solid infill: 60 mm/s Top solid infill: 30 mm/s Support material: 50 mm/s Support material interface: 100% Bridges: 30 mm/s Gap fill: 50 mm/s Speed for non-print moves Travel: 60 mm/s Modifiers First layer speed: 30 mm/s Acceleration control Perimeters: 800 mm/s Infill: 1500 mm/s Bridge: 1000 mm/s First layer: 1000 mm/s Default: 1000 mm/s Autospeed Max print speed: 100 mm/s Max volumetrix speed: 0 mm/s Extrusion width Default extrusion width: 0.42 mm First layer: 0.42 mm Perimeters: 0.42 mm External perimeters: 0.42 mm Infill: 0.42 mm Solid infill: 0.42 mm Top solid infill: 0.42 mm Support material: 0.42 mm Overlap Infill/Perimeters overlap: 20% Flow Bridge flow ratio: 0.95 Other XY Size Compensation: 0 mm Threds: 8 Resolution: 0 mm
