Big City Robot 3D print model

DISCLAIMER - I WILL NOT BE DOING ANY HOW TO ASSEMBLE VIDEOS OR WALKING ANYONE THROUGH THE ASSEMBLY PROCESS. I HAVE PROVIDED GENERAL NOTES WITH DETAILS WHICH EACH ASSEMBLY SET AS WELL AS FULL BLOW OUT STLS OF EACH ASSEMBLY SET AS WELL AS SOME ILLUSTRATIONS. OTHER THEN THIS I DO NOT INTEND TO PUBLISH FURTHER INSTRUCTIONS. THIS IS FOR EXPERIENCEd MAKERS/BUILDERS AND I DO NOT RECOMMEND THIS PURCHASE TO ANYONE WHO DOES NOT HAVE EXPERIENCE WITH SUCH BUILDS.

See my other available downloads for an accessories pack that adds spot lights, Flight control tower, missle turrets, rocket launchers, etc. Also see my other downloads for the 3 companion bots which include an MP scaled fully transformable version of scamper.

02-02-2025 Update: For the Revision 2.0 model set I broke up the Upper Arm panels from two pieces to 4 pieces in order to hide the majority of the seam on the outside of the arm. Also did the same for the top of the HIP assemblies added a panel that slides into place hiding the majority of the seam between the two halves.

01-28-2025 Update: Added a quality-of-life update to the Revision 2.0 Set of files that allows for individual complete assembly of the legs and arms including all the required ratchets separate from the Torso section. The arms and legs can be removed and reinstalled with 2 screws per limb making it a lot easier to disassemble and transport or work on the figure. The original setup required HIP and shoulder ratchets be installed between the Torso and the limb making disassembly much more cumbersome.

01-06-2025 Update: (Updated 02-21-2025) Added a large file set containing the Beta set of files for the 2.0 Version of this model set with improvements, new ramp design for the right Torso, added transformation with Comms Bays for the Lower Legs and the ability to add up to 57 LED lights to the figure along with some notes and images including the lights I used and where I purchased them. I will add links to the Product page as well to a couple of shorts on Youtube of the a couple of LEDS and how they look installed. !!!!PRINT THIS SET AT YOUR OWN RISK HOWEVER AS I AM STILL IN THE PROCESS OF PRINTING THIS UPDATED SET MYSELF. I CONSIDER IT COMPLETE BUT GIVEN THE NUMBER OF COMPONENTS AND CHANGES IT IS STILL POSSIBLE I MISSED SOMETHING.!!! _

https://youtube.com/shorts/UcIAe4OVOQs?si=PfOMZNmtcDsfZgM2https://youtube.com/shorts/hg5Baxg6Z6E?si=rKoUjmvcKFBa6tmi

07-15-2024 Added two alternative lower mid section pieces that fill out the midsection more. Print these at your own risk however as I have not had a chance to prototype these yet. They are designed to to fit according to the model set in place of the smaller set. They have sections designed to fit the grooves in the side lower center torso. Pictures uploaded for comparison.

07-11-2024 Added Gun Turrent Half x 4 file as a separate file in the root for now as the version of the file in the leg zip files is corrupt.

02-25-2024 Added 4 components for anyone who wanted to make a Metro titan which include two arm details and a New Right Bay Door. There is a decepticon logo on Thingiverse that will fit the the door.

02-18-2024 Updated the wrist pegs to take a 10-32 or 10-24 Pan head screw to ensure more durability.

02-14-2024 I noticed that in a prior update I did that I forgot to reupload the rotation component for the Thighs. These components have been reuploaded as of now

12-17-2023 If you are having problems with the little gap filler door on the right Torso openning fully to allow the Building on the back of the torso to full compress into the Torso it is due to the little door hitting some interior structural components. I have resdesigned the little panel to have a cutout to allow it to full sit in the proper location when open which gives clearance for the building to compress into the Torso. Files have been updated.

11-04-2023 I was made aware that the Upper Thigh rotation file for both legs were missing from the ZIP Package. I have added those to the set ad individual items.

Alternate Crotch Assembly has been added along with images and a link to a video going over the new alt assembly addition. 09-19-2023

Added Images and illustrations of the new forearm Panel Modifications to assist in keeping the arms horizontal in Battle Station mode. 09-12-2023

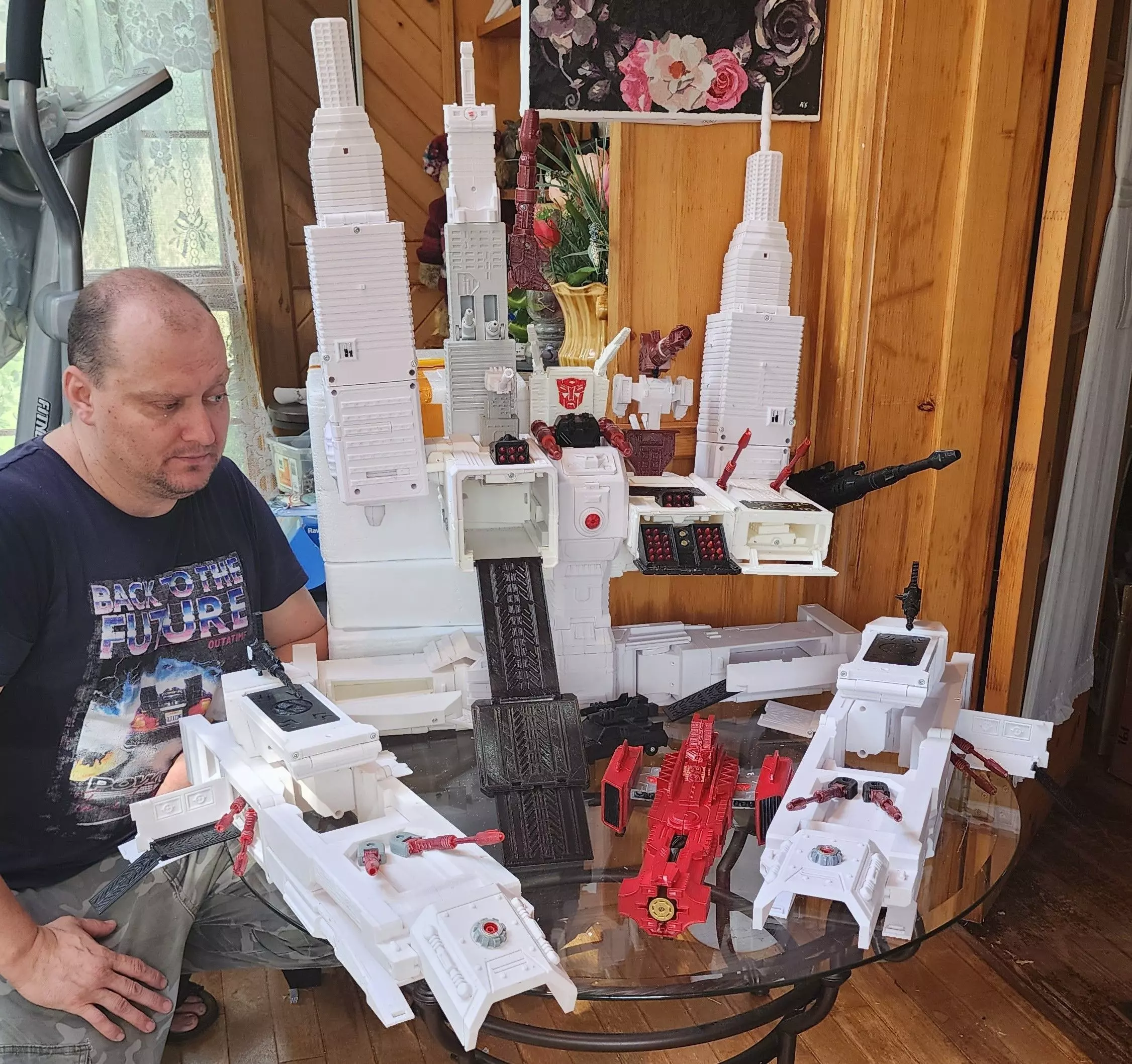

However with that out of the way this is a set of assembly models that will enable you to 3D print and build your very own 42"+ tall fully transformable Big City Robot, my take on a Giant Metroplex style transformer.

I suggest reading though all the notes I have included with the project as well as watching the videos I have posted to my youtube channel before printing any components to get an idea/feel for the assembly.

There are no emblems or faceplates included in this set however I do offer a free download for the 3 faceplates and emeblem on Thingiverse. Link below:https://www.thingiverse.com/thing:6210641
