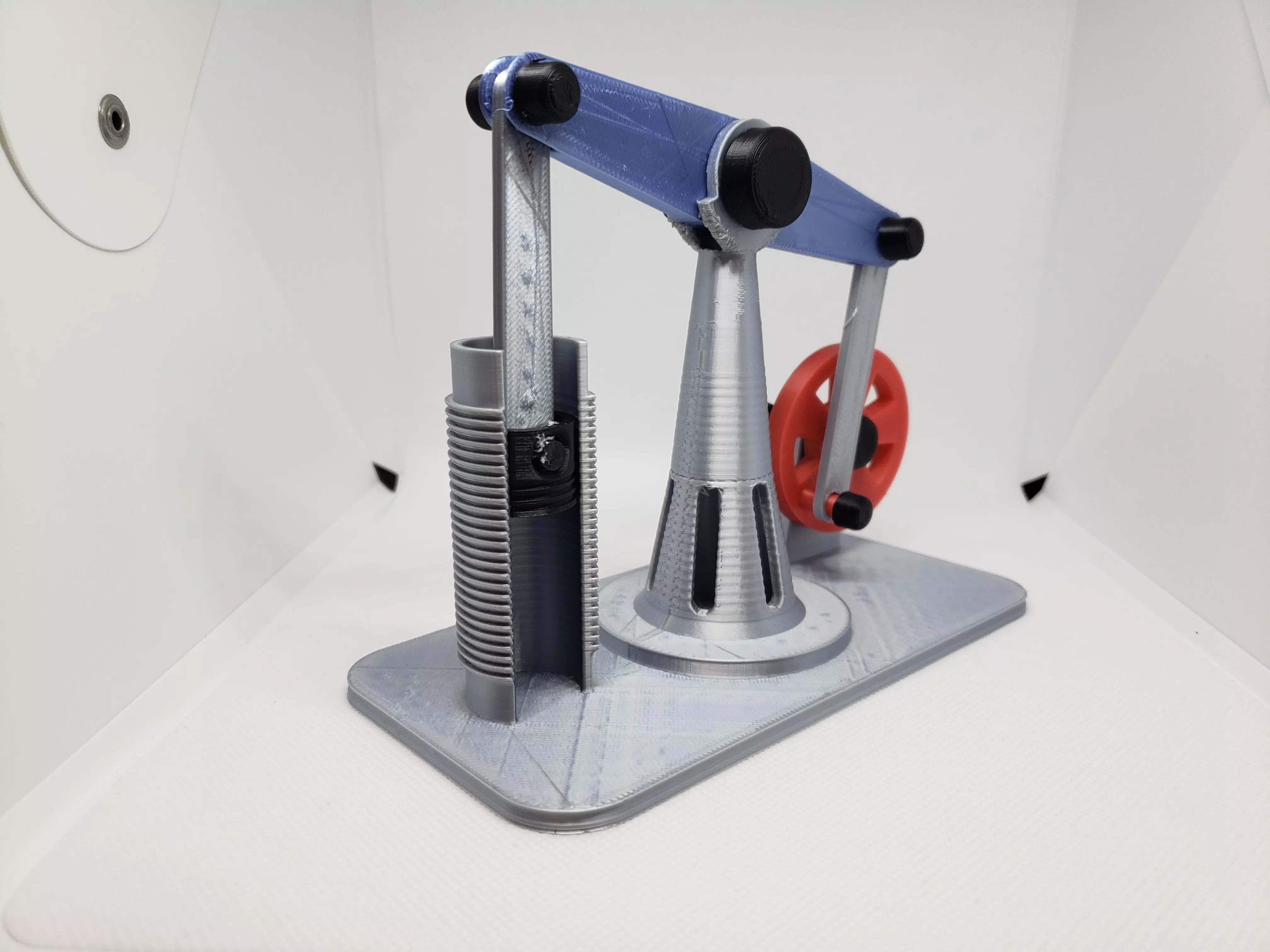

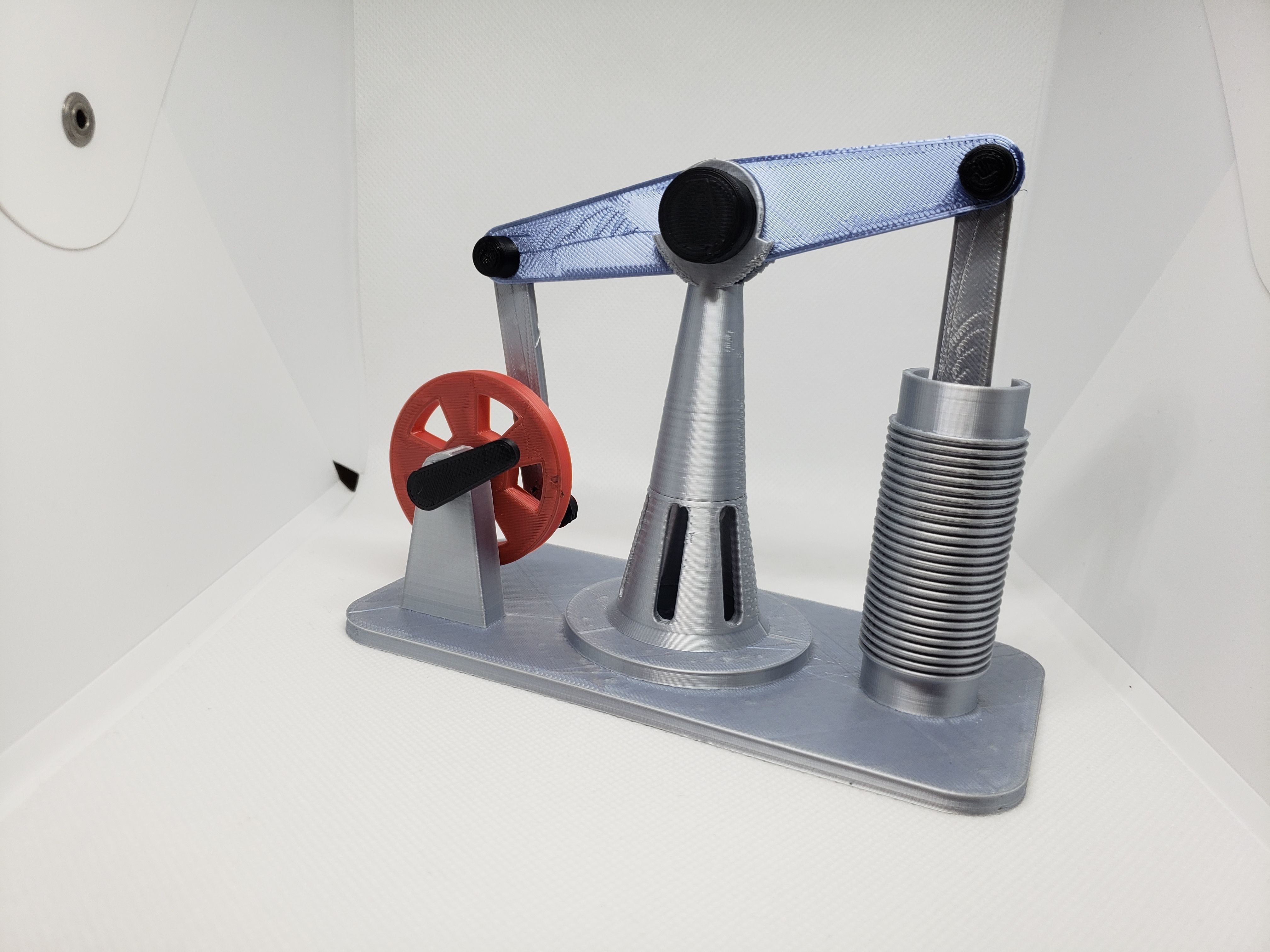

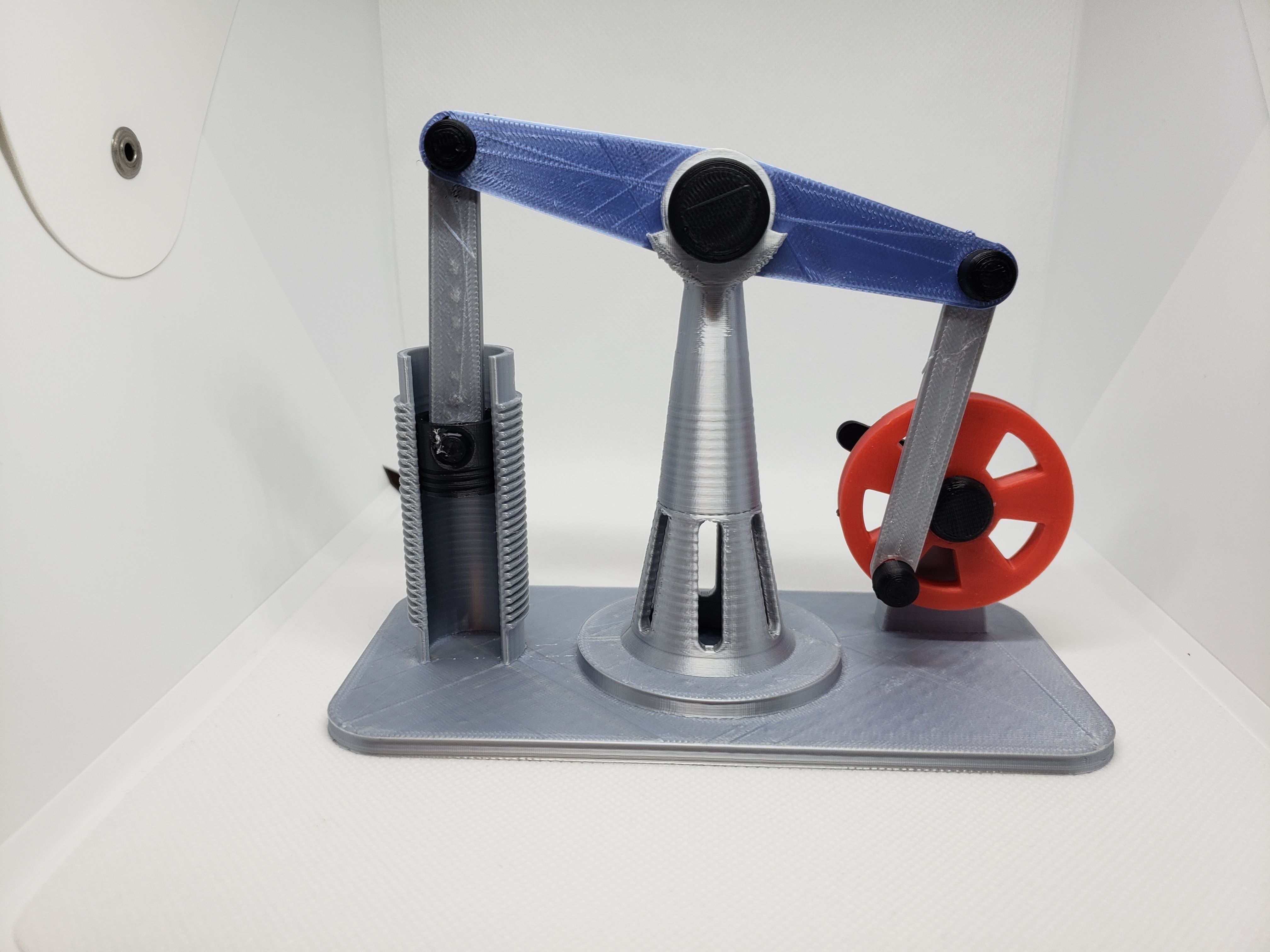

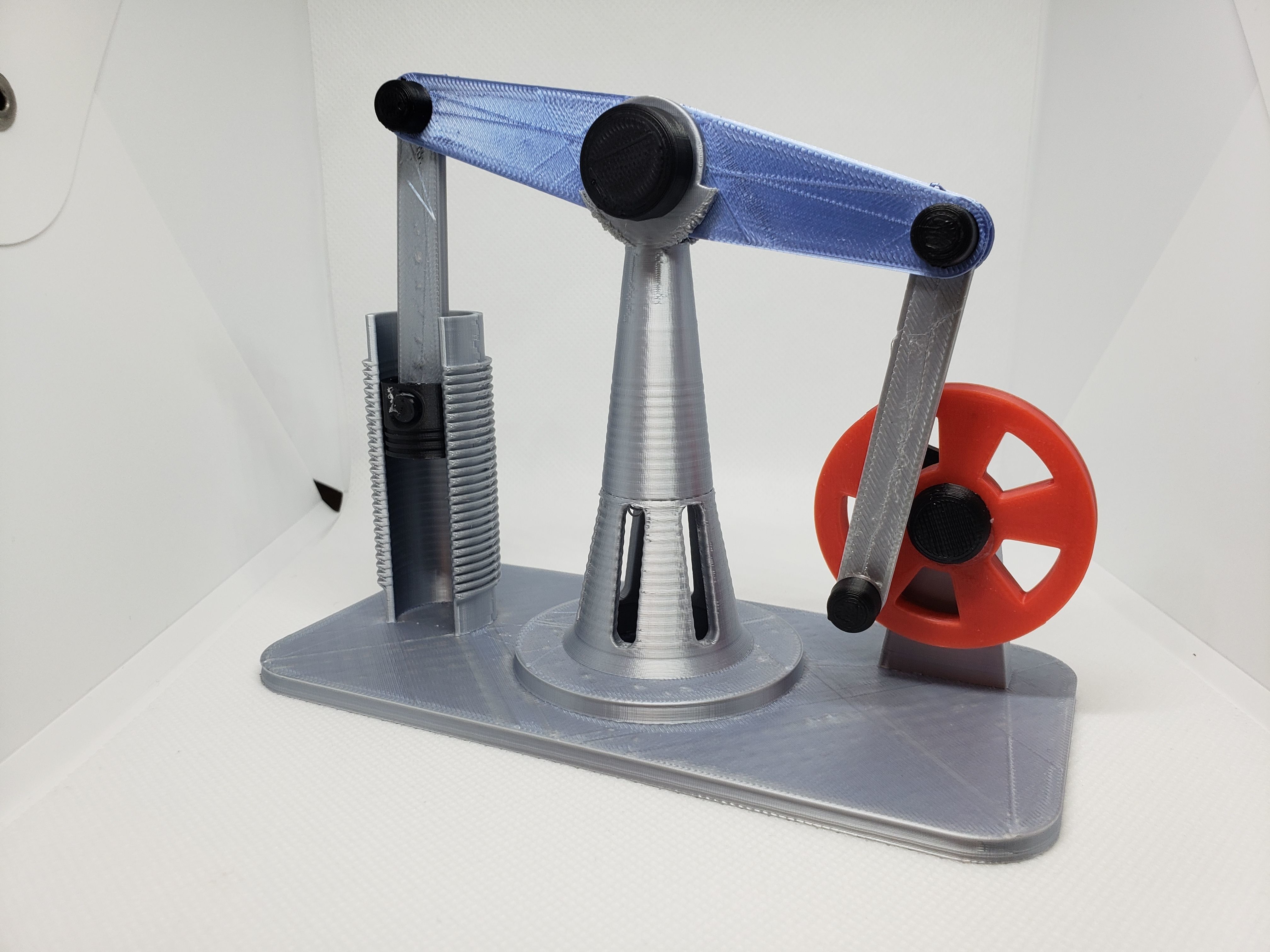

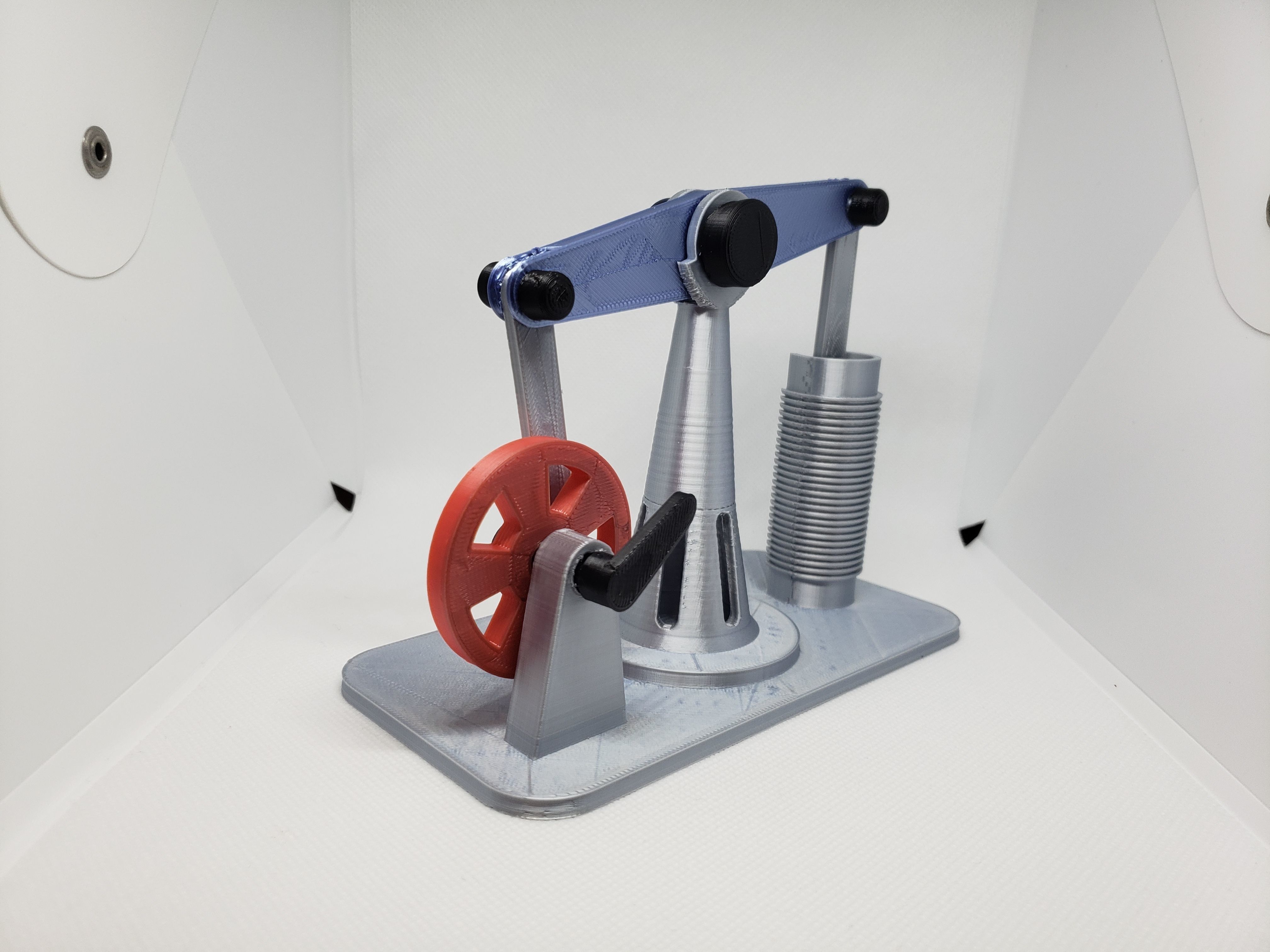

Beam Engine

Beam Engine 3D print model

Description

What is a Beam Engine and How does it Work?

A beam engine is a type of steam engine where a pivoted overhead beam is used to apply the force from a vertical piston to a vertical connecting rod.

Beam engines were first used to pump water out of mines or into canals, but could be used to pump water to supplement the flow for a waterwheel powering a mill.

Check out my blog post for assembly instructions and a brief history of beam engines

https://printmypassion.com/how-does-a-beam-engine-work/

Item rating
0 0
Beam Engine
$3.00

Royalty Free License
Beam Engine
$3.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl) (17 files)6.25 MB

3D Model details

  • Publish date2021-03-05
  • Model ID#2909352
  • Ready for 3D Printing
