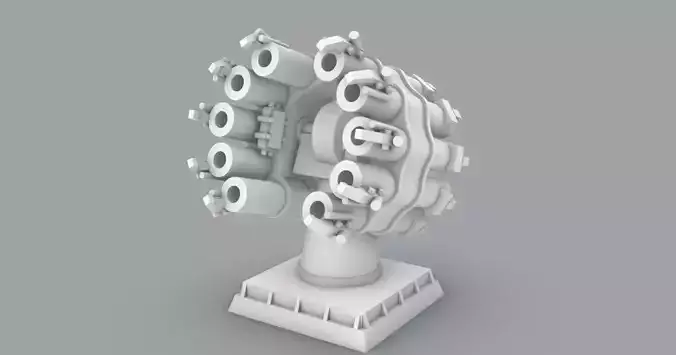

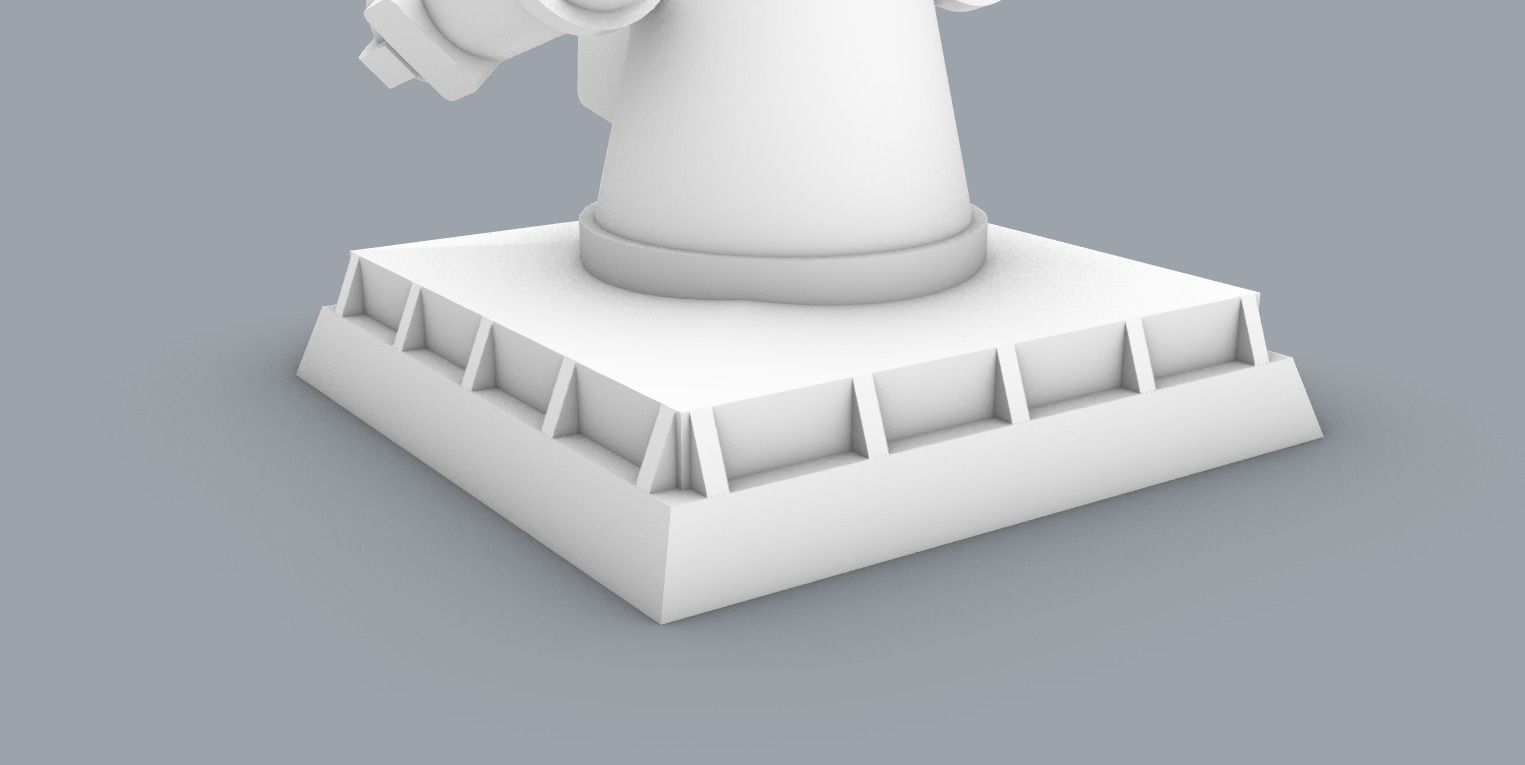

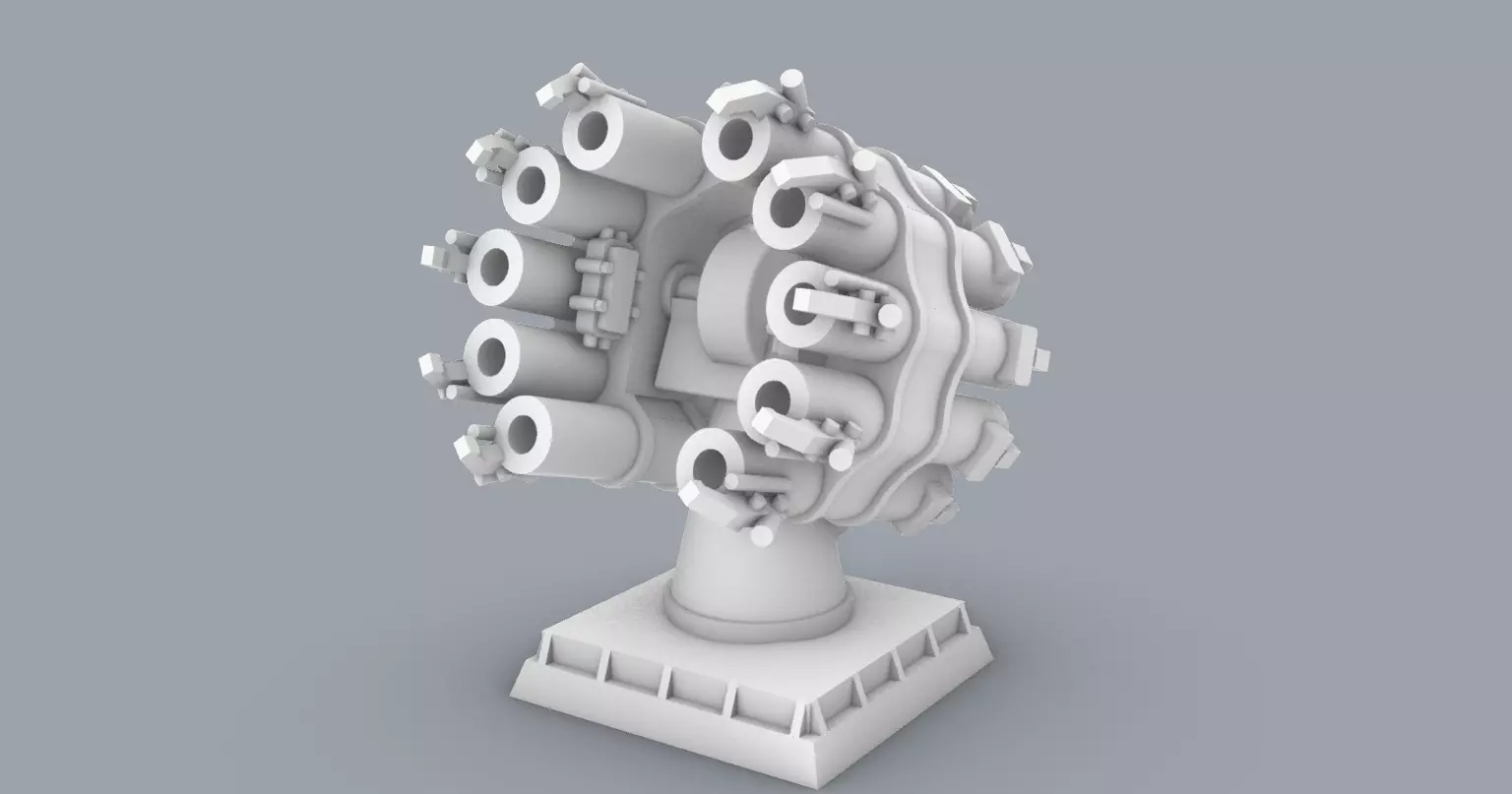

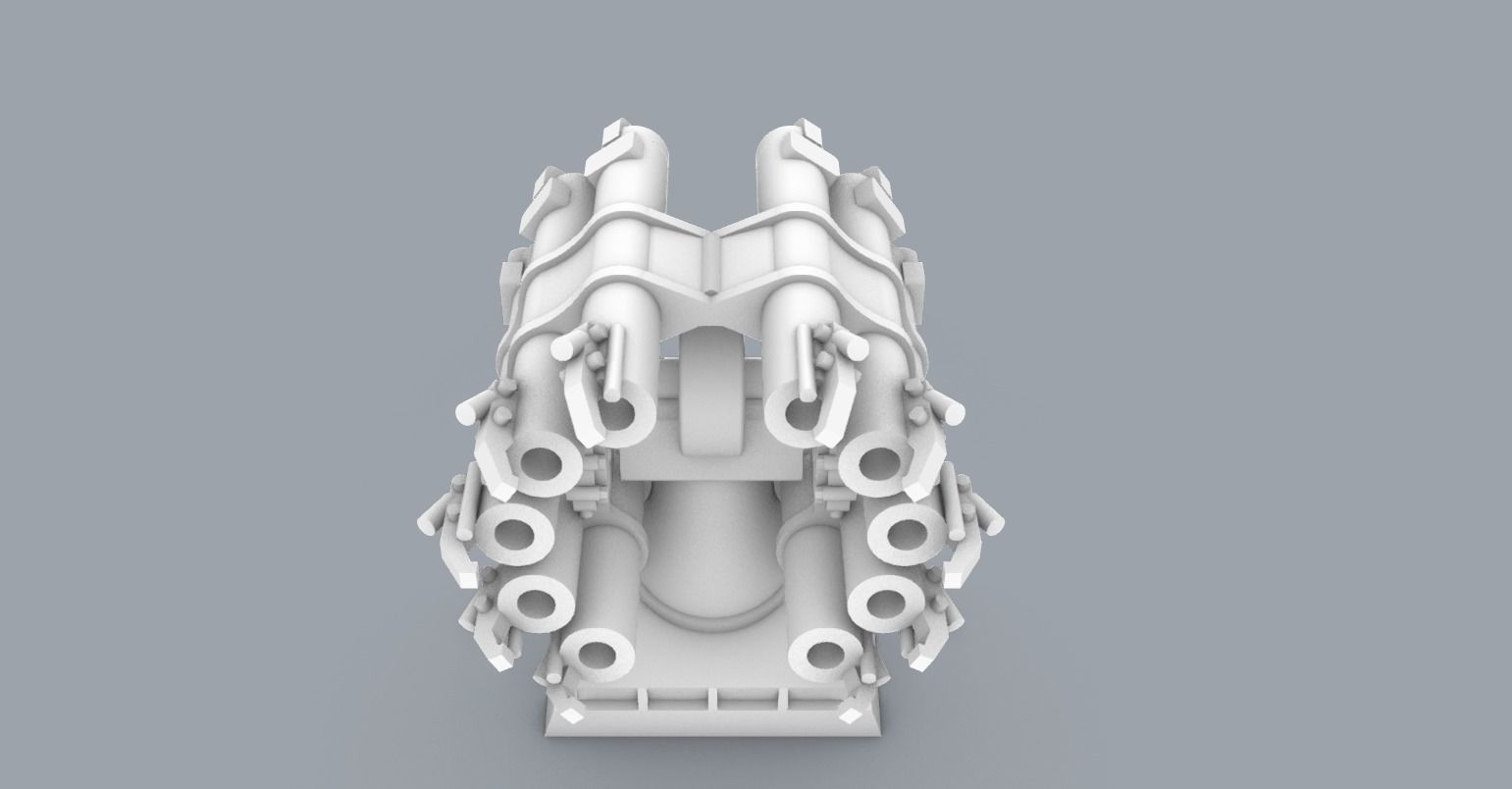

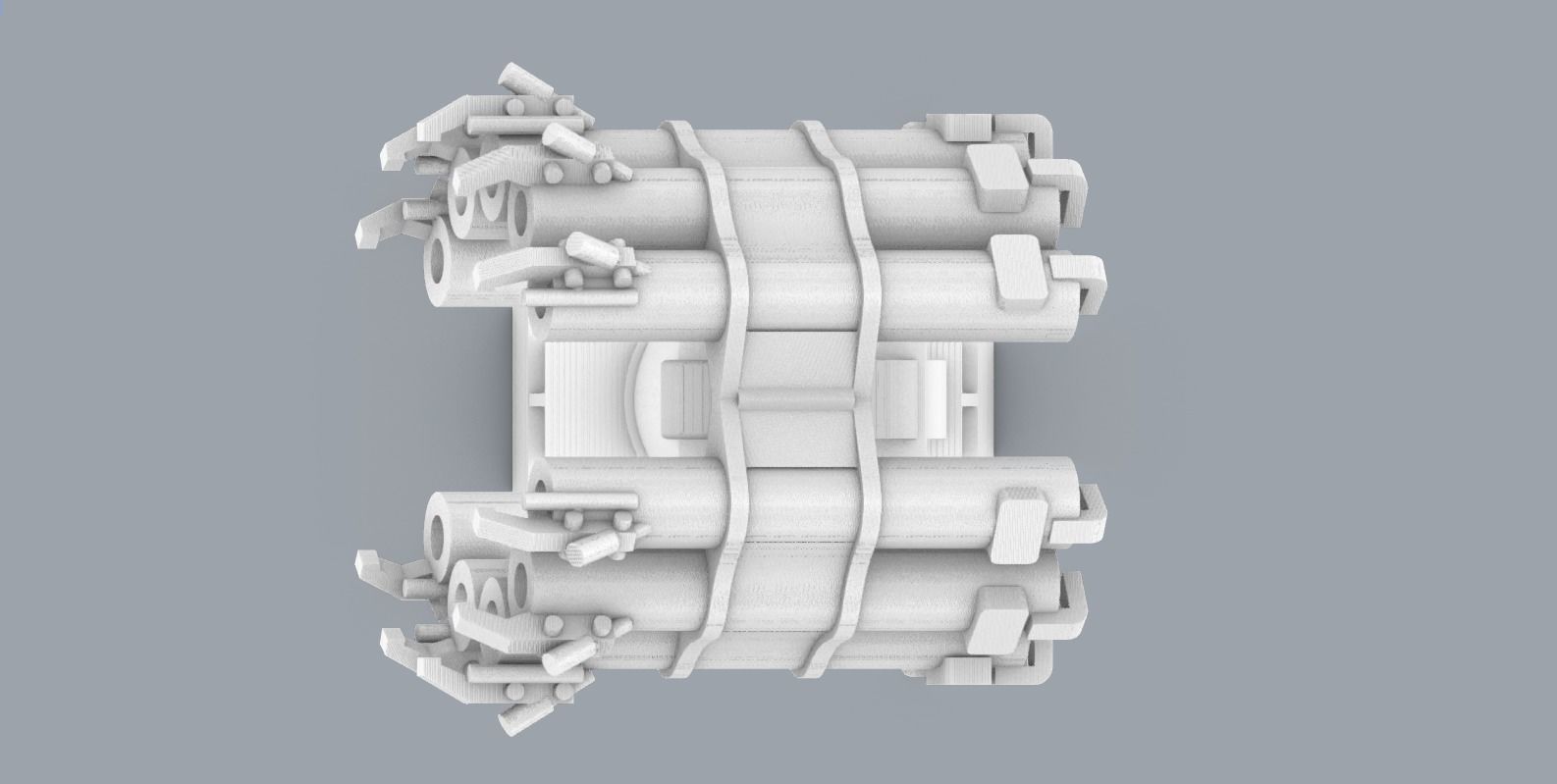

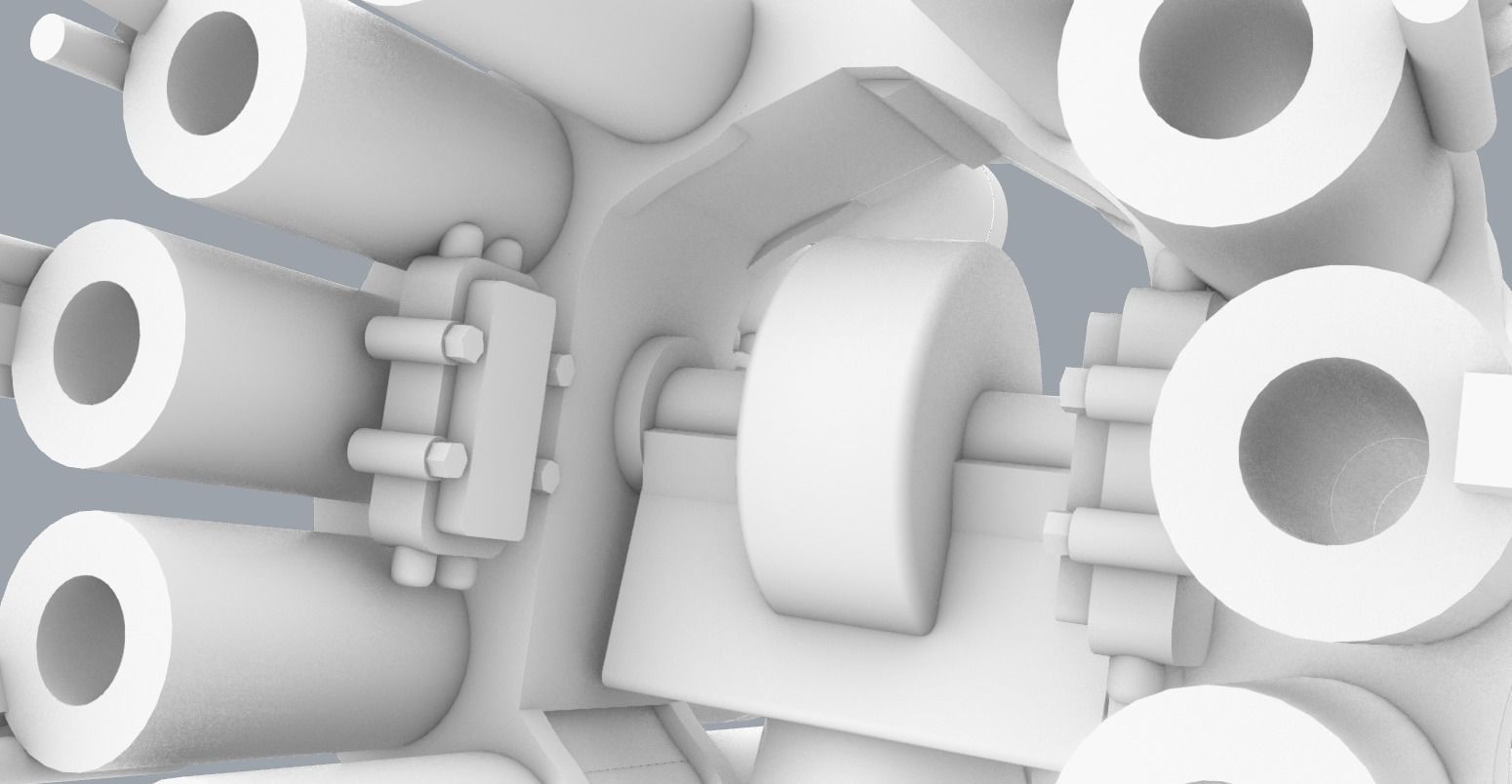

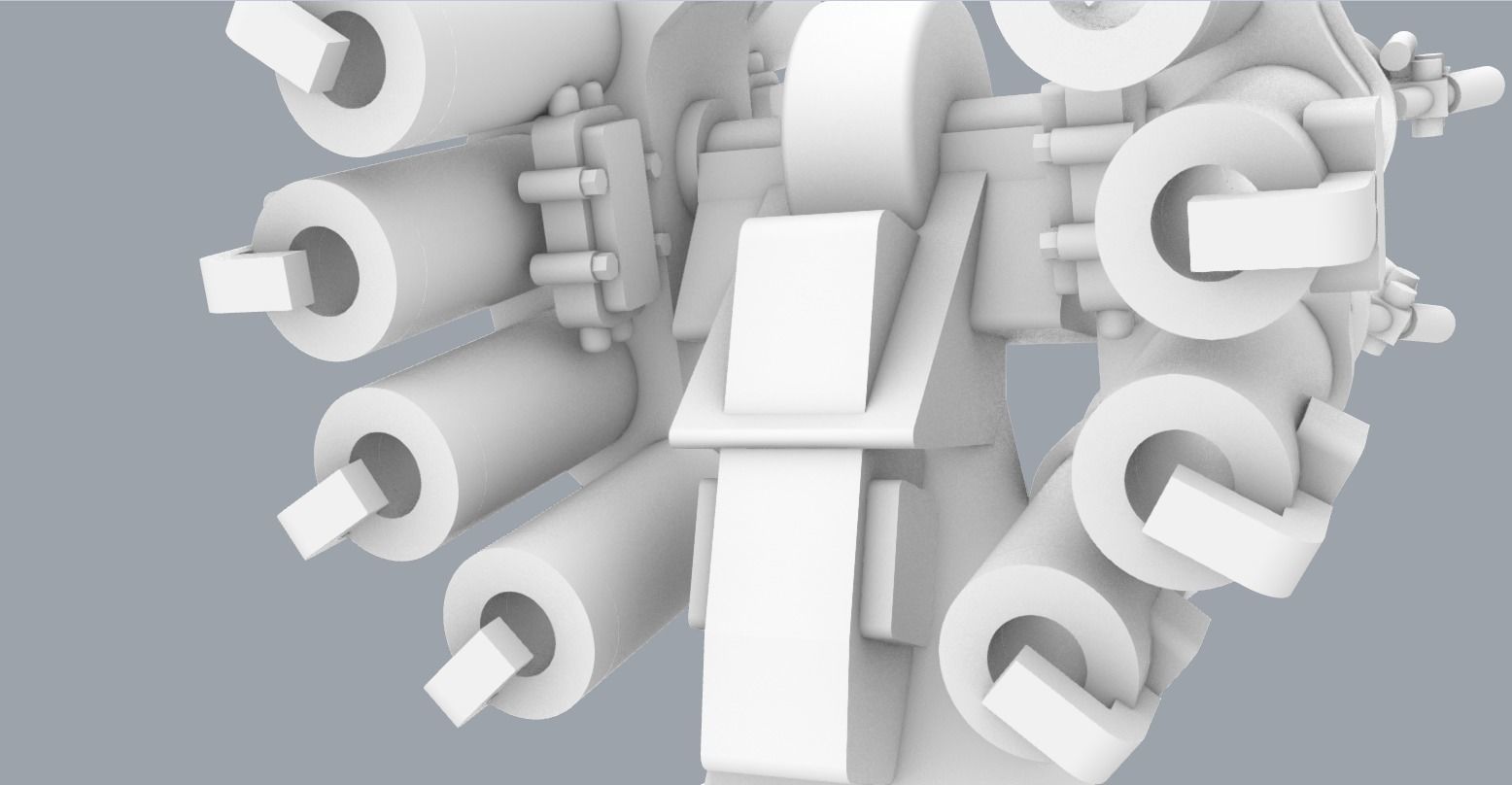

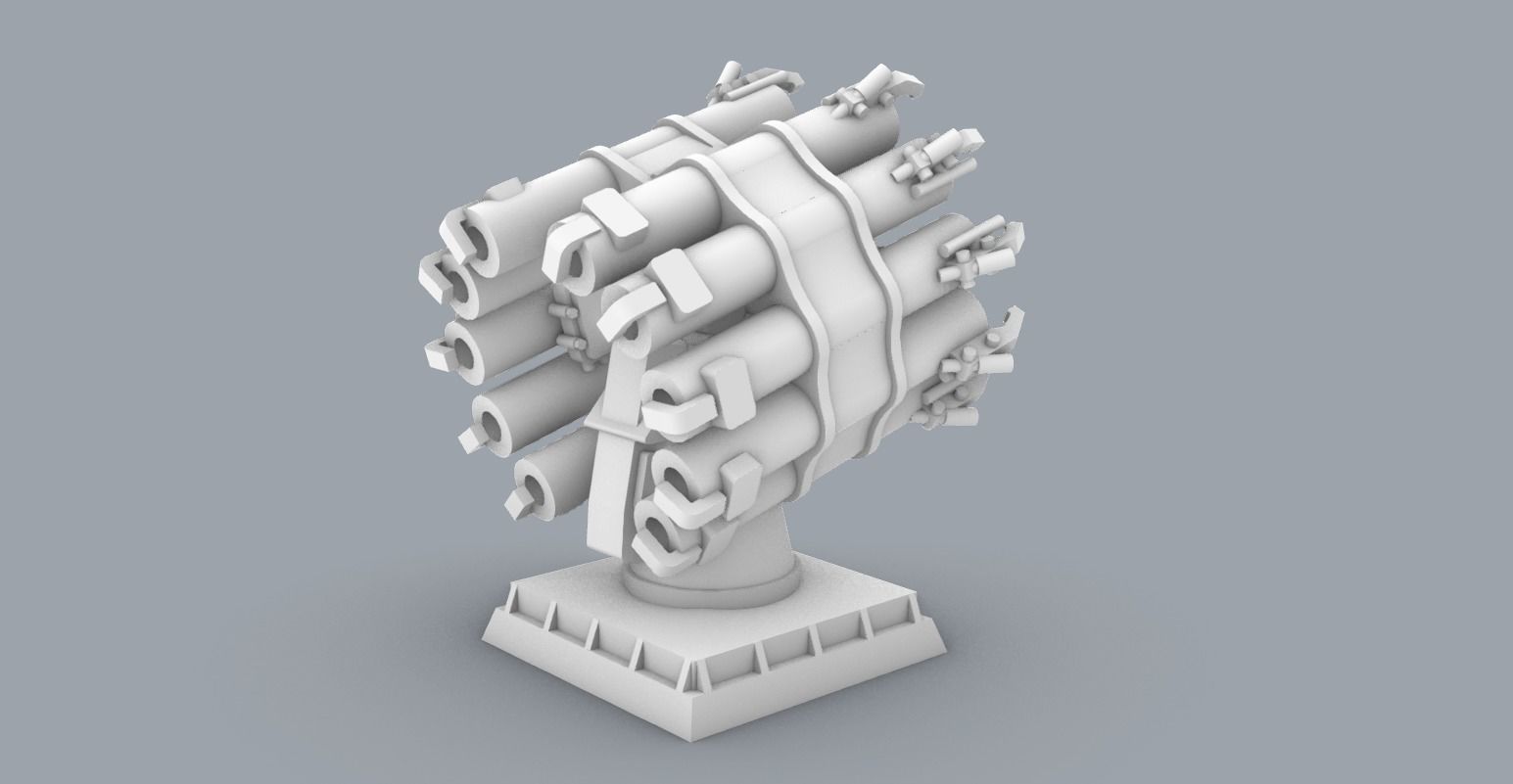

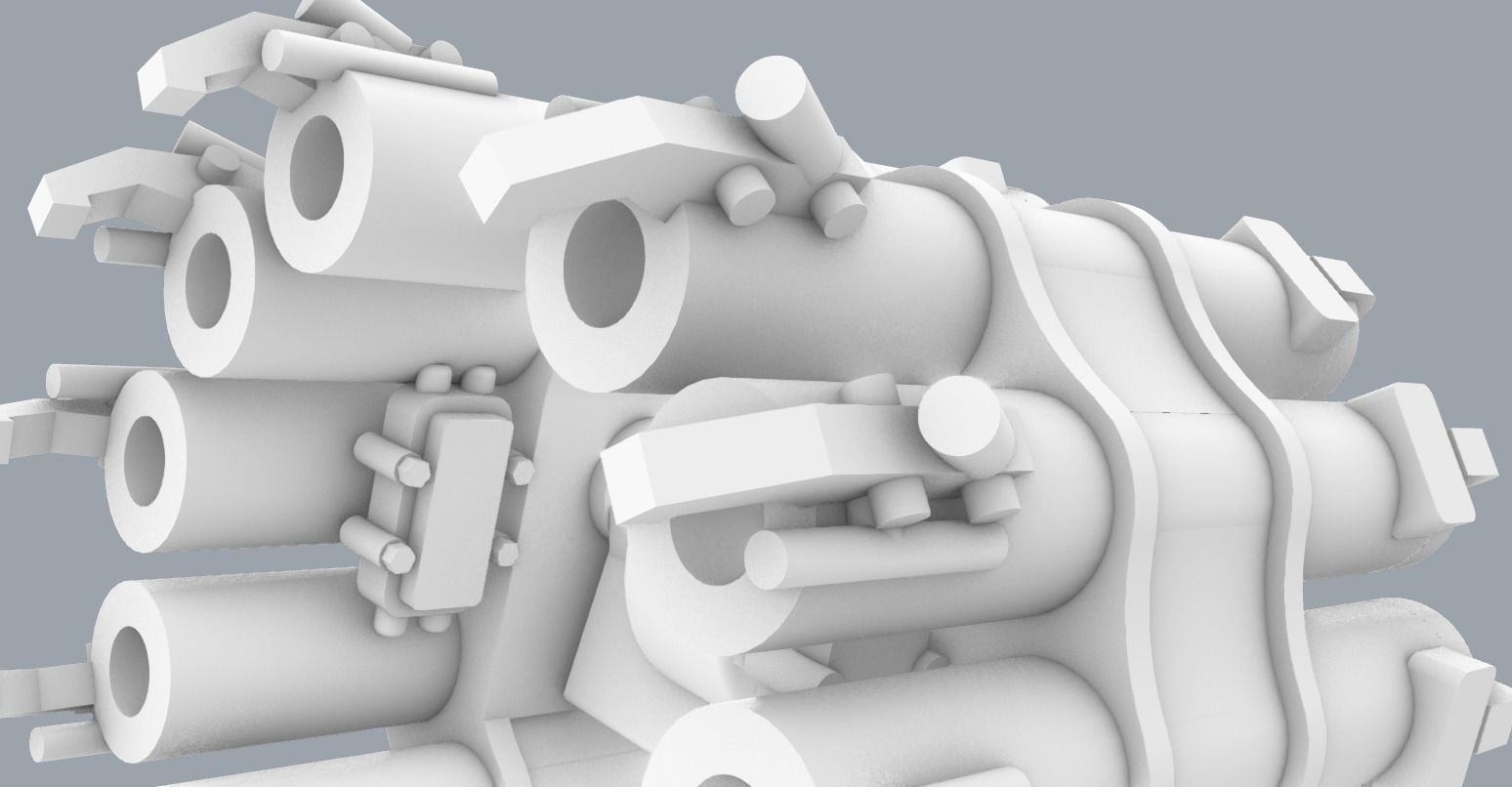

PM RBU-6000 Smerch-2 3D print model

3D Model of RBU 6000, made for 3D Model of Admiral Lazarev.

Model is ready to be used in 3D Printing, Design, CNC..

Notes:

All models are preprinted in order to get highest quality possible.

Model is simplified for printing.

Dimensions

Length: 8.19mm

Width: 7.34mm

Height: 9.06mm

Includes OBJ and STL file.

http://hovla.net

About

The RBU-6000 Smerch-2 (Реактивно-Бомбовая Установка, Reaktivno-Bombovaja Ustanovka; reaction engine-bomb installation & Смерч; waterspout) is a 213 mm caliber Soviet anti-submarine rocket launcher. It is similar in principle to the Royal Navy Hedgehog system used during the Second World War. The system entered service in 1960–1961 and is fitted to a wide range of Russian surface vessels. It consists of a horseshoe-shaped arrangement of twelve launch barrels, that are remotely directed by the Burya fire control system (that can also control the shorter ranged RBU-1000). It fires RGB-60 unguided depth charges. The rockets are normally fired in salvos of 1, 2, 4, 8 or 12 rounds. Reloading is automatic, with individual rounds being fed into the launcher by the 60UP loading system from a below deck magazine. Typical magazine capacity is either 72 or 96 rounds per launcher. It can also be used for shore bombardment. The RPK-8 system is an upgrade of the RBU-6000 system, firing the 90R rocket, which is actively guided in the water. This allows it to home in on targets at depths of up to 1,000 metres (3,300 ft). The warhead is a 19.5-kilogram (43 lb) shaped charge, which enables it to punch through the hulls of submarines. It can also be used against divers and torpedoes. System response time is reported to be 15 seconds and a single-salvo has a kill probability of 0.8. RPK-8 entered service in 1991 and mounted on Project 1154 and 11356 frigates. Serial production of the upgraded 90R1 rocket was launched in 2017. RBU-6000 were the most widespread anti-submarine rocket launchers in the Soviet Navy, used on many ship classes.
