PM Radar AN SPQ DA 08 3D print model

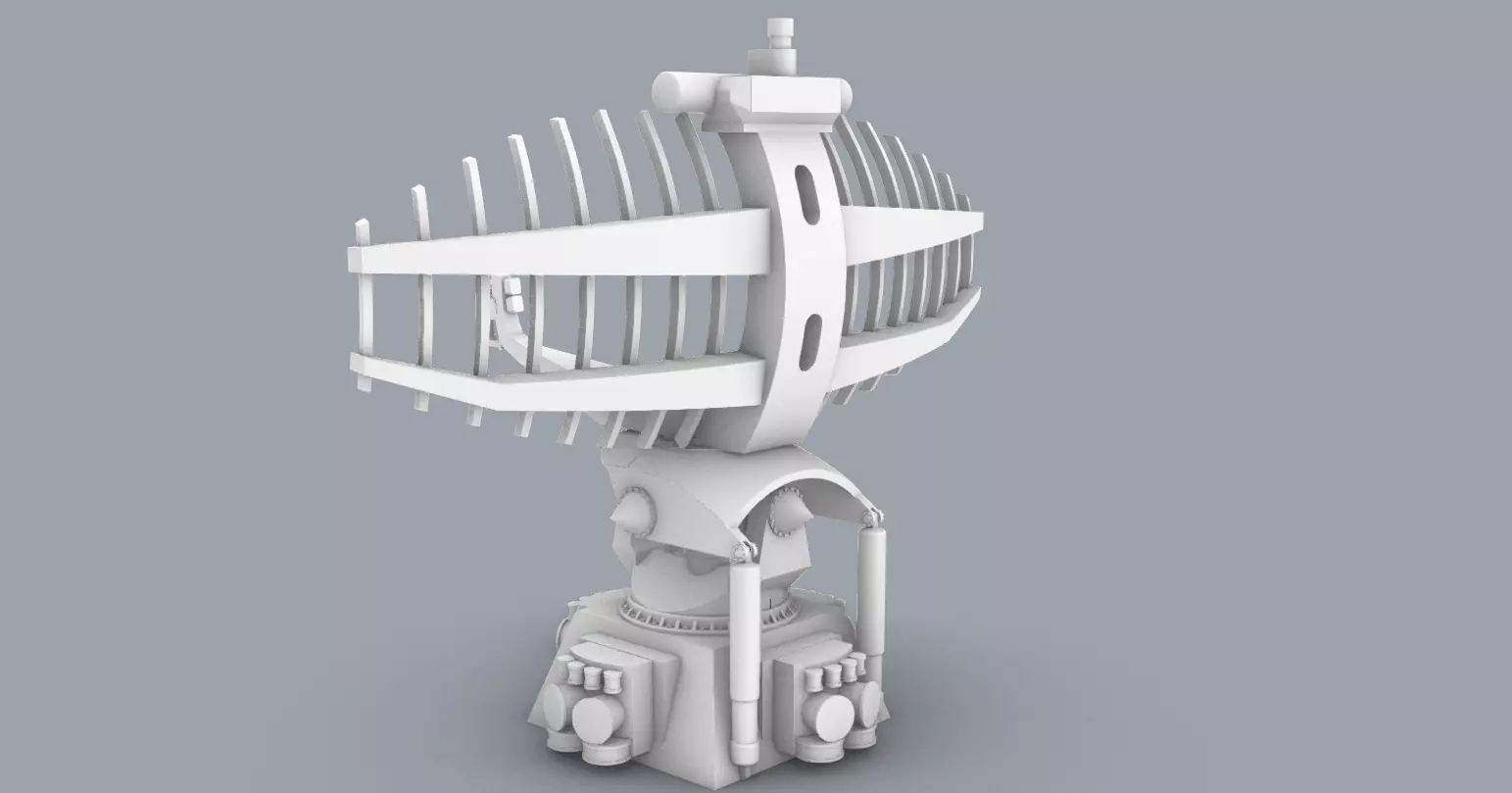

3D Model of Radar AN SPQ DA 08, made for 3D Model of HMCS Athabascan.

Model is ready to be used in 3D Printing, Design, CNC..

Notes:

All models are preprinted in order to get highest quality possible.

Model is simplified for printing.

Dimensions

Length: 36.95mm

Width: 58.2mm

Height: 47.53mm

Includes OBJ and STL file.

http://hovla.net

About

DA 08 is a pulse-to-pulse coherent radar using a high mean-power Traveling Wave Tube (TWT) transmitter ensures good range performance and frequency agility. The relatively high pulse power requires a restriction of the operation in a harbour. The pulse compressions rate is either 57 (34 µs pulse) or 115 (68 µs pulse). The Canadian designation for the DA 08 is AN/SPQ-50. The DA 08 is in progress to be replaced by more advanced 3D long-range surveillance radars, e.g, Smart-L or TRS-3D.
