PM AK-130mm 3D print model

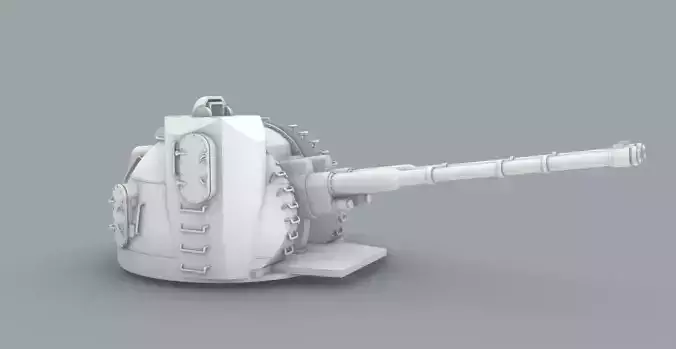

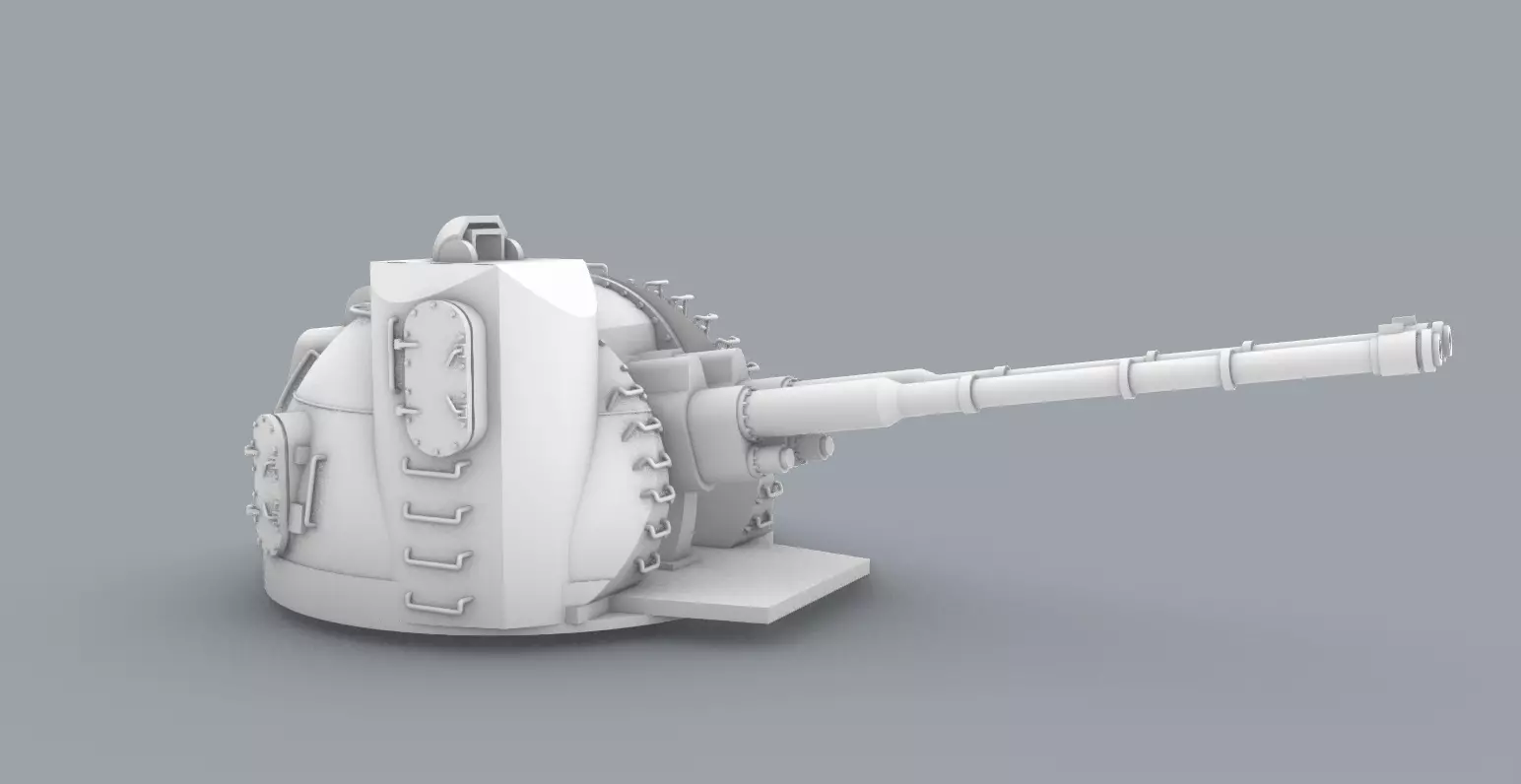

3D Model of AK-130 130mm, made for 3D Model of Admiral Lazarev.

Model is ready to be used in 3D Printing, Design, CNC..

Notes:

All models are preprinted in order to get highest quality possible.

Model is simplified for printing.

Dimensions

Length: 36.14mm

Width: 16.84mm

Height: 11.74mm

Includes OBJ and STL file.

http://hovla.net

About

The AK-130 is one of the most powerful gun systems used in the world today and is a fully automatic, dual-purpose weapon. Design work was started by the PO Arsenal in 1967 on a single gun version designated as A-217. However, the required rate of fire of 60 rounds per minute was not reached during trials, so it was decided to switch to a twin mounting. The new system with a factory designation ZIF-94 used the same barrel and large number of components from the A-217. The mountings are controlled by MP-184 Fire Control Radar Systems, which include a 2-band radar, low light TV, laser designator, system for selecting moving targets and an ESM system. This system has a range of 75 km (41 nm). The system provides the integration of all of the shipboard radars, exact measurement of all parameters of movement for all air, sea and land targets, exact bearing to the target, correction of shooting by splashes and automatic tracking of shells. The People's Republic of China purchased a total of four improved Sovremenny class destroyers in the late 1990s and early 2000s. The mounts are triaxially stabilized and the barrels are liquid cooled.
