Osmon fpv BD 3D print model

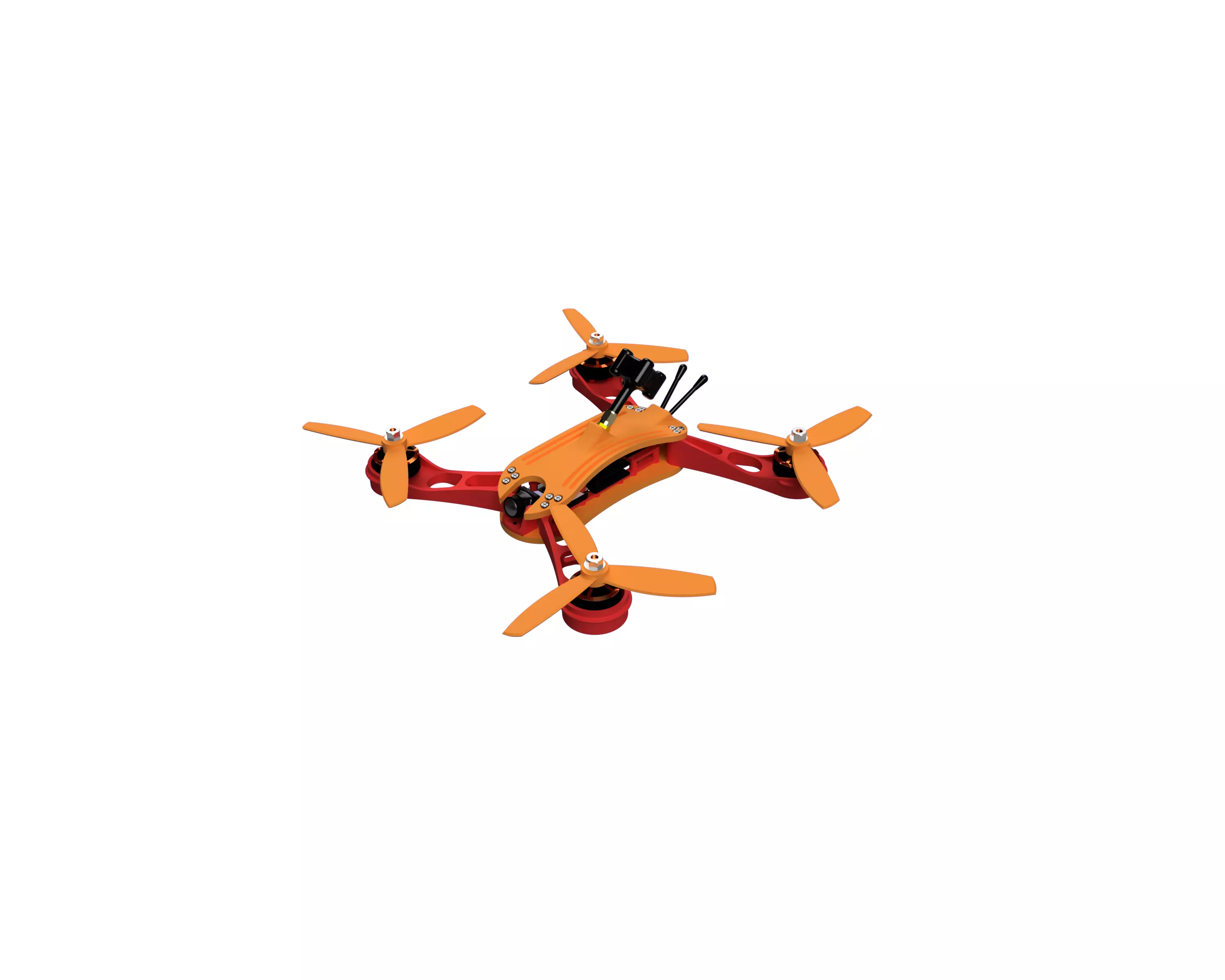

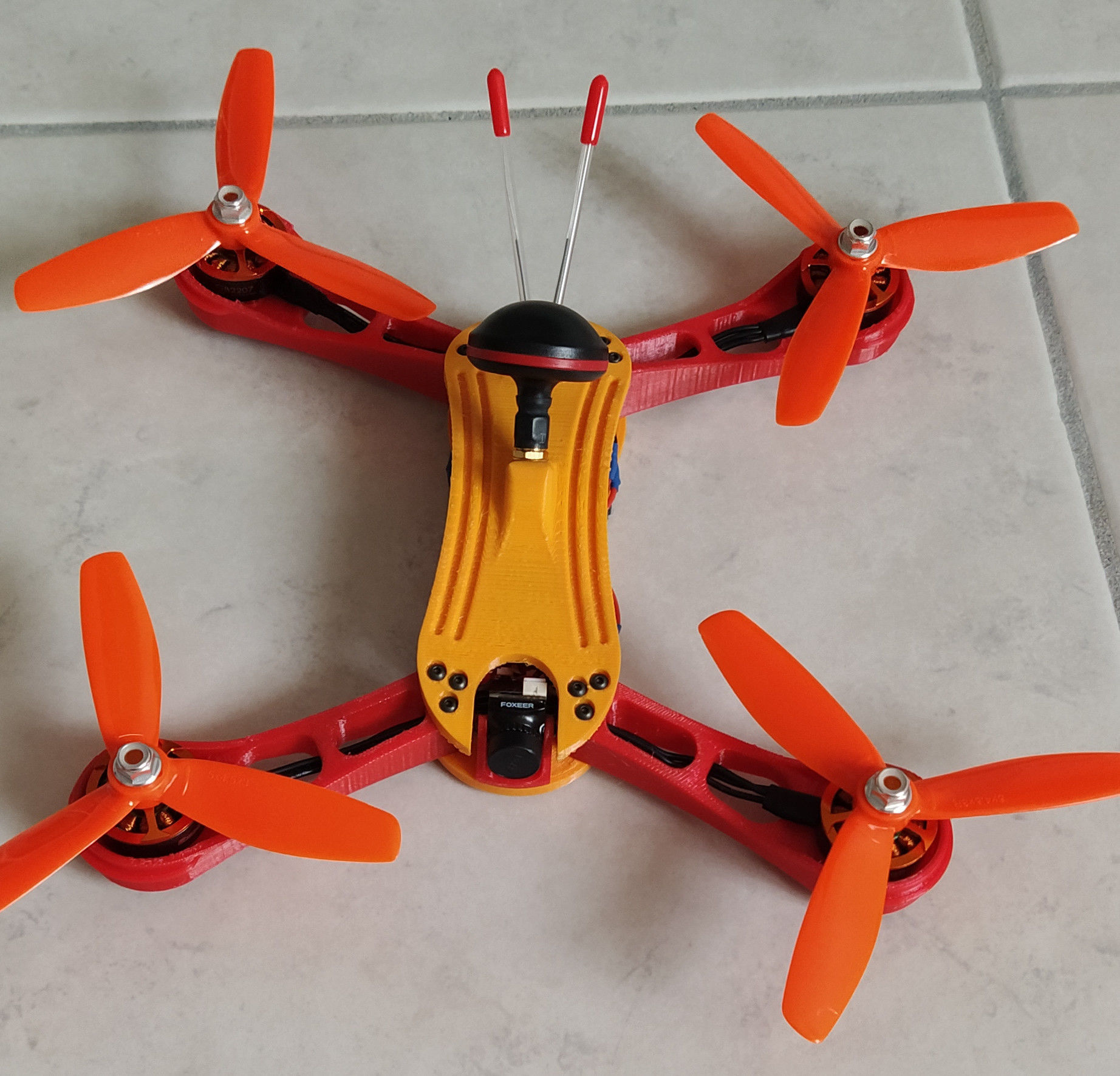

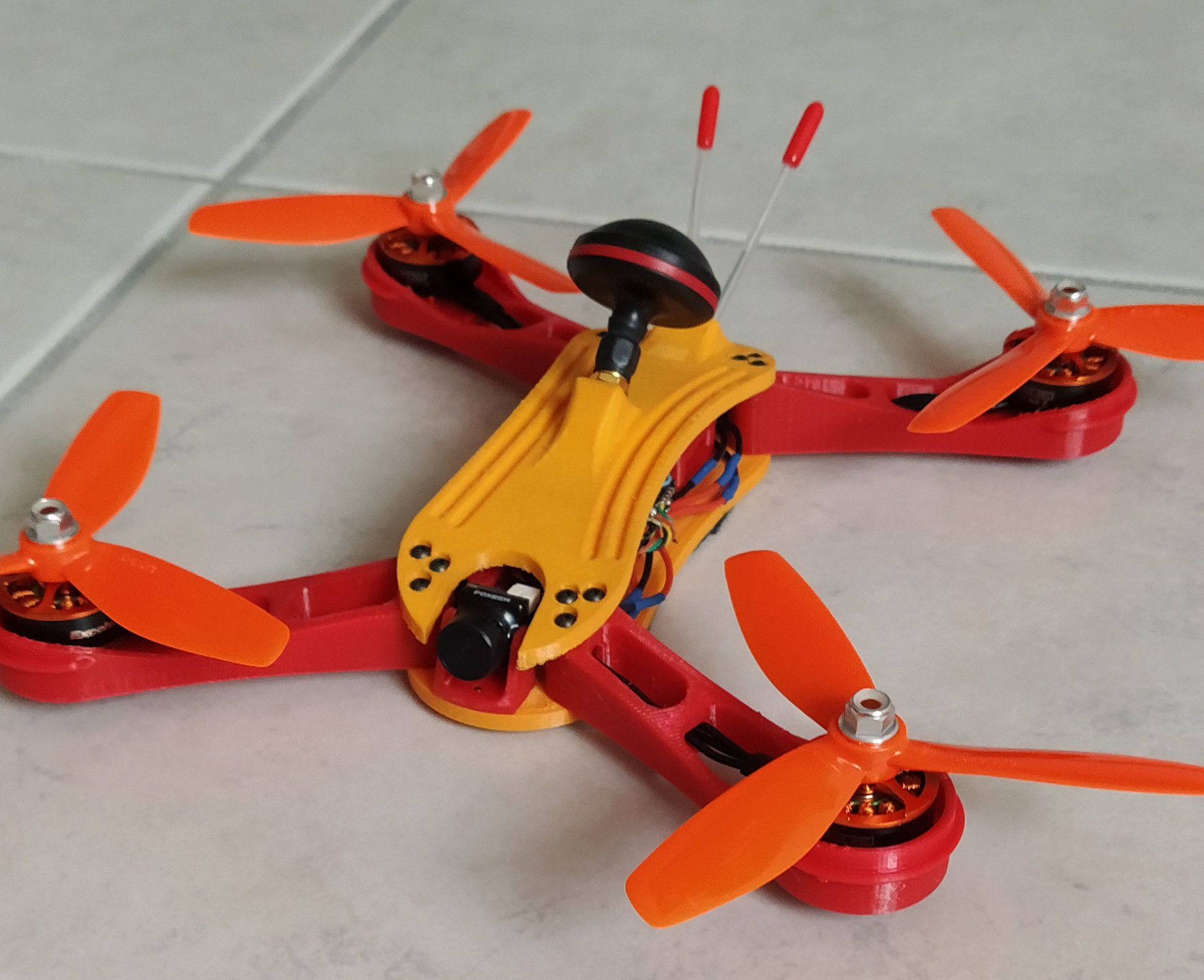

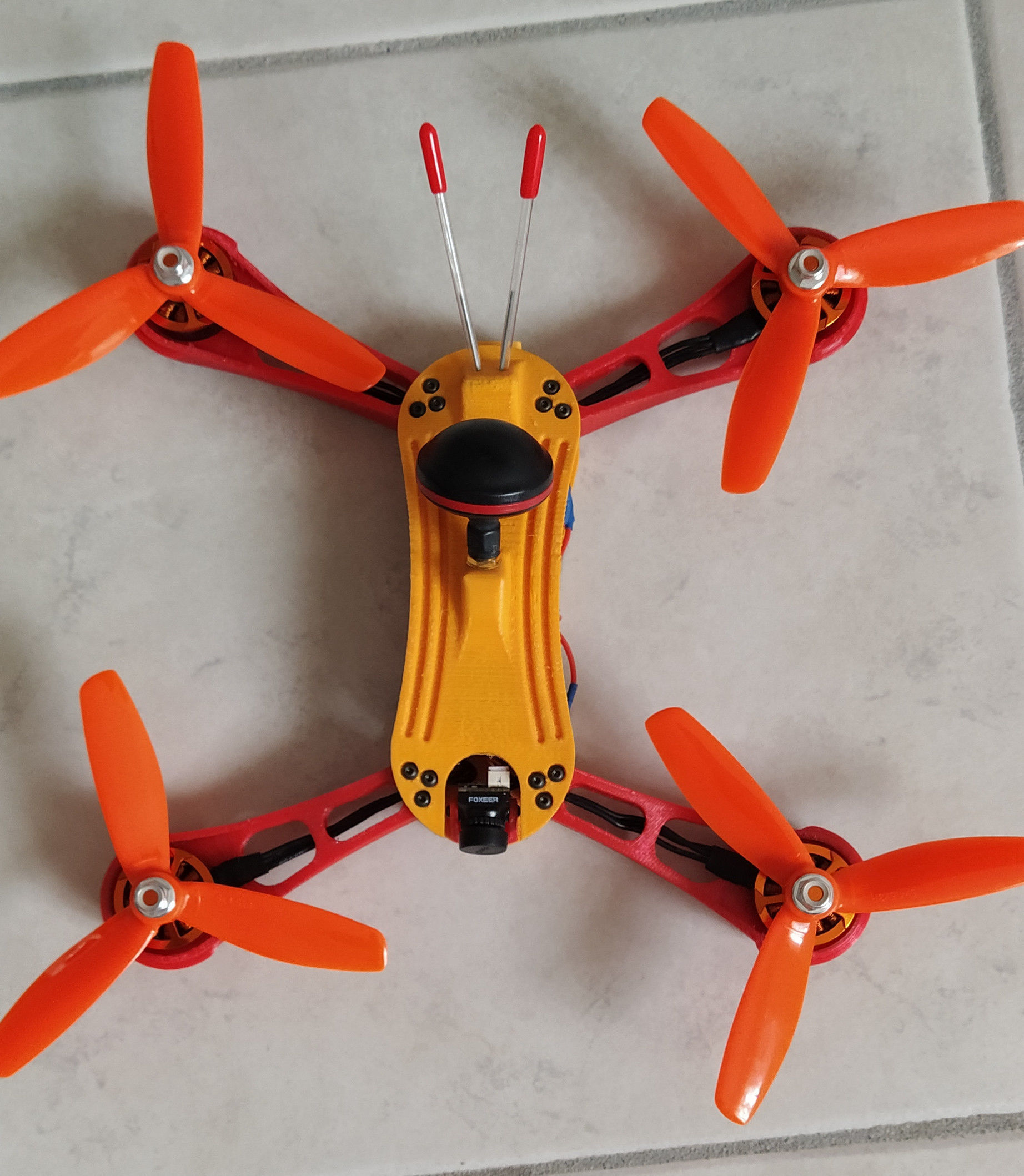

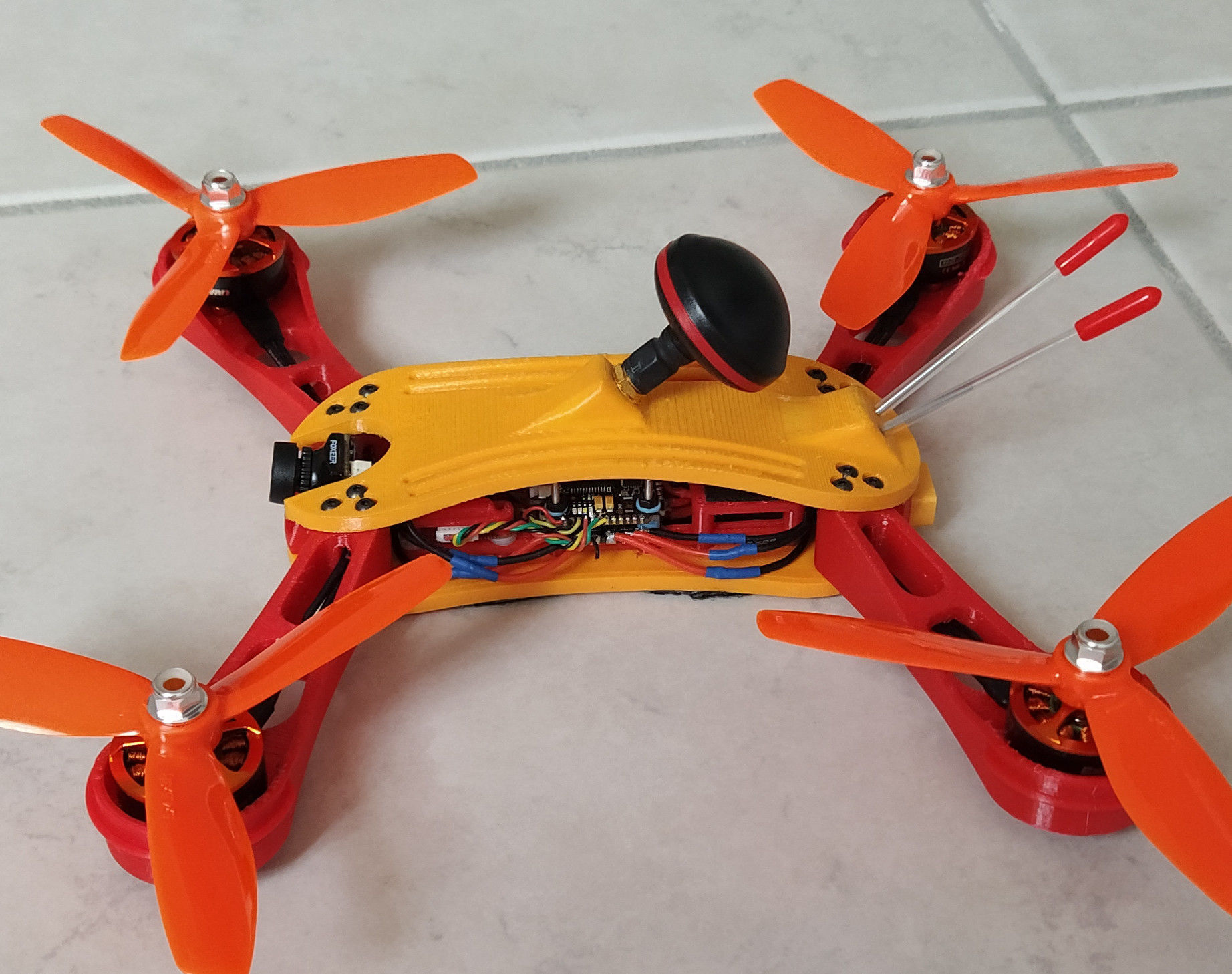

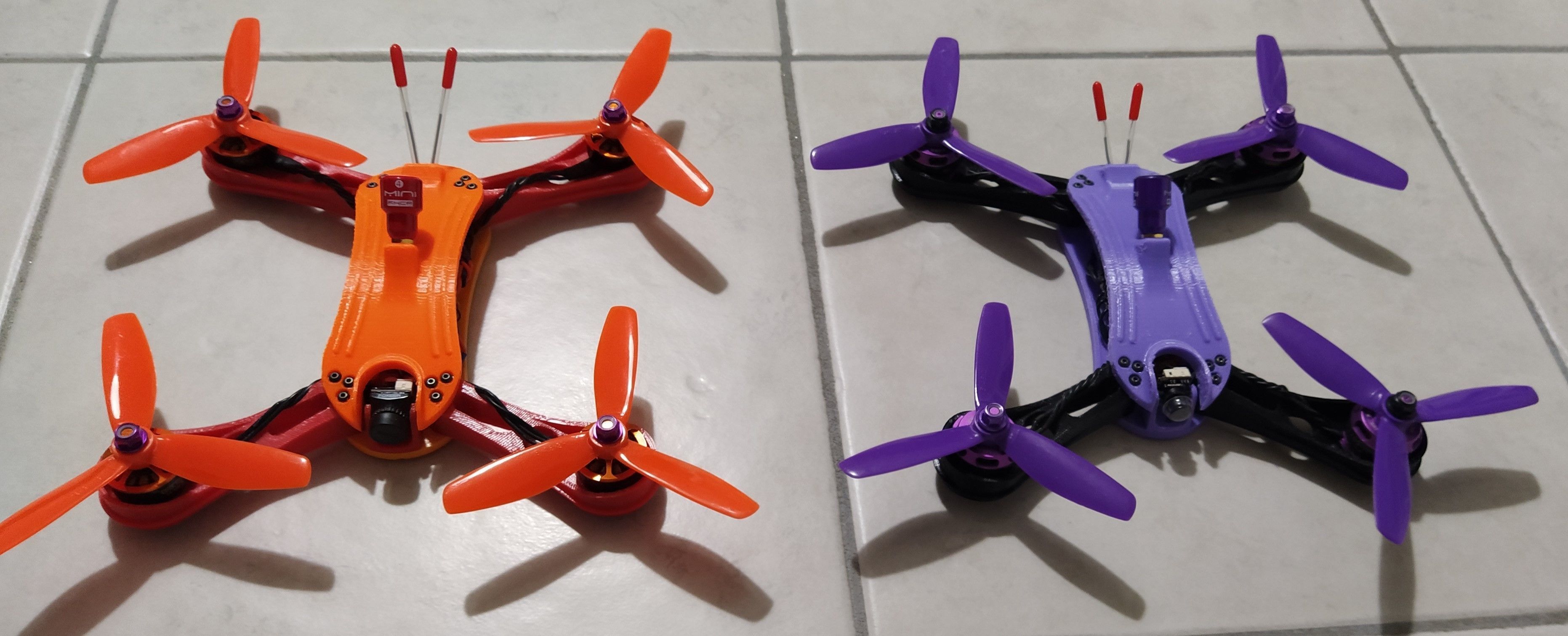

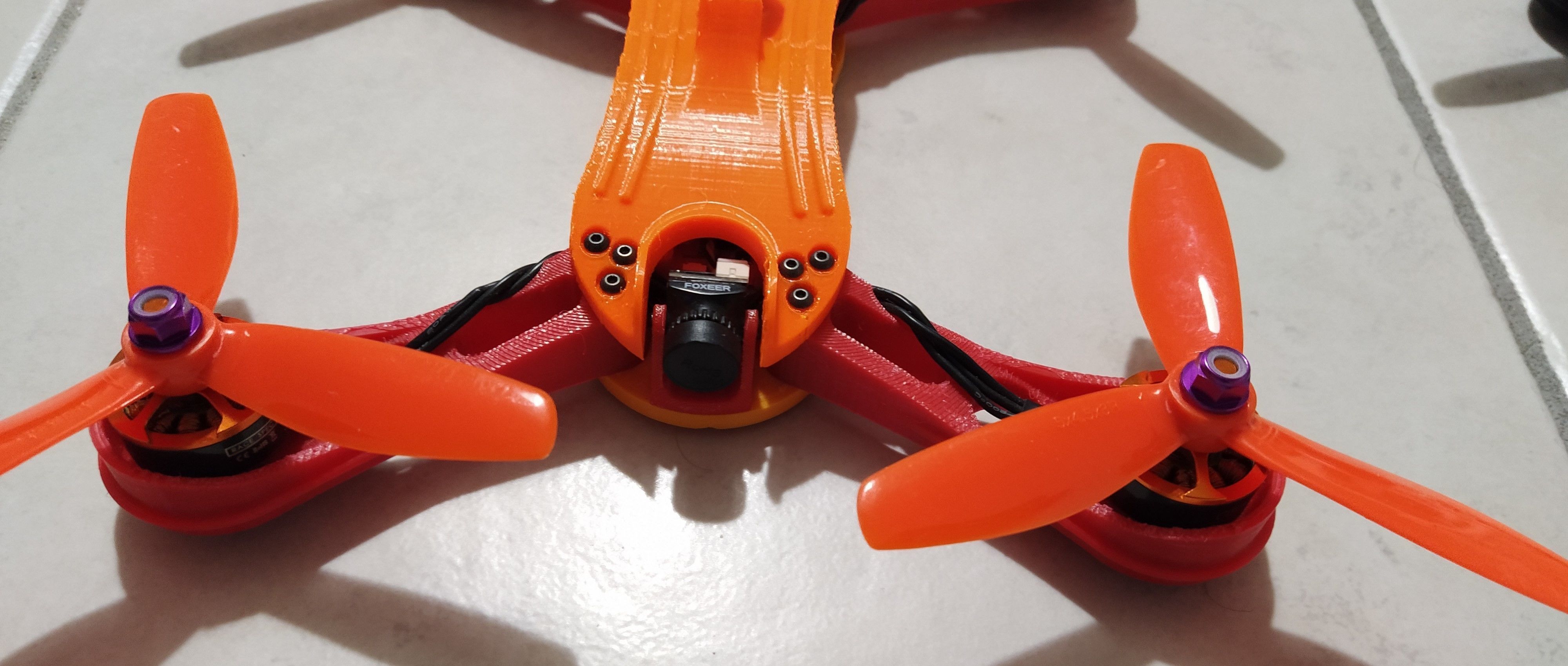

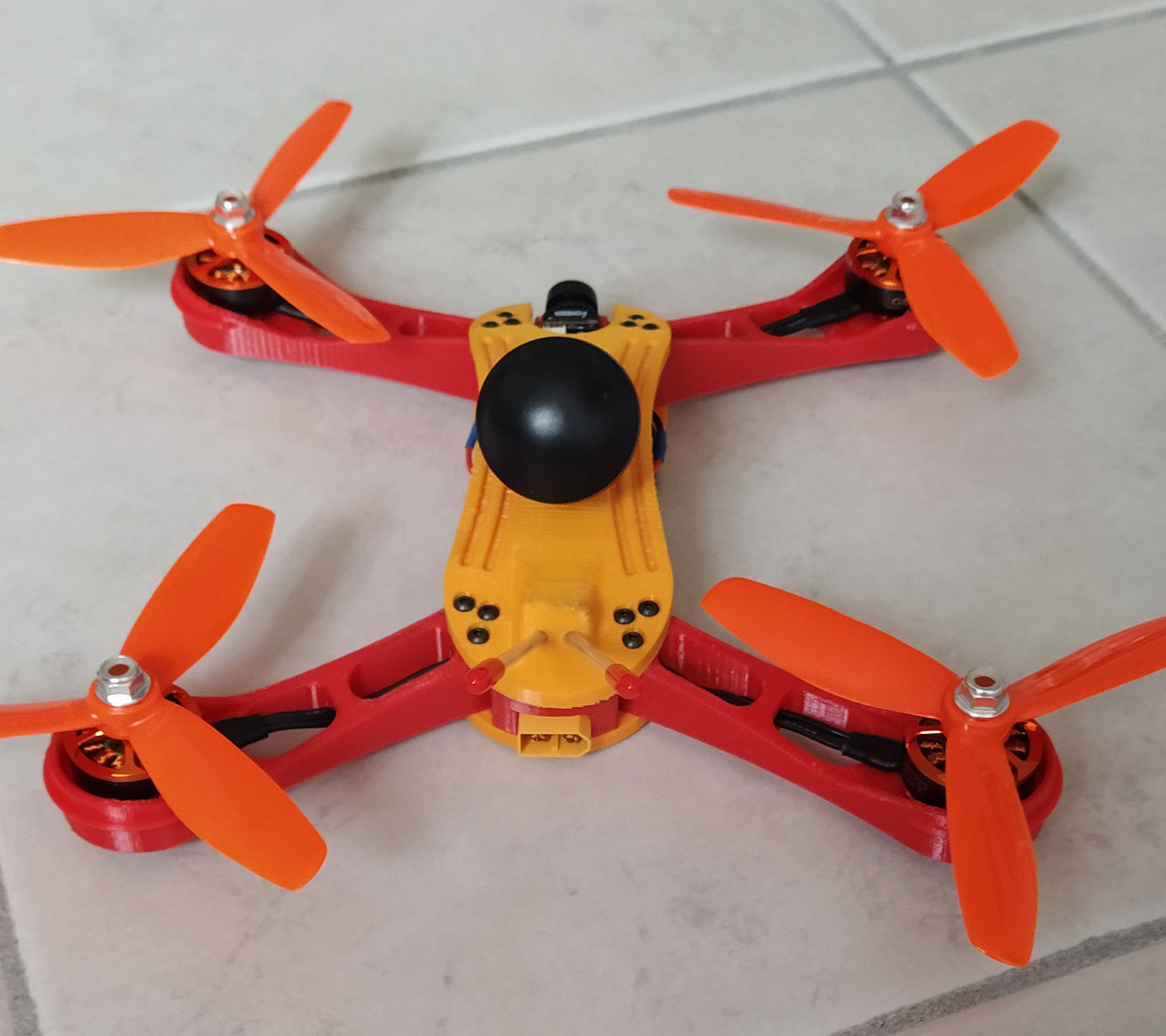

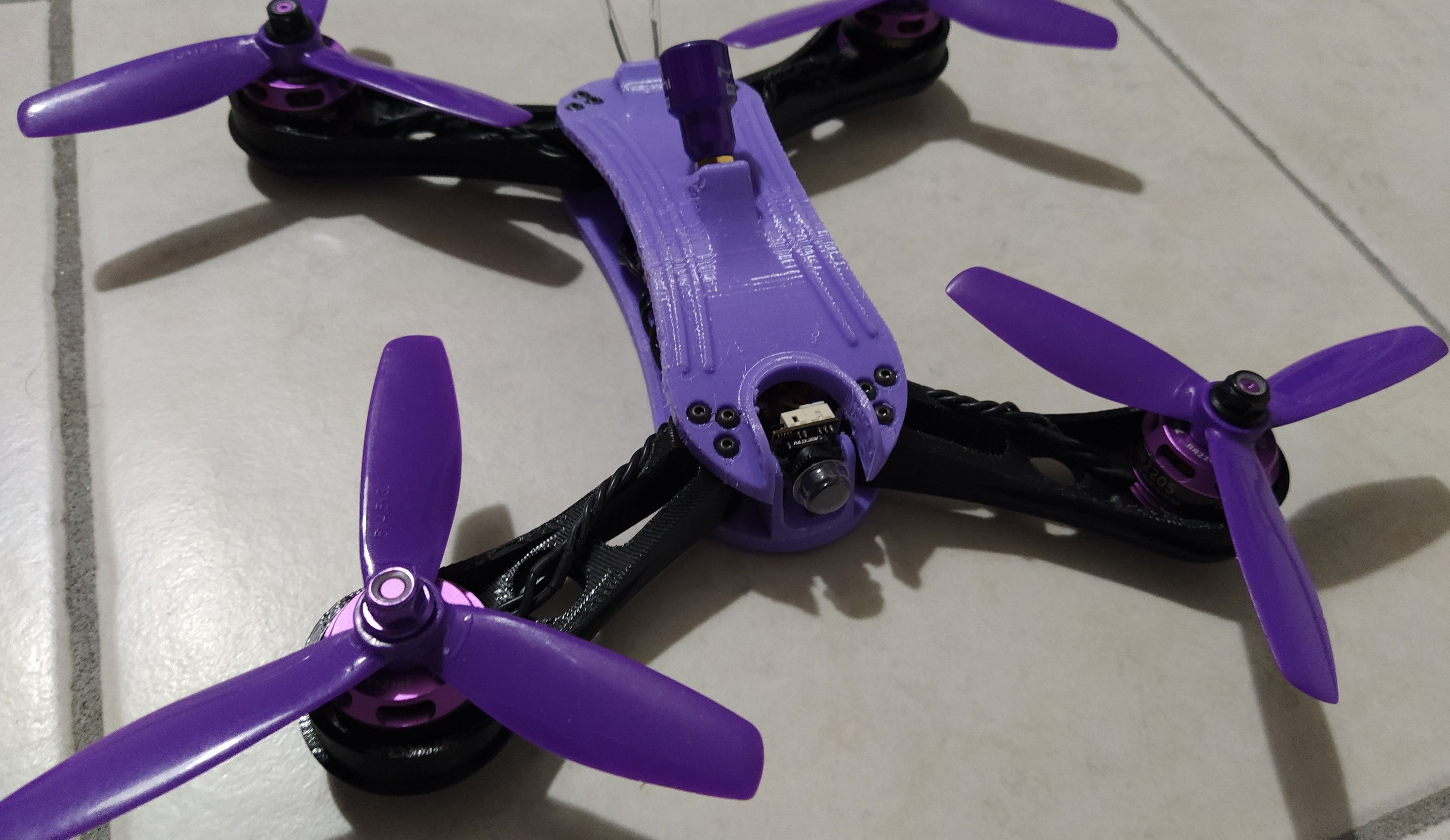

5 inch FPV drone. The developed design allows the drone to be very solid and resistant also taking into account the aesthetic factor. The drone was designed for freestyle and racing. All projects are tested as you can see from the photos. In the lower frame there are 12 holes with 20x20 distance between centers for mounting fc, vtx receivers and more. All necessary media is already included in the available files. The layout is not fixed, you can place the components according to your needs. The following components were mounted in the model in the photos, which you can take as an example for your construction: 20x20 fc stack with capacitor, 20x20 vtx, receiver, buzzer with led, xt60, omnidirectional antenna and nano format camera. Arms available for 2207 and 2205 motors

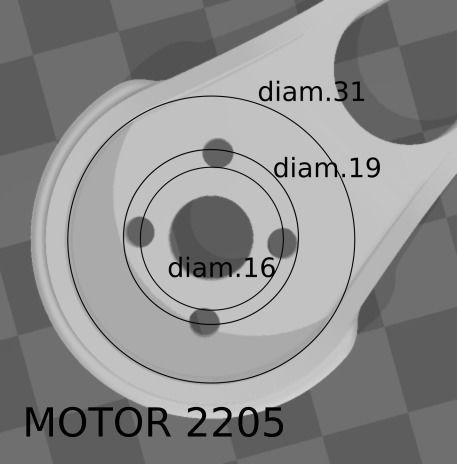

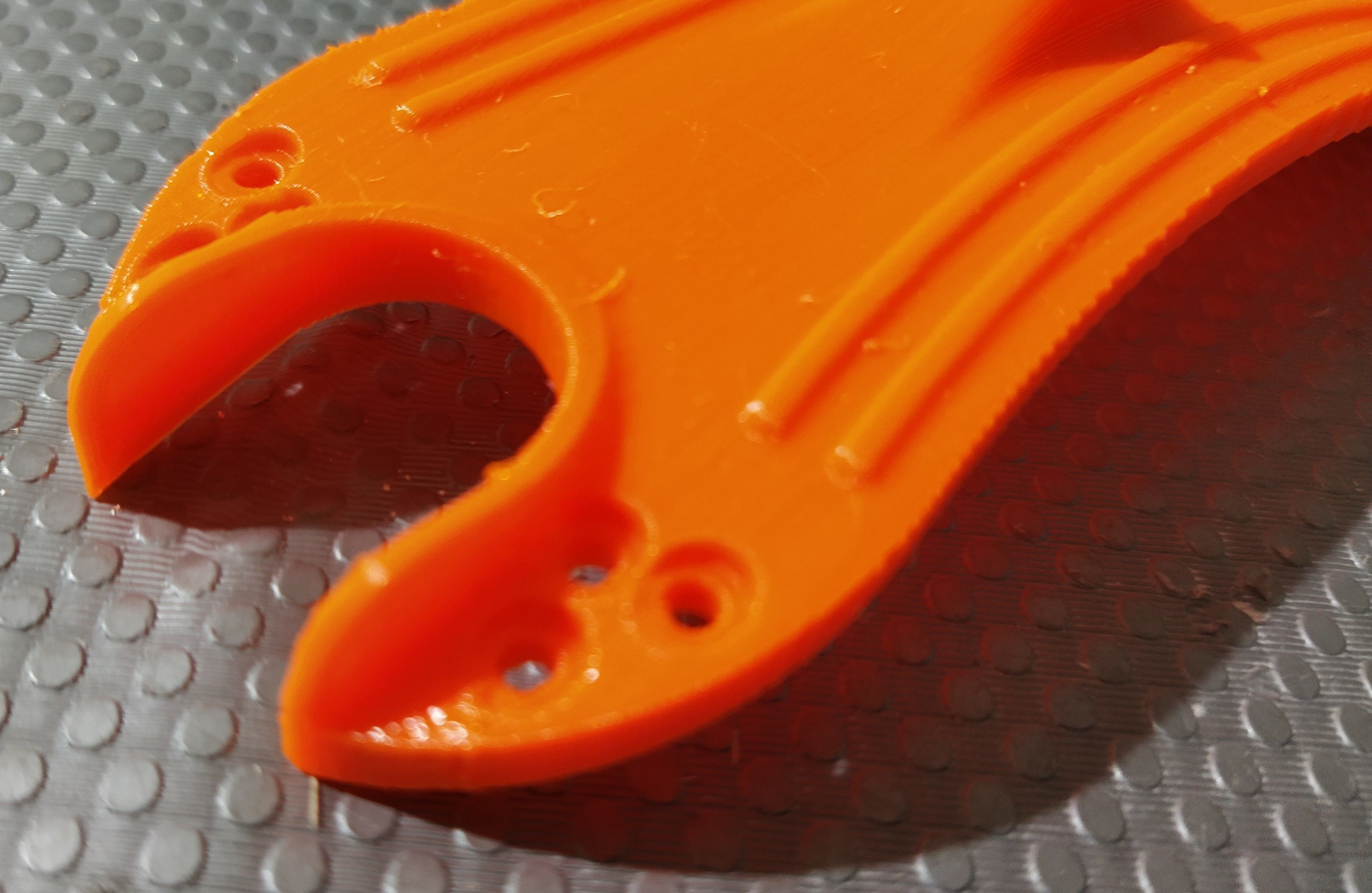

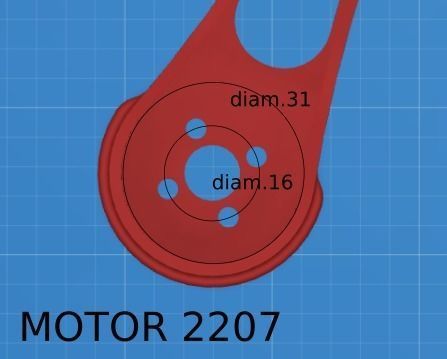

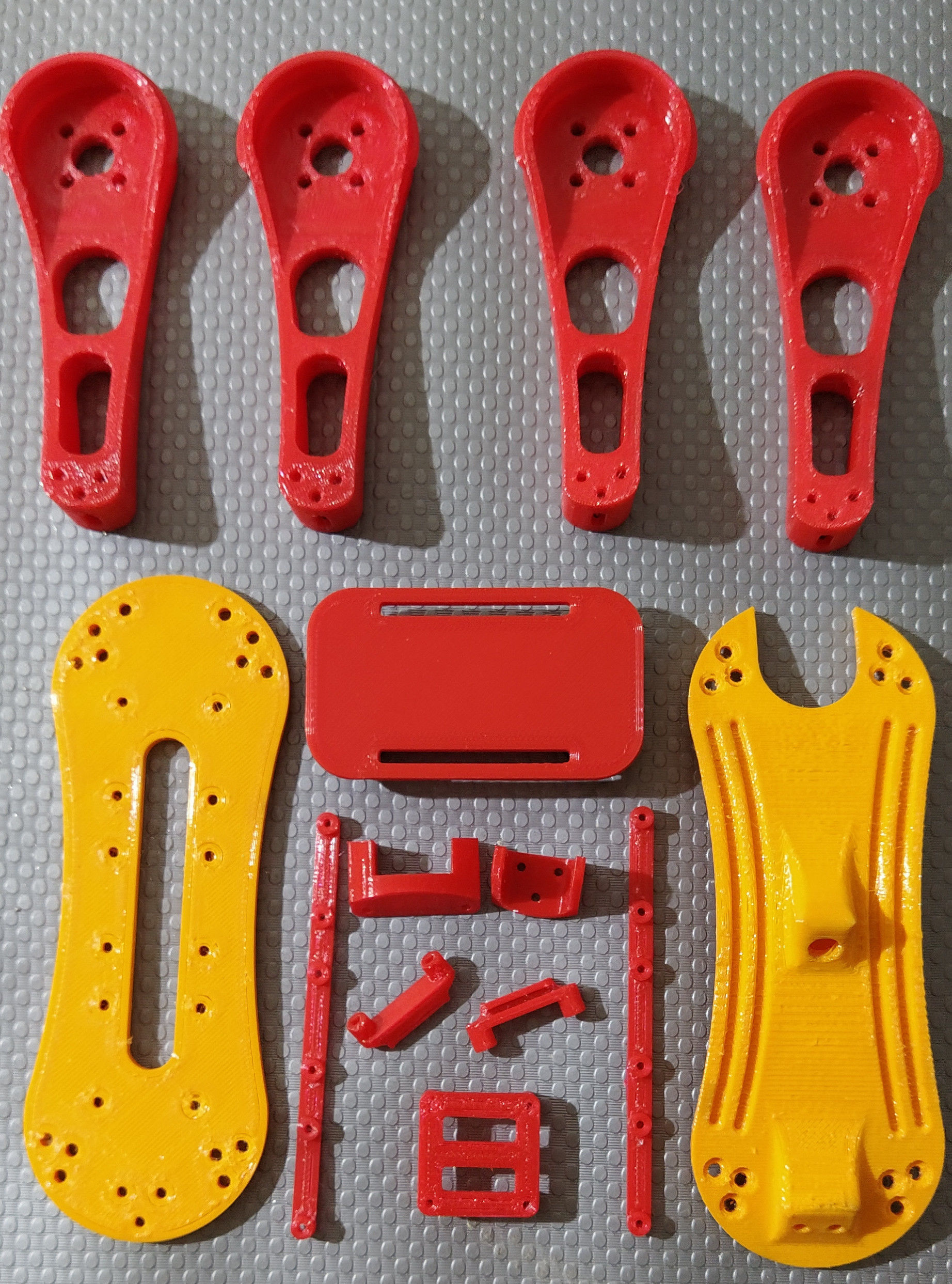

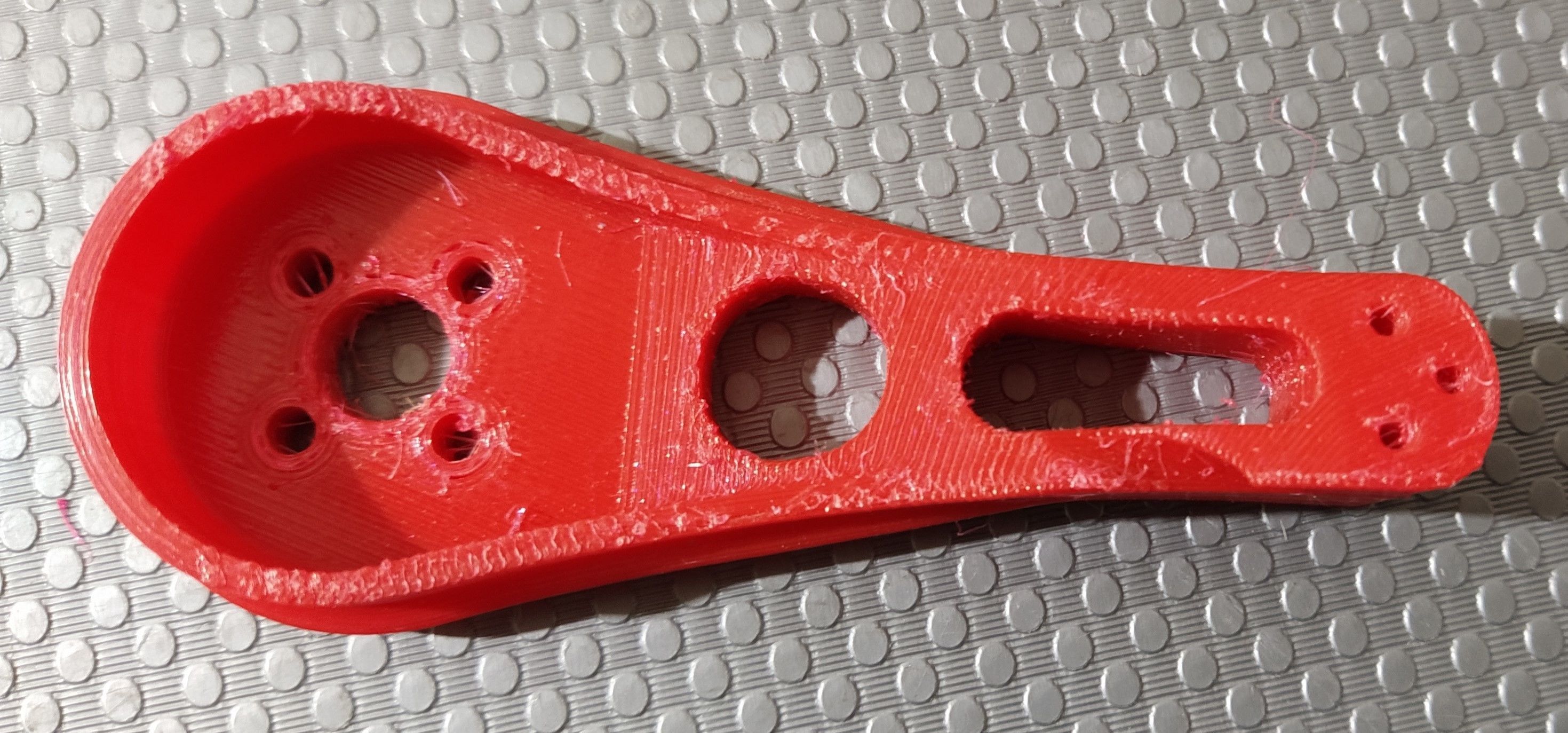

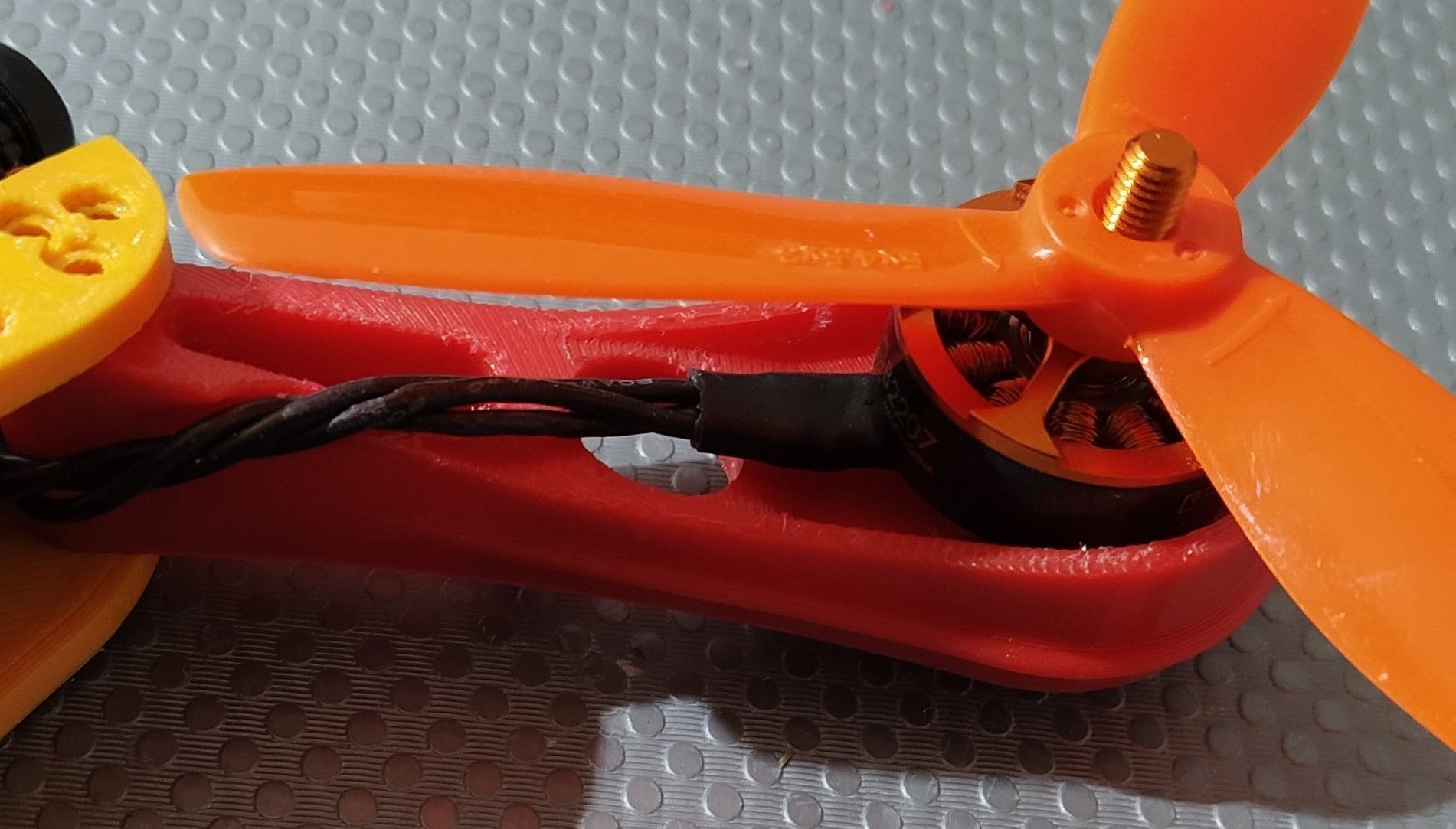

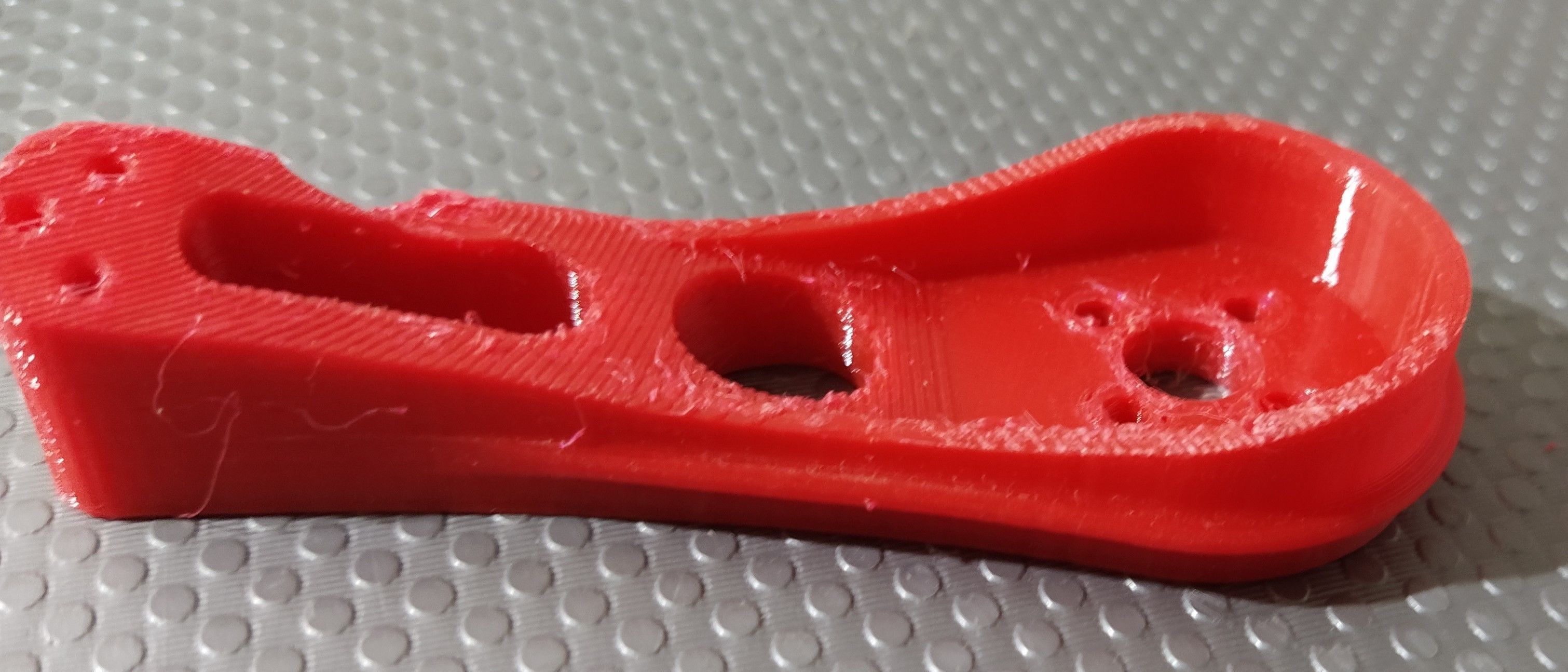

File update:-P001-FRAME UPPER: the strips above the conopy are no longer engraved but are now in relief increasing their rigidity, increased the protection of the chamber by creating a border around it. The weight has only increased by 2 grams as the entire interior has been hollowed out.-P002-ARM FRONT RIGHT-REAR LEFT-HOLES 16x16-MOTOR 2207-P002-ARM FRONT LEFT-REAR RIGHT-HOLES 16x16-MOTOR 2207-P002-ARM FRONT LEFT-REAR RIGHT-HOLES 16x19-MOTOR 2205-P002-ARM FRONT RIGHT-REAR LEFT-HOLES 16x19-MOTOR 2205the arms have been reinforced by increasing their height near the engine and creating a cord all around, the exhausts have been decreased and the arm has been shortened by 5 mm. The cable now no longer passes inside but turns on the side, in this way it is no longer necessary to weld the motor cables again but to replace the arm you just need to remove the screws.

Hardware needed for drone assembly:

• M2x6 screw for camera support (qty 3)
• M2x14 screw for vtx supports (qty 4)
• M2 nut for vtx (qty 4)
• M2x20 screw for fc (qty 4)
• M2 nut for fc (qty 4)
• M2x14 screws for receiver support (qty 4)
• M2.5x12 screws for XT60 support (qty 2)
• M2.5x10 screws for arms (qty 24)

Print settings for PETG

• nozzle temperatures: 220 °
• plate temperature: 60 °
• infill: 50%
