ODRADEK FROM DEATH STRANDING 3D print model

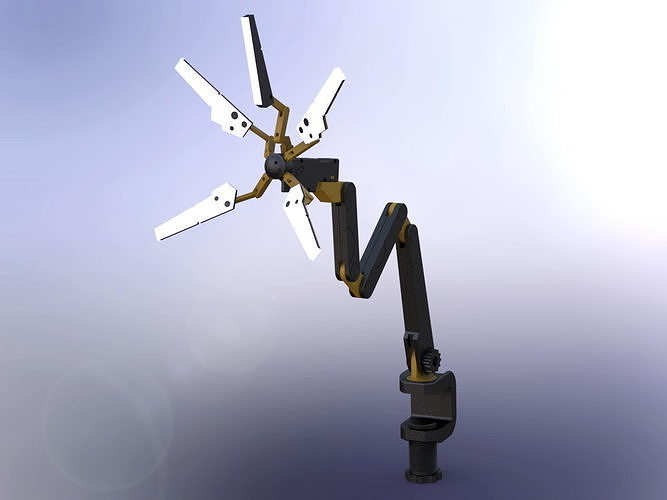

I decided to design and print my own version of Odradek. I made it as similar as possible to the original from the game. The model consists of more than 60 parts (some parts are identical and need to be printed several times). The model is designed in such a way that it can be integrated with LED lighting and then you will get a table lamp. All parts have holes for wires.There is a large clamp for the table up to 50 mm thick. All parts are small, any printer with a print area of 200x200mm is suitable for printing.

For assembly, You will need the following parts: Screws: M3x16 - 5pcs (for rod, parts 6,7,8,9,10) M3x25 - 1 piece (swivel joint, parts 10,11) M2x14 - 4pcs (for housing, parts 12,13) M2x10 - 10pcs (for petals, or 1.75 plastic rod as pin) Bolt M8x30 - 1pc (for part 5,6 clamp)

For illumination, I recommend using an 8, 5 or 4 mm wide LED strip with 60 or 120 LEDs per meter. It is better to use thin Teflon 26AWG wires. Write in the search box on Ali UL10064

All files are numbered and In the screenshots you can see where which parts are used. The second digit in the name of some files indicates the number of parts (for example: Part35_2.stl means that part35 needs to make 2 copies). Part 6 is 212mm long, and if it doesn't fit on the printer table, try placing it diagonally (rotate it 45 degrees)

I tried to make sure that all the details could be easily printed on the printer. Some details need support.

Everything was printed with a 0.4 mm nozzle Layer height - 0.2 mm Filling - 15% PETG plastic But you can use your settings and get a better result!
