Flight SIM 3D Printed Yoke Kit Joystick Hall Sensors Version 3D print model

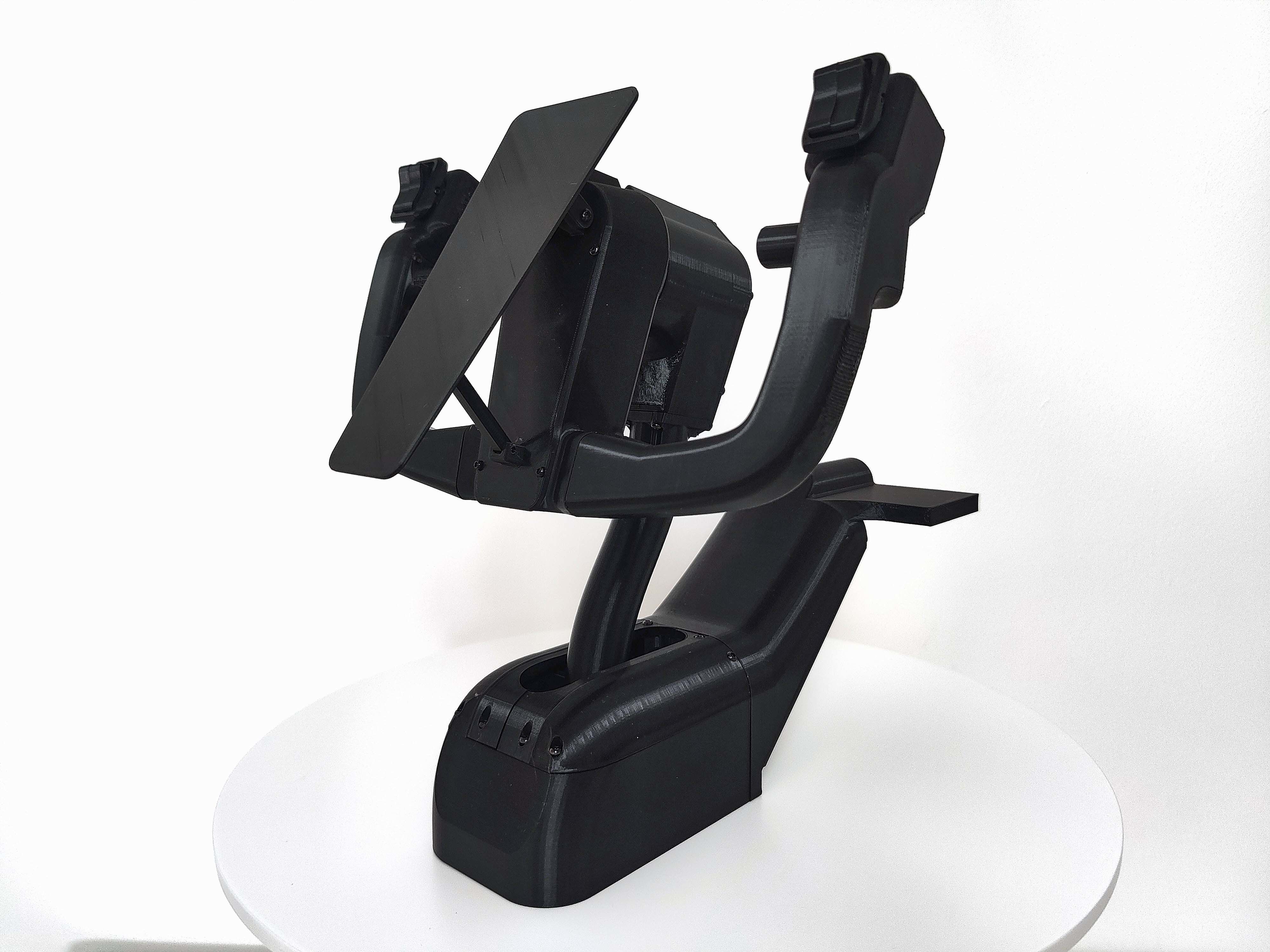

3D Printable Flight SIM Yoke Kit (Inspired By Boeing 737 Yoke).

Please note that this model is not a 1:1 scale replica of the original Boeing Yoke. The axes are based on Hall sensors, very accurate movement.

10x buttons.

You can connect by USB joystick board (from an old joystick), or by HID Arduino micro, MMJoy/MMjoy2.

More instructions can be found on my website:

https://silencediy.com

Yoke Kit suitable for table mounting by Universal C Shape Table Mount Clamp.

Delivery: Zip file, .STL .OBJ files CHECK LIST.png

All questions are welcome.

Email: s.m.aurelius@gmail.com

More instructions:

Web: https://www.silencediy.com/guides/3d-printable-flight-yoke-guide/

Youtube: https://youtu.be/rVAd0udBKHI

MMJoy Guide: https://youtu.be/kZLlNwUkHv0

In the archive you have file YokeV001.obj. For a good understanding of how to assemble the printed parts, it will be better to open YokeV001.obj in FreeCAD or another CAD and disassemble all the parts.

You can also check the axes based on the Potentiometers version.

3D printing settings

IMPORTANT: Some bodies require Custom Supports:

Prusaslicer: Custom Supports

Cura 5.0 or newer (Custom Supports)

Also Enable Bridge Settings

Layer Height: 0.2mm (But You can choose Your settings).

Infill: 40%-80%
