A320/A330 MCDU (2 options)

NO PCB NEEDED!

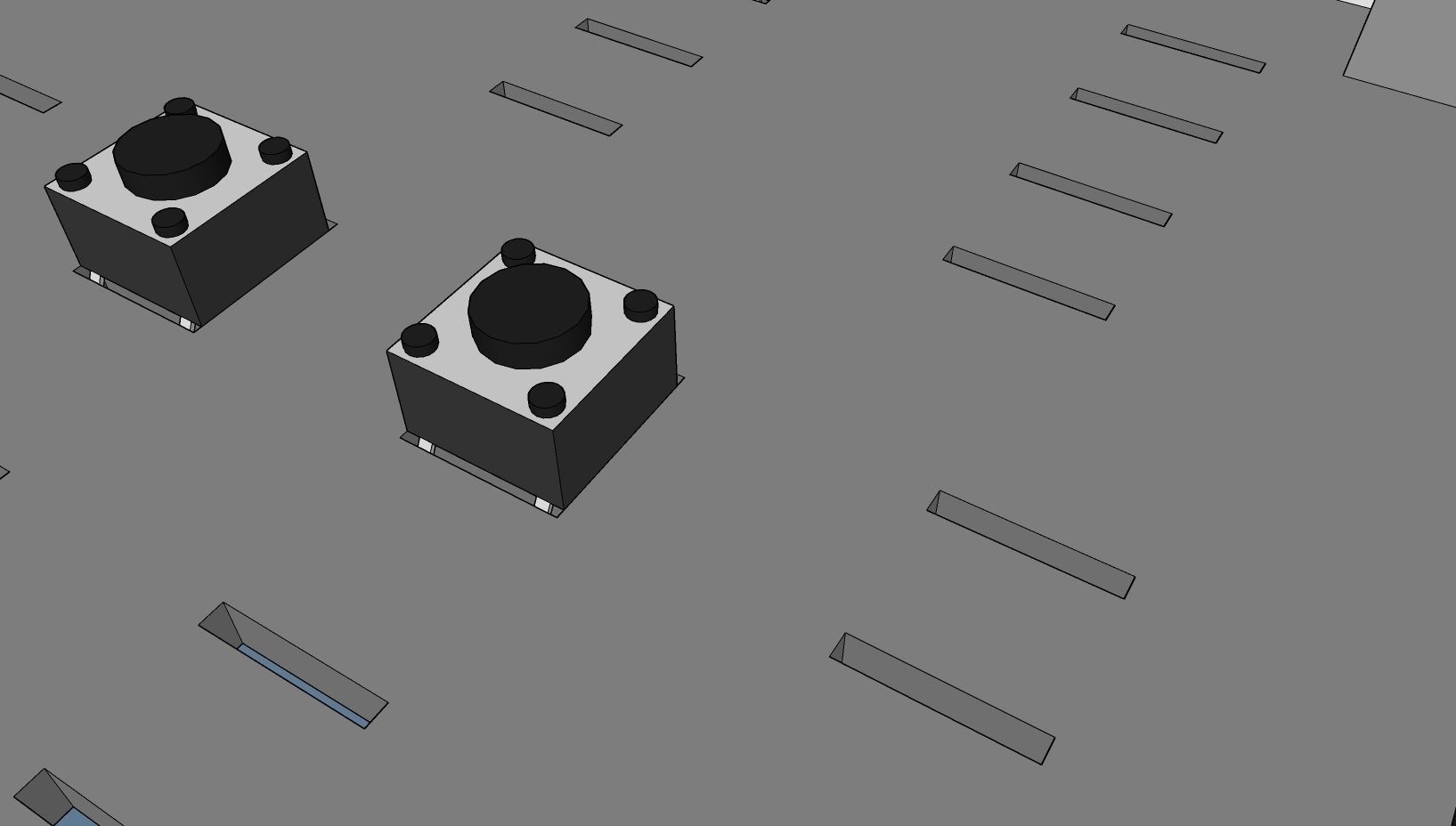

This panel do not need any PCB as it has the unique Button Base panel for easily insert and attach buttons, switches, rotary, potentiometers and encoders.

It is also possible to print only the panel and screw it to a pedestal board.Include nuts for screws compatible with AIRBUS models.

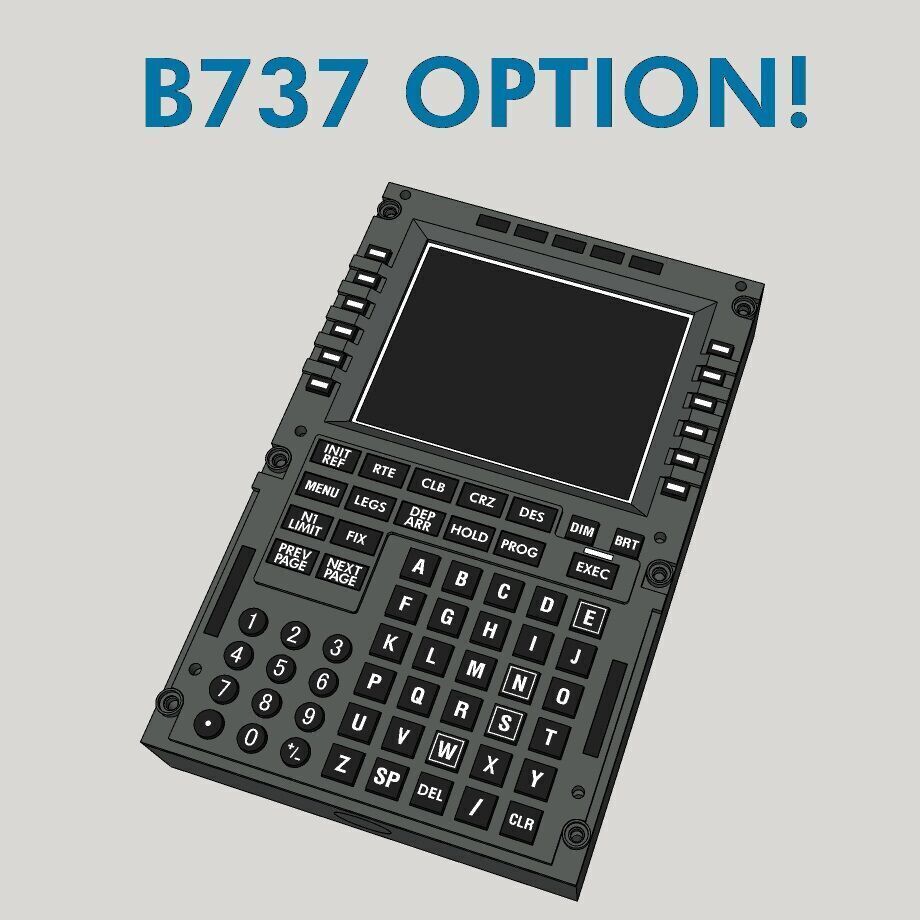

This MCDU panel now includes the option for a B737 MCDU interface in addition to the standard A320 functionality. Best of all, it seamlessly integrates with the A320 MCDU PCB that I offer on eBay (link below), making it a truly comprehensive and customizable solution for your flight simulator setup.

An additional ZIP file included with the options to connect the MCDU with my other products like the RMP and the ECAM:

RMP: https://www.cgtrader.com/3d-print-models/games-toys/game-accessories/a320-rmp-and-acp-panels

ECAM: https://www.cgtrader.com/3d-print-models/games-toys/game-accessories/a320-ecam-control-panel-and-switching-panel

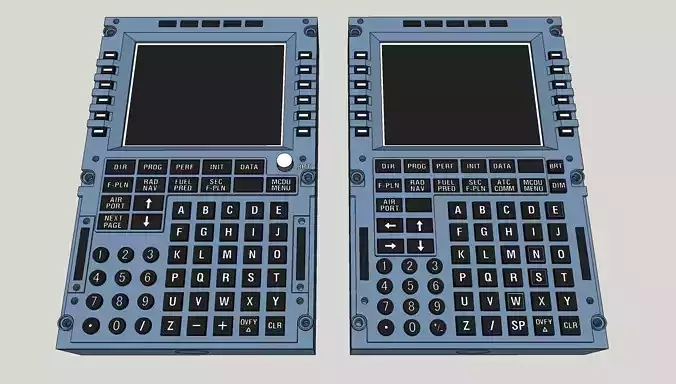

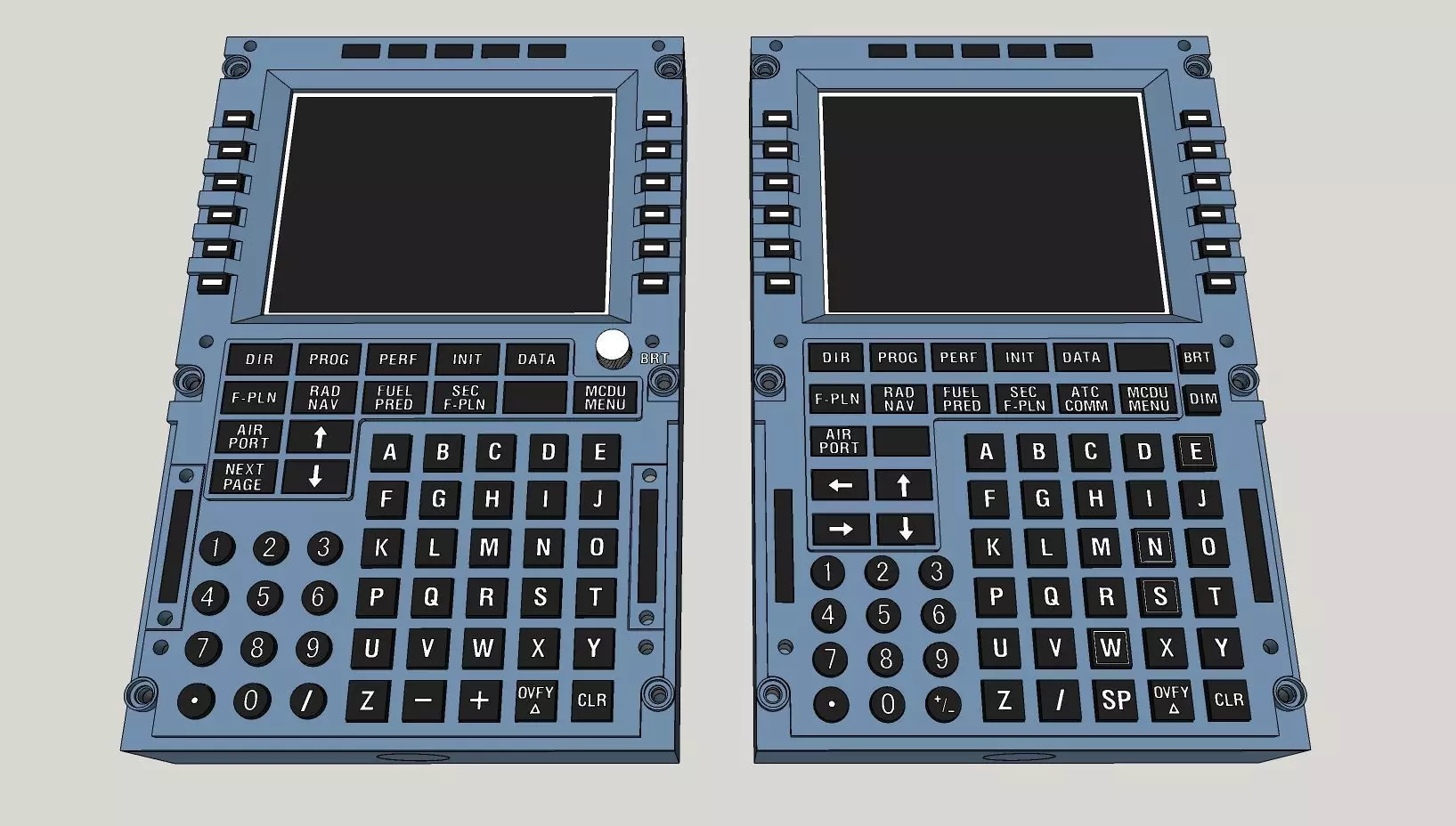

You can choose between 3 options as can be seen in the pictures.

Purchase recommendations:

A320 MCDU PCB: https://www.ebay.com/itm/256697750486

Simplify Your 3D Printed Cockpit. Simplifies the wiring process and eliminates the need for separate electronics purchases.

128 button: https://www.ebay.com/itm/254777785202

128 buttons input joystick including 3 axis to easily connect all buttons and potentiometers to USB without the need for any special programing. Just wire, connect, plug and play.

Dimensions:225/148 mmHeight: 40 mm (or 6 mm for pedestal installation option)

Part list:Option A:74 x Mini Push Button Switch DIP Tact Switch 6X6X4.3mm1 x ZJ050NA-08C 5inch LCD SCREEN1 x KYV-N5 v1 50pin LCD controller board12 x M3X20 Round screws

Option B:69 x Mini Push Button Switch DIP Tact Switch 6X6X4.3mm1 x Rotary Potentiometer 15mm1 x ZJ050NA-08C 5inch LCD SCREEN1 x KYV-N5 v1 50pin LCD controller board12 x M3X20 Round screws4 x M3X5 Round screws

3D printing settings:Better be done with dual extruder 3D printer.
