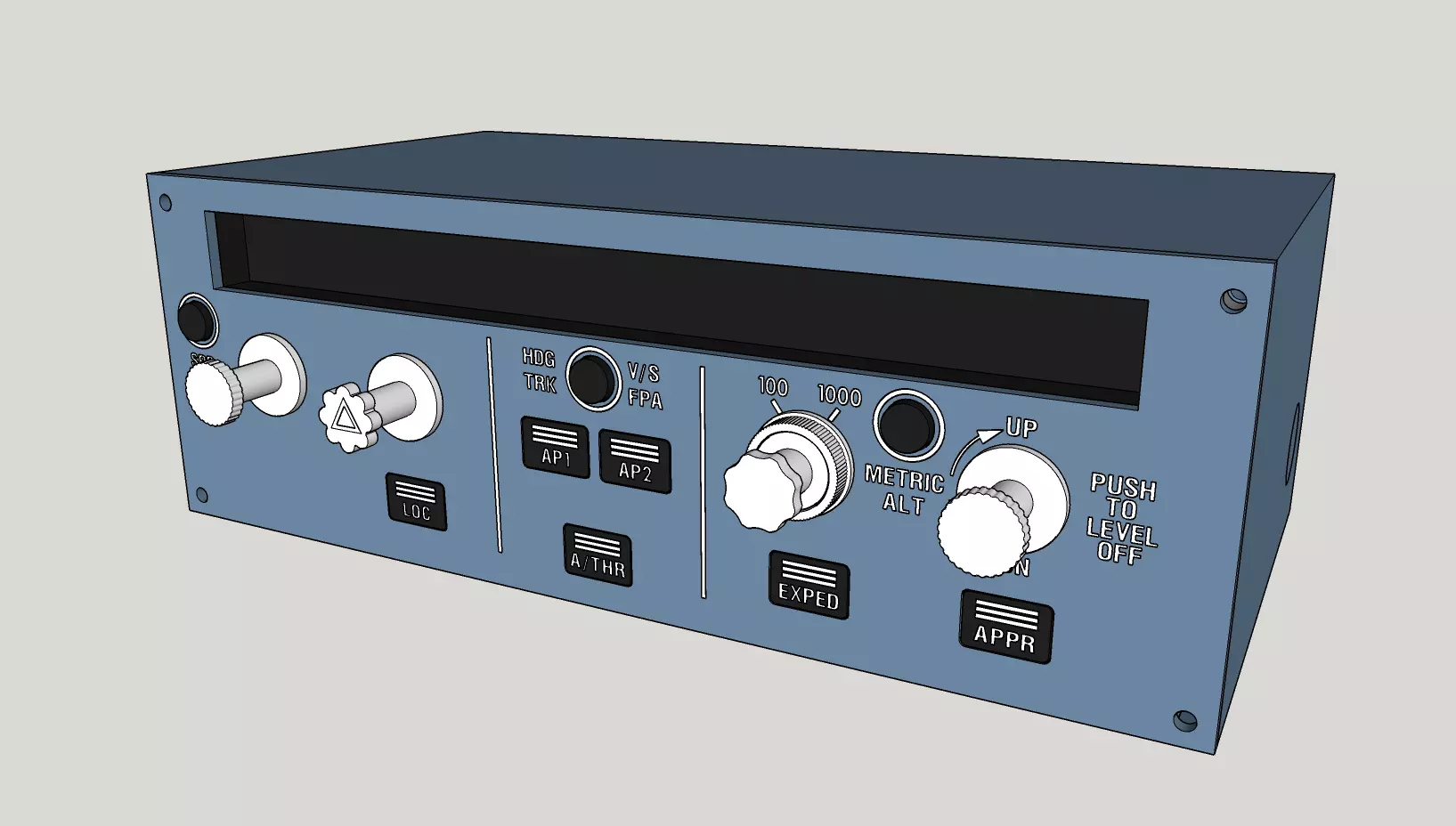

A320 or A330 FCU panel 3D print model

A320/A330 FCU panel

NO PCB NEEDED!

This panel can be fully illuminated and is ready for printing by transparent PLA and painting

This panel do not need any PCB as it has the unique Button Base panel for easily insert and attach buttons, switches, rotary, potentiometers and encoders.

The display can be assembled by a 7 Segment LED, KAV Simolations LCD display or by a 1.3" OLED Displays.

Detailed instructions on how to assemble each option can be found in the included assembly guide.

Can be connected to EFIS panel which can be purchased separately or you can buy both of them at a REDUCED PRICE

Dimensions:

256/133 mm

Height: 86.3 mm

Part list:

2 x 7 Segment display 3 digits Display Module 0.36 inch (Common Cathode WHITE)

2 x 7 segment display 5 digits Display Module 0.36 inch (Common Cathode WHITE)

4 x Rotary Encoders EC11

1 x Rotary Band switch 2 Pole 3 Position (SR16)

4 x Micro Switch 3Pin NO/NC Mini push button

9 x Mini Push Button Switch DIP Tact Switch 6X6X4.3mm

4 x M3X20 Round screws

Better be done with dual extruder 3D printer.
