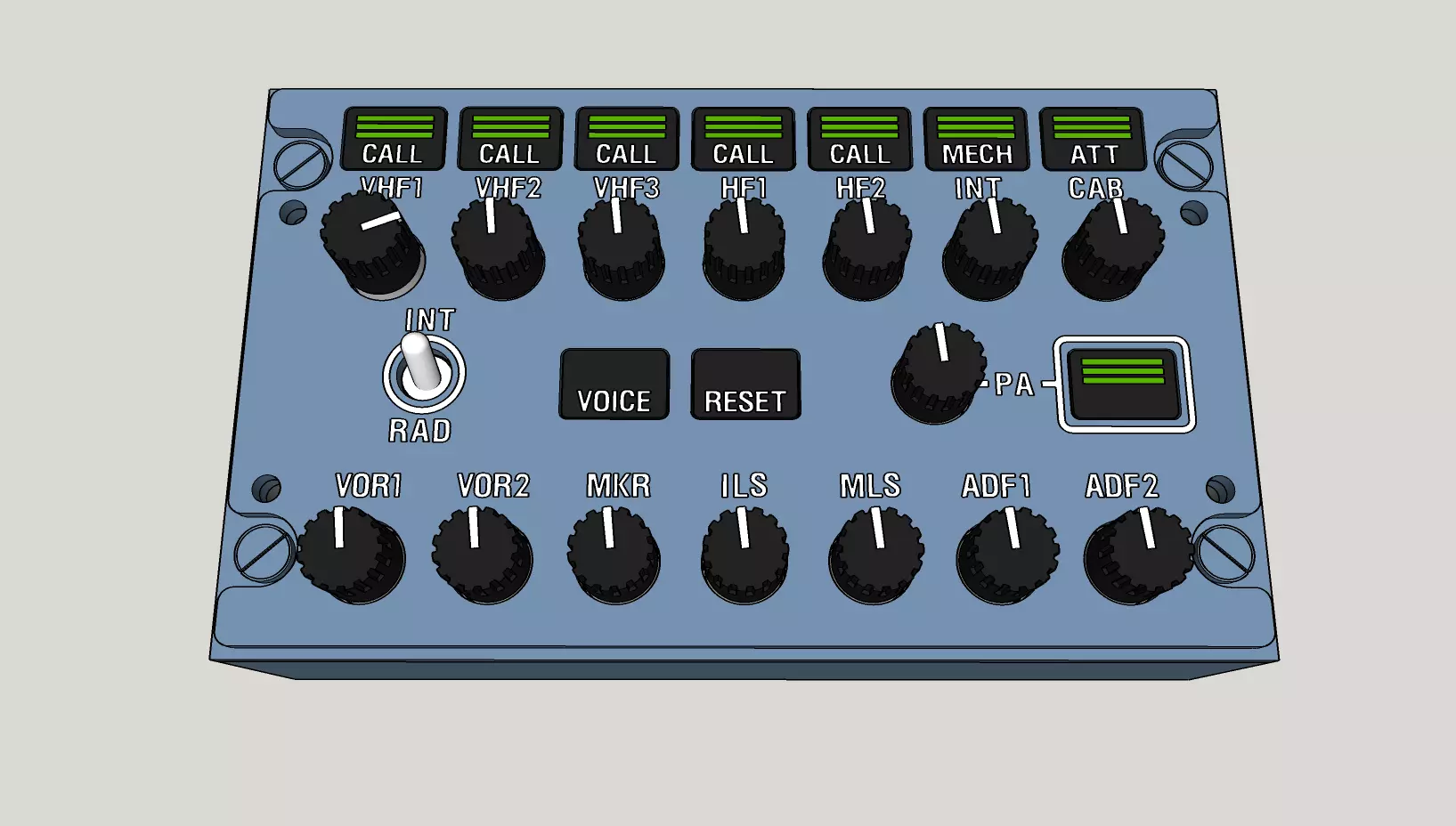

A320 ACP control panel

NO PCB NEEDED!

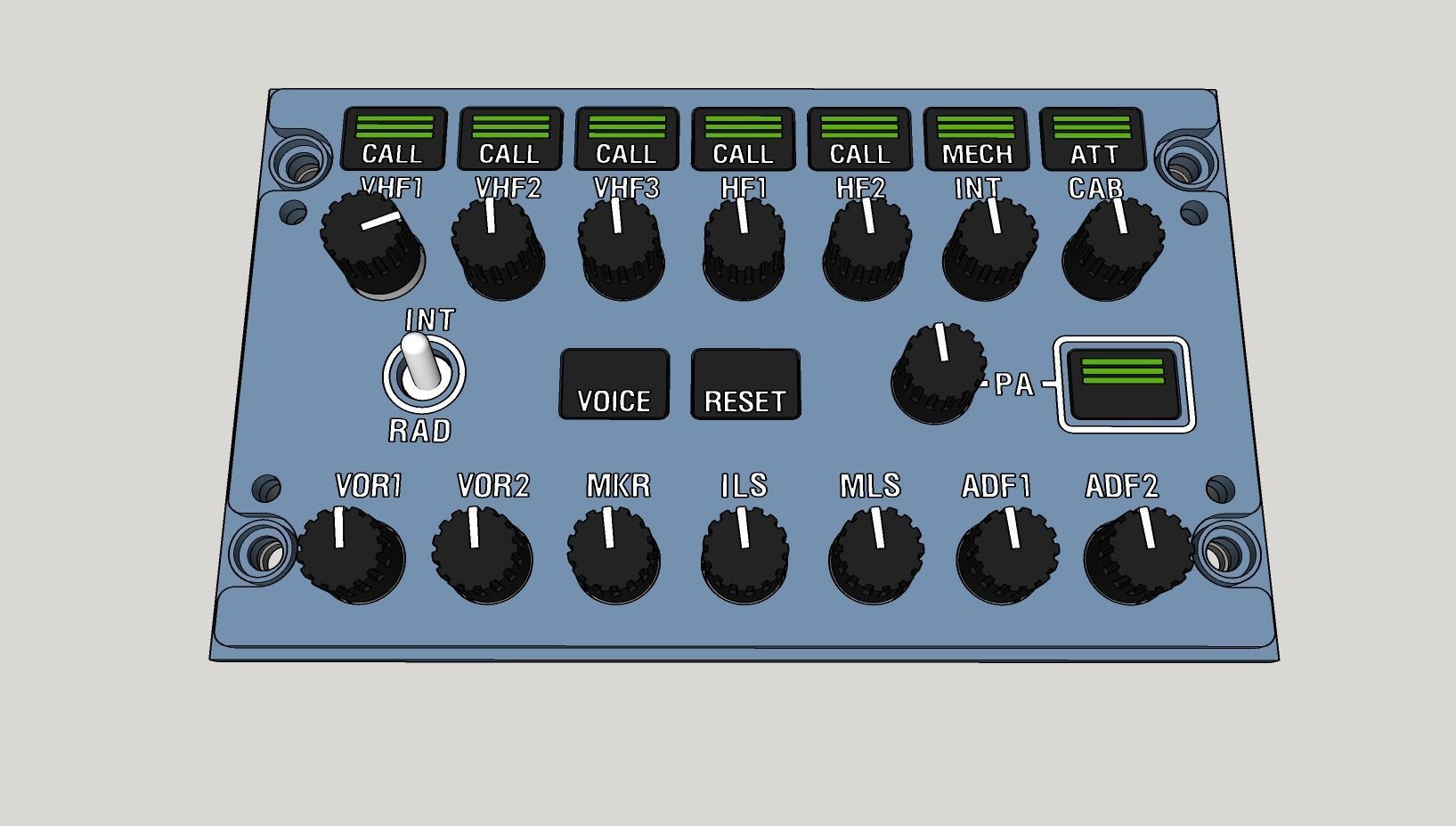

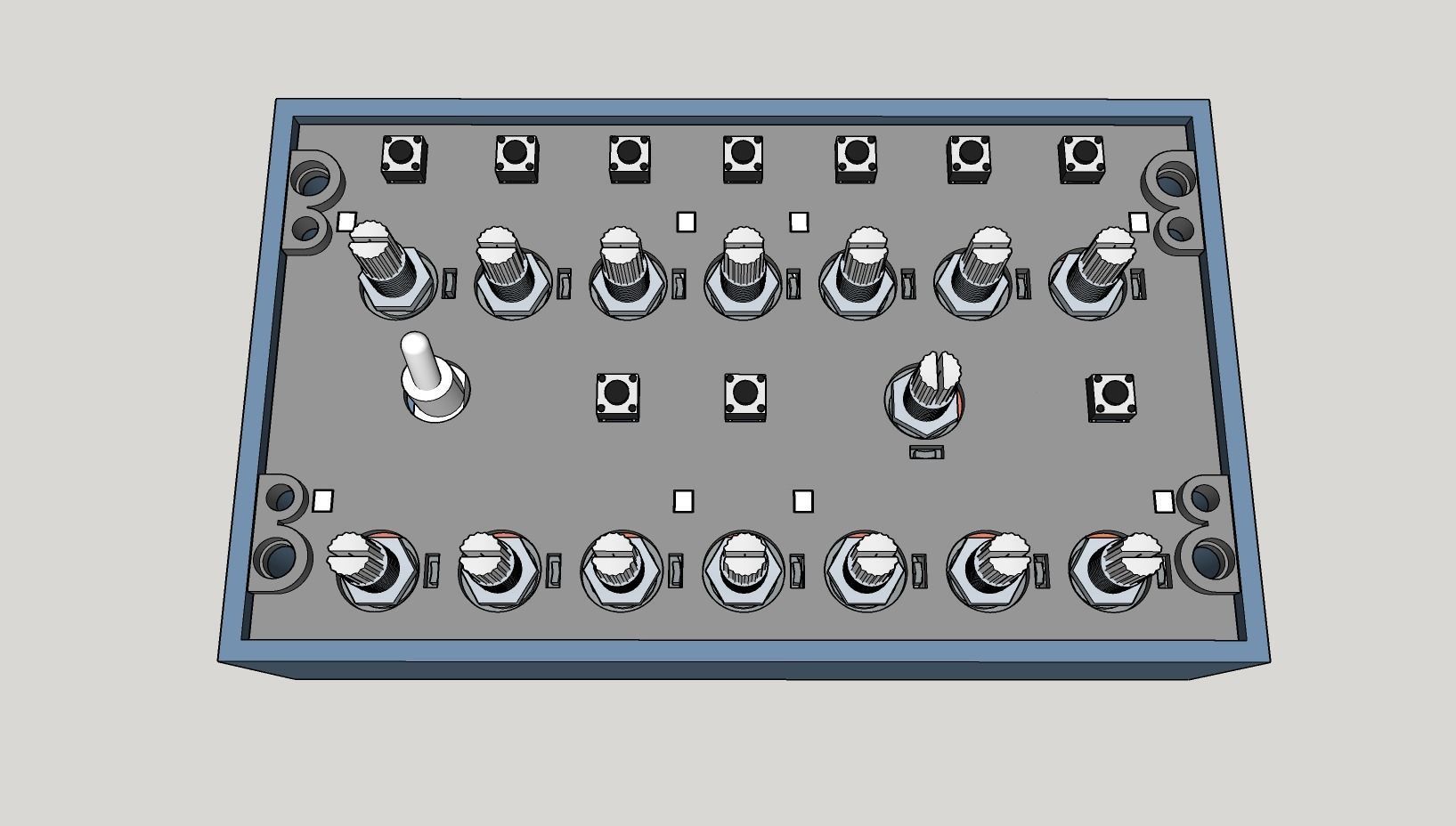

This panel do not need any PCB as it has the unique Button Base panel for easily insert and attach buttons, switches, rotary, potentiometers and encoders.

It is also possible to print only the board and screw it to a pedestal board.

Includes nuts for screws compatible with AIRBUS models.

Can be connected to RMP panel which can be purchased separately via this link: https://www.cgtrader.com/3d-print-models/games-toys/game-accessories/a320-rmp-control-panel or you can buy both of them at a REDUCED PRICE HERE: https://www.cgtrader.com/3d-print-models/games-toys/game-accessories/a320-rmp-and-acp-panels

Assembly manual will follow in the next comming days.

Dimensions:

  • 148/88 mm
  • Height: 40 mm (or 6 mm for pedestal installation option)

Part list:

Option 1:

  • 15 x Guitar Push Pull Potentiometers A250K (or similar) 18mm
  • 10 x Mini Push Button Switch DIP Tact Switch 6X6X4.3mm
  • 1 x Mini Toggle ON OFF (or ON ON) Switch (Flat Handle preferred)
  • 4 x M3X20 Round screws
  • 4 x M4X16 Round screws

Option 2:

  • 15 x Mini Push Button Switch 6 pin push with self lock 8.5x8.5x14.6mm
  • 15 x Rotary Potentiometers 15mm
  • 10 x Mini Push Button Switch DIP Tact Switch 6X6X4.3mm
  • 1 x Mini Toggle ON OFF (or ON ON) Switch (Flat Handle preferred)
  • 4 x M3X20 Round screws
  • 4 x M4X16 Round screws

3D PRINTING SETTINGS

Better be done with dual extruder 3D printer.
