Mario Party DnD Theme Dice Set 3D print model

Based on the Mario Party series, this includes a set of 7 different types of dice: d4, d6, d8, d10, d12, d20, and d00. I created these for a board game version of Mario Party that I made!

There are dice core files and panels files with the numbers, so you can print them in the color of your choosing. I also included a bonus Character Dice Block (based on the original N64 game) and two types of Ally Dice Blocks (based on SMP).

SPECIAL NOTE for the d4: this uses an uncommon style for number orientation. When gluing the panels on, you should do this so that exactly one of the numbers is situated upright from the bottom of the table upward. As an example in the included picture of the final product, the 4 is situated upright while the other two visible numbers are sideways, so a 4 is rolled. Typical d4s have very small font for the numbers in the vertices or sides of the panels, but I opted for this design so that the font can be Mario-style large.

3D Printing Settings:Main settings: I printed these with standard PLA. For each dice core, I increased the infill to 50% and shells to 4 to make sure they were solid and with the intention to make the rolls random like regular dice. I printed the dice panels at the default printer settings.

Supports: Most dice cores I did add small supports and a raft to, with more supports needed for the dice with more face values. I didn't use supports or rafts for the dice panels. Definitely change this based on your preference and printer quality.

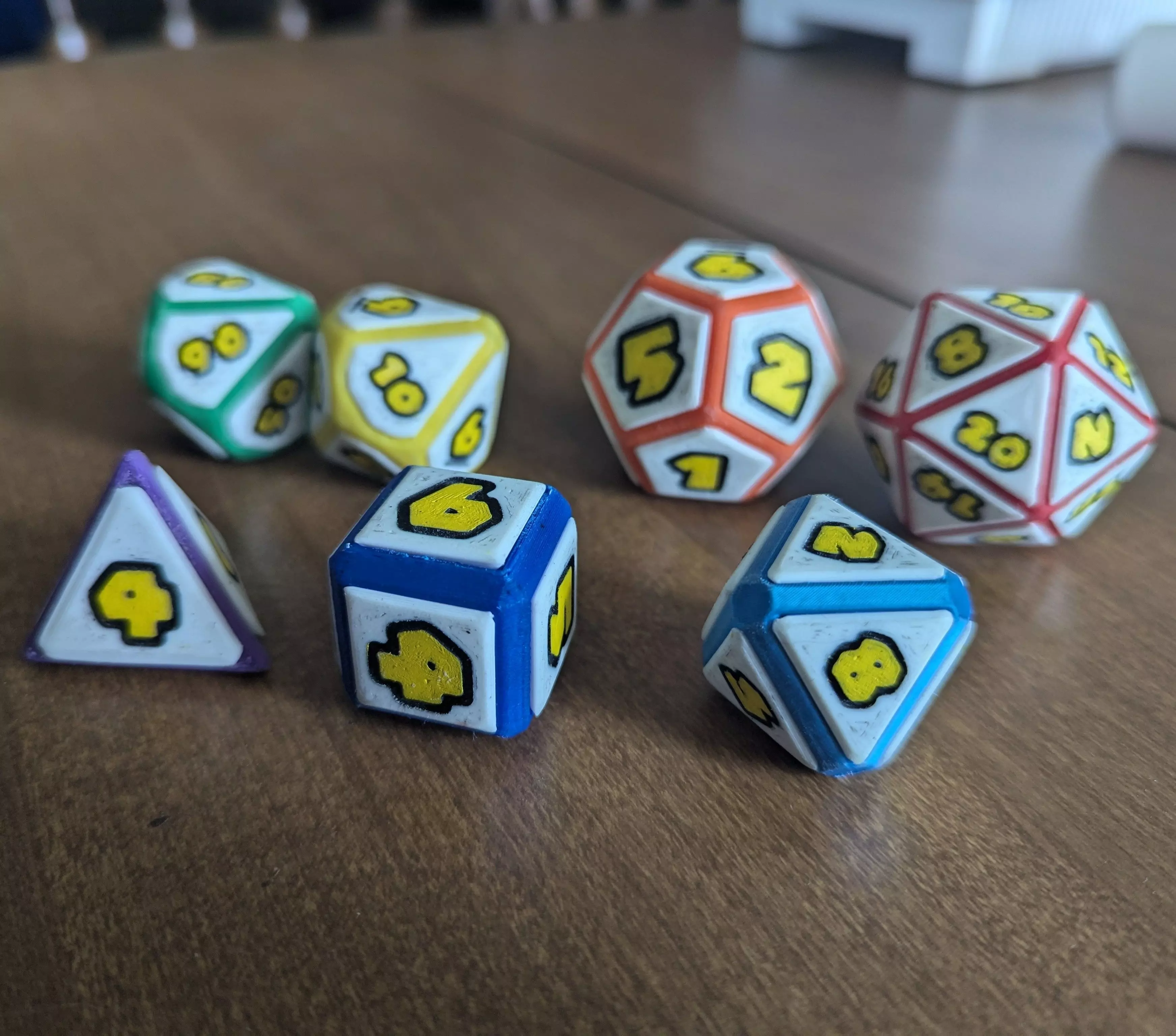

Finishing: As you see in the photos, I chose a different PLA color for each dice core and printed all dice panels in white PLA. I then sanded them all based on my preference, glued the panels to their respective cores, and hand painted the numbers.
