Modular chessboard and pieces with weight compartments 3D print model

Modular Chessboard with Customizable Pieces (new version since 10.01.2025)

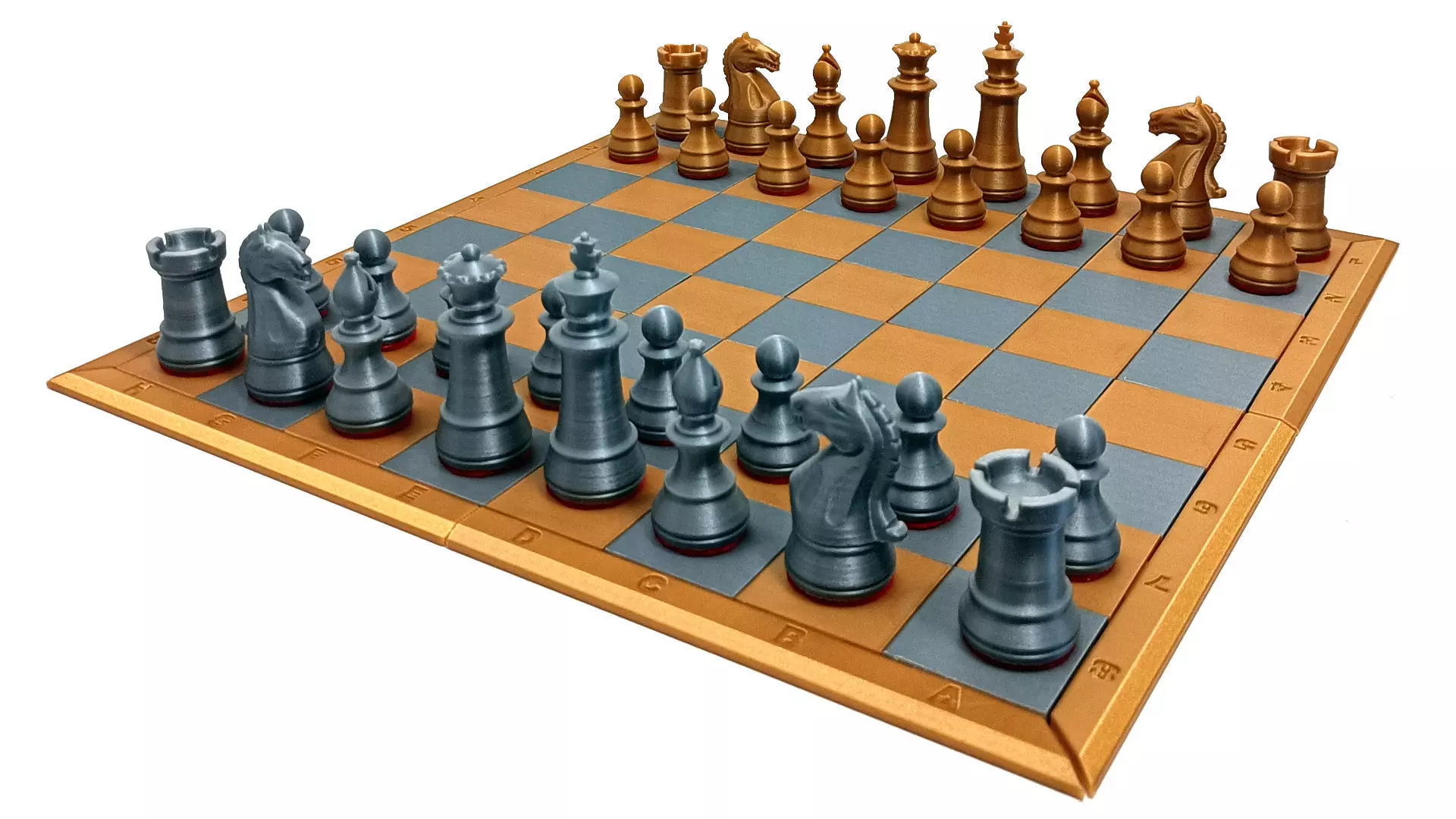

Step into the world of chess with this modular chessboard and pieces designed for customization and professional play. Each piece features an integrated weight compartment, ensuring balance and a premium feel for players of all levels. Perfect for 3D printing enthusiasts, designers, or anyone seeking a versatile chess set for various projects.

Key Features:

• Modular chessboard design with pluggable board elements.

• Chess pieces with integrated weight compartments for balance and realism.

• Fully editable model files for Cinema 4D, allowing customization of both the board and pieces.

• Compatible with 3D printing formats STL and 3MF for physical creations. (Example printed on Bambu Lab P1S)

• Ideal for game prototyping, visual design projects, or creating unique, custom chess sets.

Dimensions printed:

• Square: The length and width are ~4 cm each, with a height of ~0.5 cm.

• Board: Has an overall length and width of ~35 cm, including the framing.

• King: ~7.3 cm height

• Queen: ~6.3 cm height

• Bishop: ~5.2 cm height

• Knight: ~5.5 cm height

• Rook: ~4.0 cm height

• Pawn: ~3.7 cm height

Holes for weights, diameter: ~16.5 mm

(All measurements are approximate.)

Ready to Use For:

Cinema 4D Version 2025.1.2 and up

Fully editable chessboard and pieces.

Modify design components directly within Cinema 4D.

3D Printing Formats:

STL: Ready for slicing with your preferred 3D printer software.

3MF: Optimized for modern 3D printers with metadata support.

License Information:

This chess set has been exclusively designed by Daniel Weinlein. The design is strictly for personal, non-commercial use. Even if you 3D print or otherwise manufacture this chess set, it is not permitted to use it for commercial purposes. Redistribution or resale of the design or its derivatives is strictly prohibited.

Get in Touch:

We will always find an individual solution for your 3D requirements, so do not hesitate to ask.

If you have any questions, suggestions, or need another format, please contact:

Web: www.danielweinlein.com

Mail: d.wstudios@hotmail.de

Thank you!Copyright: Daniel Weinlein 2025
