2020-02-24 16:40:15 UTCmattdb
Can you please specify the x & y dimensions of the tile tray?
Useto navigate. Pressescto quit
Karuba Board Game Organizer Insert 3D print model
Description

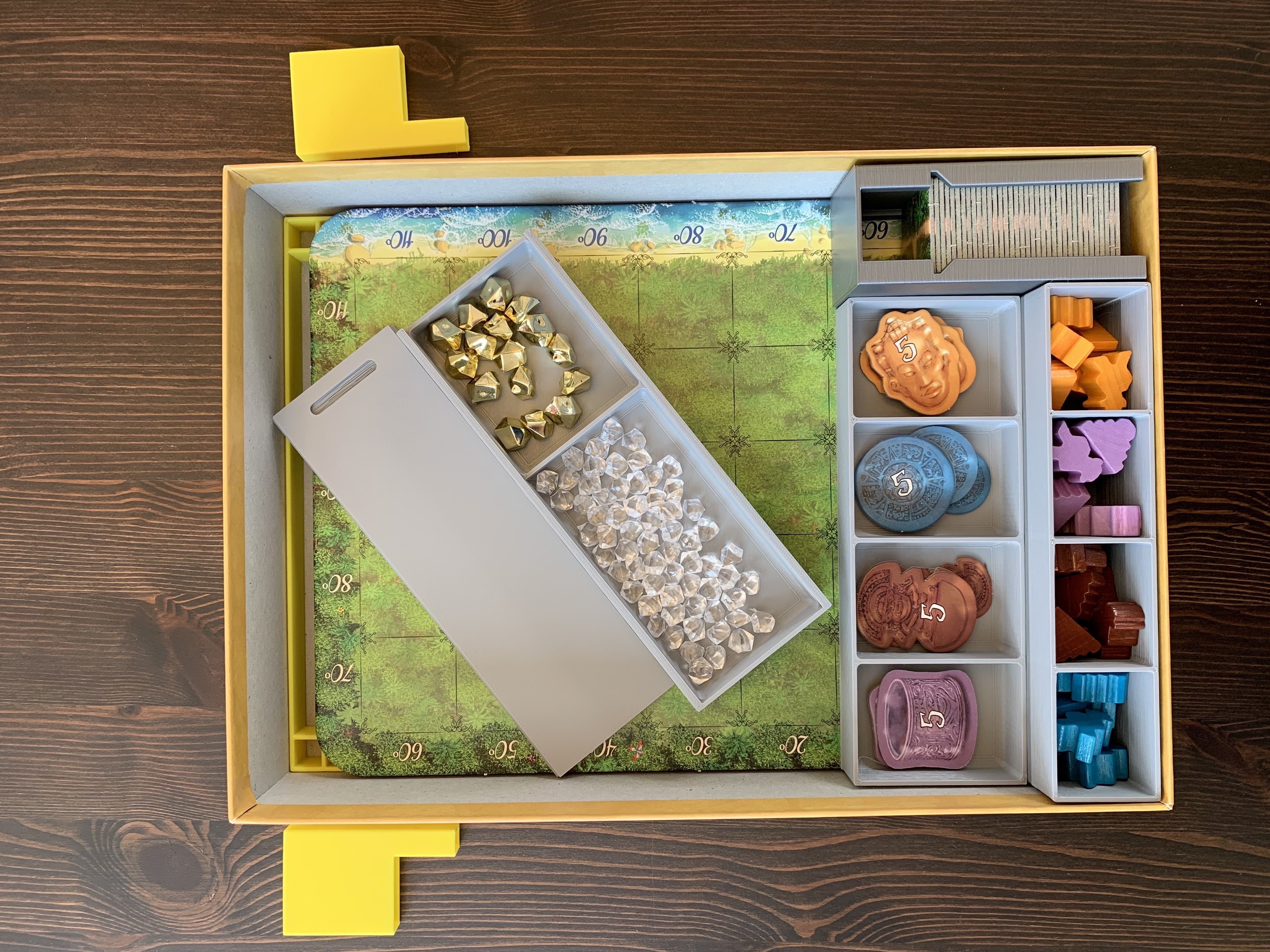

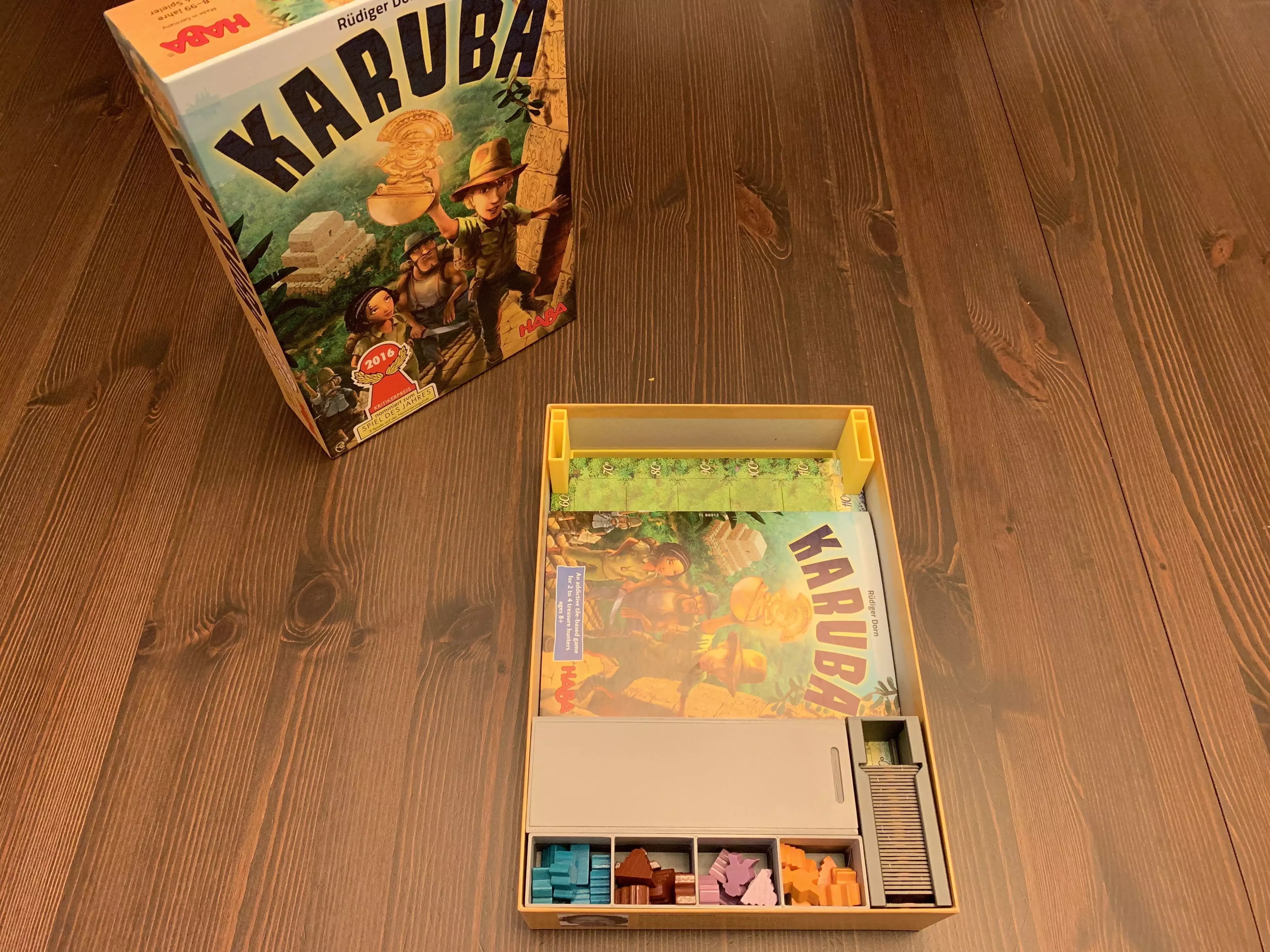

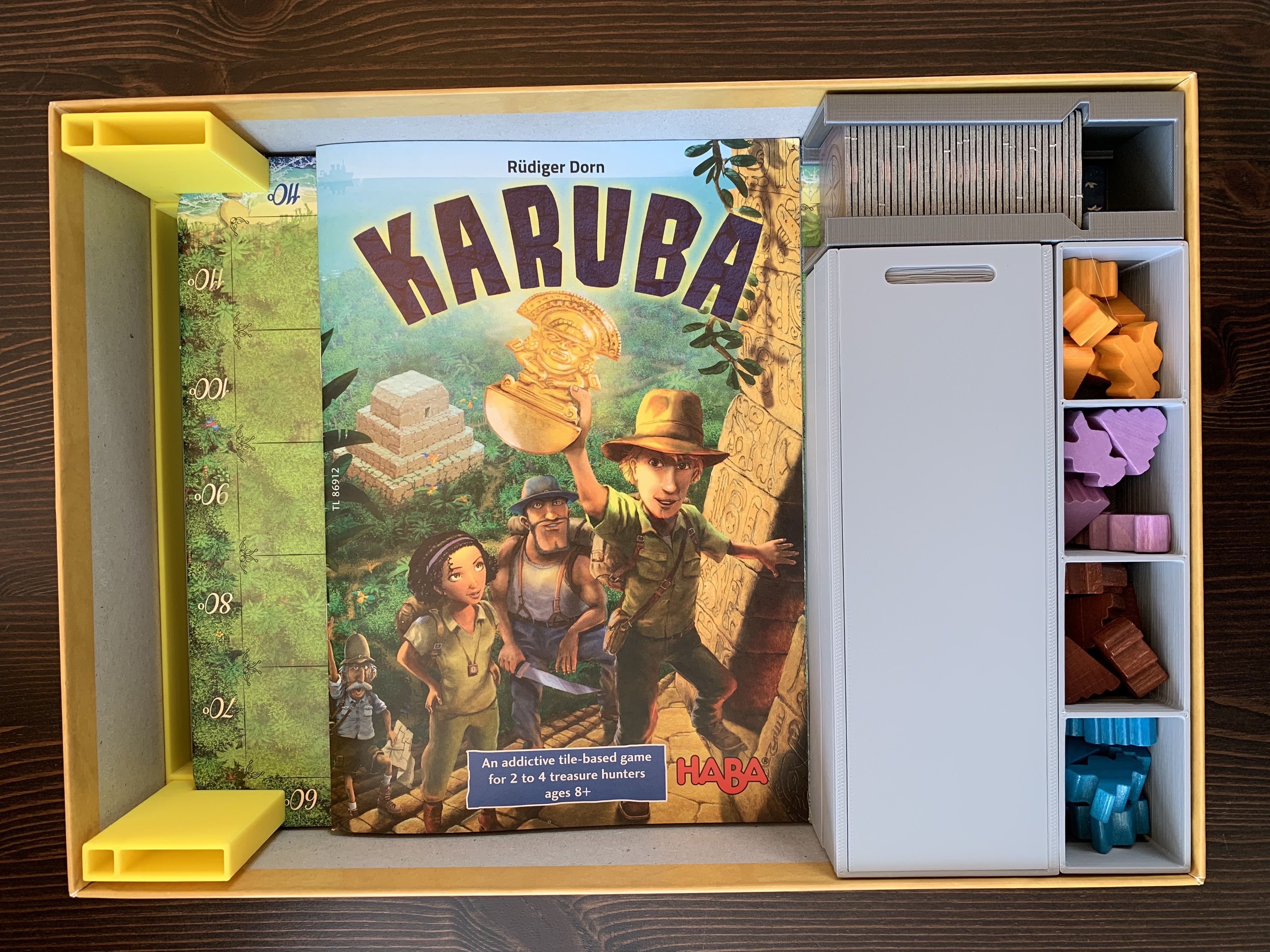

Organizer for the Karuba board game, designed for upright storage in the retail game box.
Special print/usage instructions:

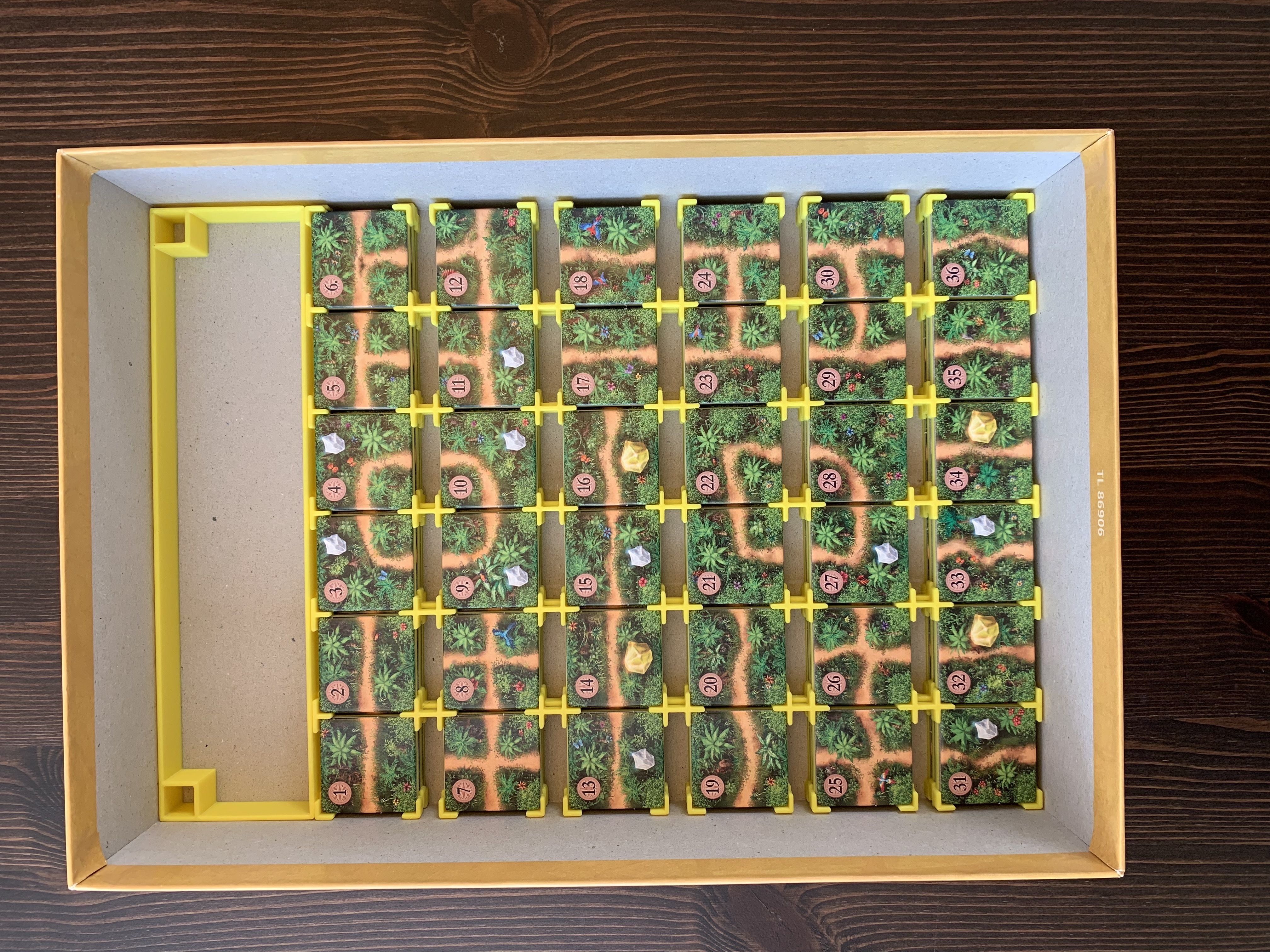

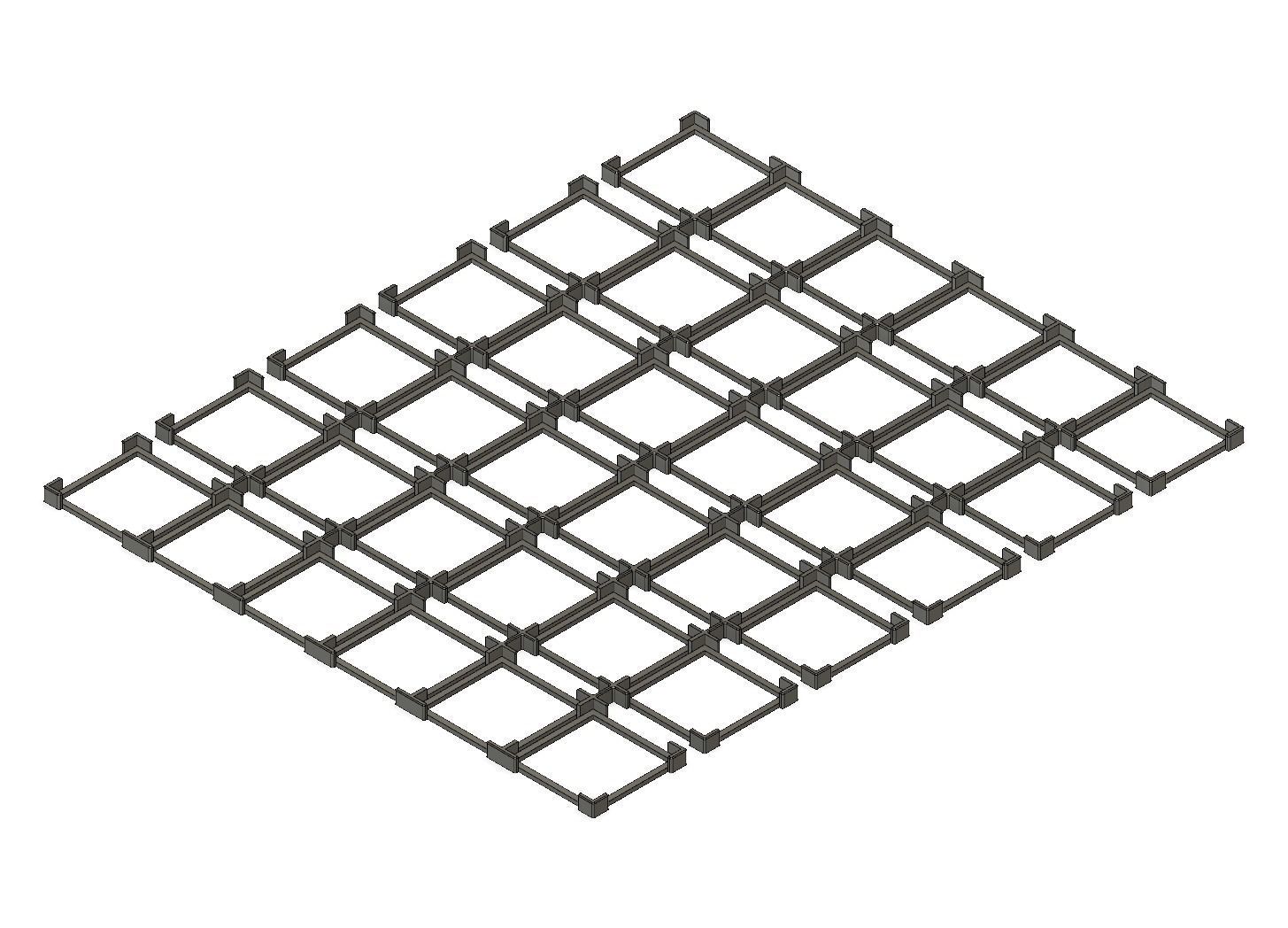

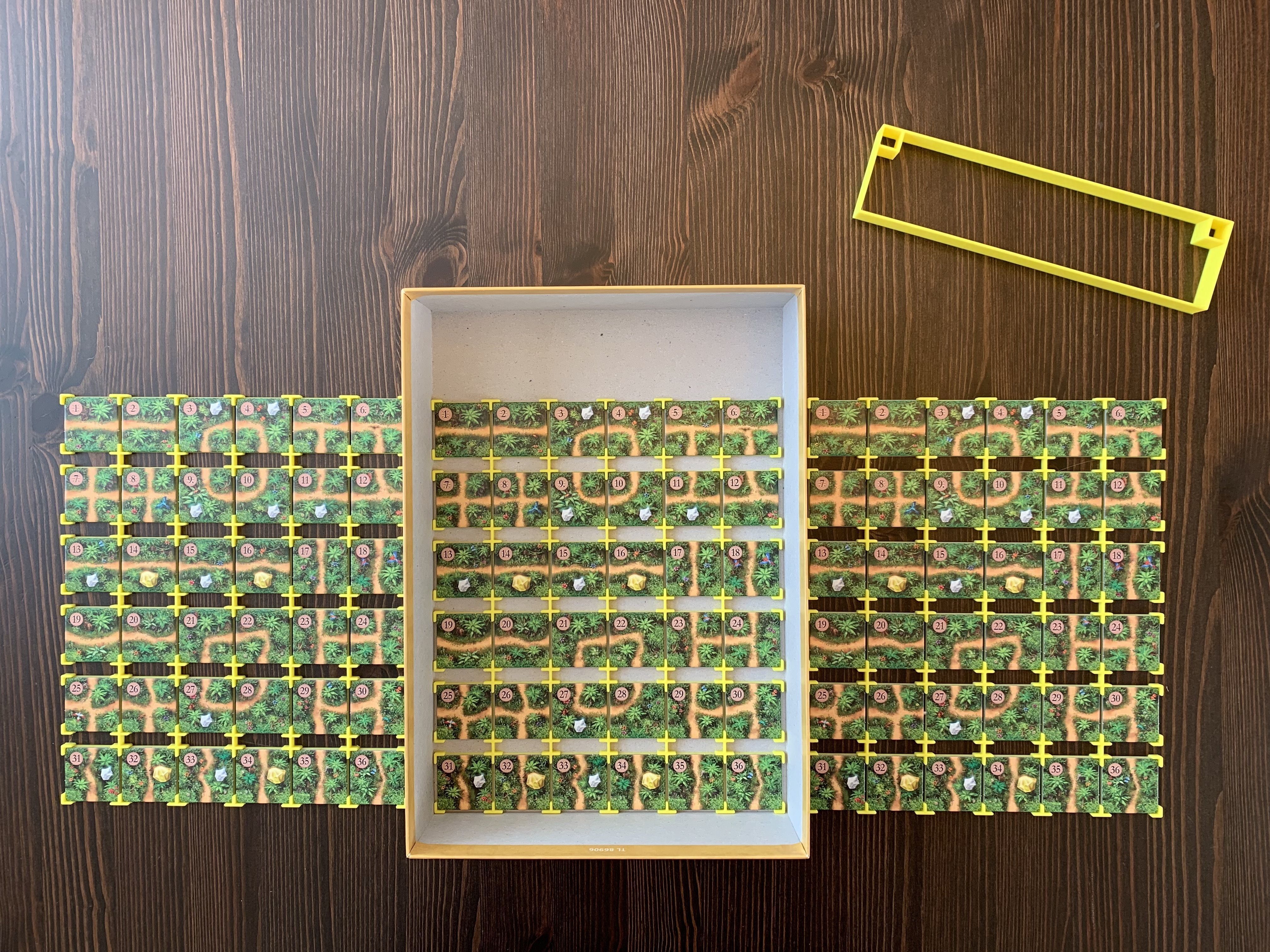

-- TileTray = Print three; barely fits on my Prusa i3 MK3 (200 mm x 250 mm print bed).

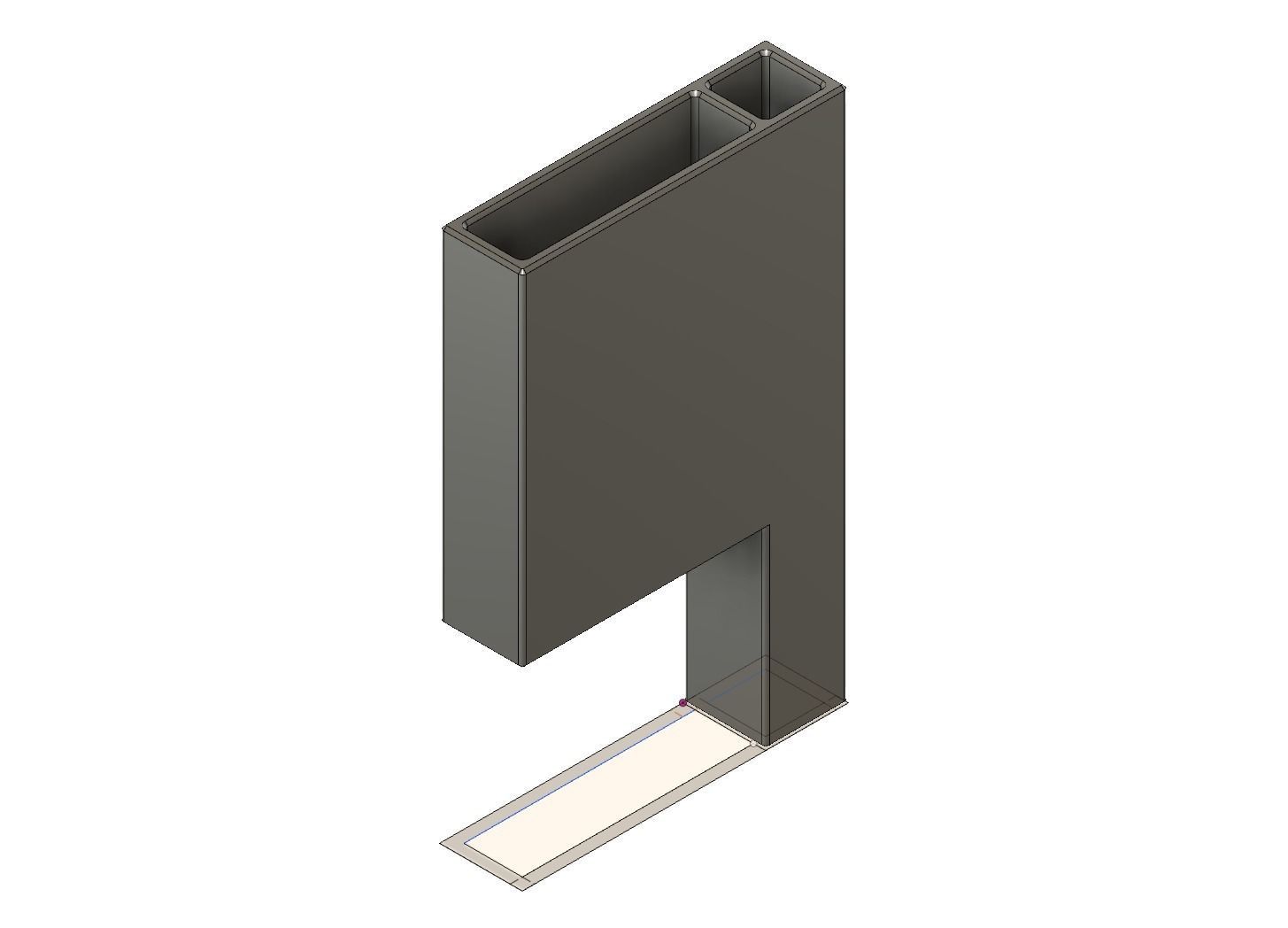

-- TileTower = for use by the expedition leader, who draws the tiles; the three TileTrays then allow for a four-player game.

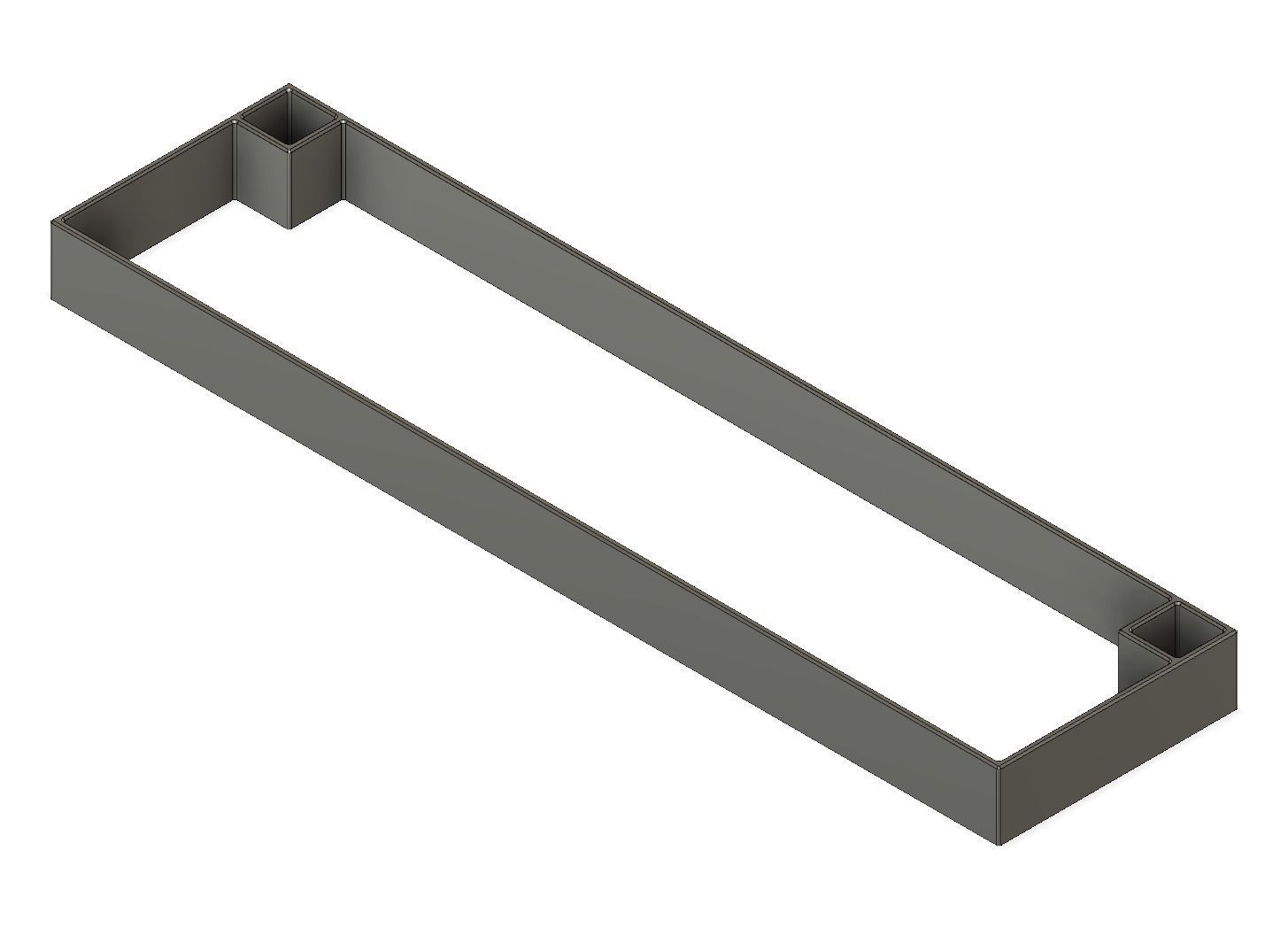

-- BoardBrace = Print two for the square holes in UpperBrace.
1Peter567
Sure thing---248.5 mm x 209.75 mm.
M
2020-02-24 18:17:01 UTCmattdb
Thanks. My Ender 3 has a 210x210 bed, I don't have a lot of experience splitting models & gluing yet. It seems like gluing on the little connectors between grid segments would likely be too fragile. Any suggestions on what might be the best way to proceed? I really like the idea of storage & organization in one tray like that.
1Peter567
Ooooo, good question. The only experience that I have is either gluing (which, I agree, would be problematic with those thin trays) or adding a dovetail-like connector (as in my Inis organizer). But again, there is not a lot of surface area to work with on those trays, so I don't see a dovetail working there either.
I'm a bit stymied at the moment ... maybe a Prusa i3 MK3 on the birthday/Christmas/St. Patrick's Day gift list? ;)
A
a-jacob
Useful to store the game horizontaly, but with the kids it's not always easy, so I created a simple square to replace the BoardBrace and avoid thing moving when transportation.
Karuba Board Game Organizer Insert
Royalty Free License
Karuba Board Game Organizer Insert
Royalty Free License
3D Model formats
Format limitations
- OBJ (.obj, .mtl) (8 files)3 MB
- Stereolithography (.stl) (8 files)3.02 MB
- Autodesk FBX (.fbx) (8 files)1.04 MB
3D Model details
- Publish date2019-08-06
- Model ID#2056246
- Ready for 3D Printing
