Deadbeat Escapement Mechanical Countdown Timer 3D print model

Description

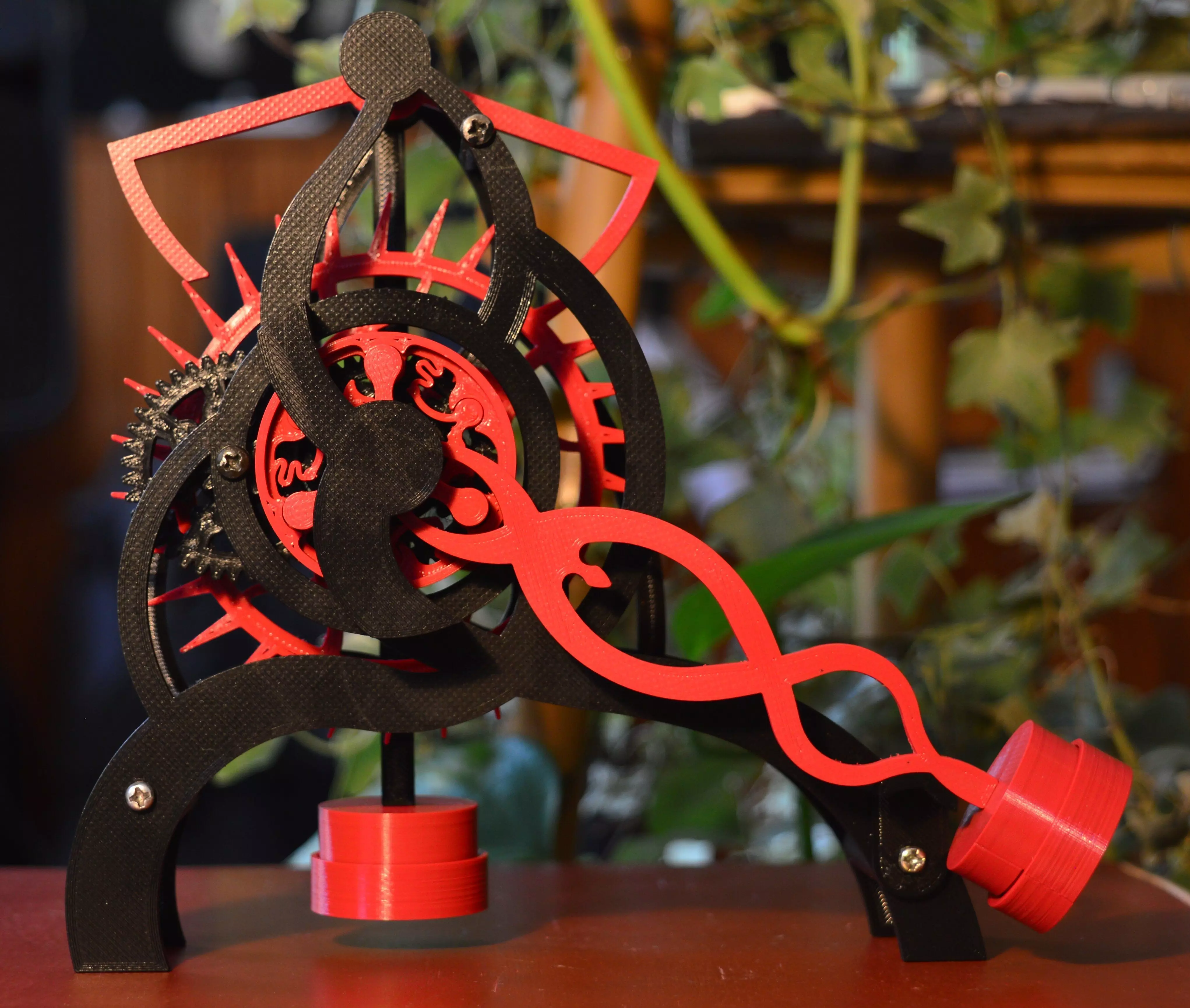

This is a fully functional mechanical countdown timer meant for board games. It's fully 3D printed, except for the axles, which can be salvaged from an old inkjet printer, and a handful of screws.The machine features a print-in-place ratchet mechanism to load the weight arm in increments of 12 seconds. The energy is transferred to the deadbeat escapement wheel via a gear train, and it is self-starting.It includes a comprehensive 15-page building guide with lots of pictures!

V1.1 added a ball bearing dropper for a bell

Write comment
Item rating
0 0
Deadbeat Escapement Mechanical Countdown Timer
$4.00

Royalty Free License
Deadbeat Escapement Mechanical Countdown Timer
$4.00

Royalty Free License
B
berraud
(0 reviews)
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl) (2 files)55.8 MB
  • Other 8.28 MB
  • amf (.amf)10.5 MB
  • 3D Manufacturing File (.3mf) (2 files)27 MB
  • PDF (.pdf)1.96 MB
  • STEP (.stp)1.33 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2024-11-23
  • Model ID#5662957
