mini itx computer case 3d model for 3d printing 3D print model

Warning! This is a 3D model for printing on a 3D printer. The 3D model is made in Blender 3D, but I also upload a file in stl format, which is suitable for most programs that work with 3D printers. Unfortunately, I don’t yet have the opportunity to send ready-made cases with everything necessary, but I’m working on it. And with your help I think everything will work out =)

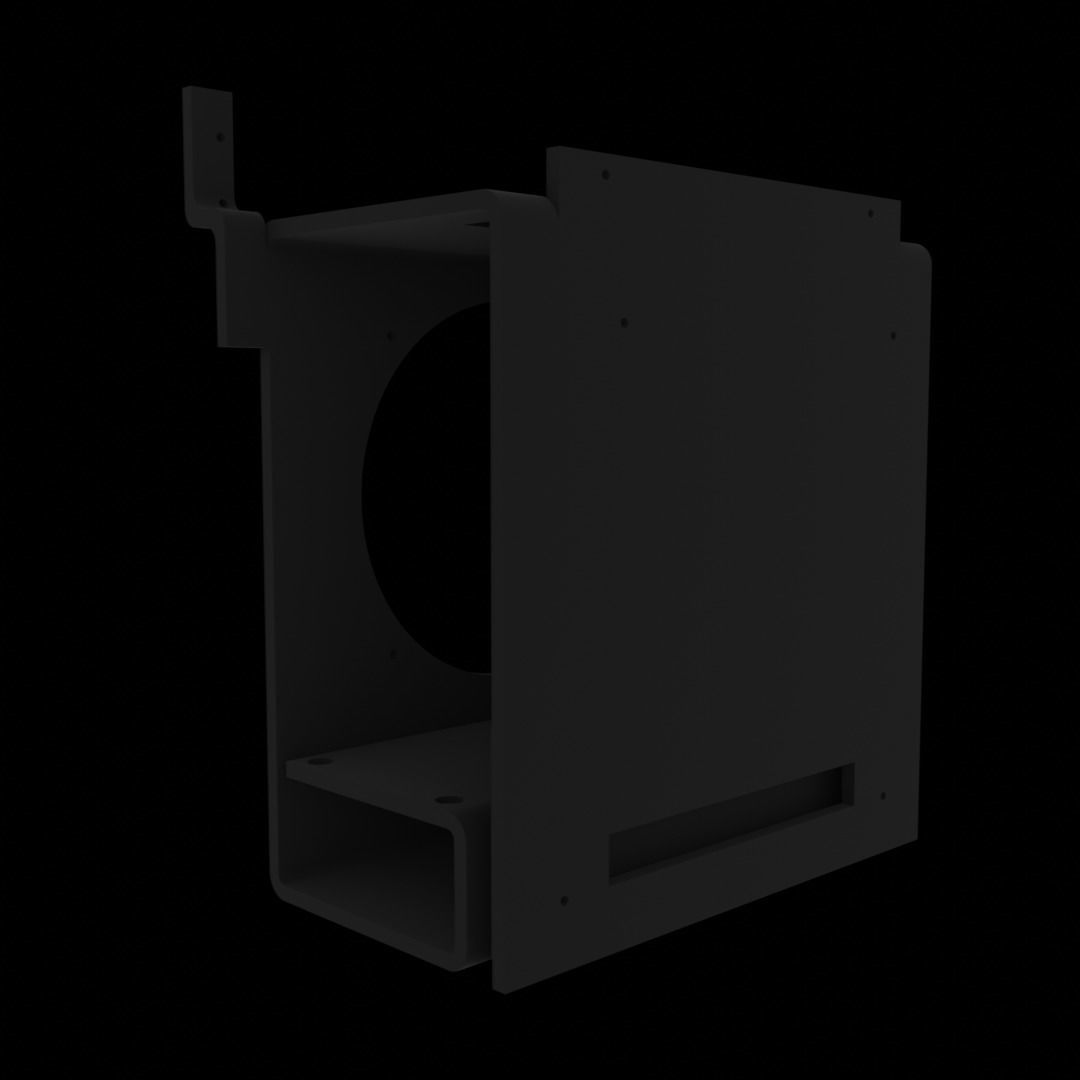

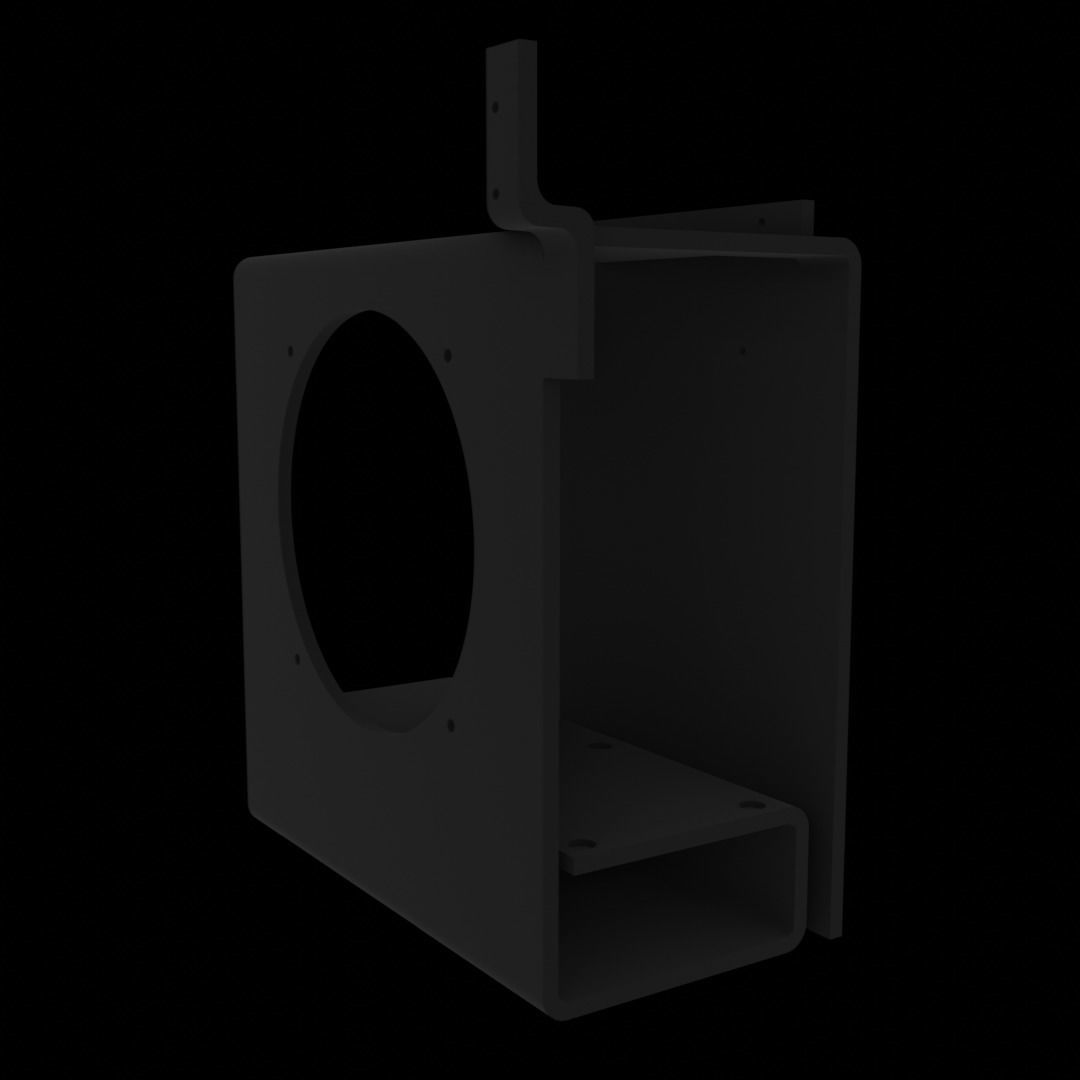

Hello, I am pleased to present you a new computer case made in mini itx format (for a 170x170mm motherboard).

First of all, I recommend that you purchase a modular power supply to simplify cable management.

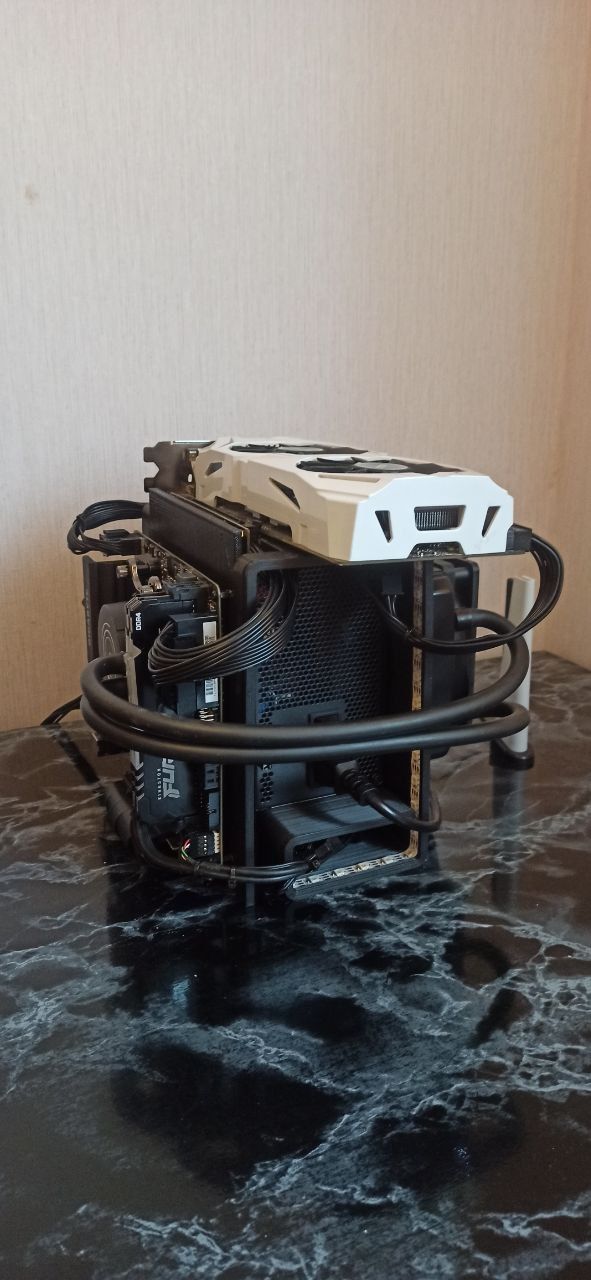

The case is designed for people like me who have no intention of hiding the mechanical and visual beauty of their computer components behind metal and glass tins. The case is designed with the ability to install a video card through a riser; there is also a slot for installing a Sata 2.5 drive.

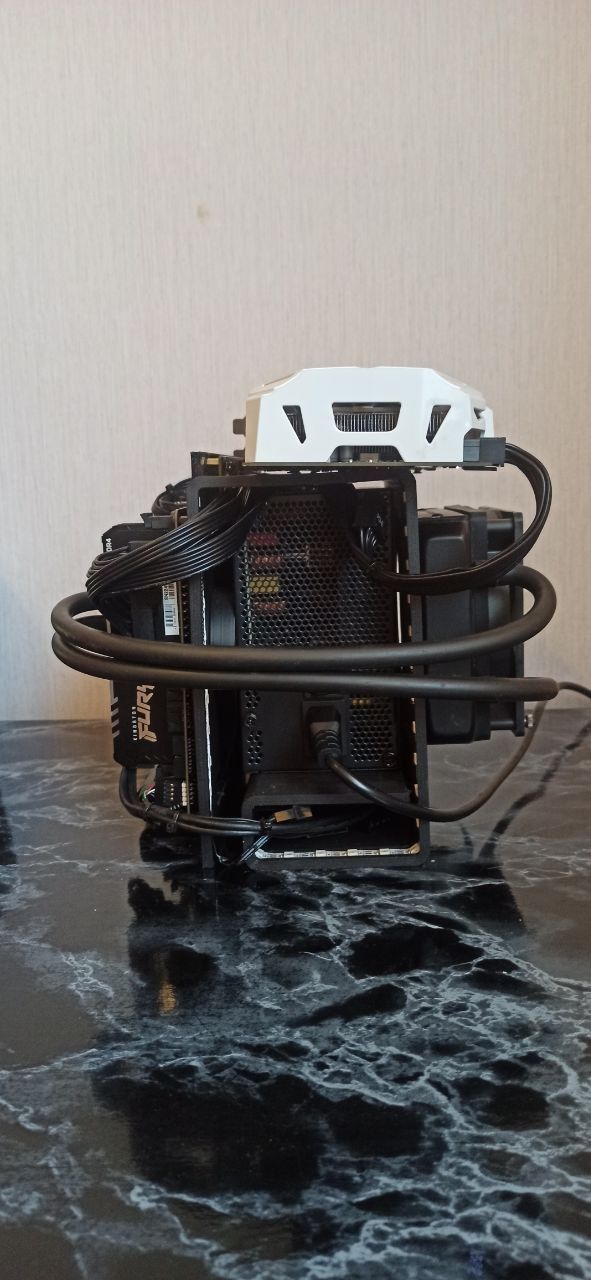

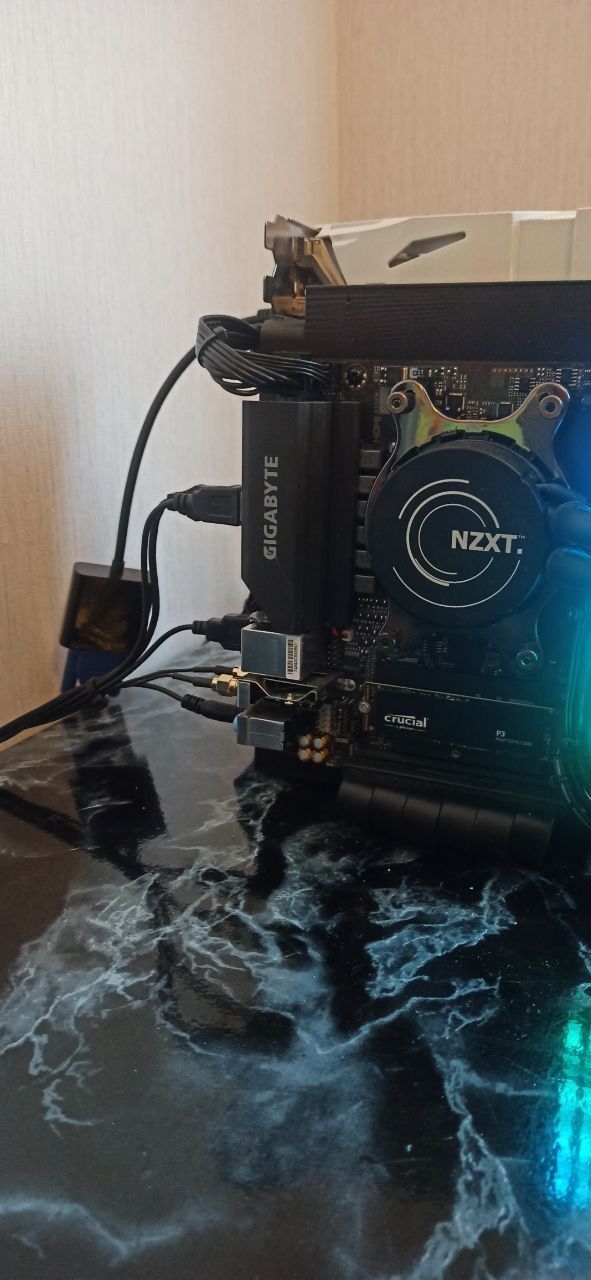

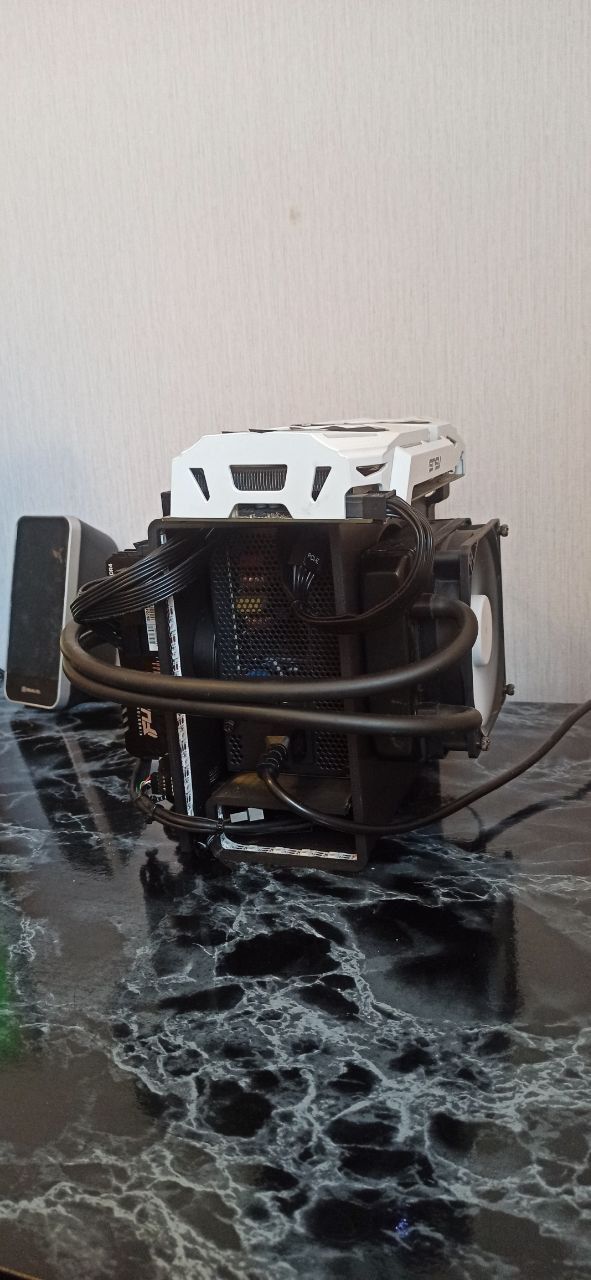

This case assumes the use of Liquid Cooling System; the length of flexible hoses must be at least 40mm. In my home copy, I use the NZXT Kraken X31 water cooler. The 40mm tube length and excellent flexibility perfectly match this computer case. I strongly recommend that you check the flexibility and length of the hoses before purchasing a cooling system.

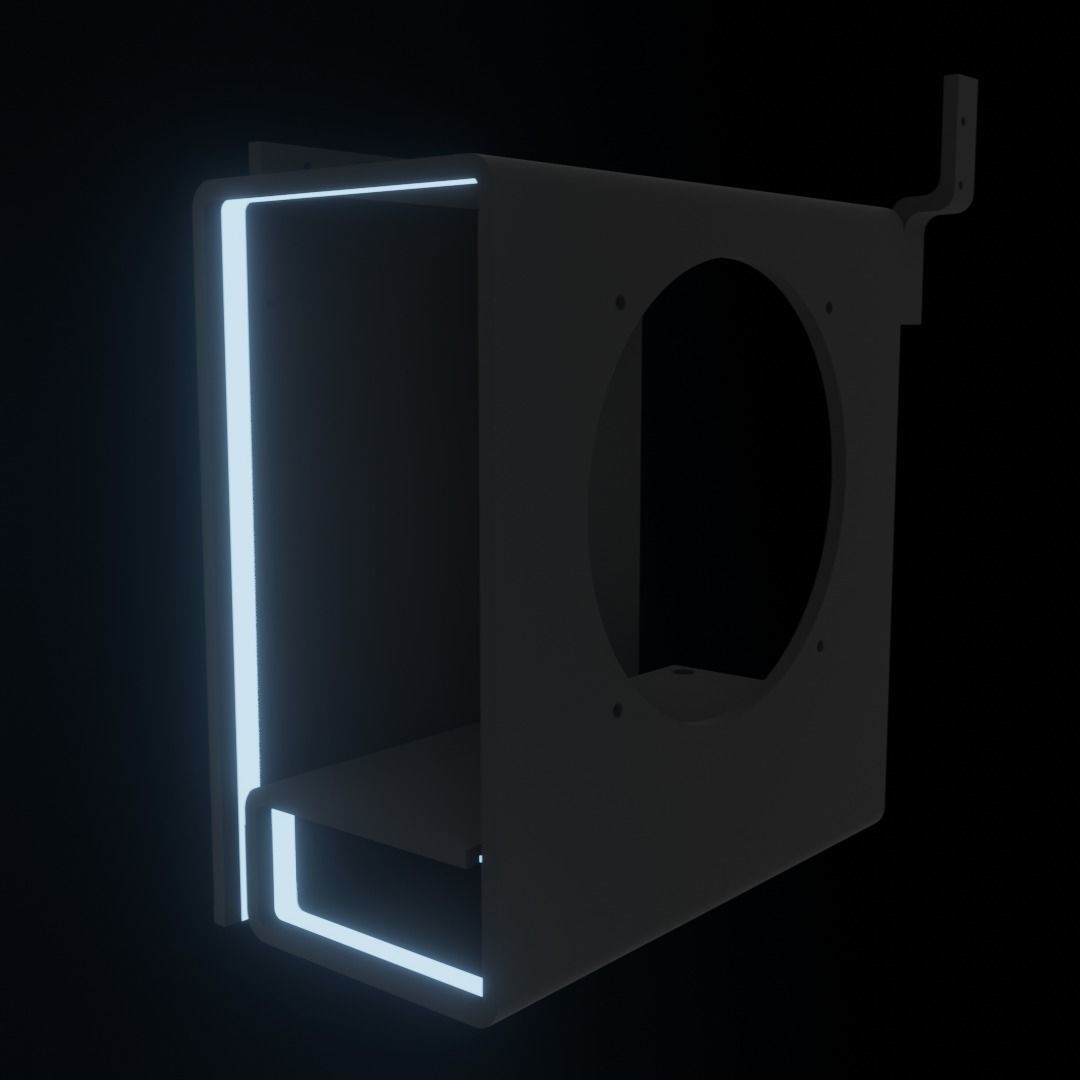

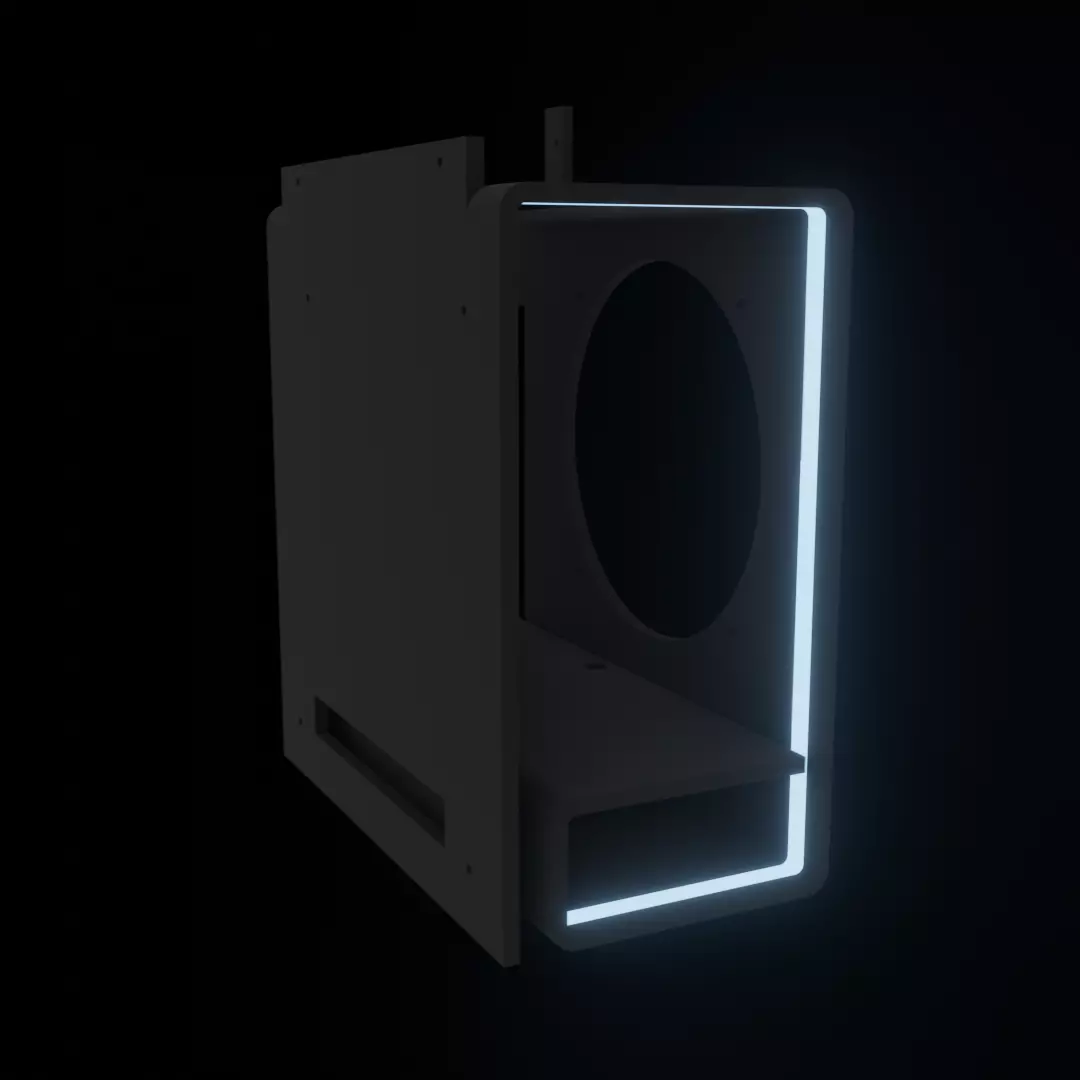

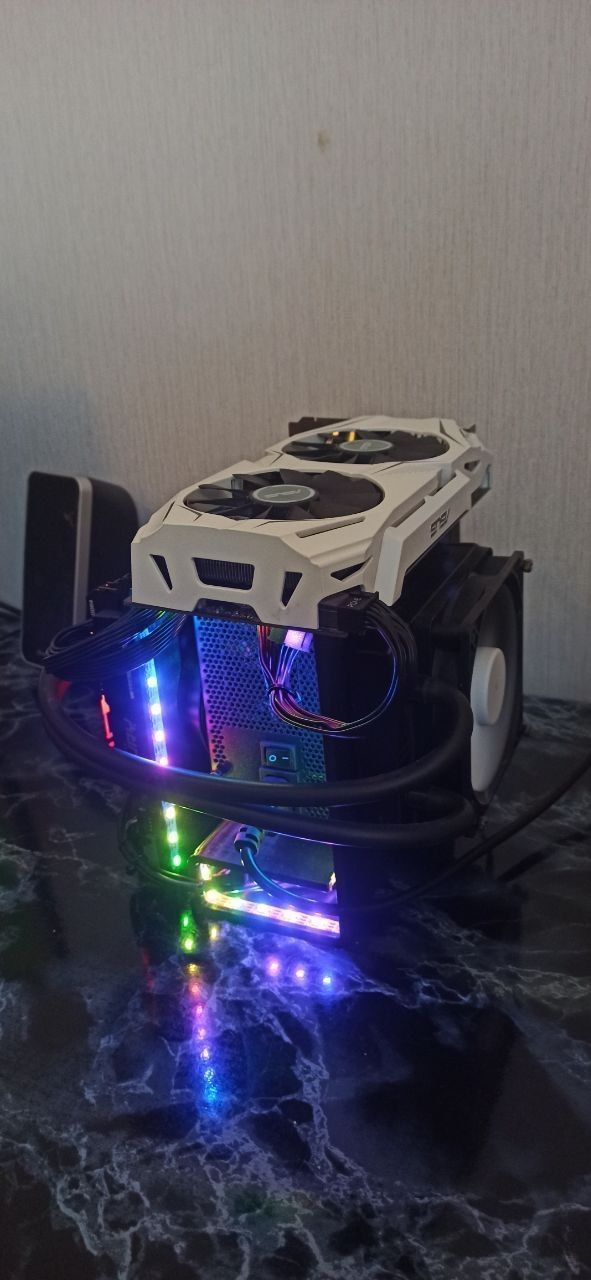

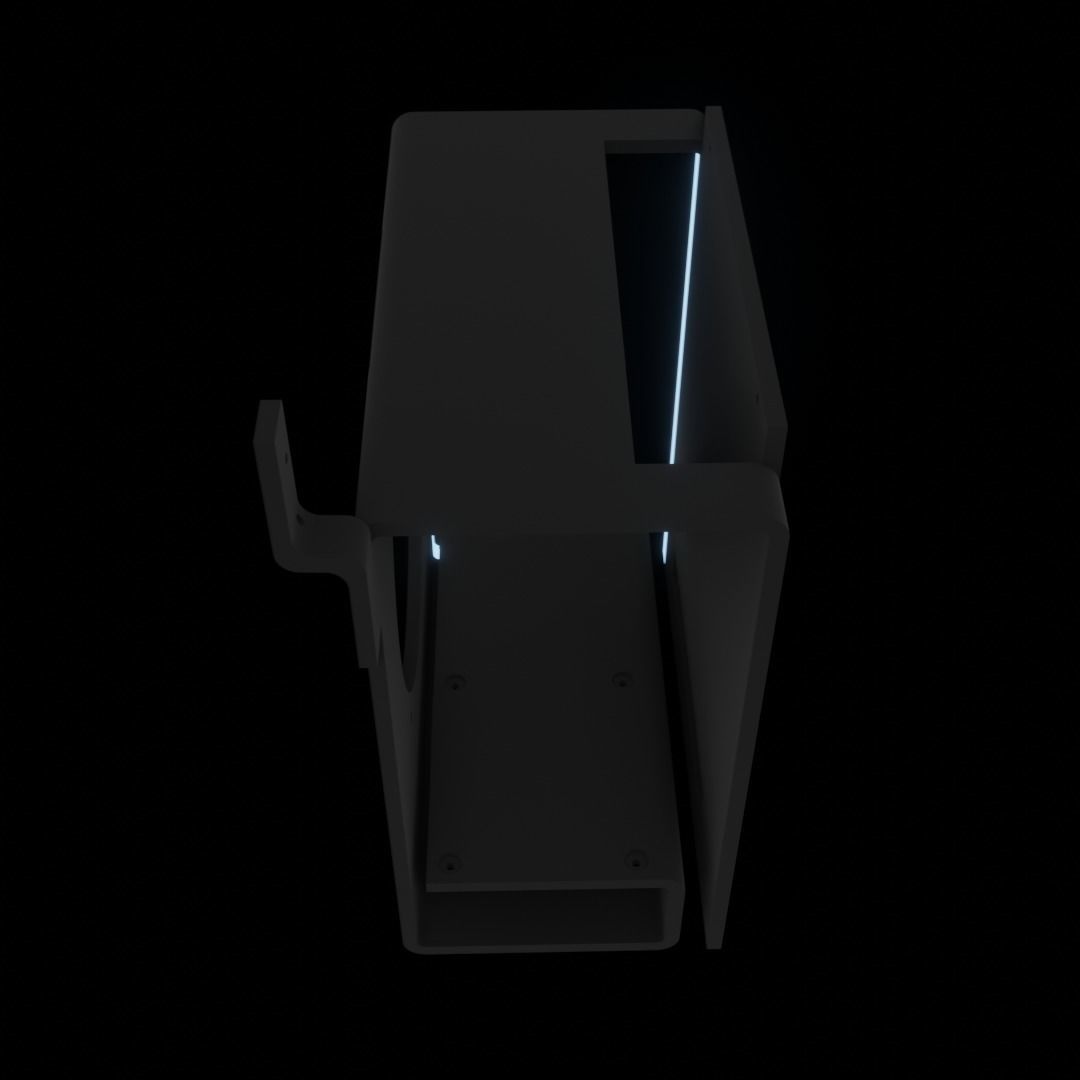

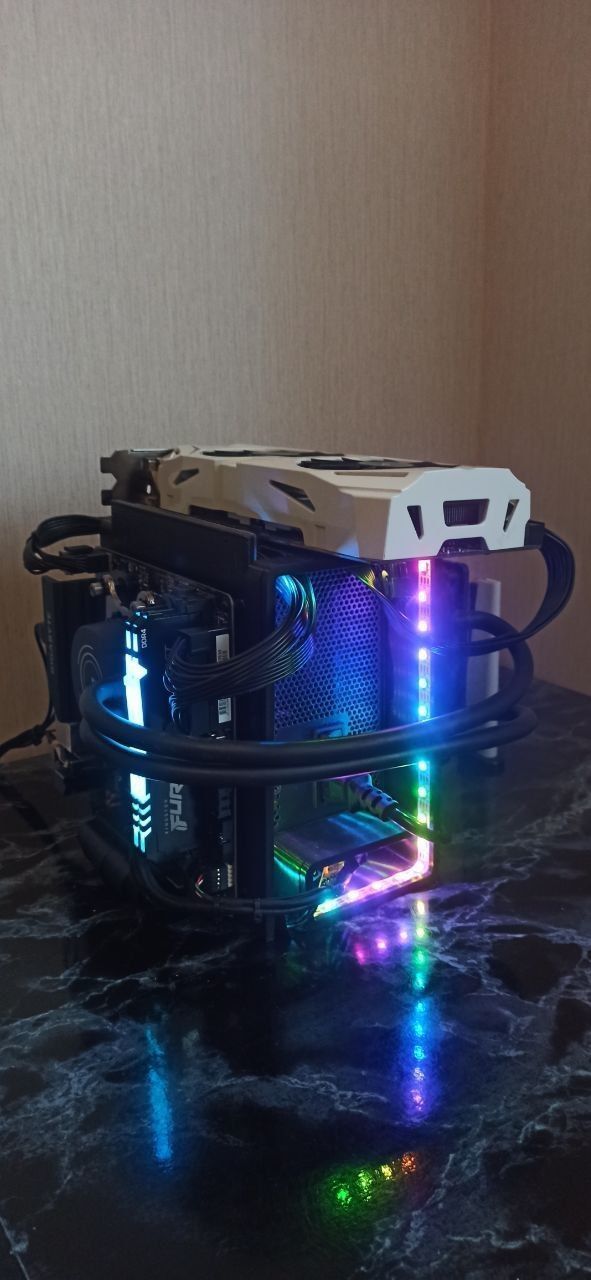

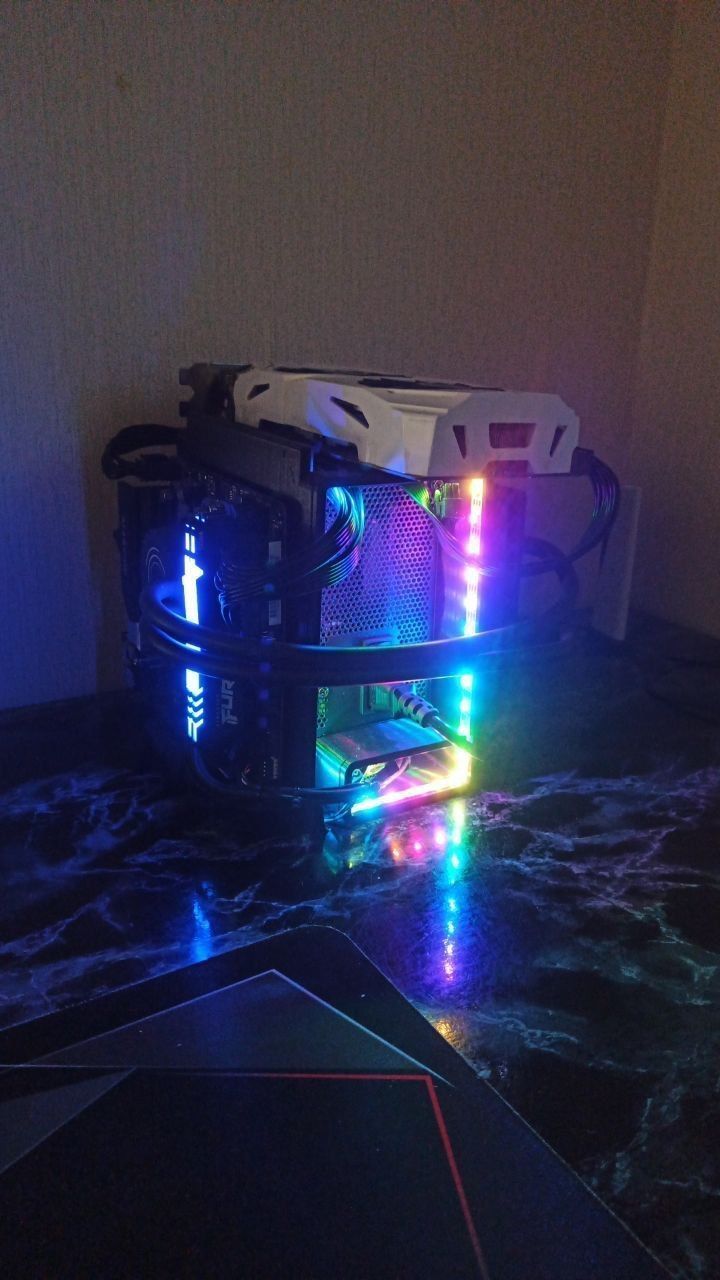

This computer case also includes the ability to glue a 1cm wide LED strip; there is a seat along the contour of the case. Naturally, the choice of a 5v or 12v LED strip depends only on your preferences and the availability of the necessary connectors on the motherboard.

Also, to install all the components into the case, you must first find the required number of correct screws for fastening. Here is a list of screws that are needed:

6#-32*3mm x4 motherboard stands6#-32*3mm x2 raiser standsM3*5mm x6 for motherboard and raiser6#-32*5mm x2 for graphic cardM3*10mm x4 for radiator3*8*0.8mm x4 washer for radiator screws

You can always consult with me before purchasing this model. I will try to answer as soon as possible.

I apologize in advance for my bad English and thank you to Google Translator for helping me write this description.

I'm currently developing a new computer case, so don't forget to check my page again from time to time so you don't miss a new creation.
