Atari 1040 ST enclosure 3d print model 3D print model

Description

!!! UNTESTED !!!

Use at your own risk. After the model will be printed and tested the price will go higher!!!

The Atari ST is a line of personal computers from Atari Corporation and the successor to the Atari 8-bit family. A computer that had a broad use in gaming, music creation, CAD, and publishing. It had an onboard MIDI controller, a desktop system, and many other interesting features.

1040STFa 520STFM with 1 MB of RAM and a built-in double-sided floppy disk drive, but without RF modulator1040STFMa 520STFM with 1 MB of RAM and a built-in double-sided floppy disk drive with RF modulator

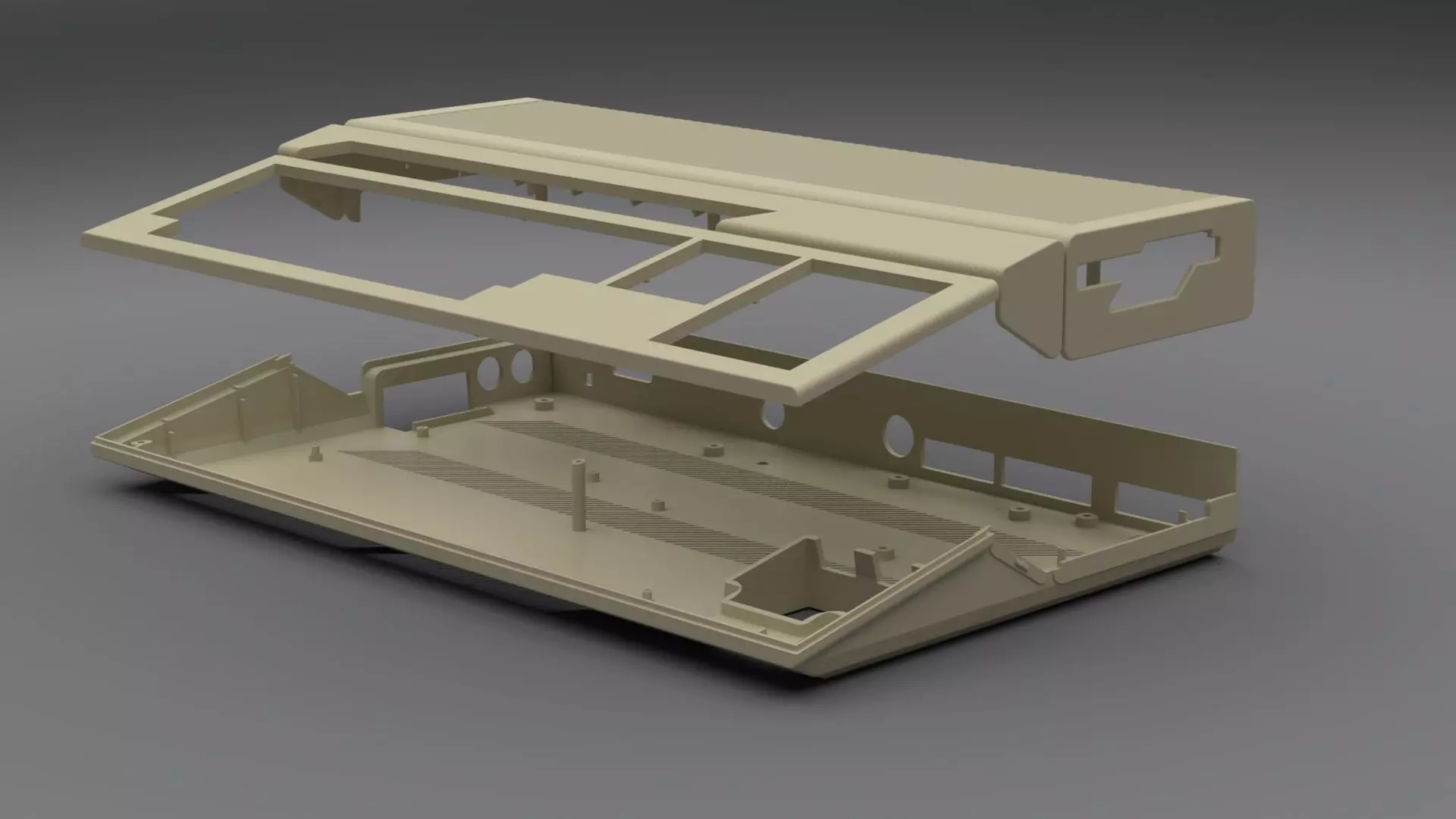

This is an exact 1:1 replication of its enclosure. It is suitable both for very large printers and for 400x400 printers. There are no variants to print it on 200x200 printer. Be careful.

Best settings for print: 1) print the vents on top, do not print it on supports2) use supports3) use 0.4 layer thickness5) PLA/PETG recommended

SolidWorks/STL,STEP files included

Write comment
F
falcon030gr
falcon030gr2024-10-24 08:23:38 UTC
It is one of the nicest adaptations I have found, great job. A couple of details missing but nothng that can't be fixed (e.g. addition of Atari model aluminum badge on the top right next to the slanted F-keys). I was wondering if you can do more adaptation on the Atari range, I can send you the cases shells themselves if needed. Please contact me at falcon30gr@gmail.com. Keep up the good job, mate!
D
dr-inside-9b86fc
dr-inside-9b86fc2023-03-16 21:18:18 UTC
Can you also adapt the design to the Atari 1040 STE? My case is broken and I can't find a replacement. I don't know how much the STE case differs from the STFM. At least there are 2x RCA sockets for stereo sound. And on the left side there are 2x 15-pin sockets that look like VGA. Unfortunately, I don't know much about 3D design, otherwise I might have been able to make the adjustments myself.
sgw32
sgw32
sgw322023-03-19 13:15:01 UTC
Hi, If you can measure the changes we can adopt the files, unfortunately I have no 1040STe. My friend who has STe said it is possible just to drill them after printing.
Item rating
2 0
S
samael88
samael882024-06-28 07:53:10 UTC
Recommended
Nice model for the price. LED holes are missing and dimensional accuracy is meh... I'll try to print it anyway after some modifications, splitting it into smaller pieces. My objective is to clone the STe version.
C
curtjarrett
curtjarrett2023-11-05 07:27:17 UTC
Recommended
Excellent work! It will fit my needs perfectly.
Atari 1040 ST enclosure 3d print model
$15.00

Royalty Free License
Atari 1040 ST enclosure 3d print model
$15.00

Royalty Free License
Ssgw32
sgw32
(24 reviews)
Response 89% in 3.5h
3D Modeling
Hire meView all Designer's Models

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw) (6 files)87.6 MBVersion: 2021Version: 2021Version: 2021Version: 2021Version: 2021Version: 2021
Exchange
  • Stereolithography (.stl) (6 files)6.68 MB
  • STEP (.stp) (7 files)40.1 MB

3D Model details

  • Publish date2021-10-28
  • Model ID#3352597
  • Ready for 3D Printing
