TABLE CUT PLASMA CNC BIG SUPPORT X150M 3D print model

Description

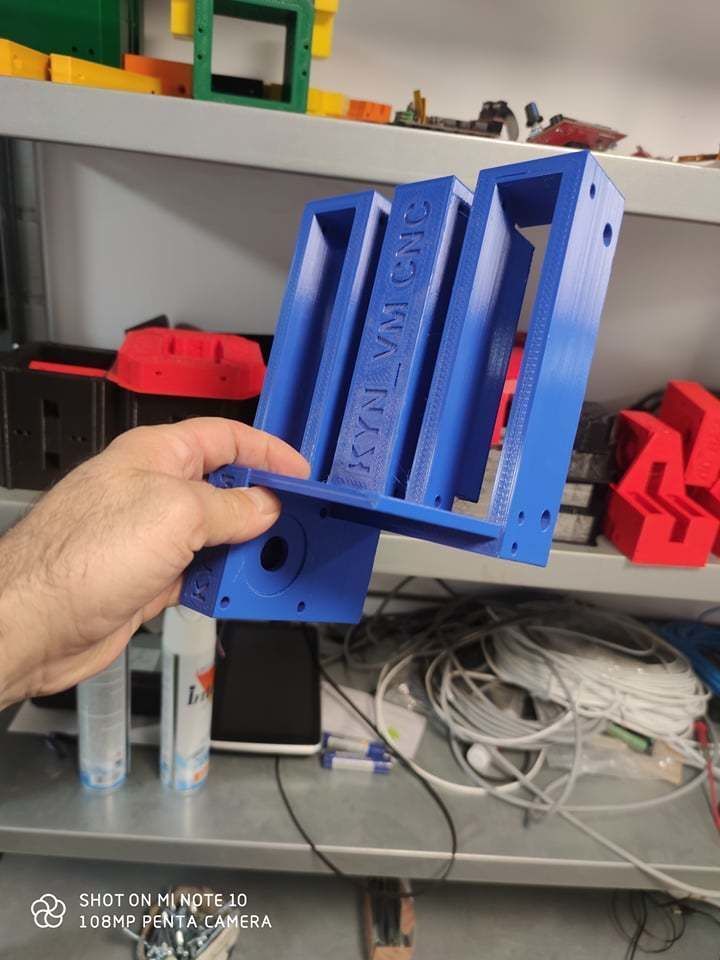

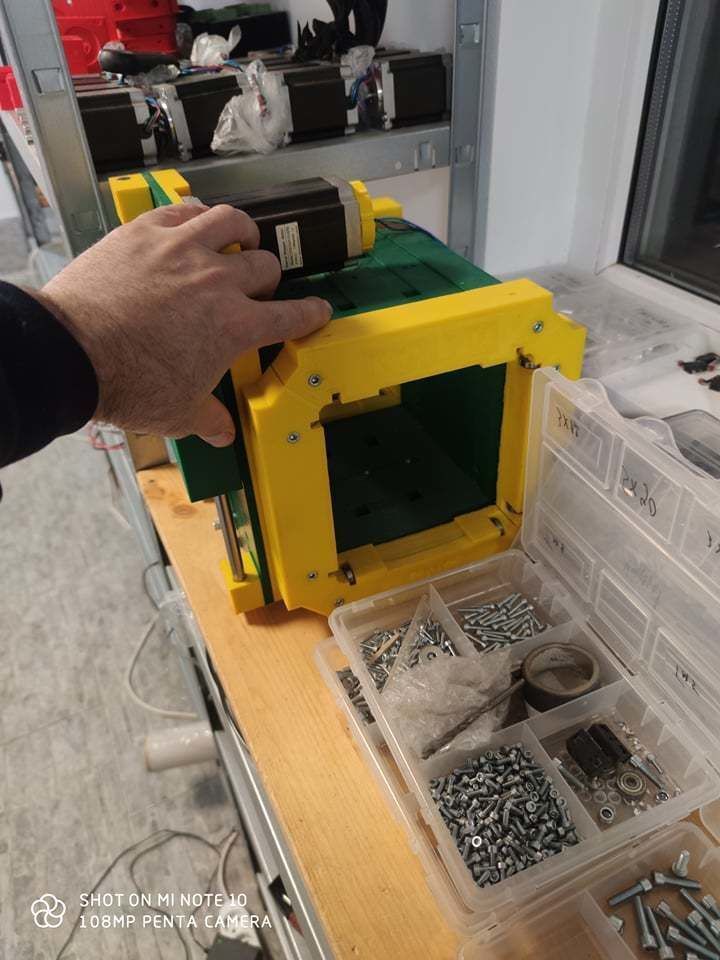

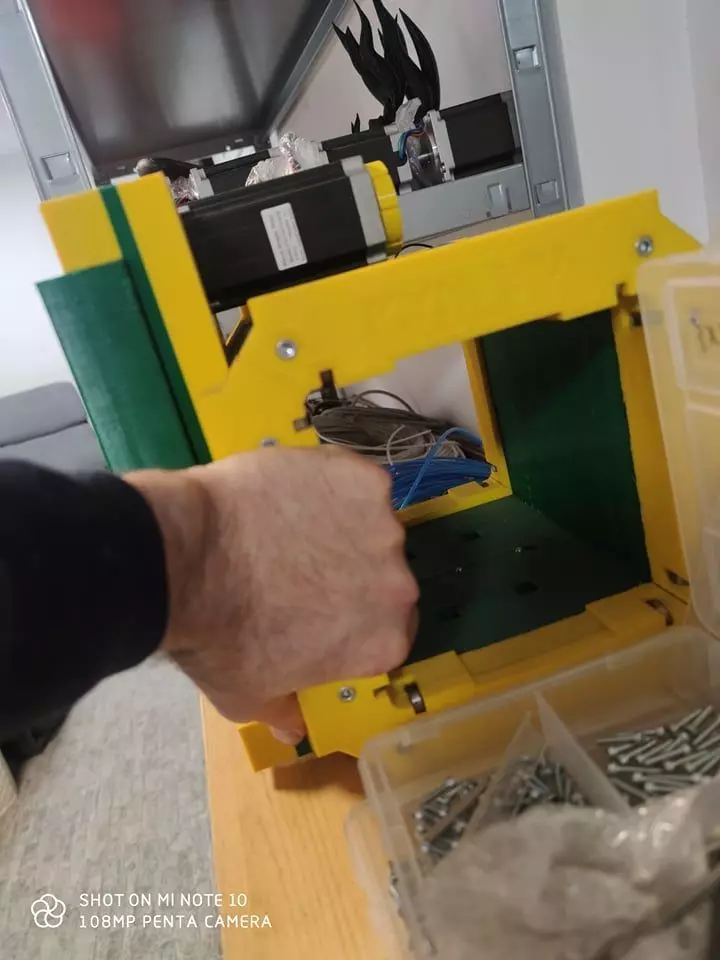

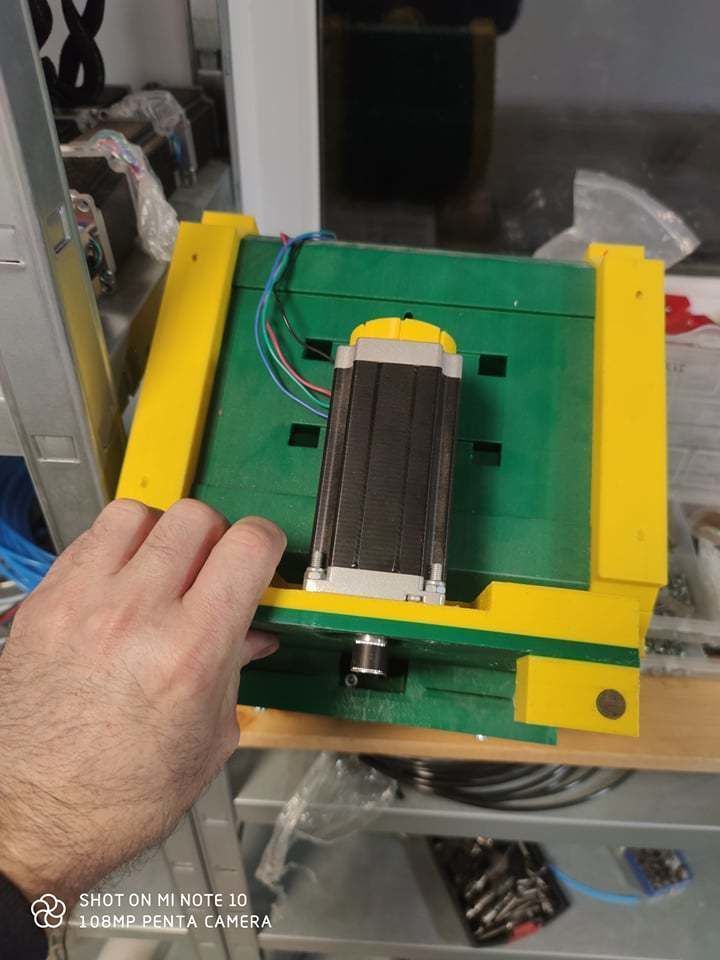

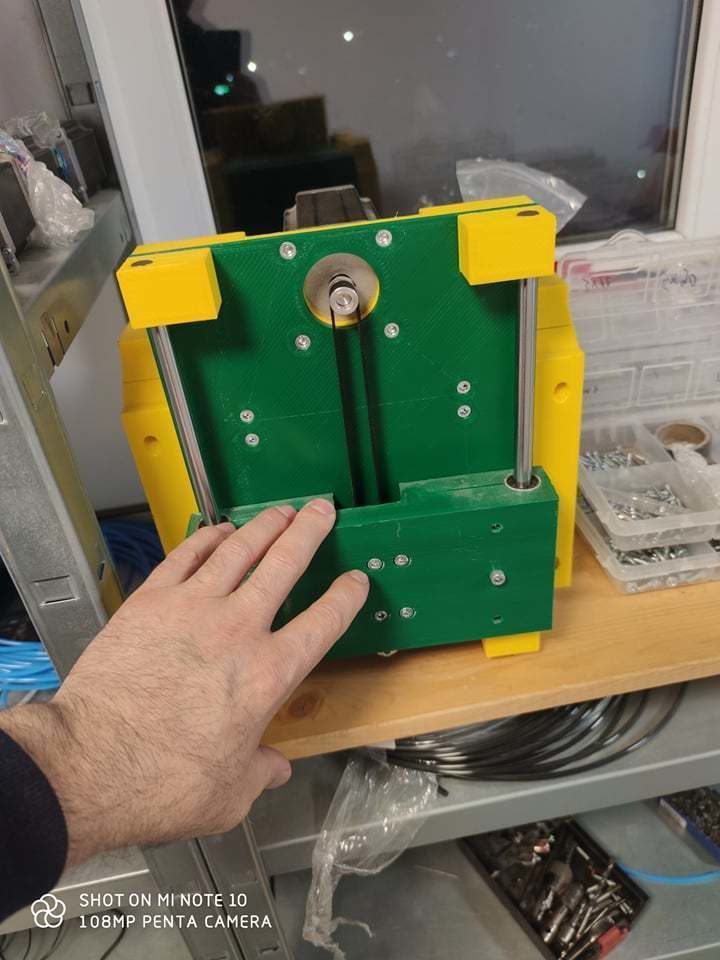

Plasma cutting table that can be built on these 3d printed modules. The CNC table can be built to the desired size up to the maximum size of Y 7000mm x X5000mm. Stainless steel profile 150mmx150mm for linear bearing, 5mm rod, Z axis bearing LM10, rectified rod LM10, nema24 motor, GT2 x10mm belt, Rectangular profile frame 150x150 steel, bearings 625-ZZ, screws 5mm . 4 motors can be mounted on the axle with double belt drive. Drivers, power supply can be hidden inside the table frame (if you want to respect the project). For more general details I will post more videos with montages here:https://www.youtube.com/channel/UCRLVMnjul-VsNgXXKuU3oTw .TABLE CUT PLASMA CNC video:https://www.youtube.com/watch?v=ijb4RvU-CrE&t=100shttps://www.youtube.com/watch?v=TdETiCNI-wMhttps://www.youtube.com/watch?v=hAycRHOr28Q .

Write comment
Item rating
0 0
TABLE CUT PLASMA CNC BIG SUPPORT X150M
$1,141.32

Royalty Free License
TABLE CUT PLASMA CNC BIG SUPPORT X150M
$1,141.32

Royalty Free License
Y
yukkiiyy11
(0 reviews)
Response 0% in 48.0h

3D Model formats

Format limitations
  • Stereolithography (.stl) (30 files)4.55 MB

3D Model details

  • Publish date2022-01-17
  • Model ID#3516898
  • Ready for 3D Printing
