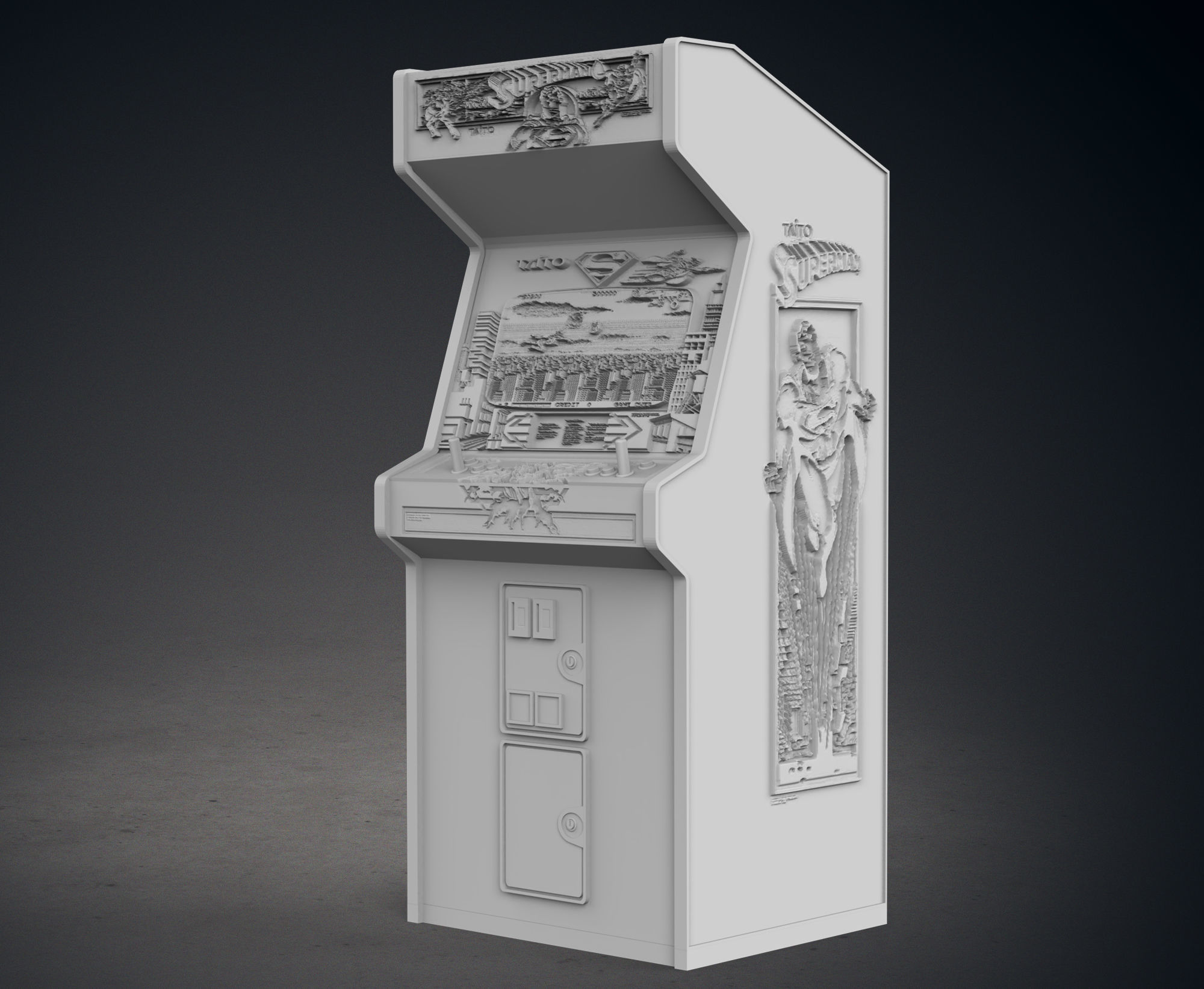

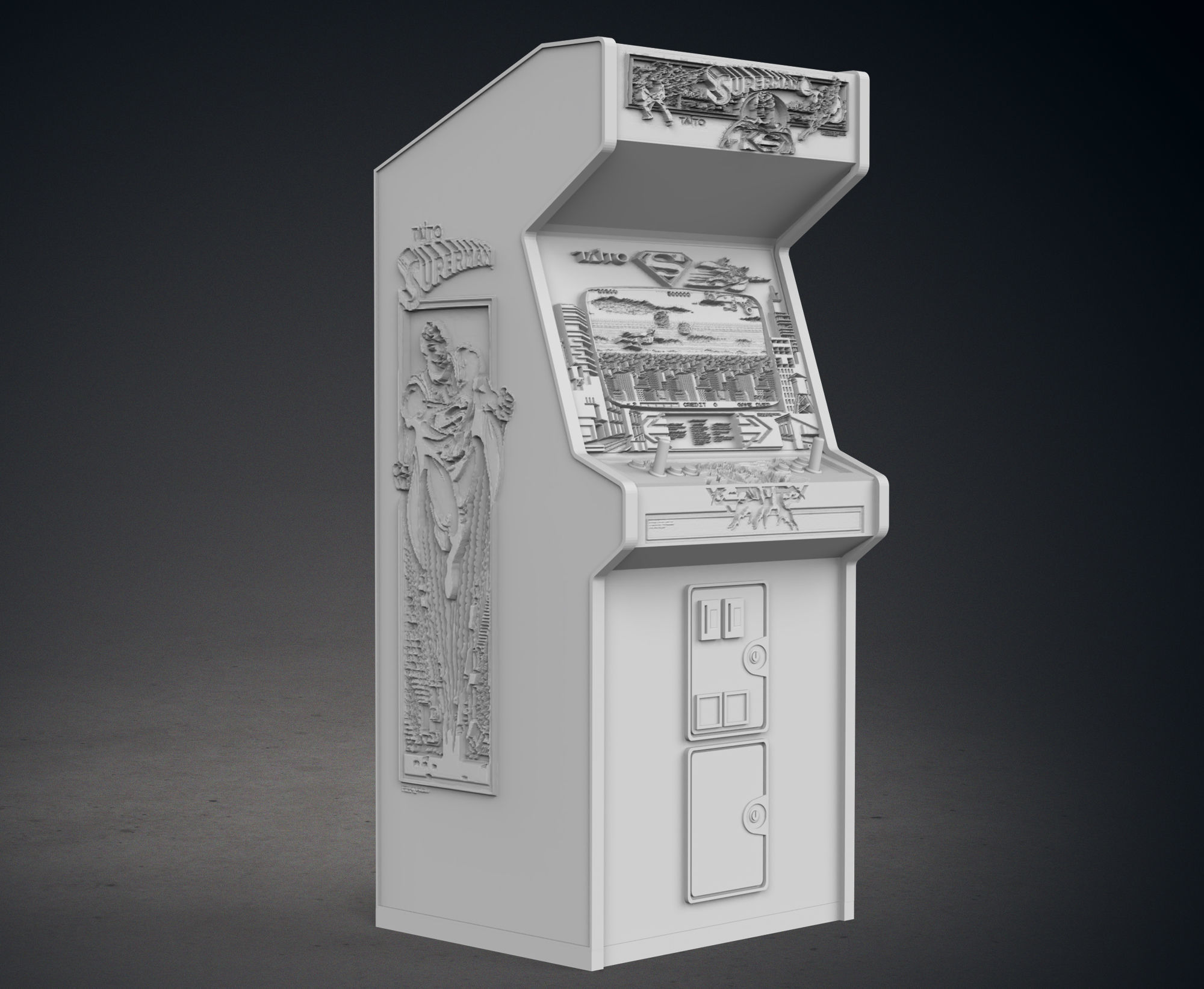

Superman Arcade Cabinet with Lithophane 3D print model

This piece is representative of a themed Superman Arcade Cabinet.

Superman is a 1989 arcade action game released by Taito and featuring the DC Comics character Superman.

While not directly based on the original film series, throughout much of the game the Superman Main Theme and Can You Read My Mind from the Superman films are used as background music.

In the game, the player assumes the role of Superman, who must fight through five levels to make the world safe from the evil Emperor Zaas, a character exclusive to this game.

The game can be played by up to two players simultaneously, with the second player taking control of another Superman with a different colored costume.

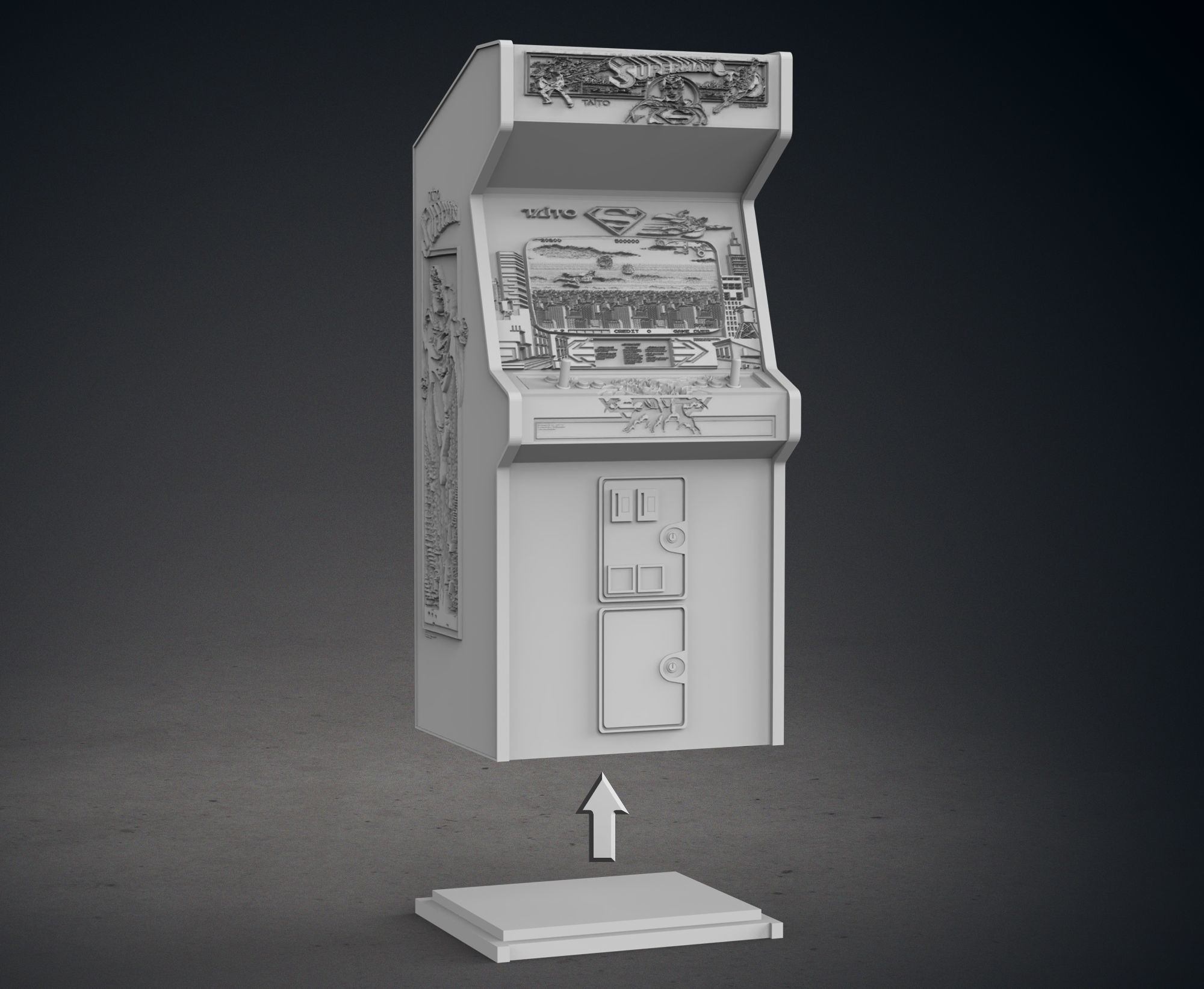

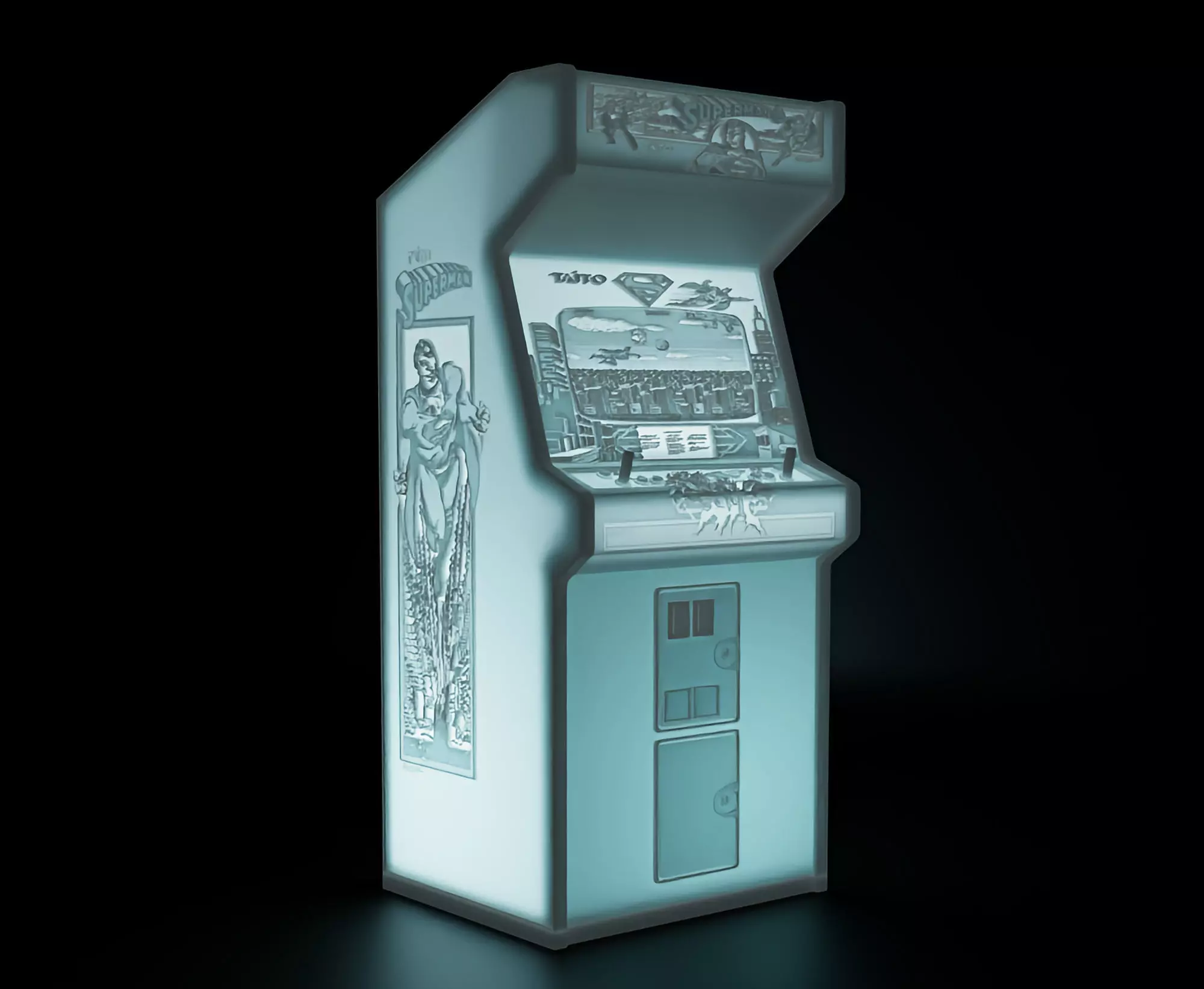

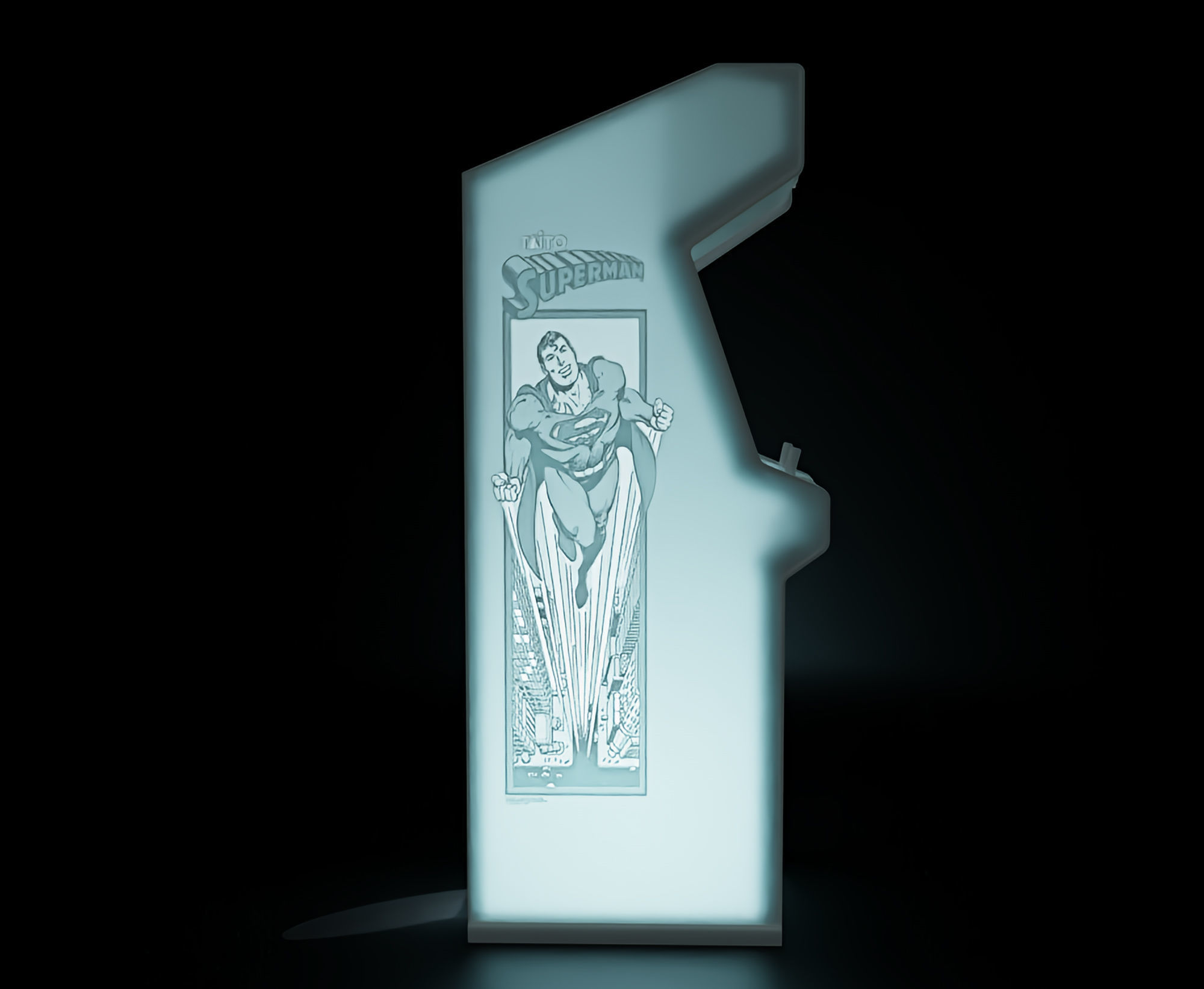

This is a 2 piece set, composed of the arcade cabinet itself and it's base. I've shown an example in the pictures how we can light up this piece, but take into consideration that we can use the light according to your own creativity (different colors, intensity, position, etc.).

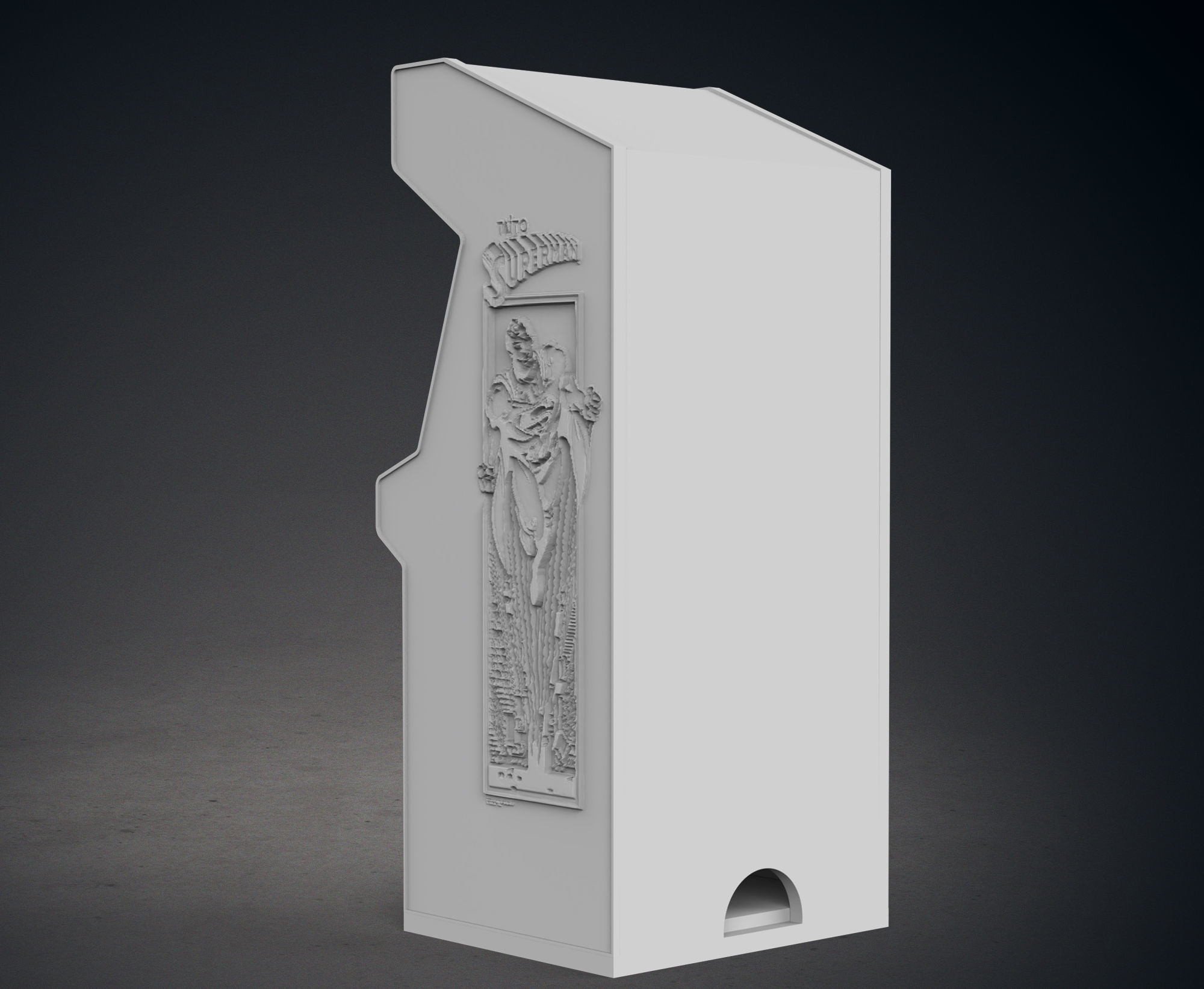

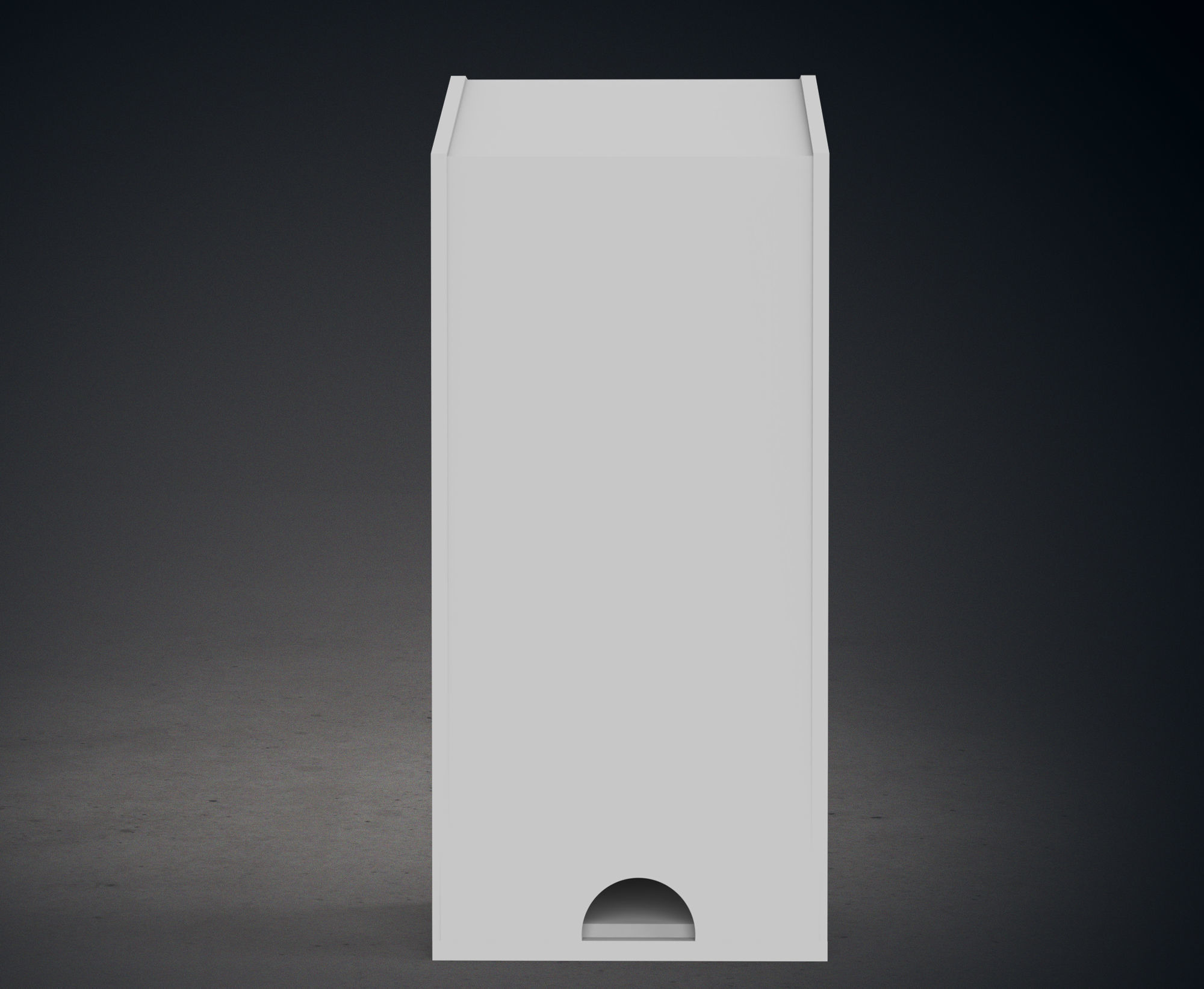

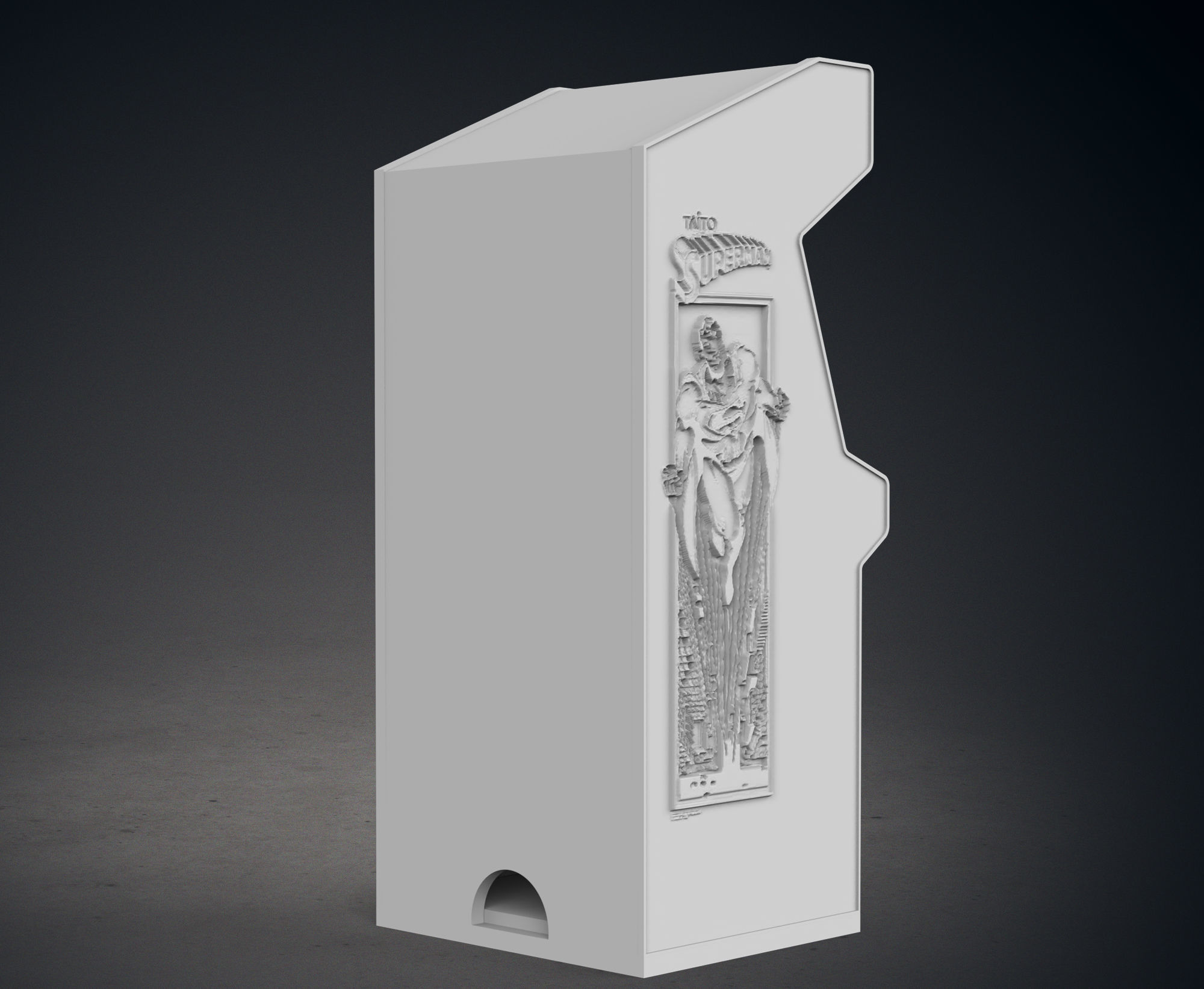

Behind the piece you will find a small hole just in case you want to use a light source with a cord (e.g. LED strip).

The arcade cabinet dimensions are the following (mm):

Height- 212

Width- 96

Depth- 90

The base of the arcade cabinet dimensions are the following (mm):

Height- 8

Width- 96

Depth- 79

Sculpting software used: Blender

Render method used for the previews: Cycles

Filament: PLA

Slicer used to 3D print: Ultimaker Cura

Settings I've used to 3D print:

Standard quality - 0.2mm

Infill - 99%

Supports - I've used regular supports for the control panel (joystick with buttons) and for the top of the arcade (inner supports).

Speed - 50% first 20 layers and 100% for the rest

Plate Adhesion - Skirt

Cooling - Enabled

Travel - Retraction Enabled
