RASPBERRY PI 3B ENCLOSURE

RASPBERRY PI 3B ENCLOSURE 3D print model

Description

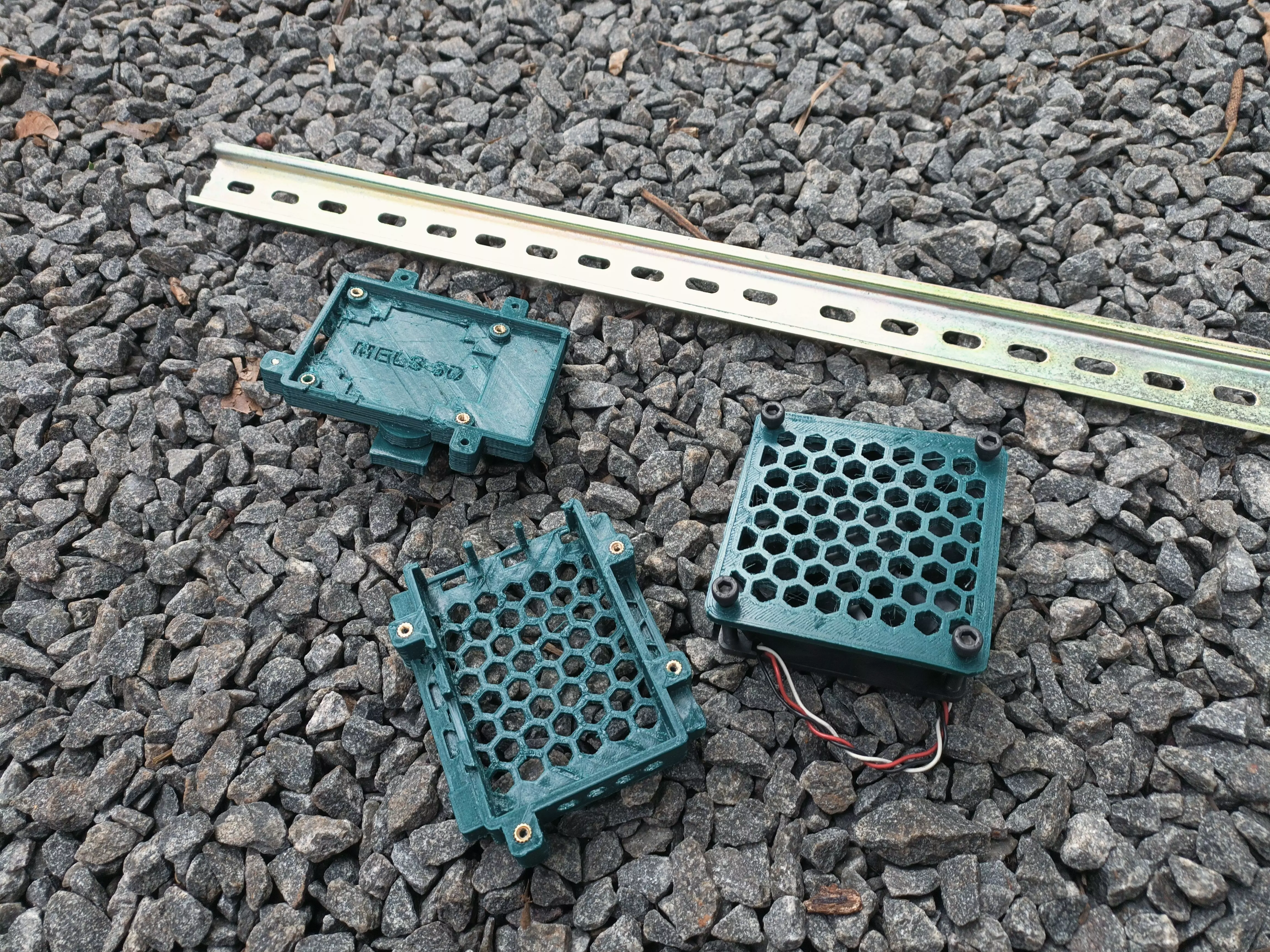

This custom raspberry pi enclosure can fit a raspberry pi 3b/3b+ and an 80mm CPU cooling fan perfectly. The only drawback is that i havnt added opening for the display ribbon cable. But i have attached the step file below if anyone wants to edit and modify. Please note that the design is only for personal use.

Bill Of Materials 4 pcs M3 x 3mm (PCB mounting) (SHCS/ALLEN KEY BOLTS) 4 pcs M5 x 30mm (Fan Mounting)(SHCS/ALLEN KEY BOLTS) 4 pcs M3 x 10mm (Enclosure locking)(SHCS/ALLEN KEY BOLTS) 2 pcs M3 x 8 (Din rail bracket mounting) 8 pcs M3 x 4 threaded brass insert/ knurling heat insert 6 pcs M5 x 4/5/6 threaded brass insert/ knurling heat insert 1 pcs 80mm CPU cooling fan

Notes : 1) Predrill the 80mm fan mounting holes with a 5mm drillbit for fitting 5mm smoothly. 2) Carefully predrill the raspberry pi 3b/3b+ PCB mounting holes with a 3mm drill bits to fit 3mm bolts for PCB mounting.

3D printing settings 0.3mm layer height 25% grid infill pla

Item rating
0 0
RASPBERRY PI 3B ENCLOSURE
$3.00

Custom License
RASPBERRY PI 3B ENCLOSURE
$3.00

Custom License
Response 0% in 48.0h
3D Modeling
3D Print Modeling
Low-poly Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
  • 3D Manufacturing File (.3mf) (4 files)1.1 MB
  • Stereolithography (.stl) (4 files)620 KB

3D Model details

  • Publish date2022-12-13
  • Model ID#4164993
  • Ready for 3D Printing
