Qbert Arcade Cabinet with Lithophane 3D print model

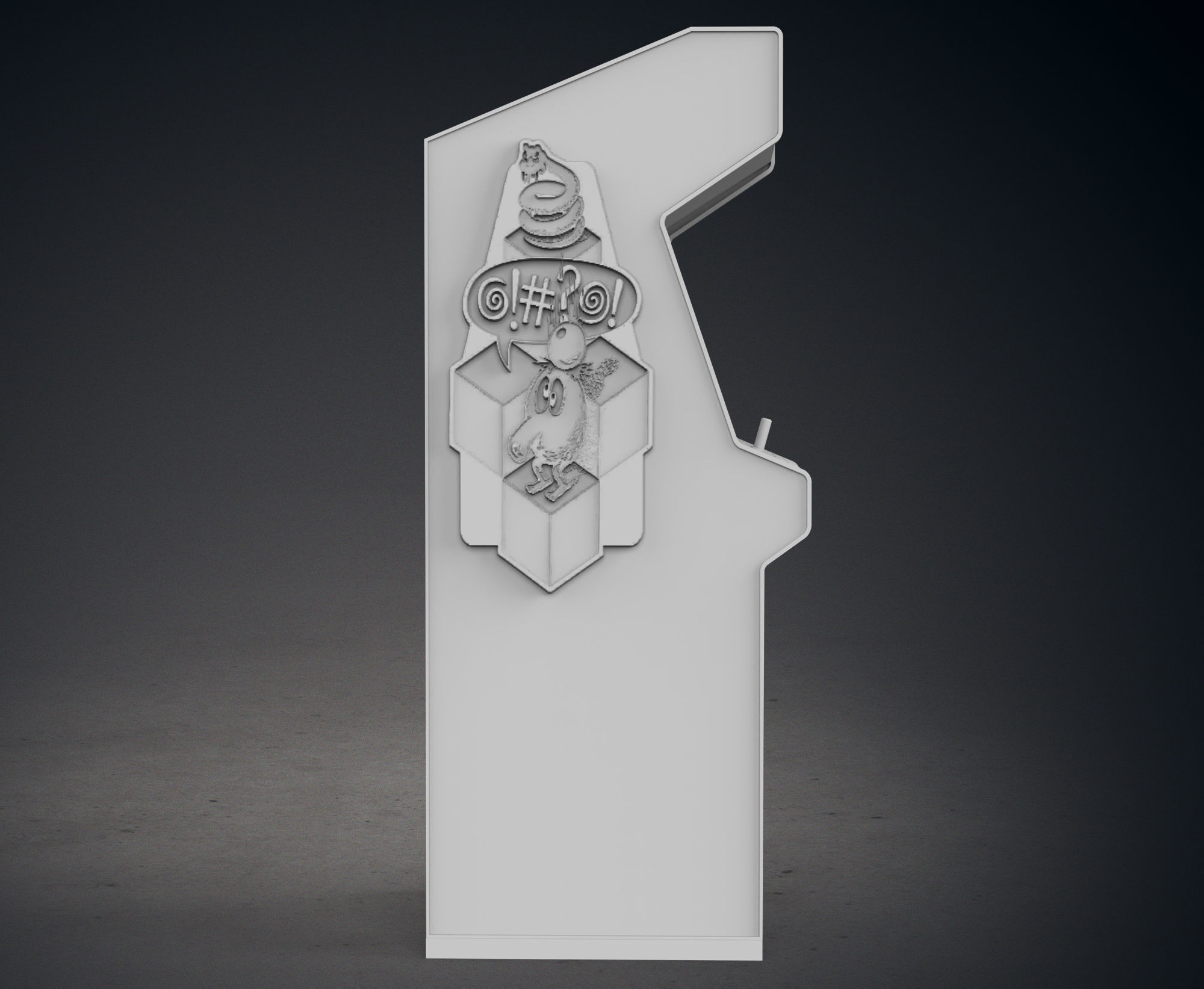

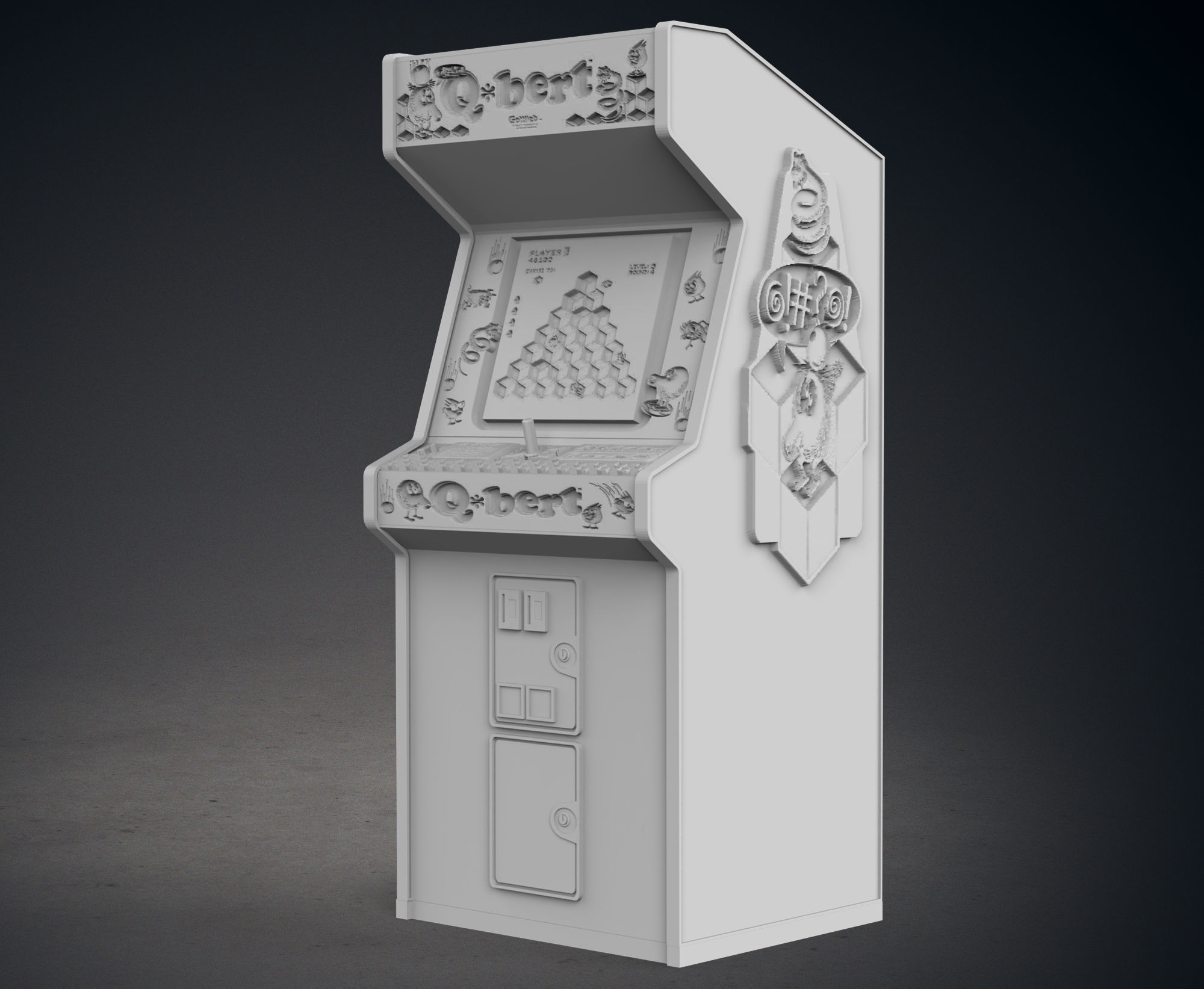

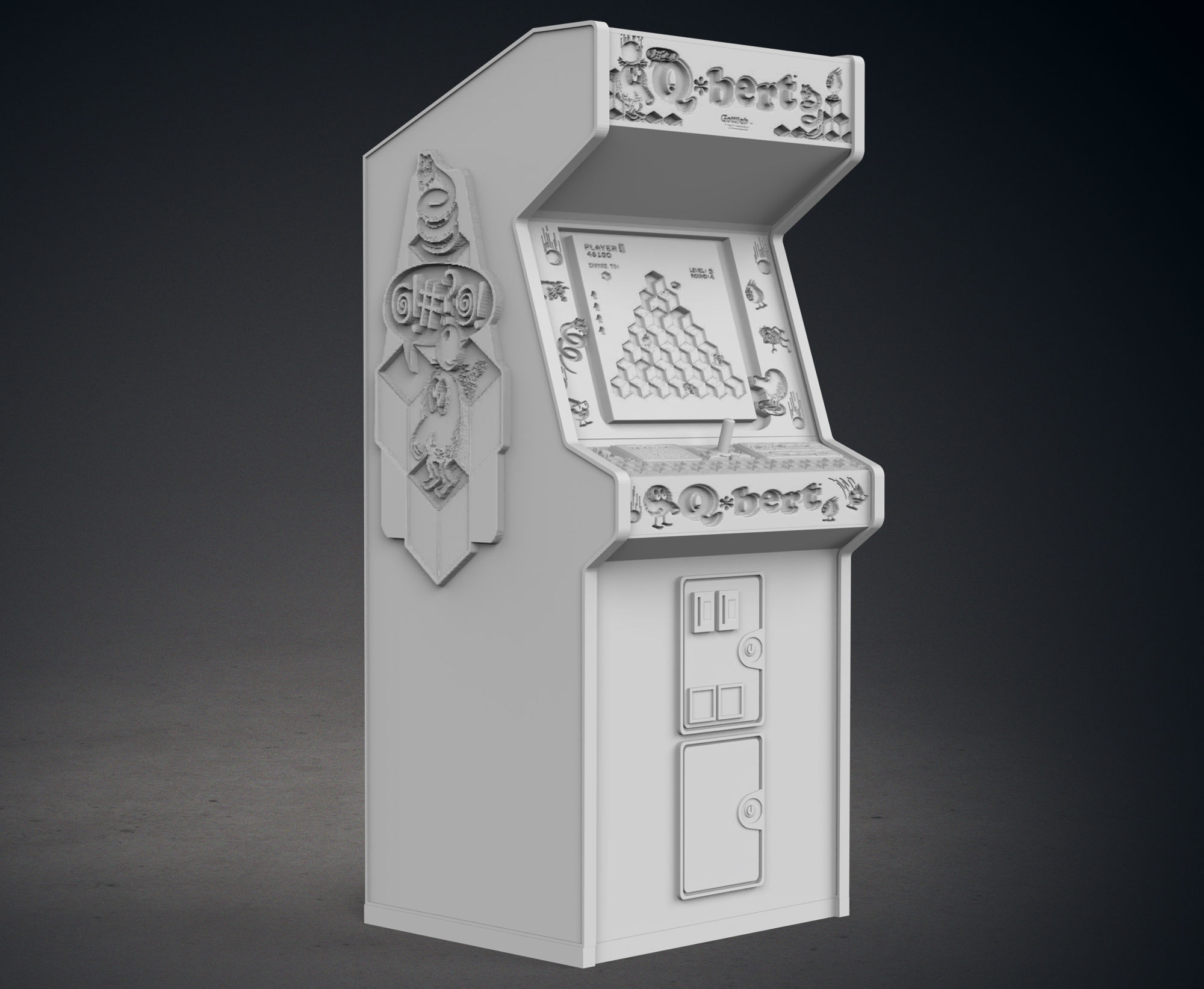

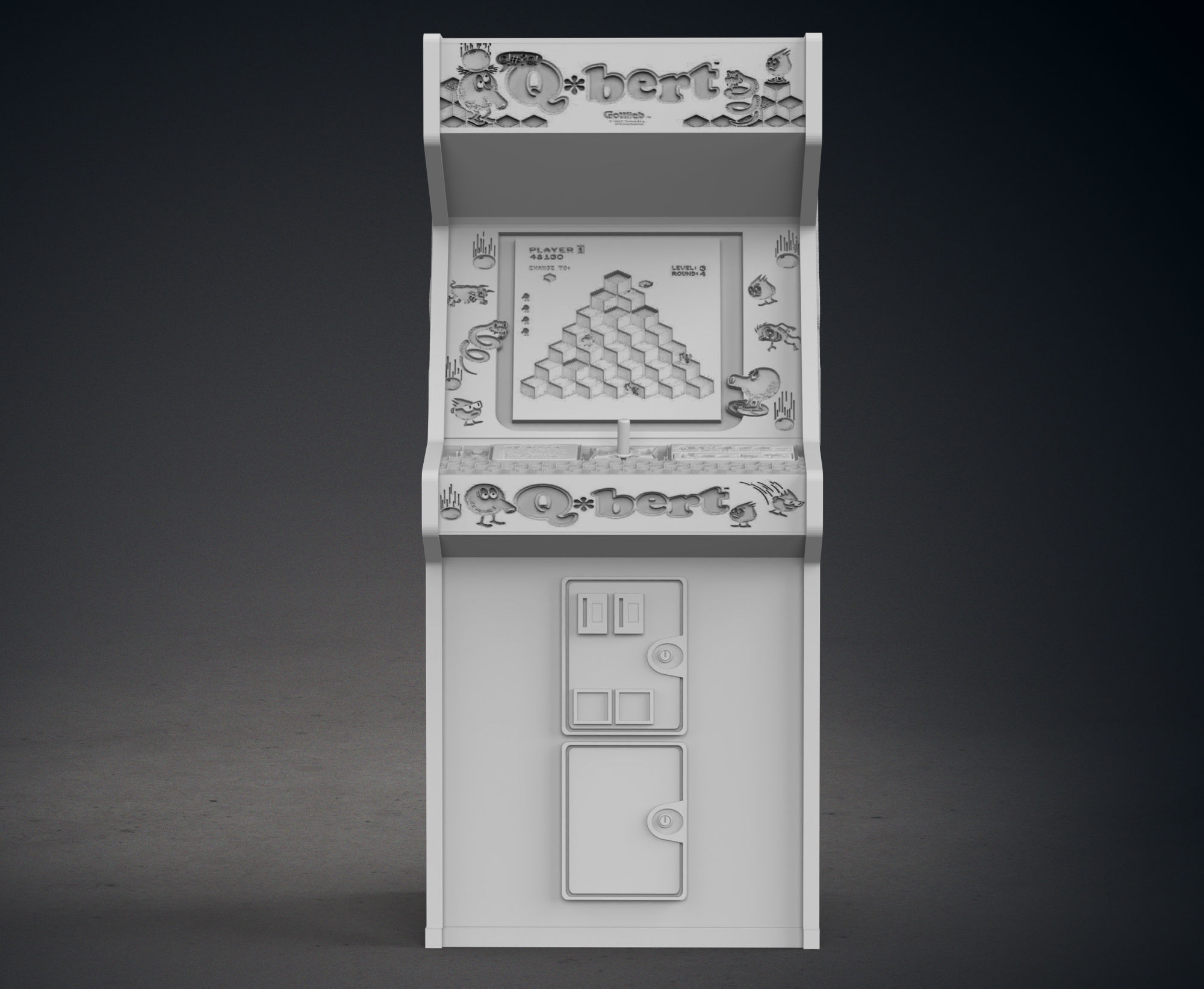

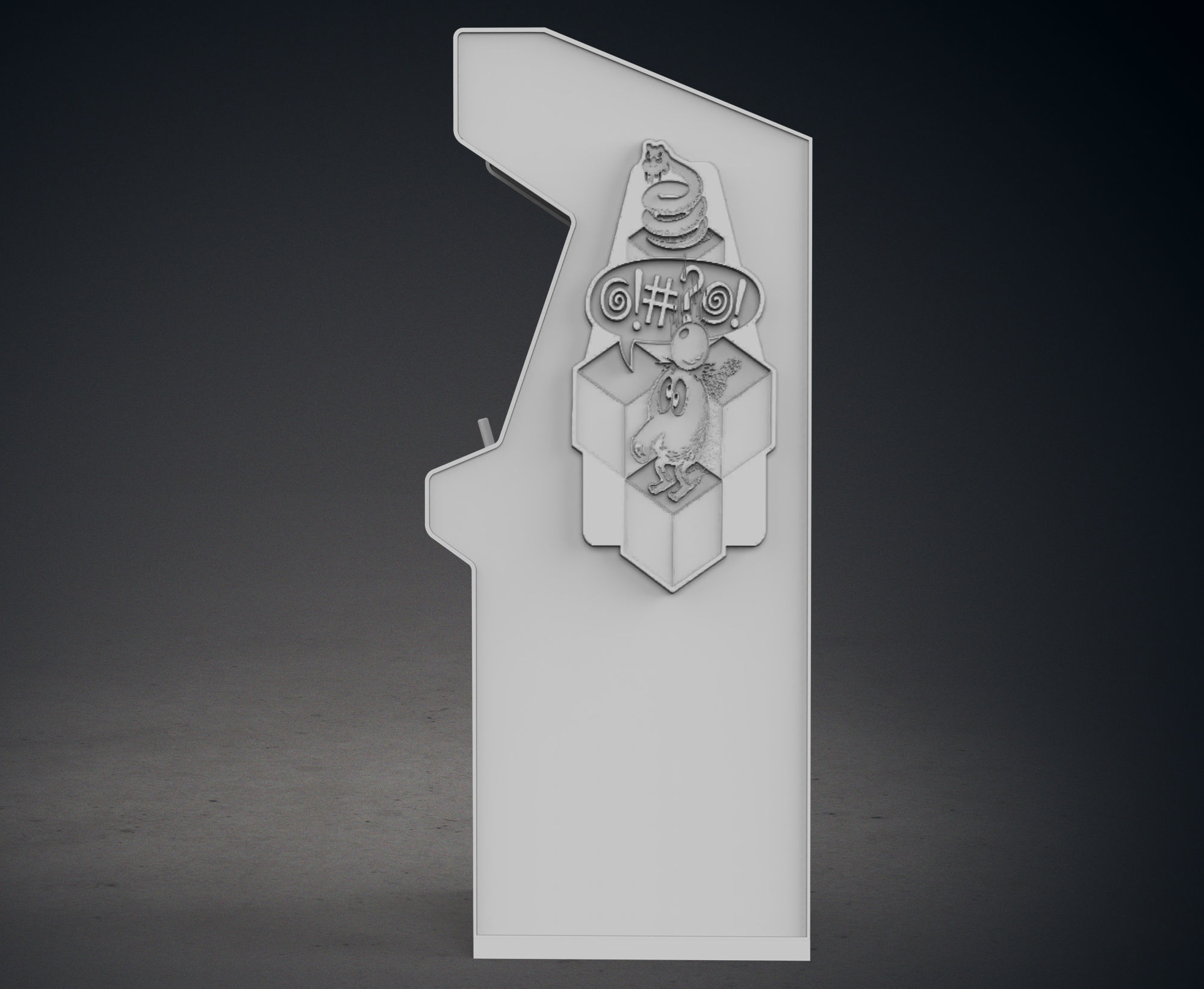

This piece is representative of a themed Q-bert Arcade Cabinet.

Q-bert is an arcade video game developed and published for the North American market by Gottlieb in 1982.

It is a 2D action game with puzzle elements that uses isometric graphics to create a pseudo-3D effect.

The objective of each level in the game is to change every cube in a pyramid to a target color by making Q-bert, the on-screen character, hop on top of the cube while avoiding obstacles and enemies.

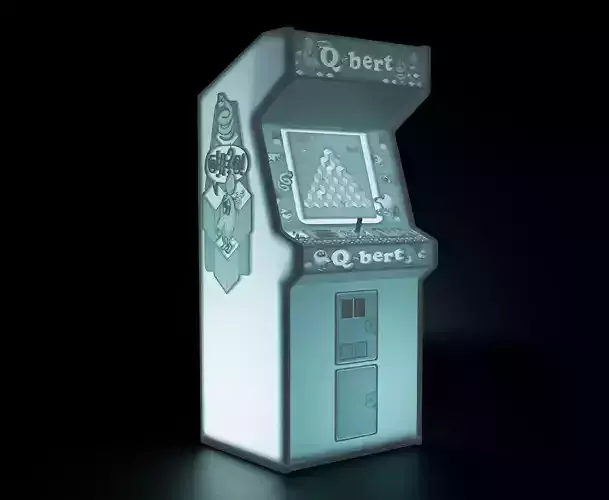

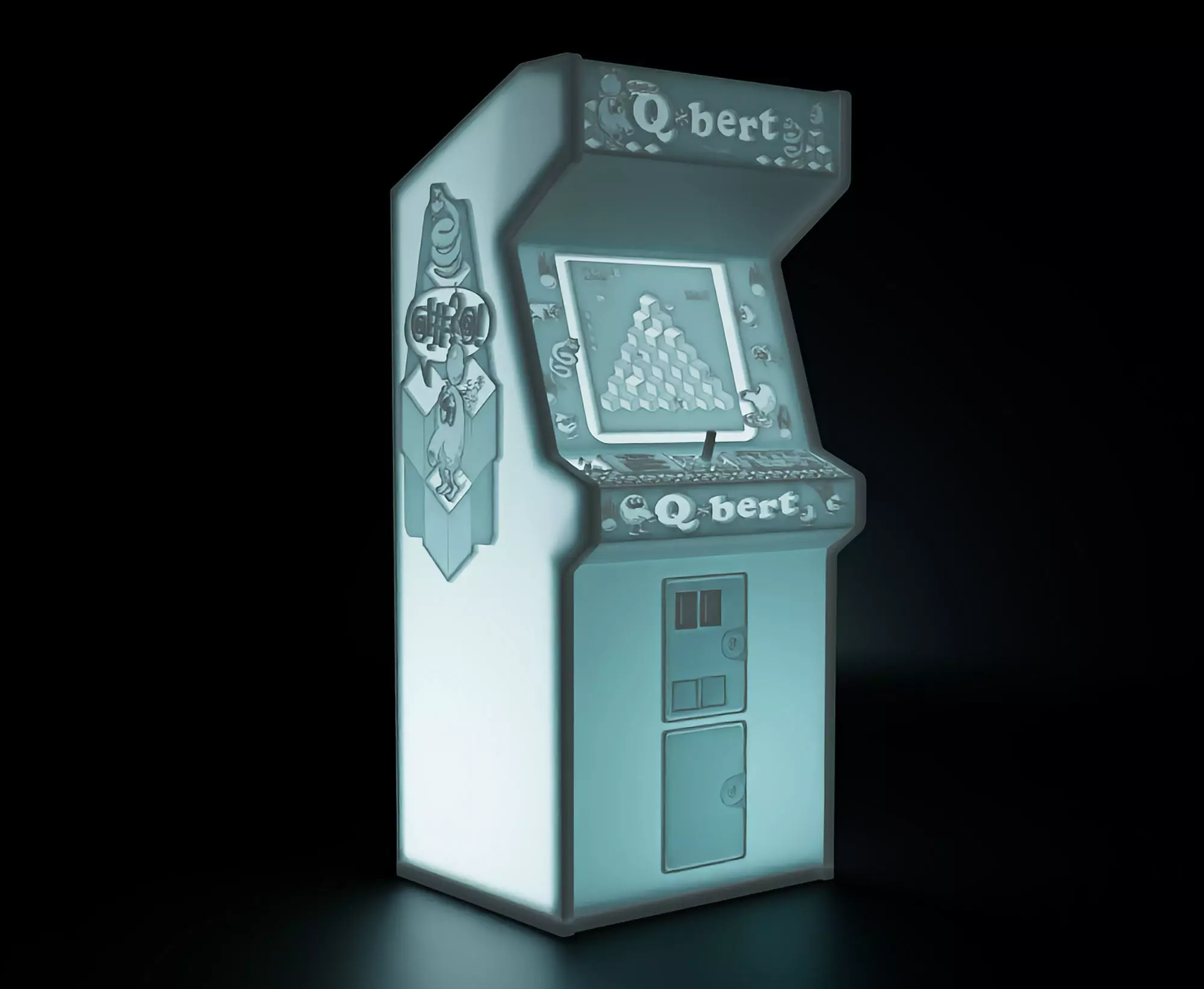

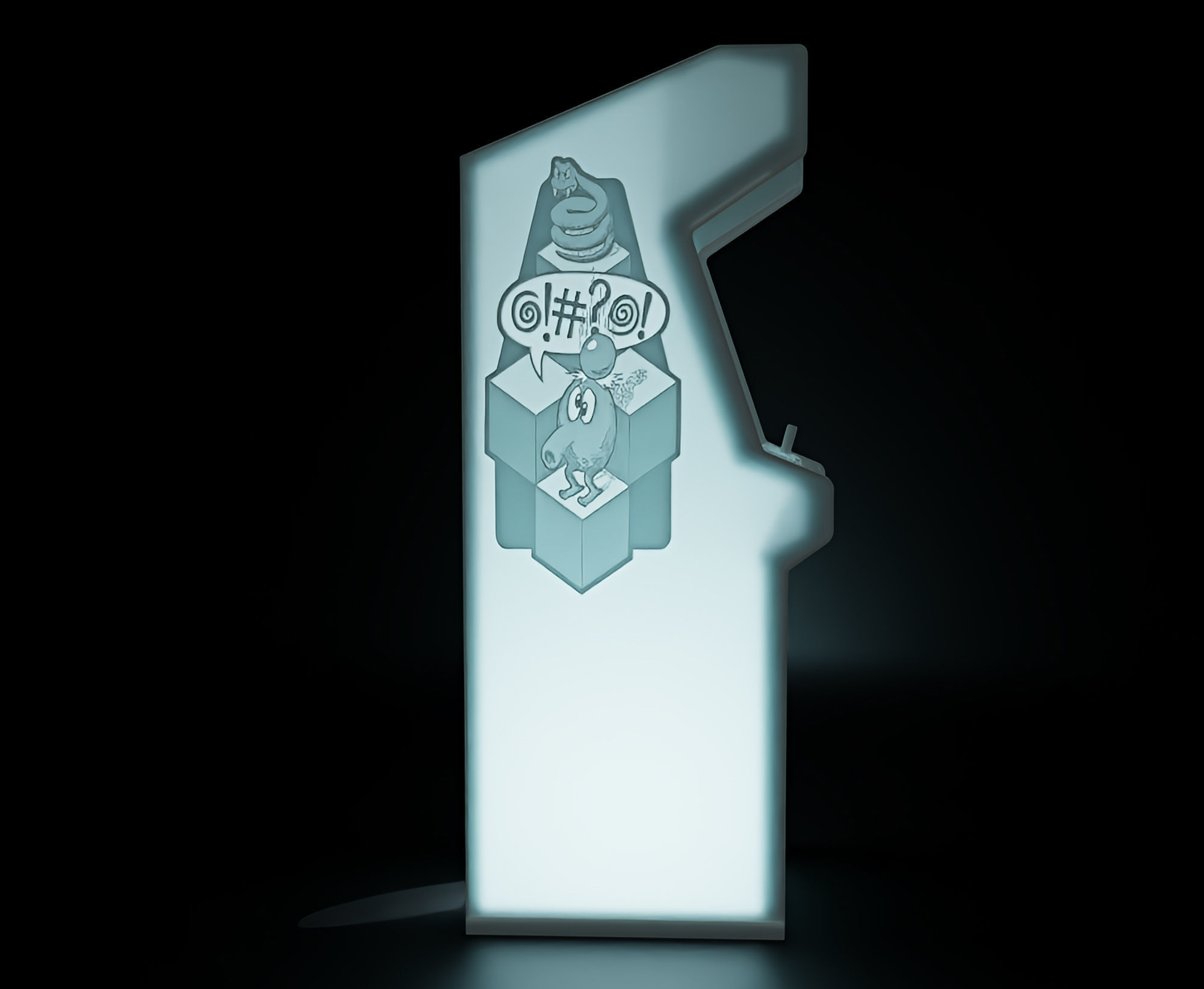

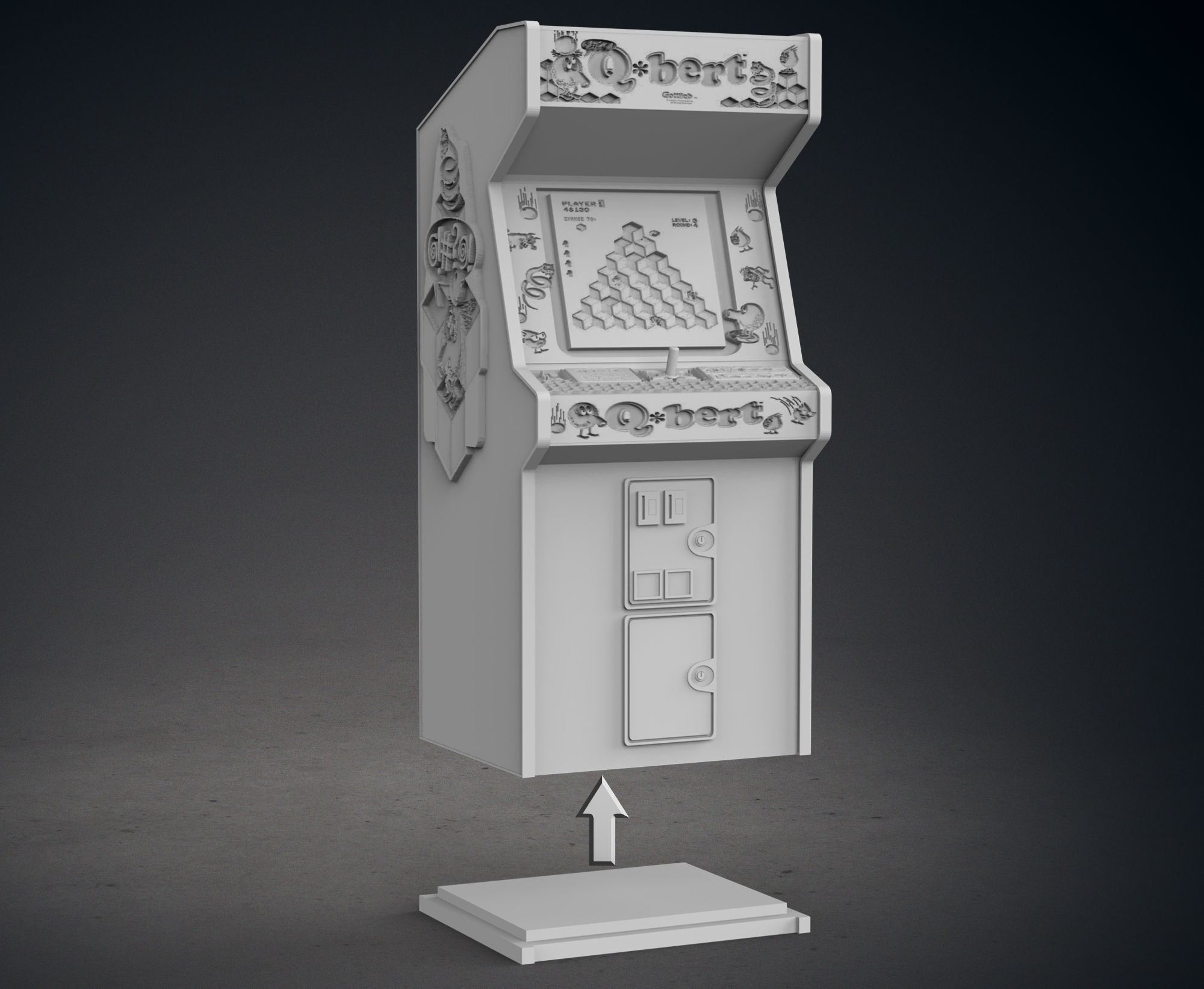

This is a 2 piece set, composed of the arcade cabinet itself and it's base. I've shown an example in the pictures how we can light up this piece, but take into consideration that we can use the light according to your own creativity (different colors, intensity, position, etc.).

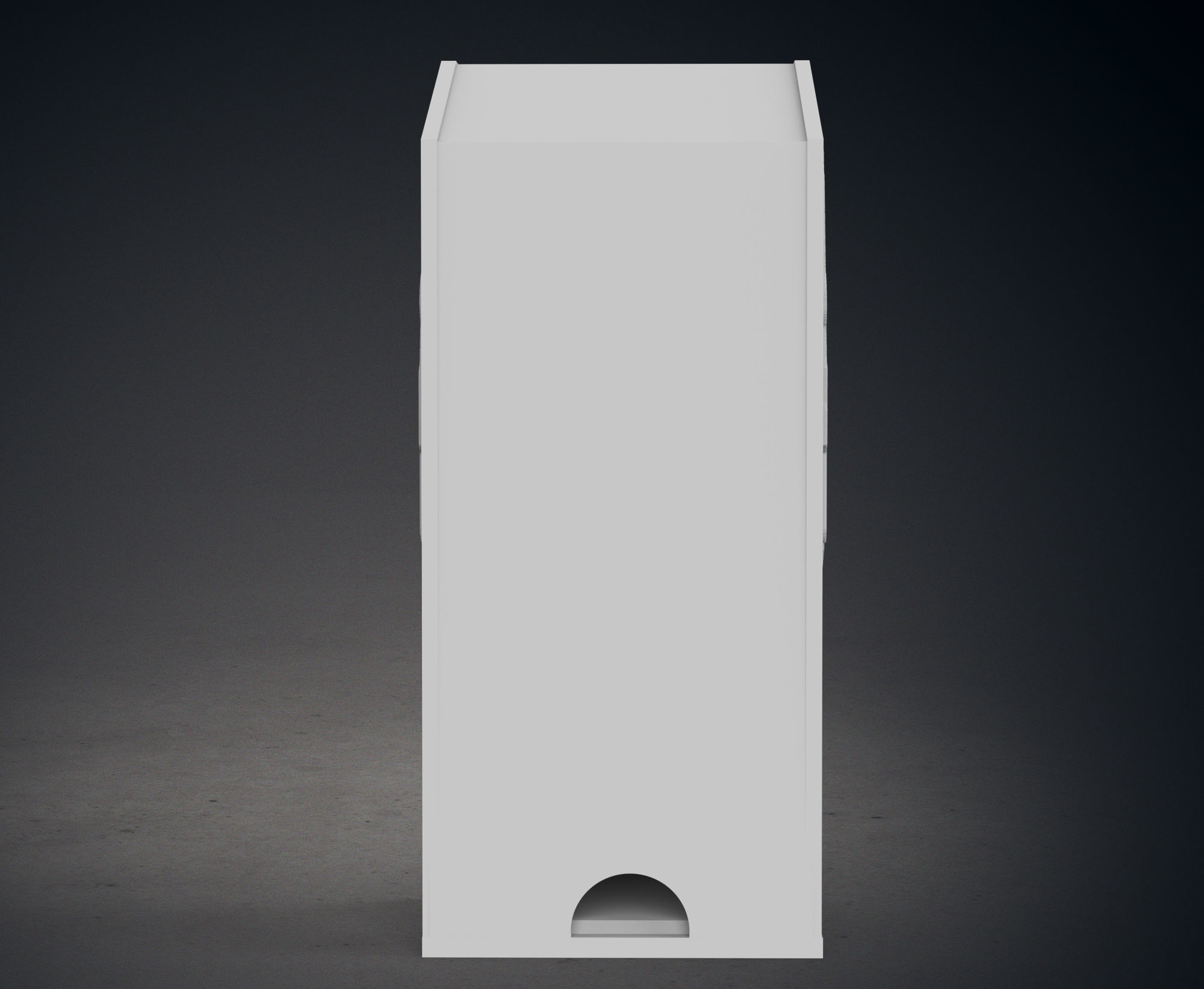

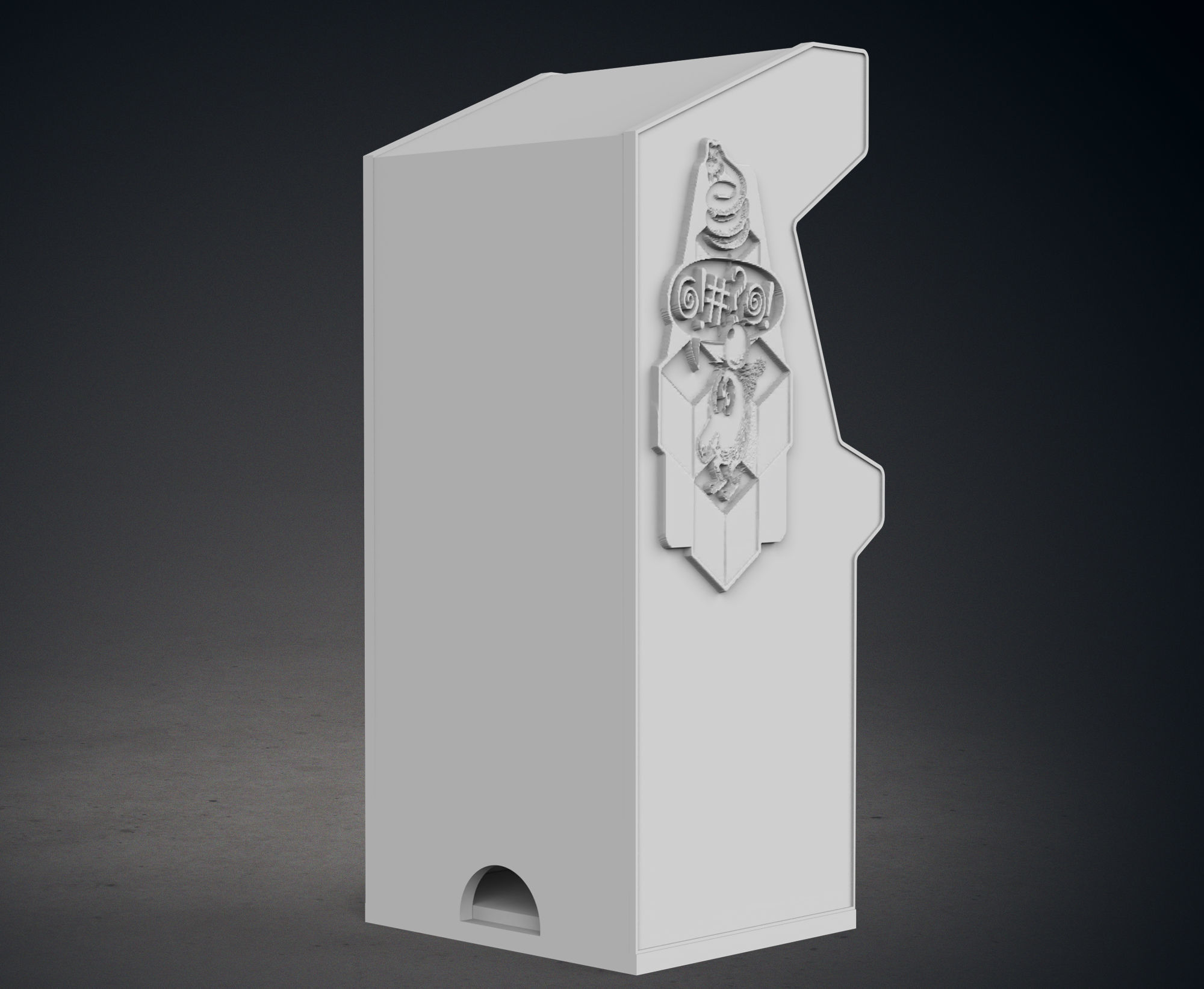

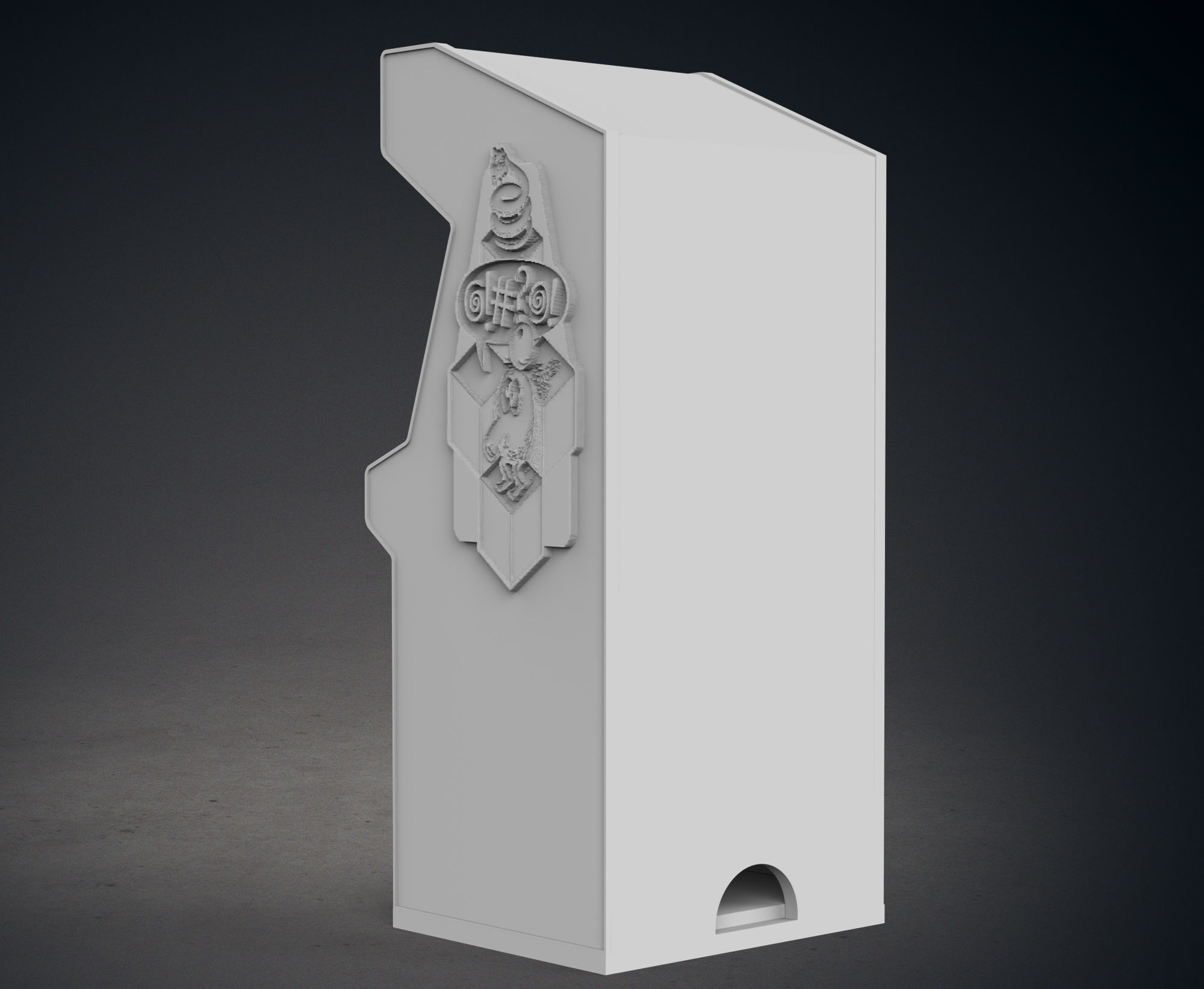

Behind the piece you will find a small hole just in case you want to use a light source with a cord (e.g. LED strip).

The arcade cabinet dimensions are the following (mm):

Height- 212

Width- 96

Depth- 90

The base of the arcade cabinet dimensions are the following (mm):

Height- 8

Width- 96

Depth- 79

Sculpting software used: Blender

Render method used for the previews: Cycles

Filament: PLA

Slicer used to 3D print: Ultimaker Cura

Settings I've used to 3D print:

Standard quality - 0.2mm

Infill - 99%

Supports - I've used regular supports for the control panel (joystick with buttons) and for the top of the arcade (inner supports).

Speed - 50% first 20 layers and 100% for the rest

Plate Adhesion - Skirt

Cooling - Enabled

Travel - Retraction Enabled
