Pipe Angle Meter 3D print model

Description

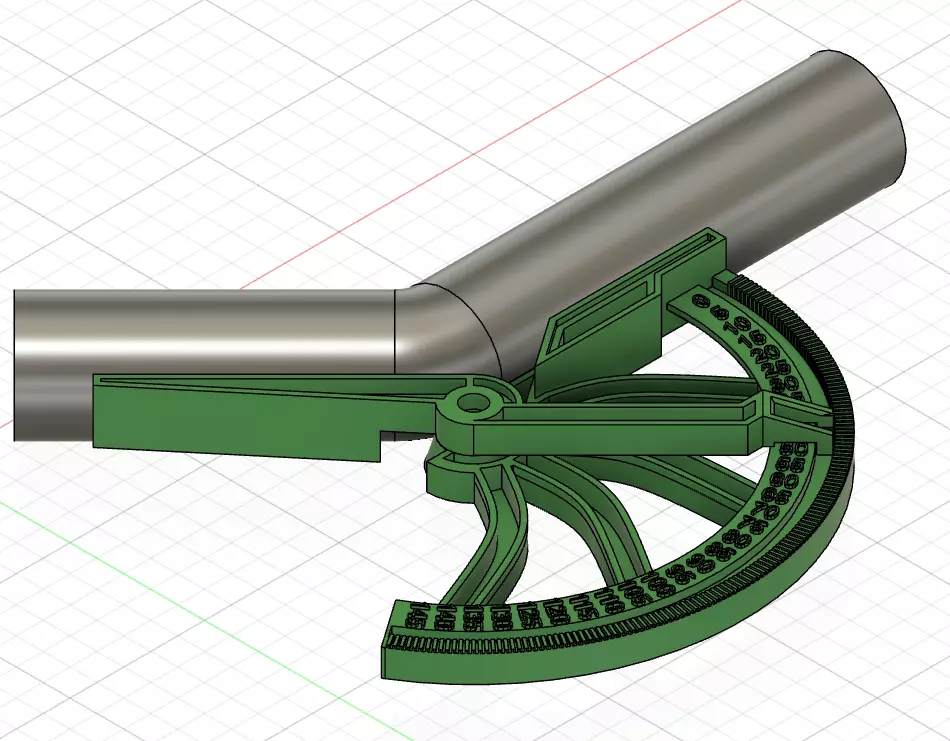

I designed this tool in Fusion 360 to accurately measure the angle of pipes using only 3D-printed parts and a single M3 screw. Its autocentering feature accommodates various pipe diameters, enhancing usability and productivity.

I printed it with a Bambu Lab P1P, using eSun PLA+ and Bambu Lab PLA Basic filaments, and the results were excellent. The tool was tested by workers at a company specializing in air vents and by a mechanic who makes custom car exhausts, confirming its effectiveness.

The clearance between parts is 0.2 mm

Write comment
Item rating
0 0
Pipe Angle Meter
$15.00

Editorial No Ai License
Pipe Angle Meter
$15.00

Editorial No Ai License
D
dimitrisg
(0 reviews)
Response - % in - h

3D Model formats

Format limitations
Native
  • Autodesk Fusion 360 (.f3d)2.96 MB
Exchange
  • Stereolithography (.stl) (3 files)1.91 MB

3D Model details

  • Publish date2024-10-30
  • Model ID#5611980
  • Ready for 3D Printing
