Parametric Case for Esp32 Wroom 3D print model

ESP32 USB Board Case with Parametric Back GPIO Cover

*Overview:*

This custom-designed case is tailored for 51-51.5mm x 28.5mm ESP32 USB development boards and accommodates any SSD1306 display module. The design focuses on ease of assembly, accessibility, and adaptability for various modules. Built around https://www.amazon.com/ELEGOO-ESP-WROOM-32-Development-Bluetooth-Microcontroller/dp/B0D8T53CQ5

*Key Features:*

• Two version: One with Parametric GPIO Space one minimal and headerless if you desolder pins for super small form factor.
• Perfect Fit: Compatible with 51-51.5mm x 28.5mm ESP32 USB boards and any SSD1306 display.
• Parametric Back GPIO Cover: Resize the GPIO cover to suit additional modules, such as SPI card readers or 12mm tactile switches. (extends both back and down)
• Easy Assembly: Requires only 2x M2 heatset inserts and 2x M2 screws for secure construction.
• Slide-On Top Design: Effortlessly slides together with minimal effort and precise alignment.
• Accessibility: Button on boot for single-button navigation. Through hole to push reset pin.

*Tips for Assembly:*

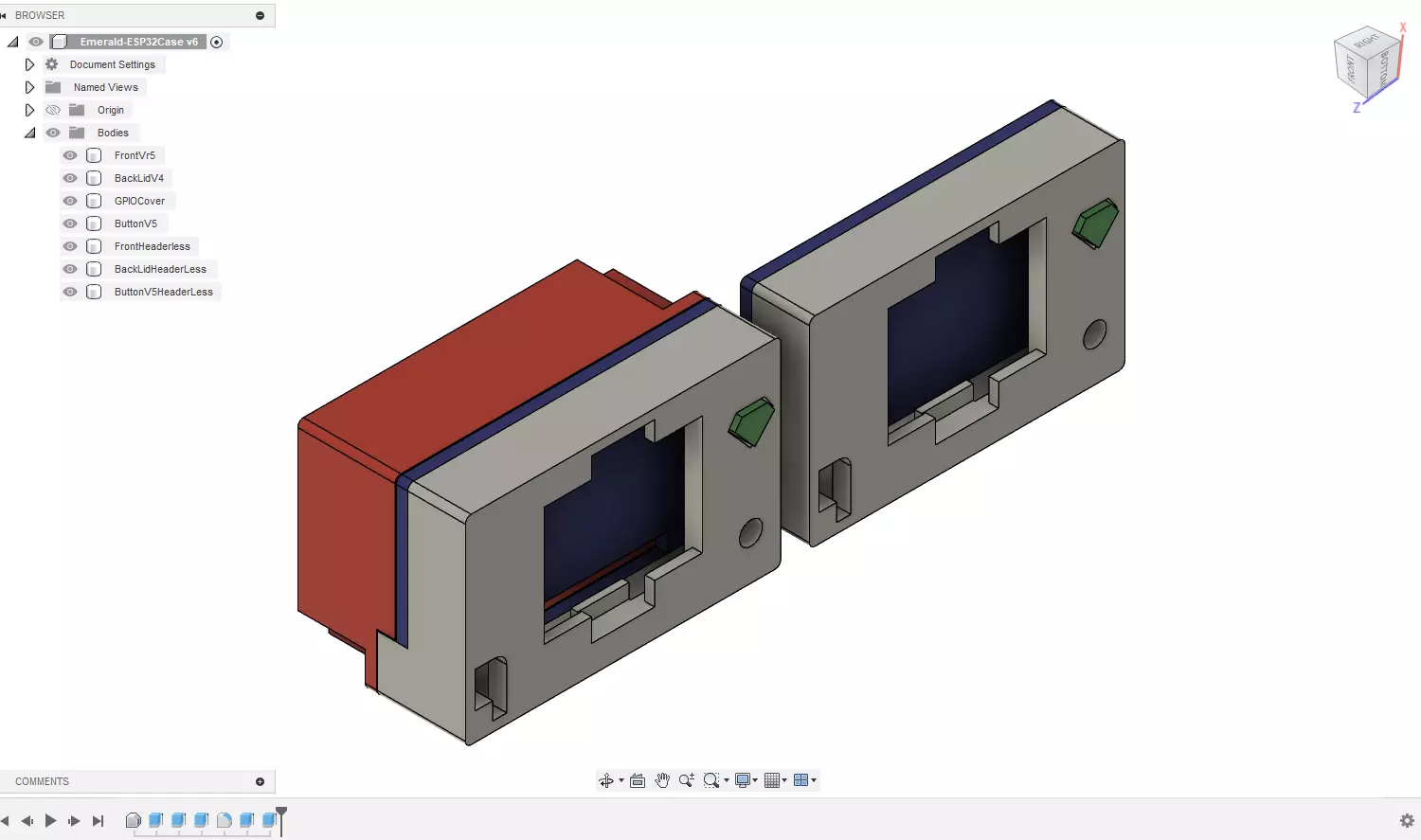

• Refer to the Assembly_Green_FreeSpace and Assembly_SlideMotion images for guidance on how the free space aligns during assembly.
• Highlighted areas show the optimal path for sliding the case components together.
• You may want to crimp your dupont wires shorter if you have a pair of crimps

This case design is the result of weeks of testing and refinement to ensure optimal fit, functionality, and ease of use. Whether you're prototyping or creating a final product, this case is designed with makers in mind.Thank you so much every cent helps me build more stuff!!
