Operational mechanical iris

Operational mechanical iris 3D print model

Description

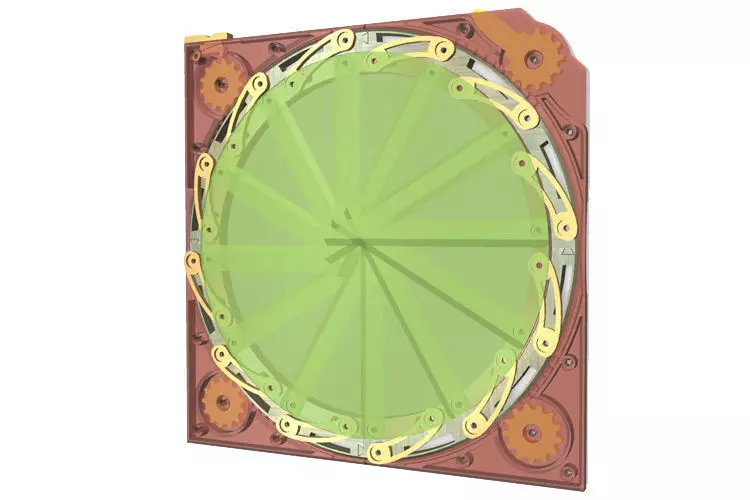

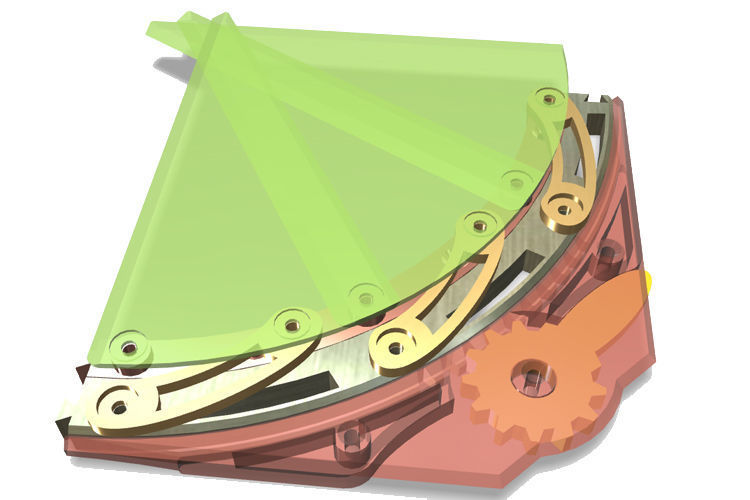

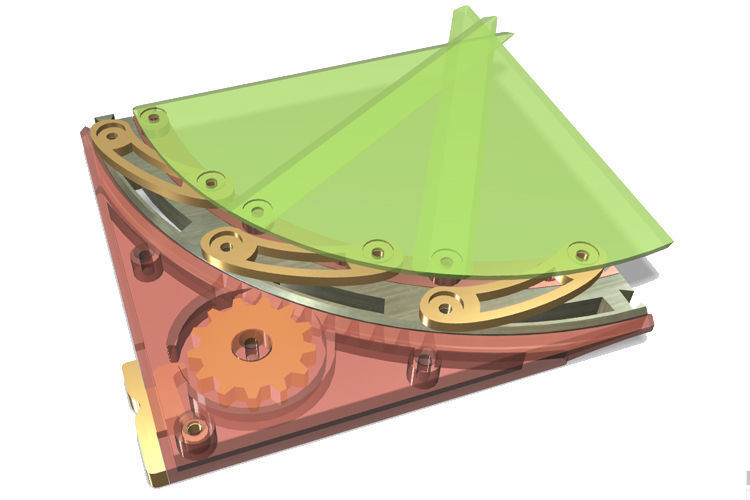

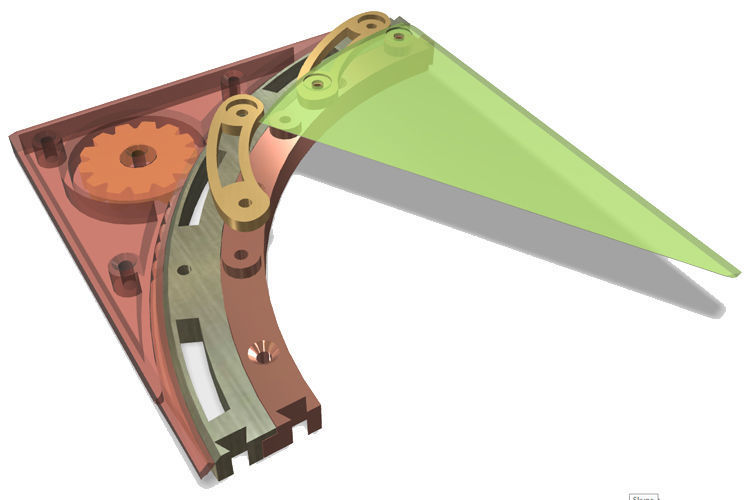

An operational iris with control-arm cog and locking mechanism. Added ball-bearing cavities to provide smooth motion when in use. Constructed using rivets, nuts and bolts; bearings optional.

Item printing quantities: Blades / fins (print x12)Hinges (print x12)Inner ring quarter (print x4)Outer ring quarter (print x4)Standard corner (print x2)Standard cog (print x3)Control corner (print x1)Control-arm cog (print x1)Lock corner (print x1)Lock mechanism (print x1)

Item rating
0 0
Operational mechanical iris
$25.00

Royalty Free License
Operational mechanical iris
$25.00

Royalty Free License
Response - % in - h
3D Modeling

3D Model formats

Format limitations
  • Stereolithography (.stl) (10 files)2.32 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2017-04-18
  • Model ID#714005
