Airsoft Krytac Kriss Vector Wall Mount and Trigger Lock 3D print model

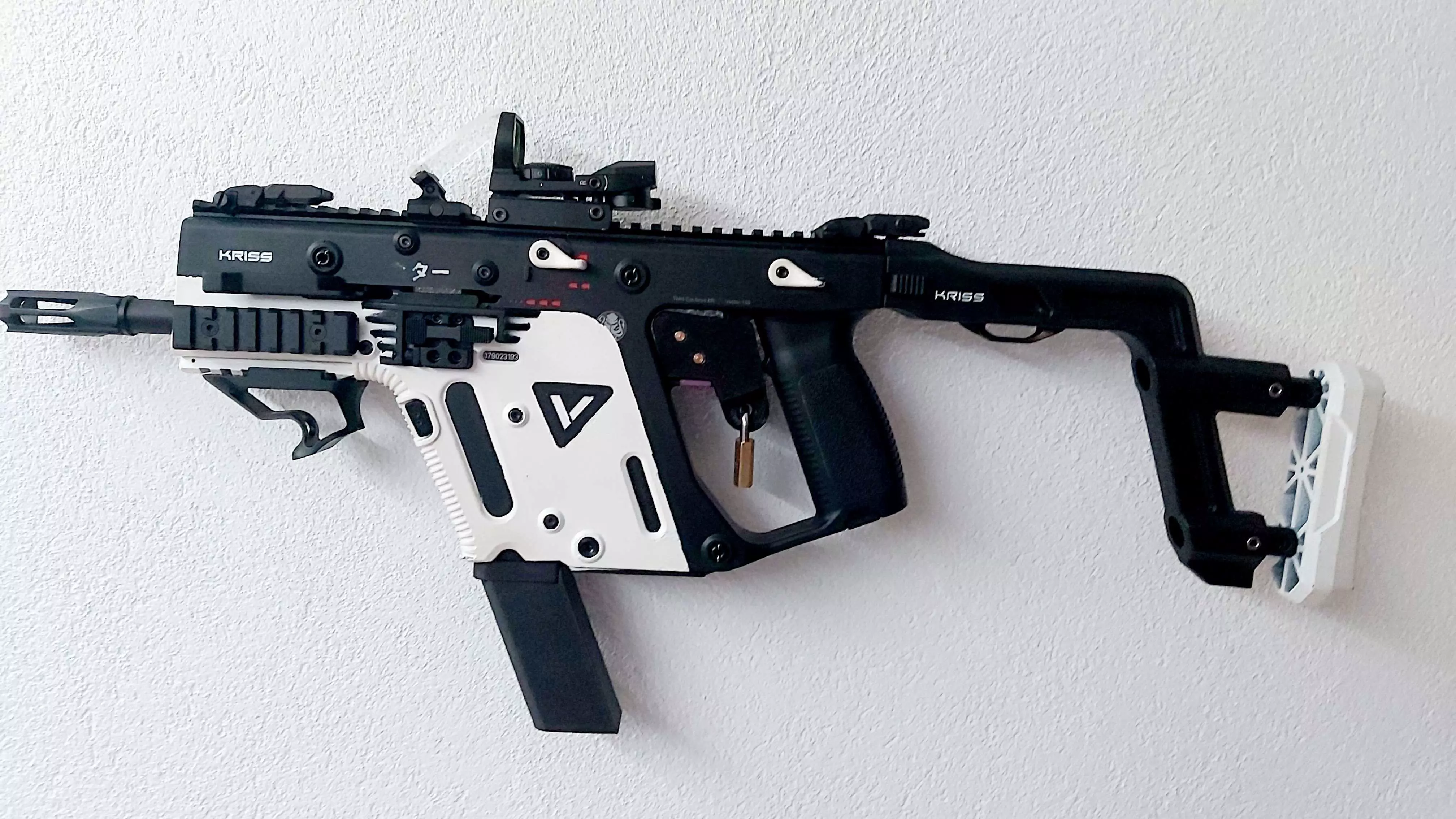

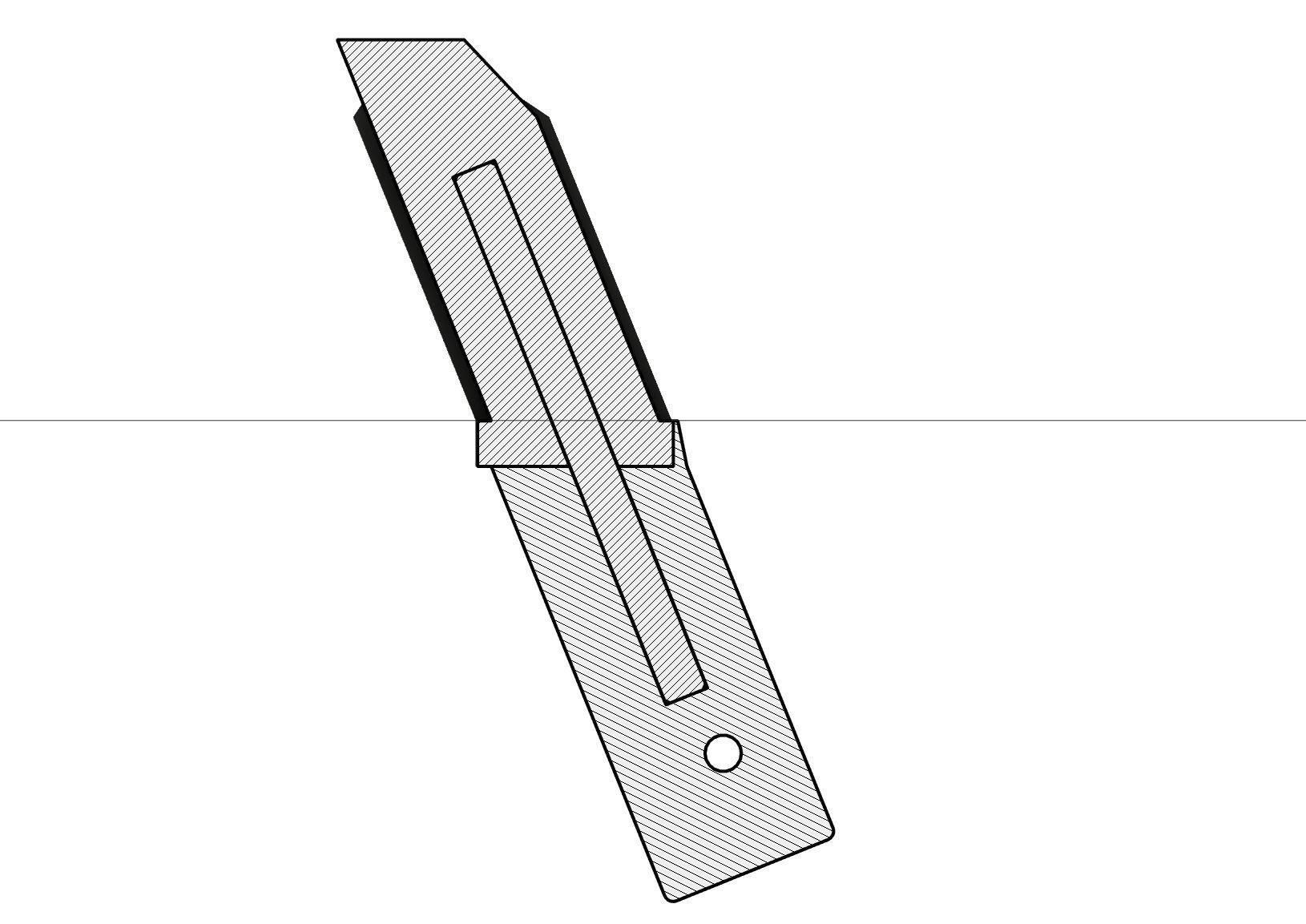

Wall mount: Minimalistic, Modular and Stable wall mounting design for the Krytac Kriss Vector SMG. There are two versions of the Platform [Platform (L)/(R)], WallMount [WallMount (L)/(R)] and Standoff [Standoff (L)/(R)] deciding in which direction the Airsoft is facing when mounted. Inside the Platform, Mag insert and Standoff is a 10x120mm aluminum rod to prevent cracking or snapping off. I also recommend gluing the three parts together so nothing can move or twist.

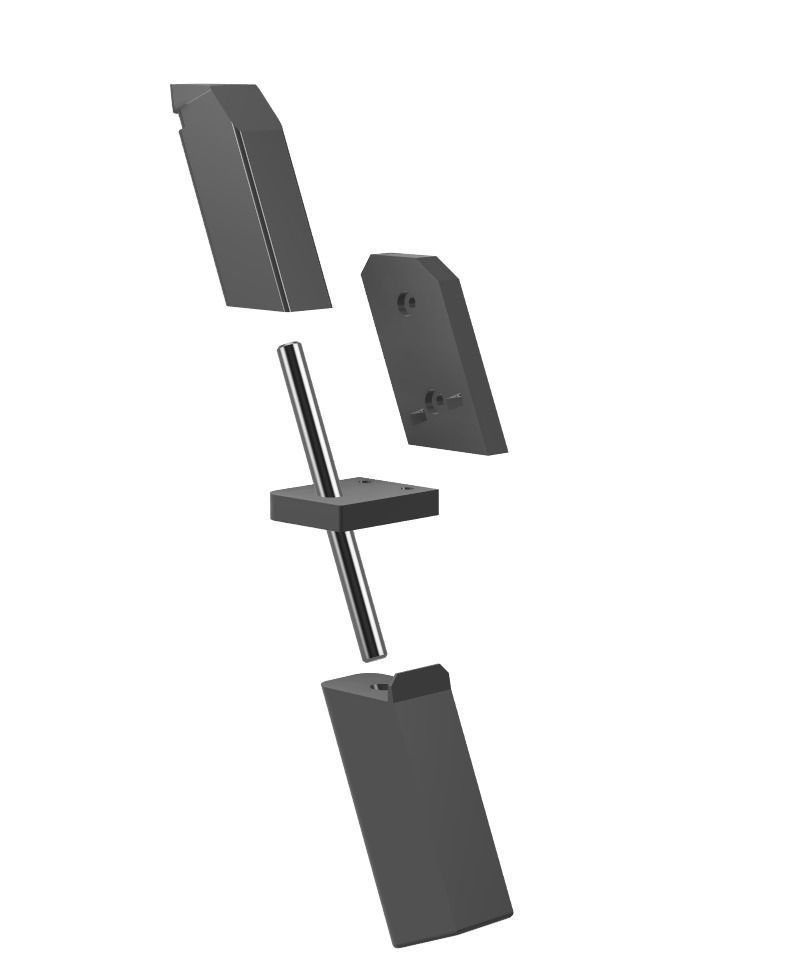

First step: Assemble the Platform, Mag insert and Standoff group (P/M/S Group)

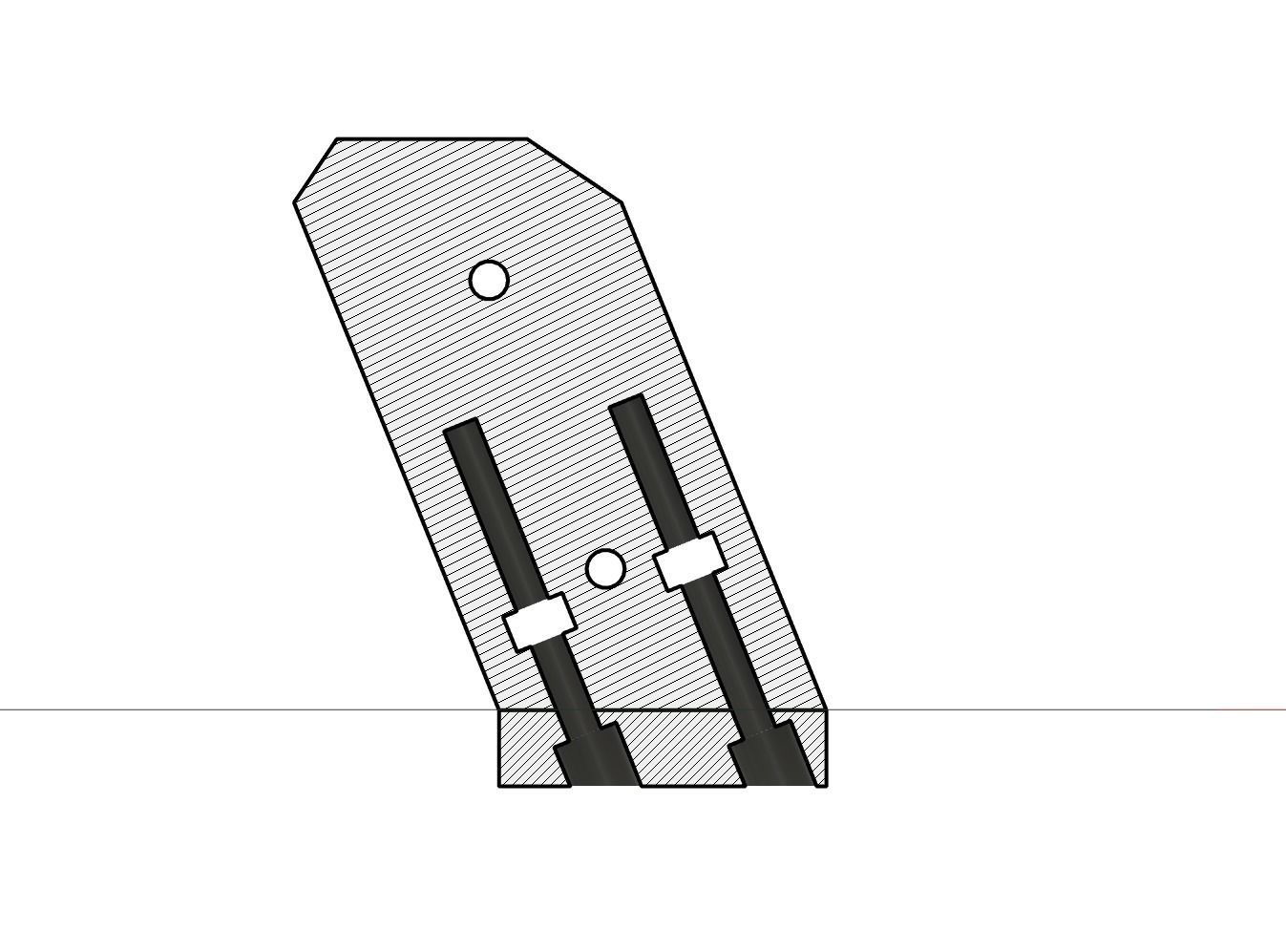

2nd step: Screw the Wall mount to any surface desired and put the M5 nuts in to the Wall Mount.

3rd step: screw the P/M/S Group to the Wall mount using the M5 cylinder head screws

Optional: there is a hole in the Standoff in which you can put a short M8 Bolt to adjust the standoff from the wall by screwing the bolt in or out. It also helps to distribute the forces into the wall.

Parts: 1 x Wallmount 1 x Platform 1 x Standoff 1 x Maginsert 2 x M5 nuts 2 x M5 cylinder head screws 1 x 10x120mm aluminum/steel rod/pipe

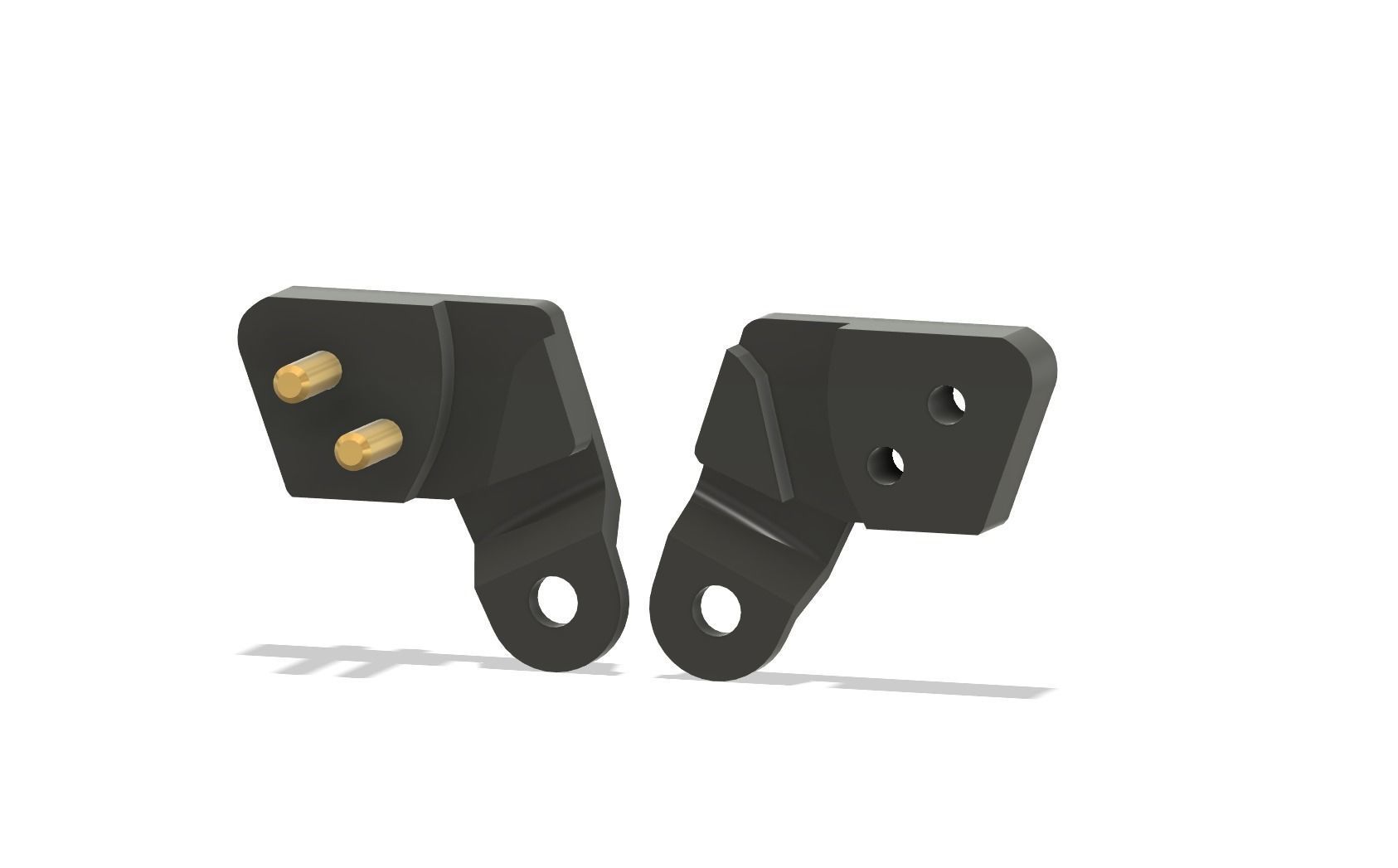

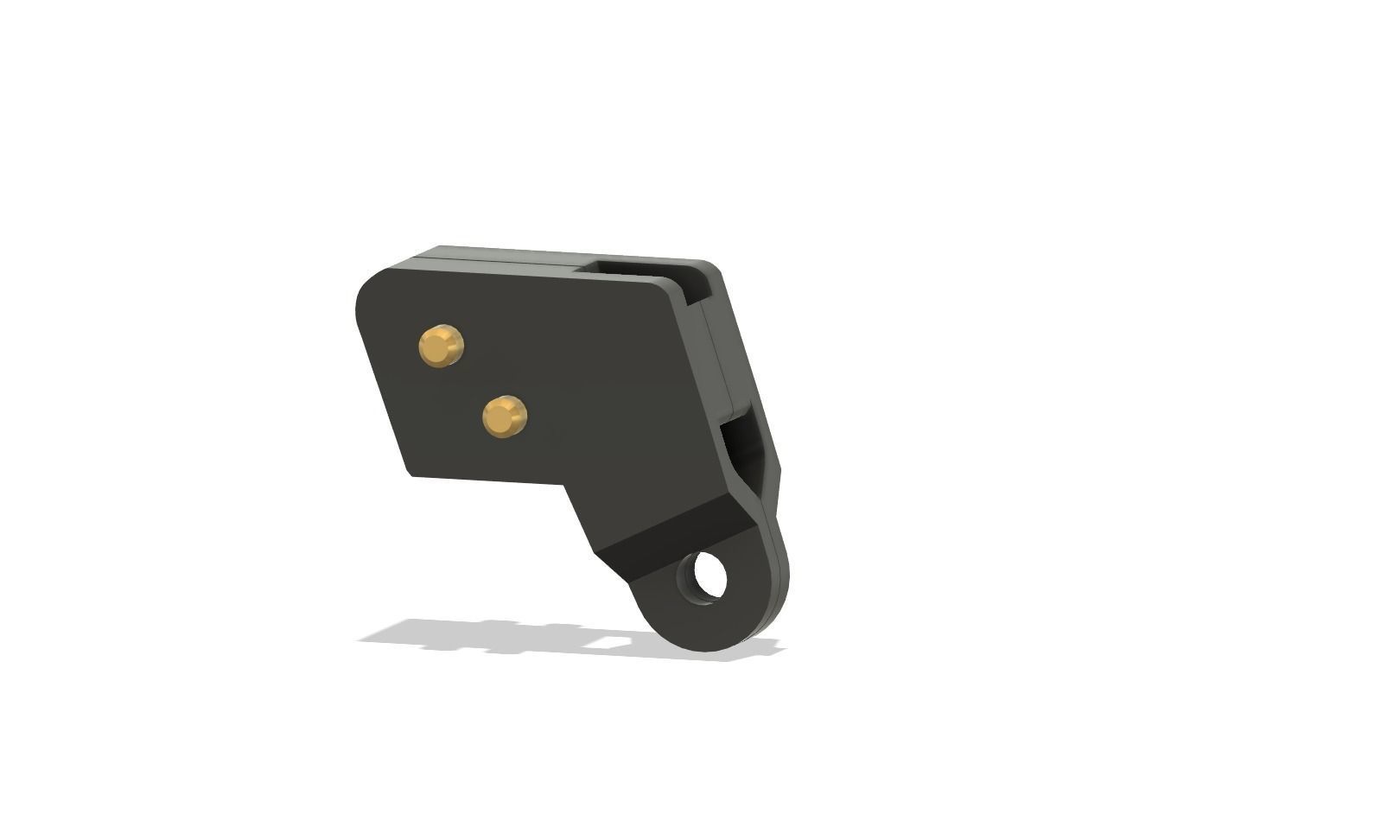

Trigger Lock: Simple Trigger lock design needed in some countries or states if an Airsoft is open wall mounted. I used two 6x30mm brass pins but you can use whatever material you want. just Glue the pins in one of the halves and make sure they move free in the other half. !Attention! the pins must be at least 30mm or longer (depending on the padlock used) so that the lock cannot be opened. If the pins are too short for the used padlock, the trigger lock can be pushed open.

Parts: 1 x Trigger Lock 1 1 x Trigger Lock 2 1 x Padlock 2 x 6x30mm Pins
