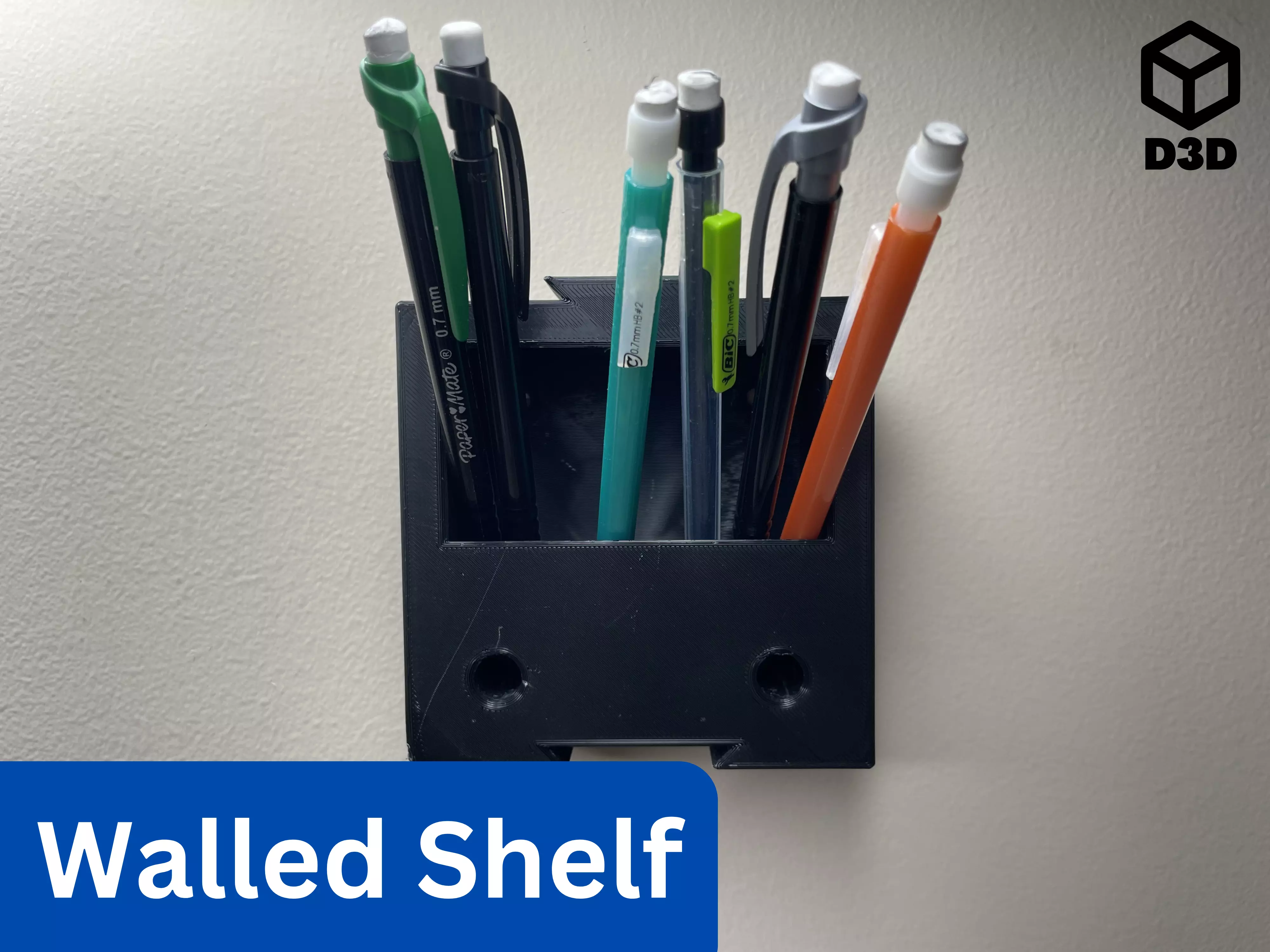

Walled Shelf - Modular Dovetail Square Shelving System 3D print model

This is a modular square wall shelf. It allows you to print and connect as many shelves as you need to store what you have. Each shelf has a dovetail on the top and bottom for connection with another shelf.

This shelf is compatible with all the other things in the Modular Dovetail Square Shelving System.

Print Instructions

• Material: PLA or PETG (for extra strength)
• Supports: Yes
  • The holes underneath the wall will require supports if the shelf is laid on its back
  • If the shelf is printed in a different orientation, other places will require supports
• Orientation: Print the shelves on its back

Parts

• Wall shelf (included)
• 4x screws with a shaft diameter of 5 mm, a head diameter of 10 mm and a head thickness of 5 mm (not included)
• 4x drywall anchors (not included) (optional)

Specs

• The total shelf footprint is 100mm x 100mm x 50mm
• The size of the hole in the shelf wall 40mm x 80mm x 40mm
• Every shelf has 4 screw holes
• Each shelf also has a hanging mount in the middle of the back

Assembly

• Print as many shelves as you need
• Install the drywall anchors (optional)
• Mount one shelf to the wall with the screw holes or the hanging mount
• Ensure that the first shelf is level
• Install more drywall anchors (optional)
• Slot all the shelves together with the dovetail joints
• Screw each shelf individually into the wall (optional)

If you enjoy this model, please leave a like and a comment. If you have any questions, concerns, or problems, please personally contact me.
