Two-Sided Customizable Business Card Fusion 360 3D print model

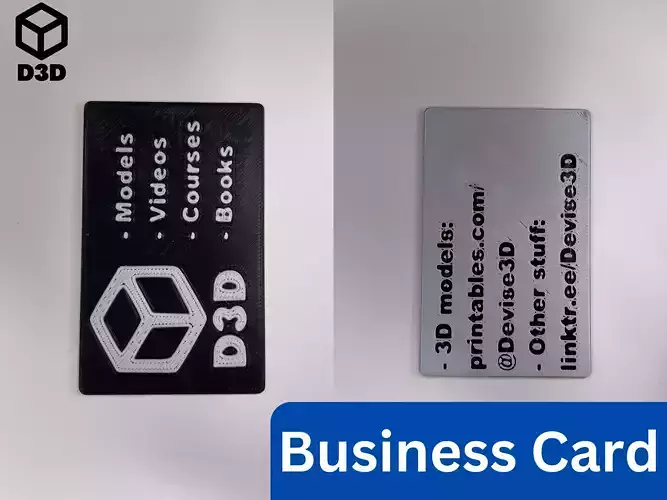

This is a two-sided customizable example business card. It was designed in Fusion 360 and can be modified for many purposes.

Print Instructions

• Material: PLA or PETG (2 to 3 different colors)
• Supports: No
• Orientation:
  • Print all the pieces face down

Assembly/Instructions

Note: This print employs a layer swap and the multi-pass printing method (detailed by Make Anything in Multipass Multicolor using Prusa Slicer // Single Extruder Multicolor 3D Printing), but also has an option to only use layer swaps. A layer swap simply involves adding a pause to your print and then changing the filament so that the text stands out against the background. Multi-pass printing is slightly more involved, but it can yield phenomenal results.

• Layer Swaps (For Single Extruder Printers)
  • Prep
    • Modify the .f3d file for your purposes
    • Export your business card with just the body of the card and not the text in the file or download the “Business Card (One Sided) - Card” file for an example
    • Import that file into your slicer
    • Add a print pause so that the bottom text contrasts with the background (as shown in the photo)
    • Add a print pause so that the top text contrasts with the background (as shown in the photo)
    • Note that the side facing the print bed will probably have the best finish on it
  • Printing
    • Print the file
    • Change the filament at the first pause to a contrasting color
    • At the second pause, change the filament to a new color or back to the first color
• Multi-Pass Printing Method and Layer Swap (For Single Extruder Printers)
  • Prep
    • Modify the .f3d file for your purposes
    • Export your business card with the body of the card and one side of text in the same file or download the “Business Card (One Sided) - All” file for an example
    • Import that file into your slicer
    • Ensure that the entire file, including the text and the body of the card, is oriented with the text facing the build plate
    • Ensure that the text is lined up with the holes in the body of the card
    • Delete the body of the card
    • Slice that file with just the text
    • Undo the deletion of the body of the card
    • Ensure that everything is still lined up
    • Delete the text
    • Slice the file with just the body of the card
    • Add a pause and a layer swap so that the top text contrasts with the background
  • Printing
    • Print the file with the text, in whatever color you want
    • Remove any purge lines from the build surface, but leave the text on the build plate
    • Print the file with the body of the card on top of the text
    • Change the color of the filament between the file so that the body of the card contrasts with the text
    • At the print pause, change the filament to a third color or back to the original color
• MMU or MMS
  • Prep
    • Modify the .f3d file for your purposes
    • Export your business card with the body of the card and both sides of the text in the same file
    • Import that file into your slicer
    • Ensure that the text is lined up with the holes in the body of the card
    • Assign one color to the body of the card and one or two colors to the two sets of text

If you enjoy this model, please leave a like and a comment. Please contact me if you have any questions, concerns, or problems.
