Mandalorian Amban Pulse Rifle Cosplay Prop 3D print model

THIS IS A NON-FUNCTIONAL REPLICA FOR COSTUME PURPOSES ONLYNOT A REAL WEAPON, FOR COSPLAY OR DISPLAY. ORANGE TIP FILE WILL BE INCLUDED IN THE SET.

Mandalorian Rifle model 1:1Format: STL files.2 FILE SETS ARE INCLUDED: Version 5- all parts printed. Version 6- designed with bottom front rail as an exposed dowel or metal rod.
(The STL is for personal use only. Do not copy or redistribute work)

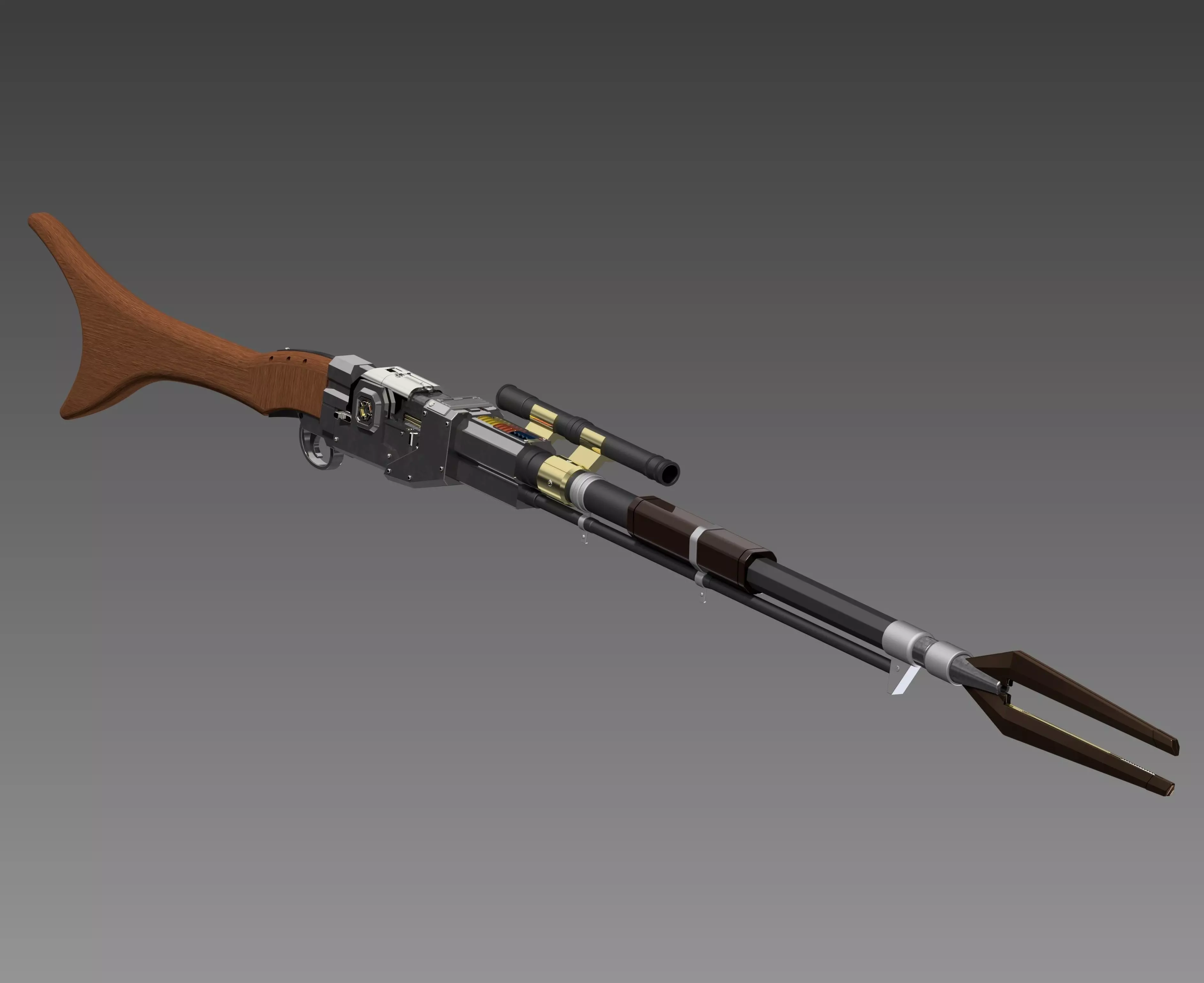

This is a full-scale high detail model of Din Djarrin's Pulse Rifle designed from film images and modeled by me. If needed, just cut the parts to fit your 3D printer, and then slice it with your preferred settings. Model has 28 main parts for the rifle. The overall size of the model 68.875” x 8.080” x 3.250” (1749mm x 205mm x 83mm). This model is designed with small tabs for connecting parts together and stability once fully assembled. It is also designed to have a 10mm or 0.375diameter dowel rod run down the length of the model. For better structural support I highly recommend adding the dowel rod. There are 3 different dowel rods in this assembly, one at 12.125 that goes in the stock if printed in two or 3 parts, one at 12.000 that fits in the lower half of the coil section, and one at 31.375that runs the length of the rifle (this one can also be two rods here. one in the front at 19.375 and one at 12.000that goes in the top of the coil section. this is if you want to separate it in half with magnets). Between parts 6 and 7 there is an extra slot to add 3/8 dia magnets to be able to disassemble the rifle in two pieces for easier transport. These files contain a modification to allow the reload chamber to move as well as the trigger to move.

Newest update: Reload receiver assembly updated with magnets to be able to access the EXT spring for the unlocking mechanism. See Receiver Asm. image for more details. This update is to help access components after final assembly.

Important notes:Reloading mechanism designed to spring up and allow a cartridge to be put in.Trigger can moveScope is designed to be magnetically attachedSee assembly images regarding springs needed and magnets needed to assemble.

This model is for personal use only! The model is not intended for resale, alteration, manufacture of molds or castings for resale! If you wish to sell finished pieces of these or 3d prints send me a message here.

If you need any help with this assembly feel free to contact me and I will gladly answer any questions you have. I hope you like it. If you have any problems with the model or the 3D prints, please contact me and I will adjust them accordingly. Thank you.
